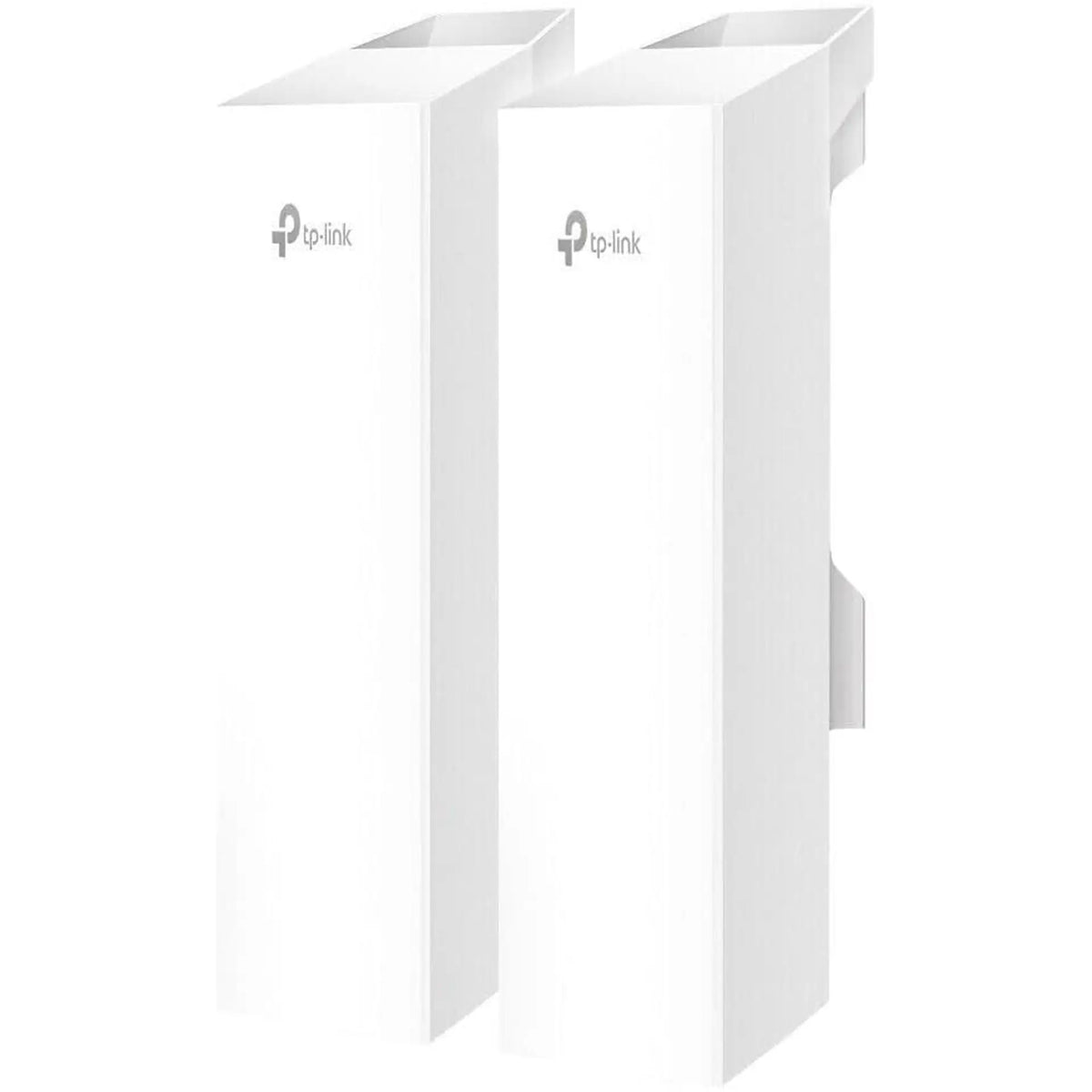

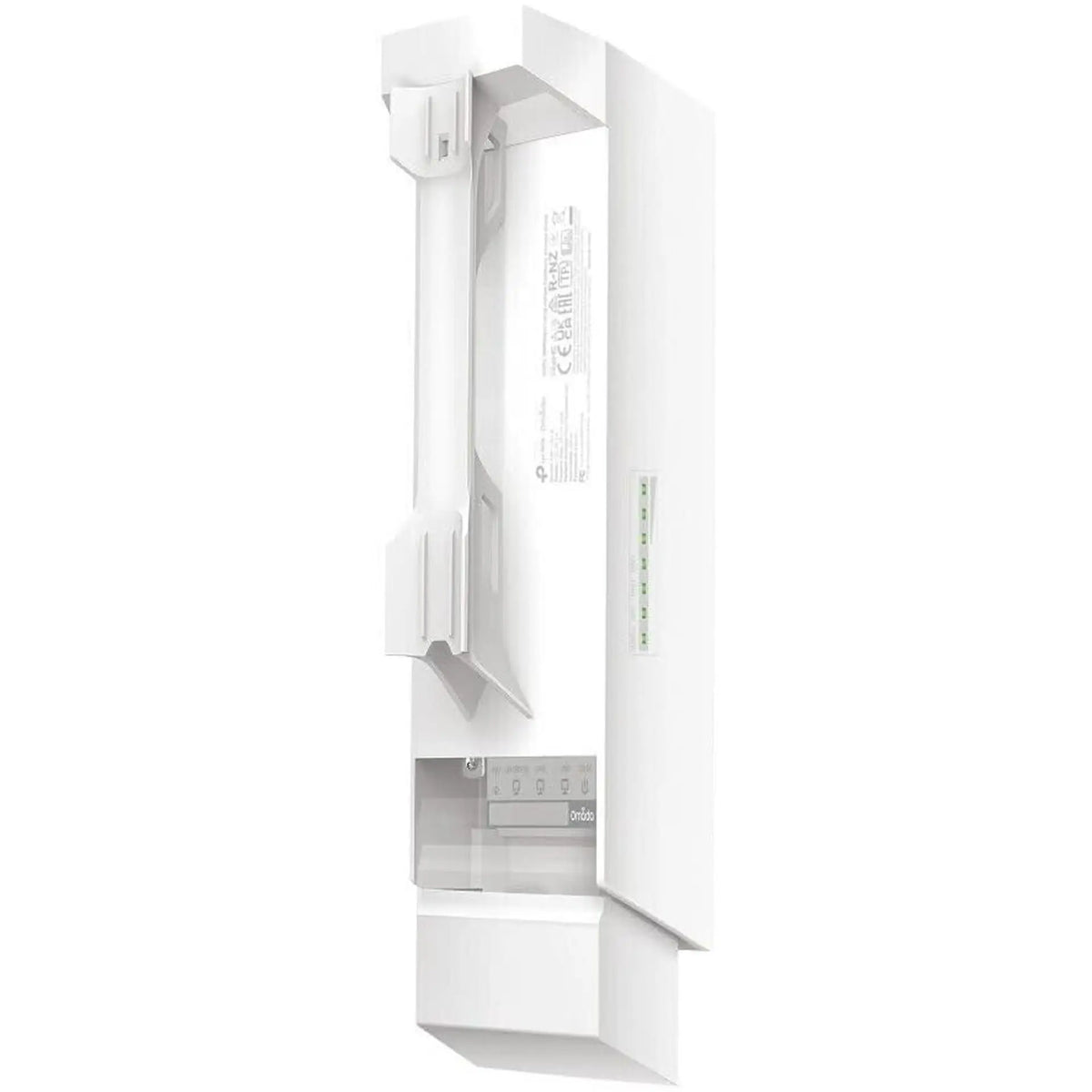

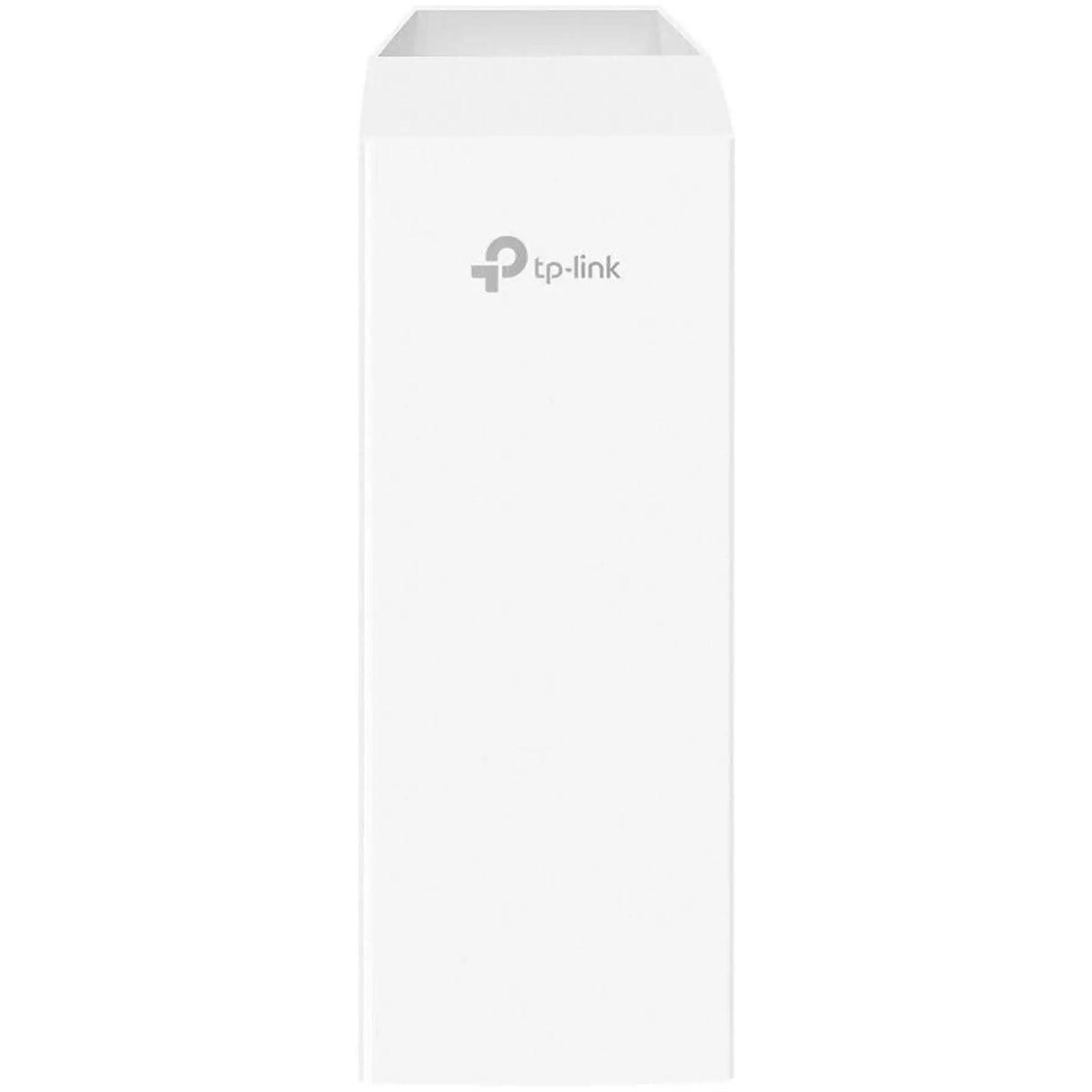

EAP211 Omada 5GHz 867Mbps Wireless Bridge Kit

TP-Link Omada EAP211-Bridge KIT is a high-performance 5GHz wireless bridge designed for indoor and outdoor use. It delivers speeds up to 867 Mbps and supports long-range transmission up to 1 km, making it ideal for connecting distant buildings or extending networks across large areas. The kit features auto-pairing for easy setup, three Gigabit Ethernet ports for high-speed wired connections, and a 7 dBi 2×2 MIMO directional antenna for focused signal strength. Its IP65-rated weatherproof enclosure and 6kV lightning protection ensure durability in various environments. The device supports passive PoE, 802.3af PoE, and 12V DC power options, offering flexible deployment. Additionally, it integrates with Omada SDN for centralized network management.

Features

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for long-range wireless transmission up to 1 km.
• Auto-pairing and agile LEDs for efficient deployment.

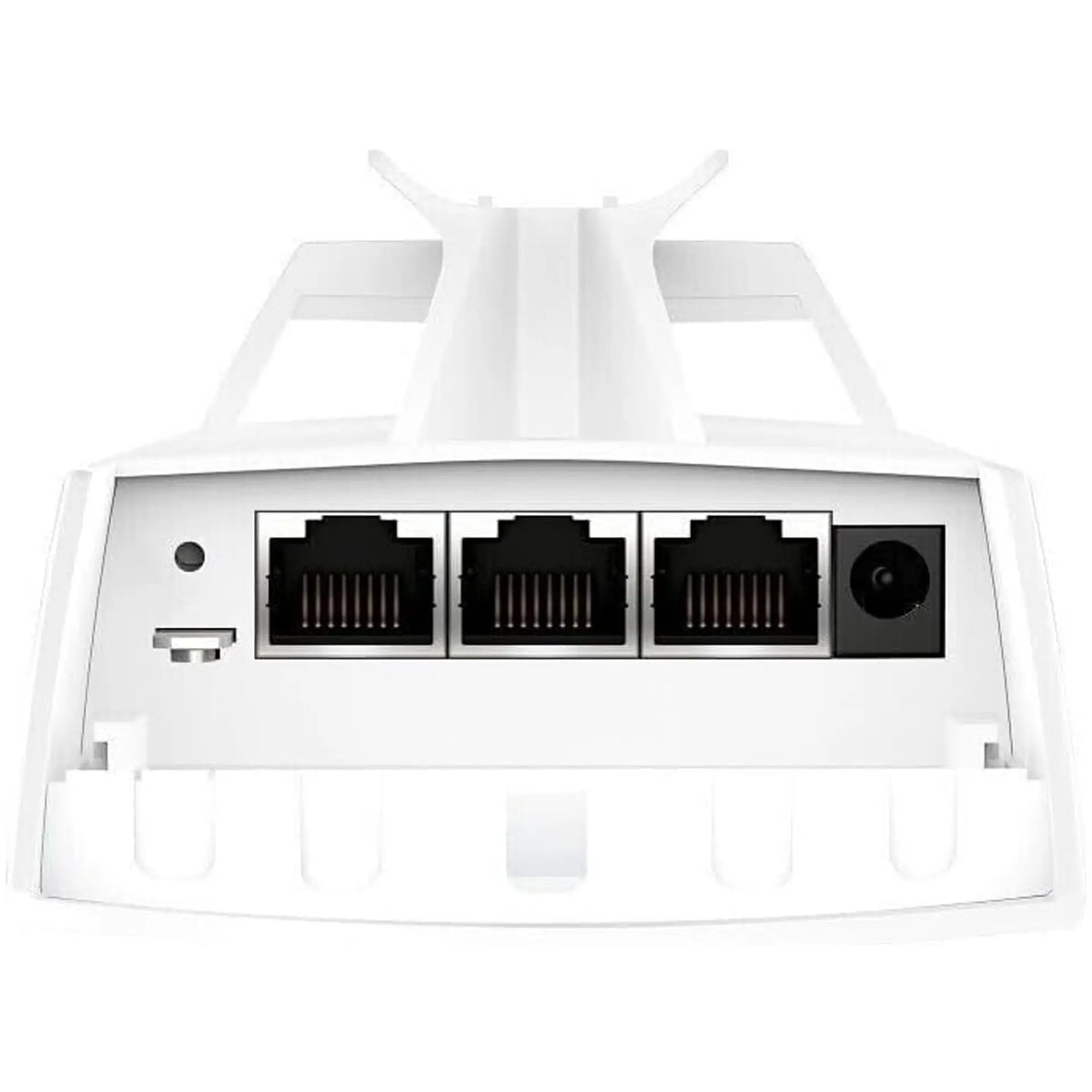

• 3× Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralized management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
• Supports Passive PoE for flexible deployment (adapter included).

Specifications

• Hardware Features
• Interface: 3x Gigabit Ethernet Ports*6
• Button: Reset
• Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
• Max. Power Consumption: 11.5W
• Dimensions ( W x D x H ): 224 × 79 × 60mm
• Antenna: Internal 2×2 Dual-polarized directional MIMO antennas, 5 GHz: 7.0 dBi, Horizontal:70°, Vertical: 70°
• Weatherproof Enclosure: IP65
• Mounting: Pole Mounting (Accessories included)
• Wireless Features
• Coverage: 1000m(3280ft)5
• Wireless Standards: IEEE 802.11 a/b/g/n/ac
• Frequency: 5 GHz
• Signal Rate: 5 GHz, Up to 867 Mbps
• Wireless Functions
• - Mesh*4
• - MU-MIMO: 5G 2x2 MU-MIMO DL
• - Load Balance
• - Beamforming
• - Airtime Fairness
• - Multiple SSIDs: 8
• - Wireless Statistics
• - Wireless Schedule
• - Reboot Schedule
• - RADIUS Accounting
• - MAC Authentication
• - Static IP/Dynamic IP
• Wireless Security
• - VLAN
• - Access Control
• - Rogue AP Detection
• - Captive Portal Authentication*4
• - Maximum number of MAC Filter: 4,000
• - WPA-Personal/Enterprise, WPA2-Personal/Enterprise
• Transmission Power
• - CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP);
• - FCC: <22dBm (5 GHz band1/4)
• Management Features
• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
• Centralized Management
• - Omada Hardware Controller (OC300)
• - Omada Hardware Controller (OC200)
• - Omada Software Controller
• - Omada Cloud-Based Controller
• Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based Management: Yes
• Others
• Certification: CE, FCC, RoHS
• Package Content
• - EAP211-Bridge KIT
• - Passive PoE Adapter
• - Power Cord
• - Installation Guide
• - Mounting Kit
• Environment
• - Operating Temperature: -40 °C–70 °C
• - Storage Temperature: -40 °C–70 °C
• - Operating Humidity: 10%–90% non-condensing
• - Storage Humidity: 5%–90% non-condensing
