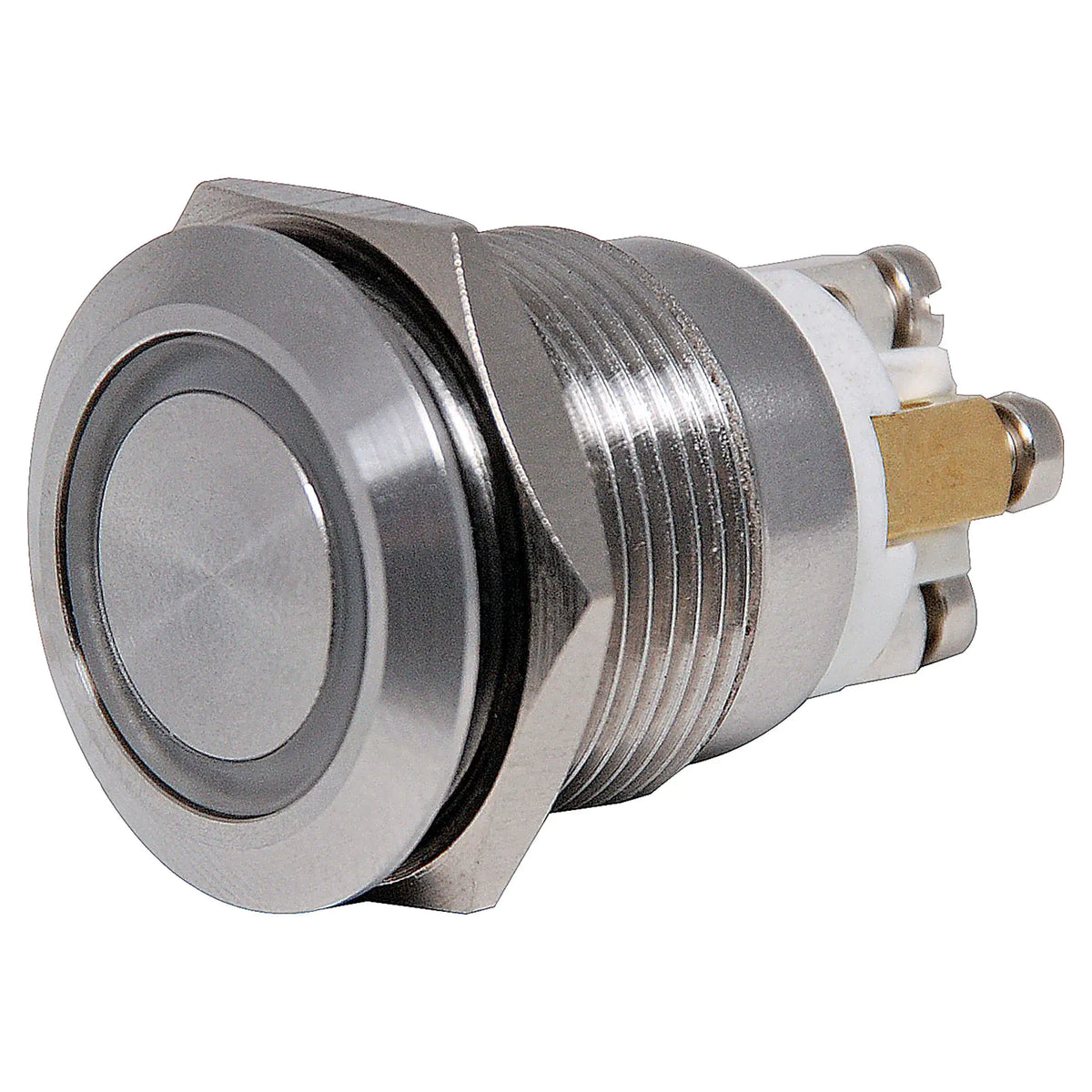

Spst IP65 Vandal Resistant Illum. Red Blue LED Pushbutton Switch
Regular price
$34.95
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $34.95 each |
| Buy 5-9 | $34.05 each |
| Buy 10+ | $33.20 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
School order payment option available at checkout
30 day payment terms for Australian schools only. Learn more.
Heavy duty vandal resistant switch for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary action. Red/Blue LED ring.
Specifications
- Switch type: Screw terminal SPST
- Contact rating: 2A @ 36V DC
- Operation type: Momentary
- Contact resistance: <50mΩ
- Insulation resistance: >1000MΩ
- Dielectric strength: 1500V, RMS 50Hz, 1 min
- Operating temperature: -25°C to 55°C
- Operating force: About 3N.
- Operating travel: About 2.5mm.
- Outer construction: Stainless steel
- LED: 12V dc
- Rating: IP65

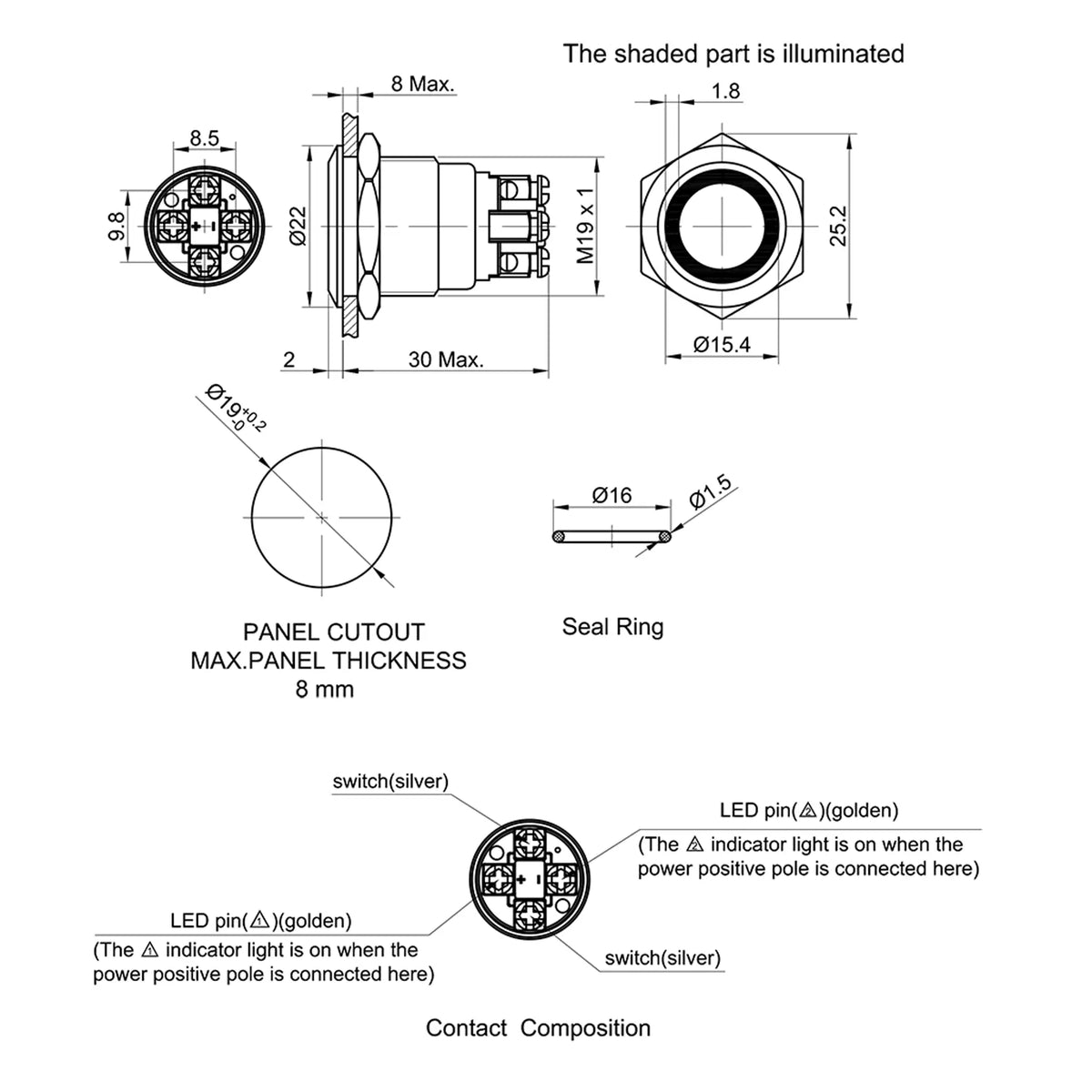

- Panel Thickness: 1-8mm
- Cutout diameter: 19mm
