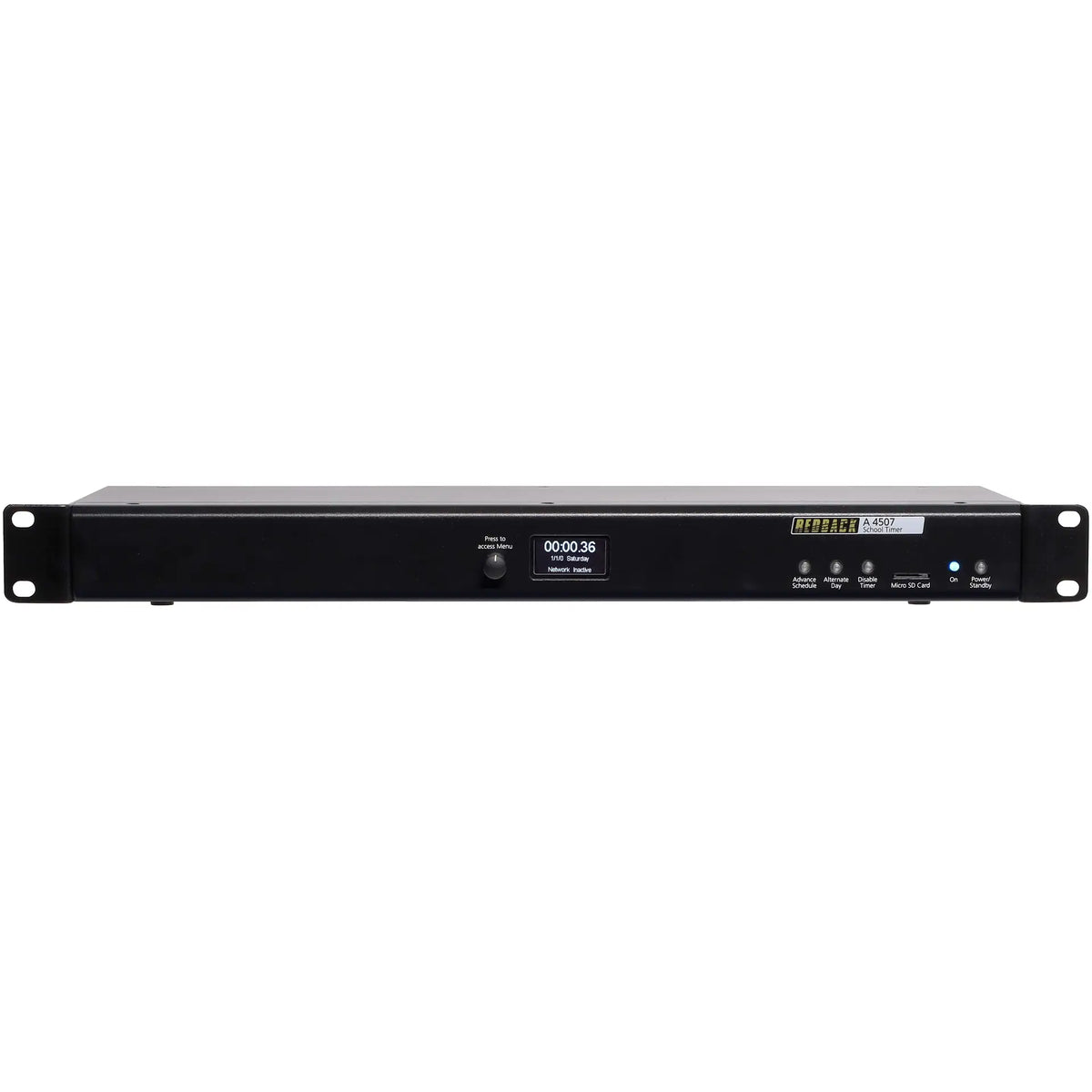

Programmable School Timer

Plan and automate your school's entire year with ease using this versatile programmable message timer. Designed for flexibility and simplicity, the intuitive Windows-based software allows installers or end users to pre-program the full school calendar (including term dates, student-free days, public holidays, and daylight saving changes). The system supports repeating and rotating weekly timetables (2+ weeks supported) and integrates seamlessly with the school PA system for automated bells, pre-bells, announcements, and music playback.

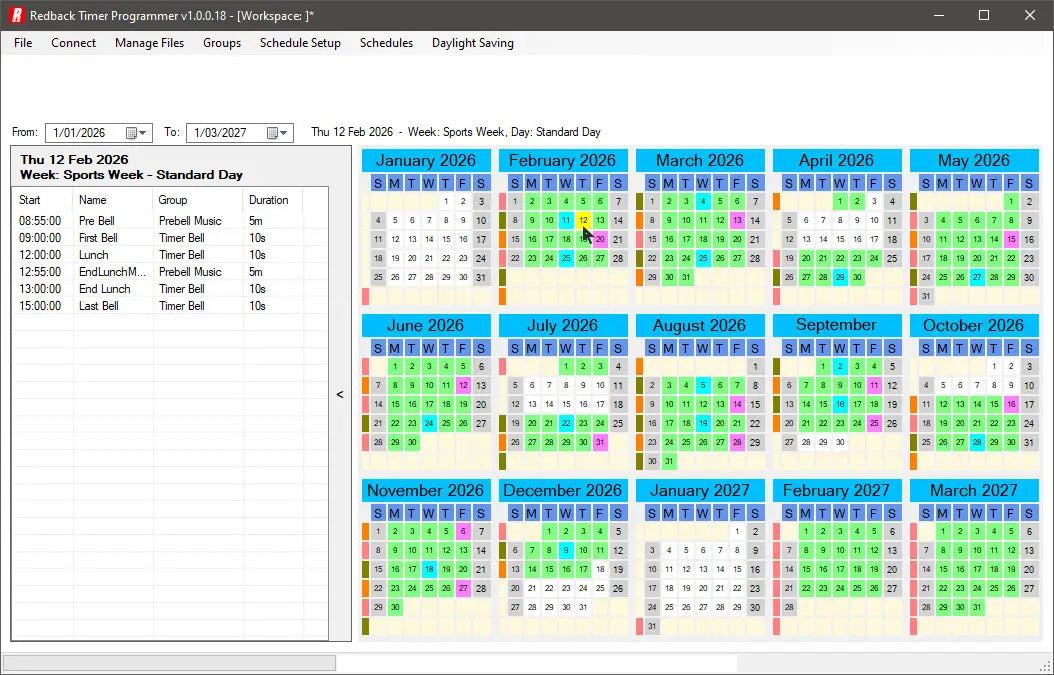

Programming is simple with a user-friendly calendar interface and can be managed locally or remotely via local network or VPN. All MP3 files and timing schedules can be stored internally or on a Micro SD card.

All audio outputs can be configured for random or sequential MP3 playback, providing engaging "Call to Class" music. 24VDC and NO/NC outputs are available and can be arbitrarily assigned to trigger alongside or instead of any timer event audio output, ideal for sirens or bells.

Features

• Repeating and rotating weekly timetables
• Set date calendar programming
• MP3 audio format files required for emergency tones
• Emergency Tones can be configured to conform to AS 1670.4 (supplied)
• Easy PC based timing event setup managed locally or remotely via a local network
• Paging (Optional via Redback® )
• Individual zone paging up to 32 zones (Optional via Redback® 16 zone paging system)
• Remote triggering of emergency functions via closing contacts
• Remote triggering of emergency functions (Optional via Redback® wall plates and )
• Emergency Paging and Remote triggering of emergency functions (Optional via Redback® )
• Switched 24VDC output for emergency functions
• NO/NC outputs for emergency functions

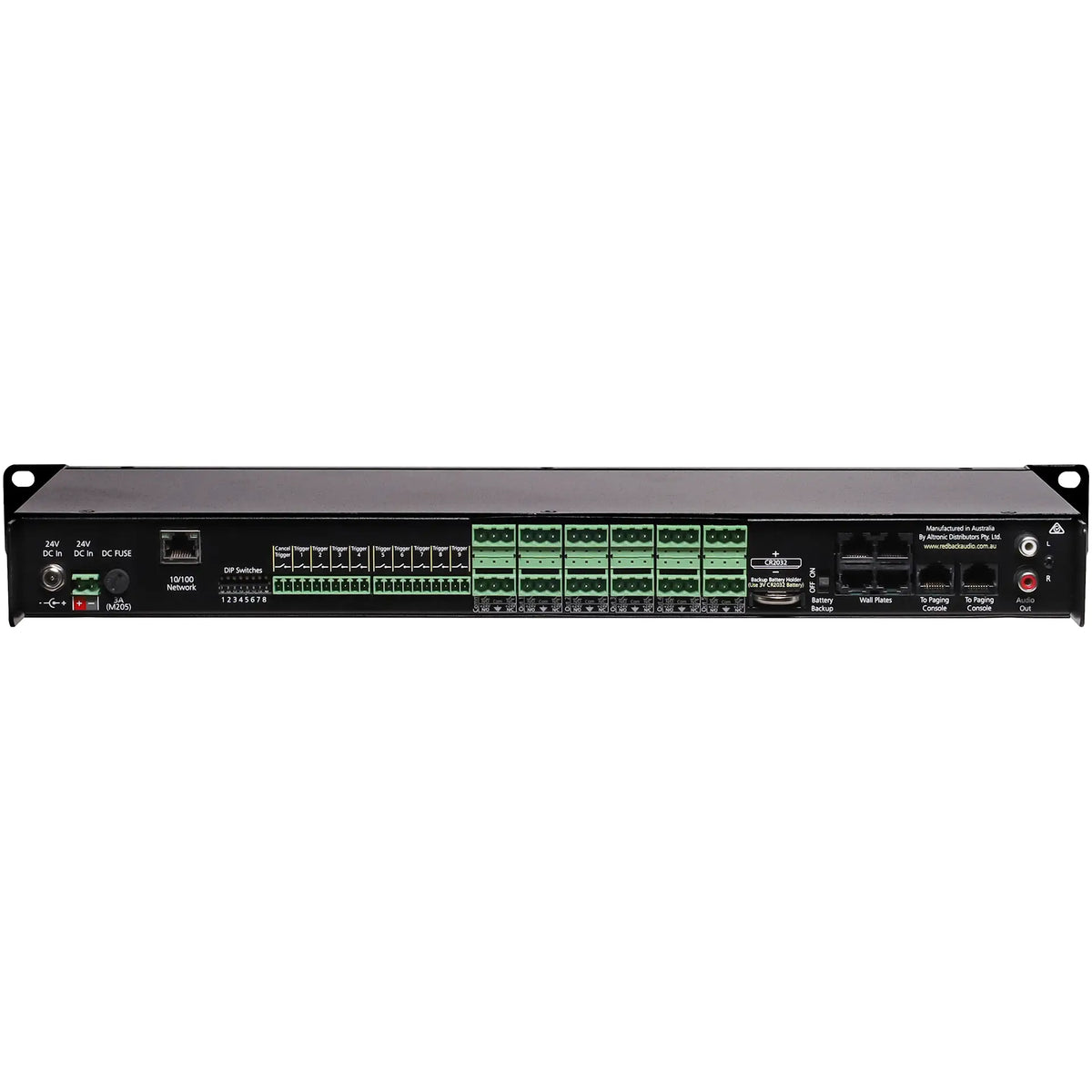

• Pluggable screw terminal connections
• Auxiliary level output
• Battery backup of current time
• 24V DC operation
• Standard 1U 19" rack mount case
• Suitable for any amplifier with an auxiliary input
