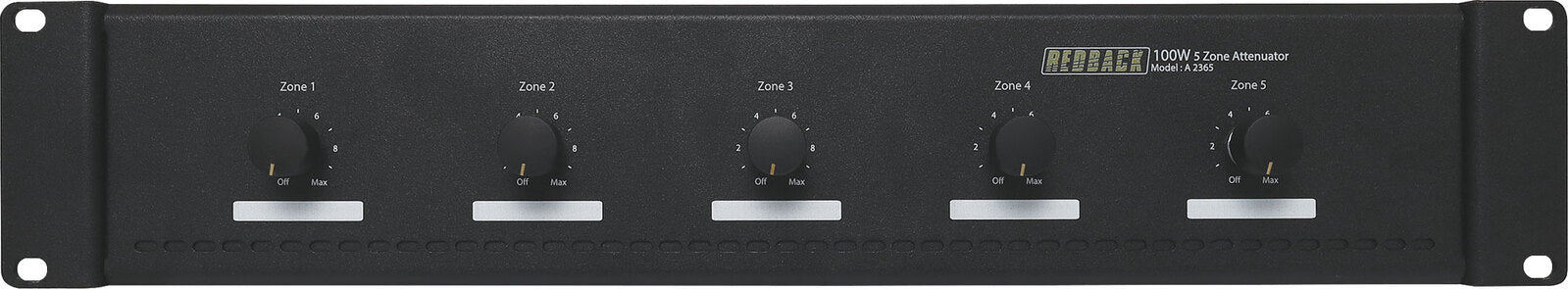

Redback Attenuator Volume Control 5 Zone Evac 100W / 100V Line

These controllers can be configured as either five single inputs to five outputs or one input to five outputs. Each zone has a 100W load capacity, with a total panel capacity of 500W. The 100W model has ten position plus off. The input and outputs are connected via heavy duty screw terminals on the rear panel. They are housed in a 2 unit rack panel and are supplied with an engraving strip to label the speaker zones. Suitable for 100V line commercial PA systems only.

Features

• Standard 2 unit (88mm) 19" rack mount dimensions
• Five Zone outputs
• Accepts 1 to 5 inputs
• Each zone has 10 positions plus off
• 500W total load capacity (100W per zone)
• Easy to terminate screw terminals
• Unit is supplied with an engraving strip which can be fitted with double sided tape (supplied)
• Includes 24V DC override relay for bypassing volume controller settings.

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Power rating: 500W Total (100W per zone)
• Relay override voltage: 24VDC
• Attenuation: 0, 3, 6, 9, 12, 15, 18, 21, 27, 33 dB
• Dimensions: ≈ 484W x 50D x 88Hmm
• Colour: Black
• Weight: 4Kg

*Specifications are subject to change without notice.
