Amplifier Module 250W
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $749.95 each |
| Buy 5-9 | $731.20 each |
| Buy 10+ | $712.45 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
30 day payment terms for Australian schools only. Learn more.

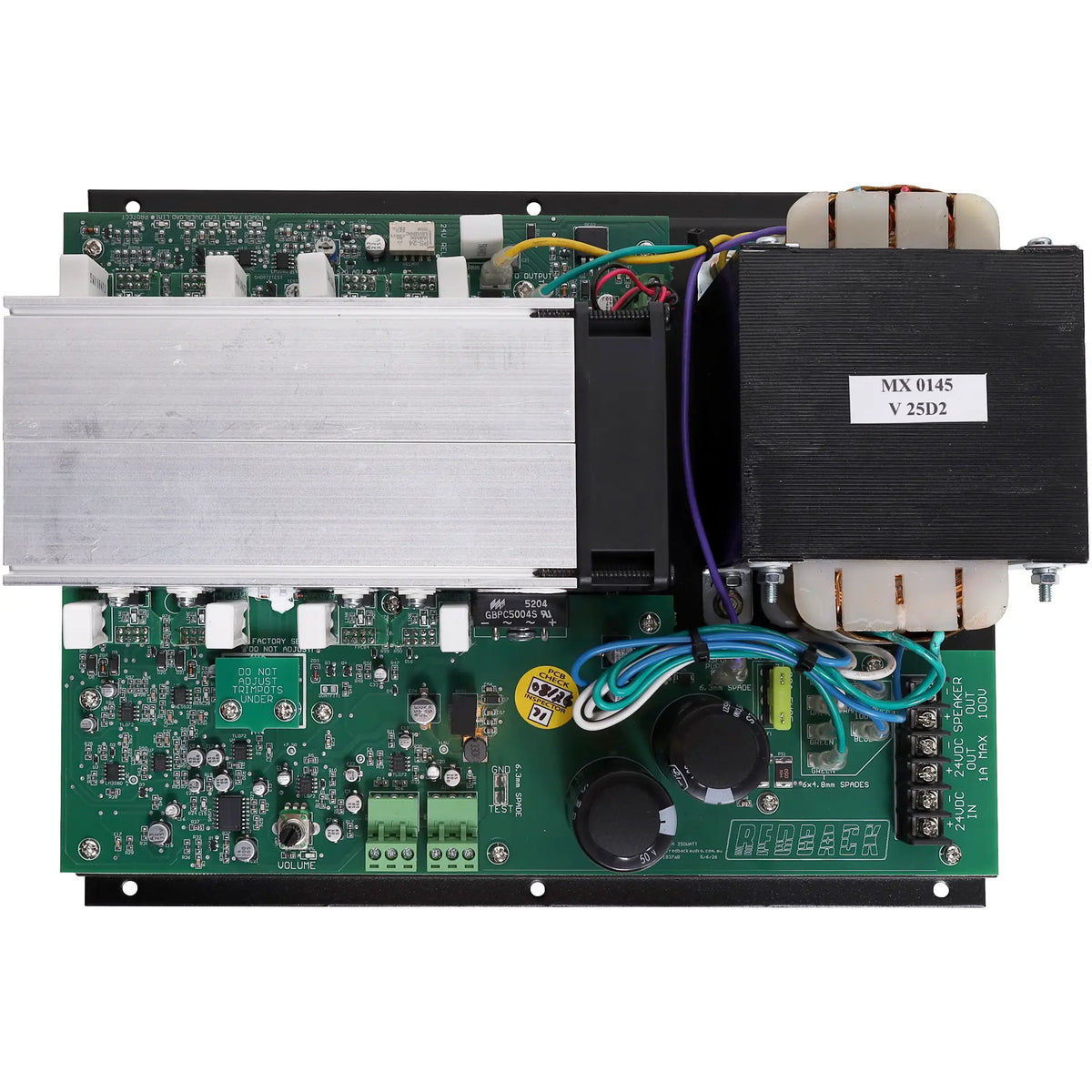

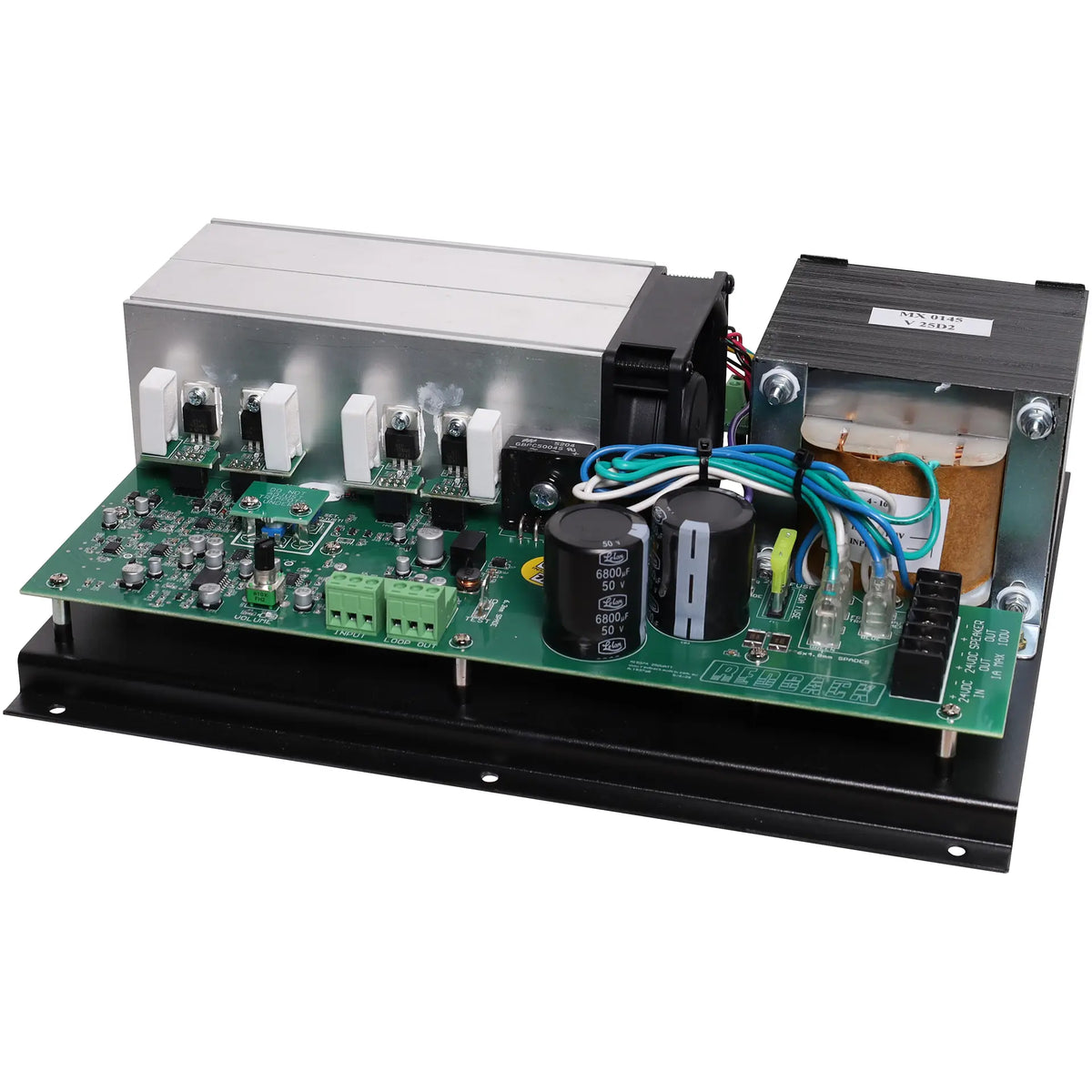

This module is designed for use in emergency evacuation systems and is powered by an external 24V DC source. It accepts a line level audio input and produces a 100V line output via a transformer. It also features short circuit, overload and thermal cutout protection, and is constructed on a steel chassis. Designed with reliability and robust performance in mind, it is the ideal audio power source for evacuation systems, or any application which requires a DC powered 100V line amplifier.
Features
- Powered by nominal 24V DC
- 100V line audio output
- Line level audio input - 600mV
- Short circuit, overload, and thermal cutout protection
- Bolt-in chassis construction
- Australian designed and assembled
Specifications
- Output Power: 250W RMS
- Current Draw: 17A at full load (360mA quiescent)
- Frequency Response: 40Hz - 13kHz
- Distortion: <0.6%
- SNR: -91dB
- Sensitivity: 600mV RMS
- Fuse Rating and type: 20A Blade
- Dimensions: 300W x 240D x 95H
