4 Channel PA Mixer With Bass and Treble
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $454.95 each |
| Buy 5-9 | $443.55 each |
| Buy 10+ | $432.20 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
30 day payment terms for Australian schools only. Learn more.
The Redback® 4 channel mixer has been designed to meet the requirements of professional public address installations. It is ideally suited for use in shopping centres, gymnasiums, places of worship, court rooms etc.

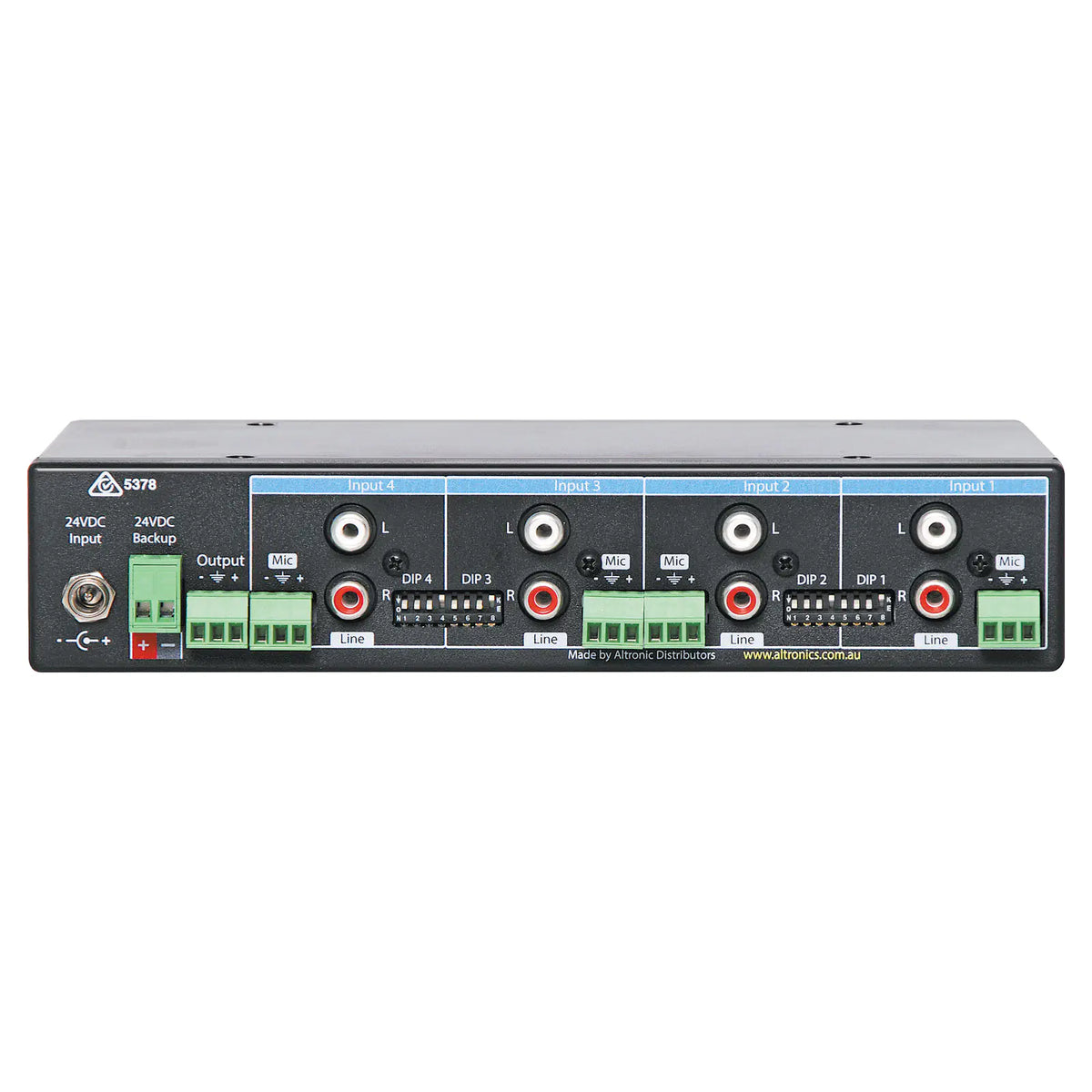

Inputs and Outputs The is a 4 channel mixer with all inputs configurable for Balanced Mic or Line level input. The line level inputs are dual RCA's with DIP switch adjustable input sensitivity, and are internally mixed to give a mono signal. The balanced mic inputs are connected via 3 way euro blocks and have DIP switch selectable input sensitivity and selectable phantom power of 15V DC . A 1V balanced output is provided via euro blocks.

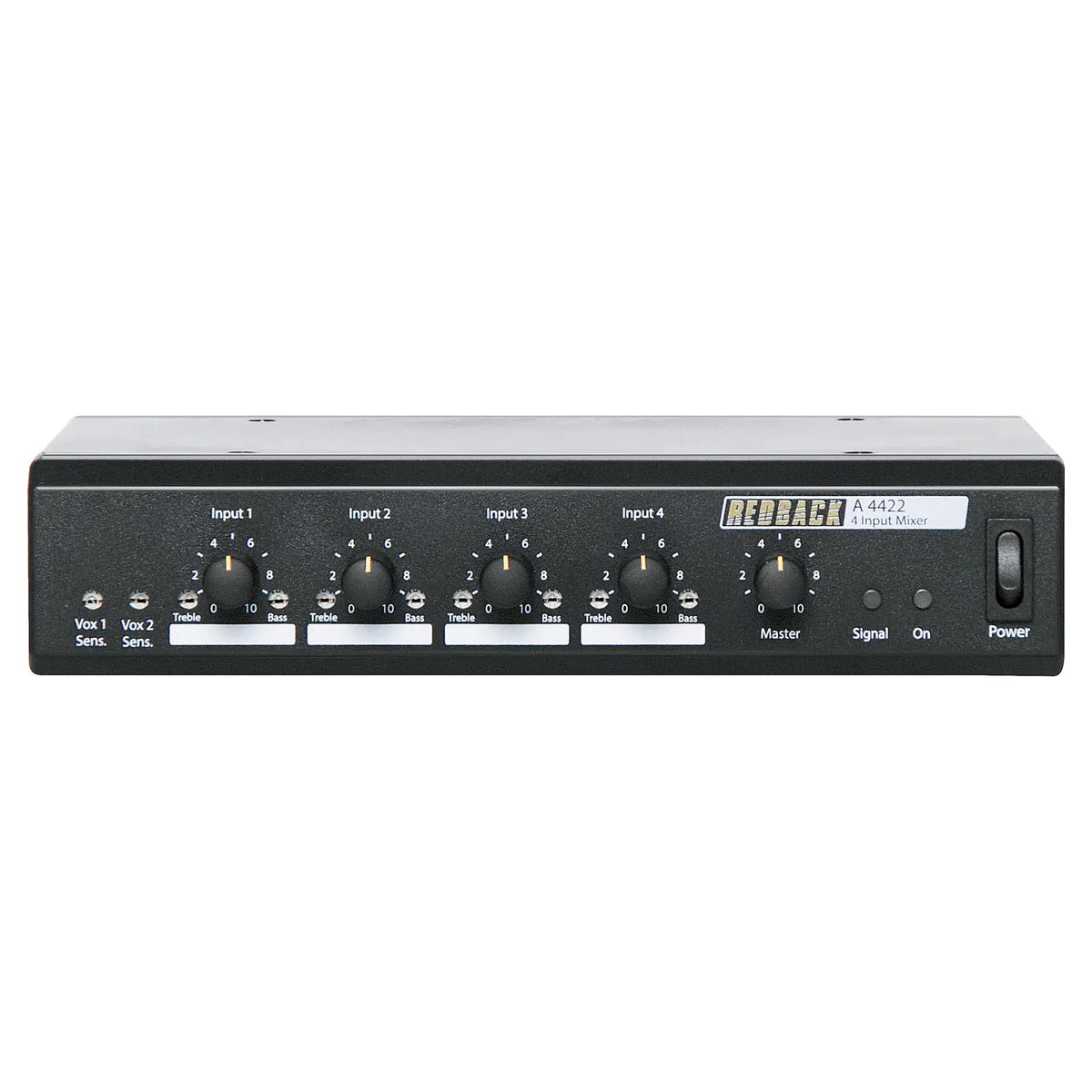

Front Panel Controls The front panel includes individual volume controls and tamper proof, screw driver adjust, treble and bass controls for each input channel.
Features
- 4 inputs.
- Individual treble and bass for each channel.
- 1V balanced output via 3 pin screw terminal blocks
- All auxiliary inputs use dual RCA sockets.
- Adjustable VOX sensitivity.
- Selectable input priority.
- Selectable phantom power.
- Selectable mic or auxiliary mute function.
- 24V DC input.
- Includes Power Supply
Specifications
- Inputs: 3 pin euro blocks or 2 x RCA
- 24V DC power: 2.1mm DC Jack
- 24V DC power: Screw terminals
- Mic inputs: 30Hz - 15kHz, -3dB
- Line inputs: 30Hz - 23kHz, -3dB
- Mic inputs: 3mV/100mV balanced
- Line inputs: 100mV/1V
- Balanced Out: Screw terminals
- 103D x 210W x 38Hmm
