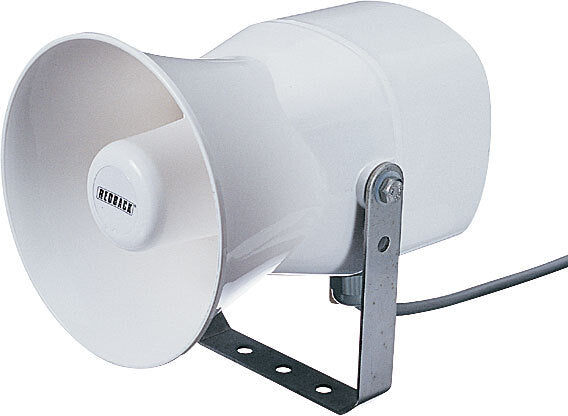

Redback 30W 100V EWIS IP67 Plastic PA Horn Speaker

The REDBACK® C 2047 is specifically designed for applications with a high level of dust or moisture in the operating environment. The speaker is compliant with IP67 dust and hose-proof standard. Made from tough UV stabilised ABS, this speaker includes stainless steel exterior metal hardware. Featuring an operating temperature range of -30°C to +55°C, this horn speaker can be utilised in schools, train and bus stations, airports, car parks and cool rooms. Power taps are selectable to suit the power of the amplifier or the area to be covered.

Perfect for cool rooms with an operating temperature down to minus 30°C!

Features

• UV stabilised ABS construction
• Operating temperature range -30°C to +60°C
• Stainless steel mounting hardware
• Complies with IEC529 / IP67 dust and hose-proof standard
• Selectable 100V line power taps 1.9, 3.75, 7.5W, 15W & 30W
• High efficiency driver and line transformer

100V Power Taps
Blue: 30W, 333 Ohms
Yellow: 15W, 667 Ohms
Green: 7.5W, 1.33K Ohms
Brown: 3.75W, 2.67K Ohms
Red: Common

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Specifications

• Power taps: 1.9, 3.75, 7.5, 15 & 30W
• SPL: 105dB, 1W @ 1m
• Temp. range: -30°C to +60°C
• IP rating: IEC529 / IP67
• Freq. response: 500Hz - 7kHz
• Flare diameter: 130Ø x 180mm
• Weight: 1.4kg
• *Specifications are subject to change without notice.

Downloads

EASE Data Files Brochure
