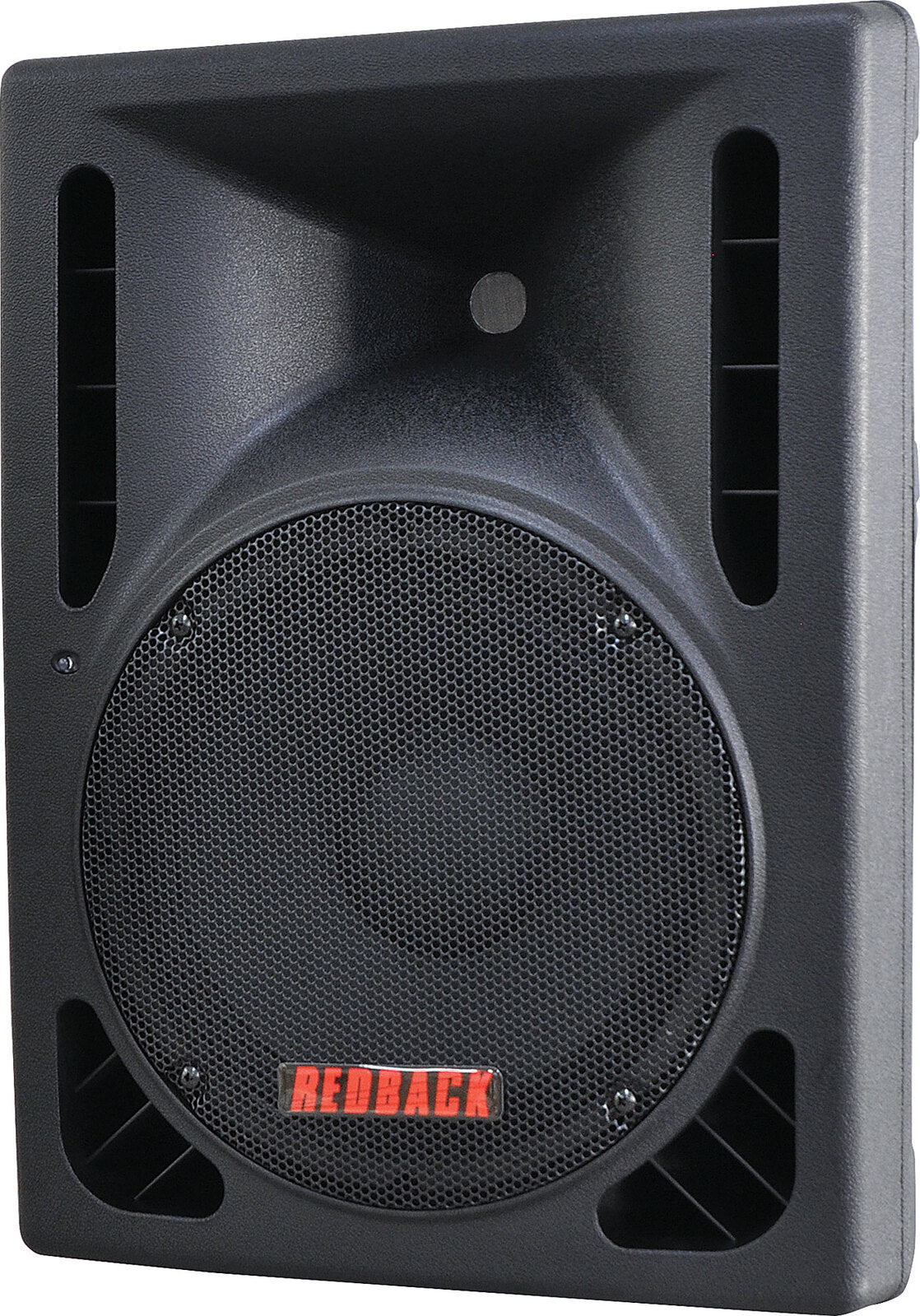

Redback 254mm 10" 2 Way Powered PA Speaker MP3/BT/FM/USB

This 10 Inch 2 Way MP3 USB Powered PA Speaker is housed in rugged wedge shaped nylon fibre and ABS moulded cabinet. Designed with portability in mind the cabinets include an inbuilt carry handle and are easily transported. Whilst they are lightweight, they offer extreme durability and strength. Speakers can be stacked on top of each other. This 10 Inch 2 Way MP3 USB Powered PA Speaker is a high-powered active two-way speaker series that includes a self-contained power amplifier. Simply connect 240V AC and an input source such as a CD player, tape deck or microphone, and you have a crystal clear PA system. It has has separate volume controls for mic input, line input and master output, plus bass and treble tone controls. This model also features an inbuilt USB and SD card input MP3 player module with a digital LCD display for track information. It accepts 6.35mm unbalanced mic input, and XLR or RCA line level input. It also has a 6.35mm line out connector, allowing multiple units to be ‘daisy chained’.

Box Contents
1 x Speaker
1 x Power Cord
1 x Manual

Features

• Rugged moulded ABS construction
• Standard magnet-driven woofer for low distortion
• High performance large voice-coil diameter
• Wide frequency response
• Titanium diaphragm compression driver
• 4 inbuilt rigging points allow the units to be suspended using eye bolts
• Inbuilt top hat mount and carry handle
• Mic Level input <5mV, Line Output 250mV

Specifications

• Power (RMS): 100W
• Max Power: 180W
• Impedance: 4Ω
• SPL (1W @ 1m): 96.5dB
• Frequency Response: 55Hz - 18kHz
• Sensitivity: 94dB±2dB
• Rigging Threads: M8
• Dimensions: 360 x 270 x 520mm
• Magnet: 40 oz
• Voice Coil: 2"ksv
• Tweeter: 34mm Ti. diap driver 13.5 oz,8ohm
• Amplifier: USB/SD/BT/FM And LCD screen
• Signal input: Class AB
• MP3 input: Class D
• Voltage: 110-230V/AC/60-50Hz
• *Specifications are subject to change without notice.

Downloads

User Manual
