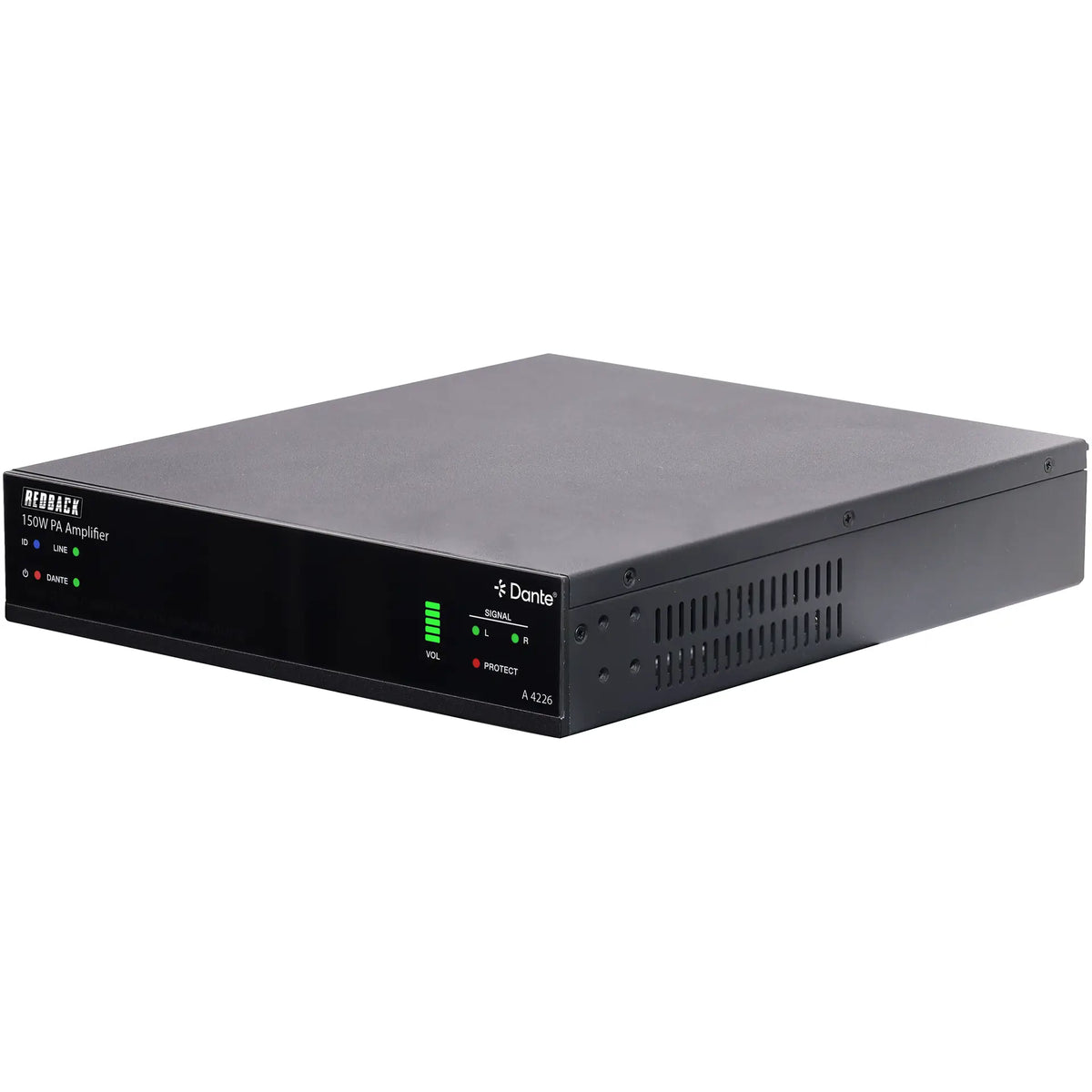

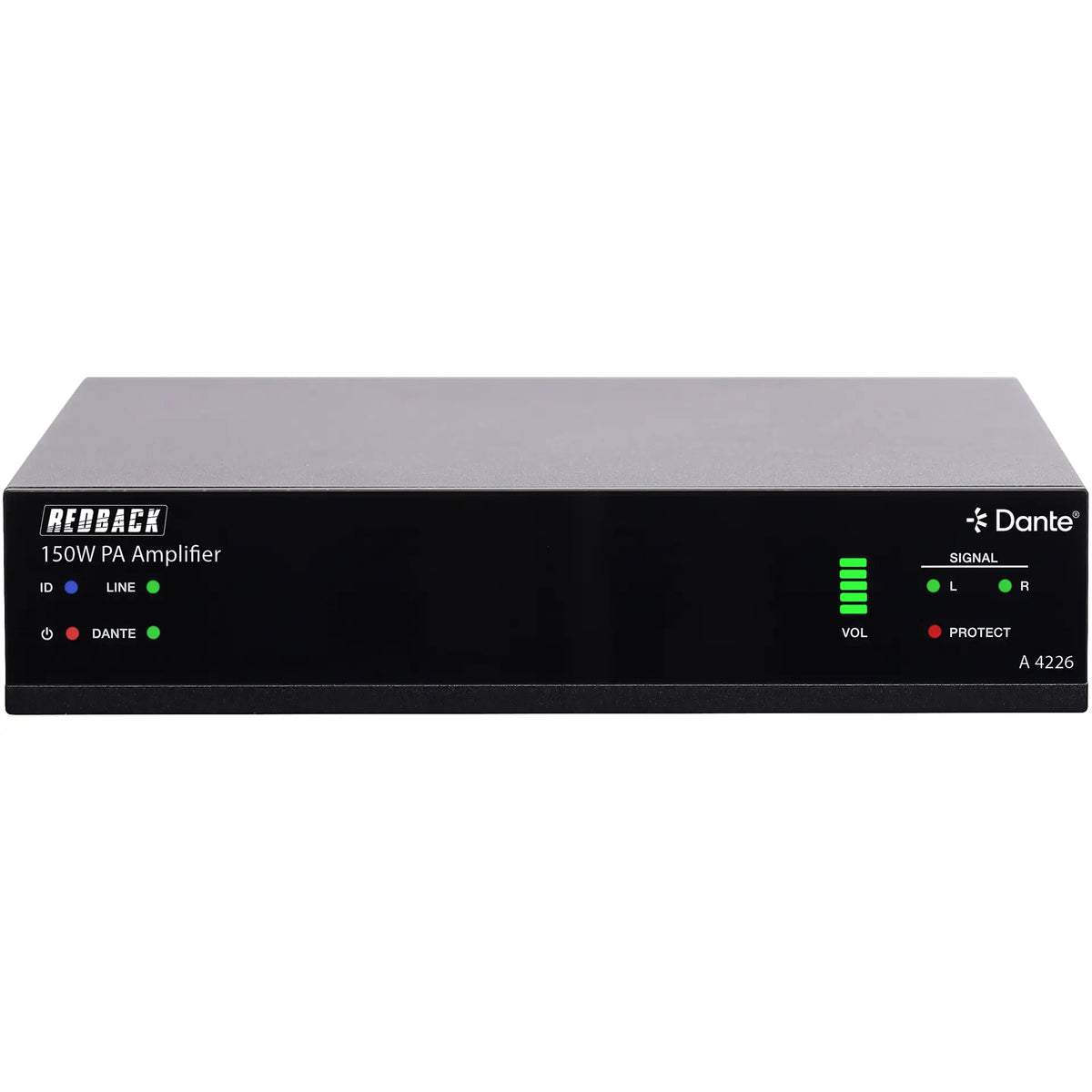

150W 100V/Stereo Class-D PA Amplifier With Dante & DSP

This compact amplifier featuring Dante connectivity provides the latest technology for digital ready PA systems while offering the flexibility of 150W 100V line or 2x75W stereo operation (plus bridging mode if needed). This amplifier can be completely controlled over Dante using standard web based GUI, allowing it to be utilised across small or large scale PA installations where IP based devices are required. It also features a built in digital signal processor (DSP) and RS-232 interface.

Features

• Flexible 4-8 Ohm or 70V/100V line output.
• Dante® 2CH digital audio, balanced or unbalanced line level analog inputs.
• Dante® 2CH digital audio, balanced or unbalanced line level analog and amp outputs
• Built-in audio DSP processor
• Control via RS-232, LAN and Web GUI
• Half rack design/one rack design

Specifications

• Input: 2x Dante® Network audio input, 2x LINE balanced/unbalanced stereo 2Vrms input
• Output: 2x Dante® Network audio output, 1x Constant voltage 70V/100V speaker output , 2x LINE balanced/unbalanced stereo output
• Input Sensitivity: 2Vrms
• Output Power: DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω/16Ω; 1x 150W@70V/100V
• Maximum Voltage Gain: 27 - 30dB SE/39 - 42dB BTL
• Amplifier Type: Class D
• Frequency Response: 20Hz - 20kHz @ ±1dB
• Signal to Noise Ratio 87dB, 20Hz - 10kHz
• THD+N: THD+N (1KHz@1W) 0.04%
• Control: RS-232, Web GUI
• ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
• LINE IN [Analog audio, Balanced/unbalanced 2CH, Max input level 2Vrms]
• LINE OUT [Analog audio, Balanced/unbalanced 2CH, Max output level 2Vrms]
• Dante® [Digital audio 2x2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit]
• AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5Vrms]
• 70V/100V AMP OUT [Analog audio, Max output level 70V/100Vrms]

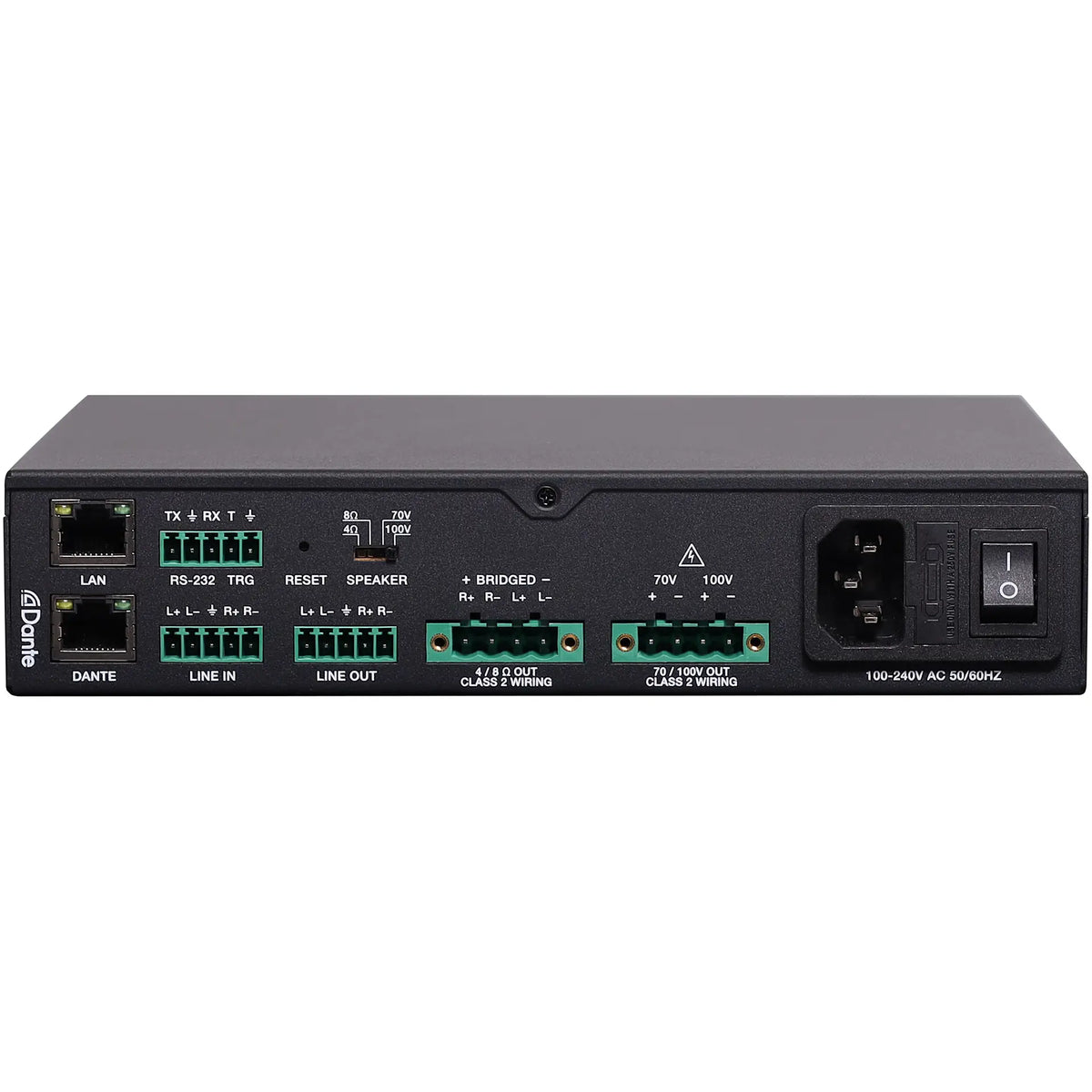

• 1x DANTE [RJ45 connector, 2CH Dante® input/output]
• 1x LINE IN [5pin-3.81mm phoenix connector, balanced/unbalanced 2CH]
• 1x LINE OUT [5pin-3.81mm phoenix connector, balanced/unbalanced 2CH]
• 1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4pin-5.08mm locking phoenix, 2CH amplifier output]
• 1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4pin-5.08mm locking phoenix, constant voltage speaker output]
• 1x RS-232/TRG [5pin-3.81mm phoenix connector][TRG: 5-12V trigger input to turn on/off the amplifier]
• 1x LAN [RJ45 connector]
• Housing: Front panel: Aluminum; Rear case: Metal Enclosure
• Color: Black
• Dimensions: 240mm [W]×210mm [D]×44mm [H]
• Weight: 1.88Kg
• Power Supply: DC Input: AC100 - 240V 50/60Hz
• Power Consumption: 70W
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)
• Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)
