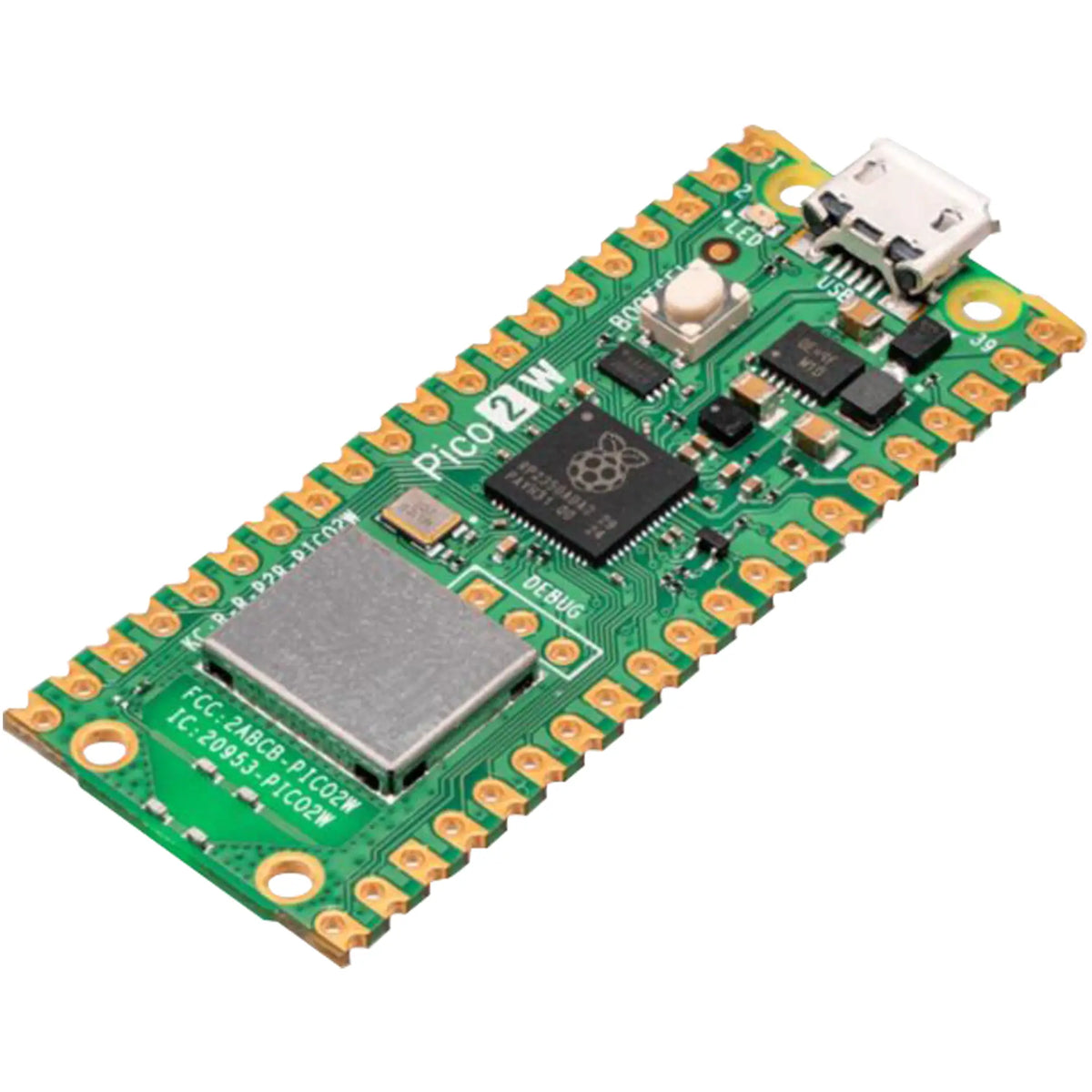

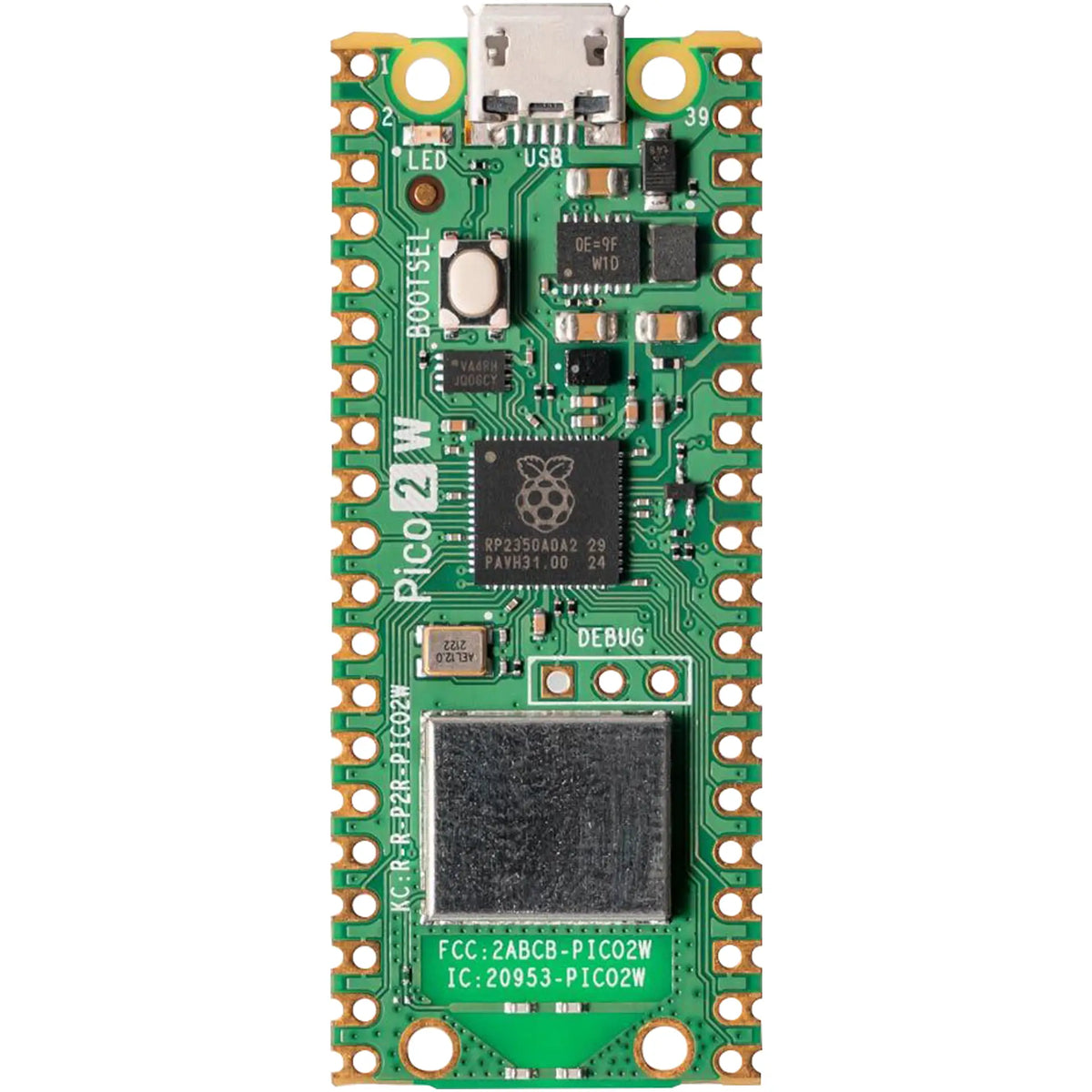

Raspberry Pi Pico 2 W

Continuing the signifcant leap forward into the seecond generation of pico series, this Raspberry Pi Pico 2 W intergrates advanced wireless capabilities. This enhancement expands its applicability in Internet of Things (IoT) projects and other applications that require robust wireless communication.

Features 2.4GHz 802.11n wireless LAN and Bluetooth 5.2, giving you flexibility in your IoT or smart product designs and expanding the possibilities for your projects.

With a higher core clock speed, double the memory, Arm & RISC-V dual-core architecture, new security features, and upgraded interfacing capabilities, The second generation of Pico delivers a significant performance boost while retaining compatibility with earlier members of the Raspberry Pi Pico series, facilitating easy upgrades and integration into existing Pico projects without the need for significant hardware changes.

Features

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core ARM Cortex M-33 processor, flexible clock running up to 150 MHz
• Dual RISC-V Hazard3 core
• New Infineon CYW43439 wireless chip: 2.4 GHz Wi-Fi 4 (802.11n), Bluetooth 5.2
• 520kB of SRAM, and 4MB of onboard Flash memory
• Castellated PCB allows soldering directly to carrier boards
• USB 1.1 Host and Device support
• Improved Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB
• 26 multi-function GPIO pins, including 3 that can be used for ADC
• 2× SPI, 2× I2C, 2× UART, 12-bit ADC, 16×controllable PWM channels
• In-built temperature sensor with independent ADC
• Accelerated floating point libraries on-chip
• 12× Programmable IO (PIO) state machines for custom peripheral support
• Input Voltage Range: 1.8V to 5.5V DC
• Form factor: 21 mm × 51 mm

Specifications

• New Infineon CYW43439 wireless chip: 2.4 GHz Wi-Fi 4 (802.11n), Bluetooth 5.2
• Input Voltage Range: 1.8V to 5.5V DC
• Form factor: 21 mm × 51 mm
