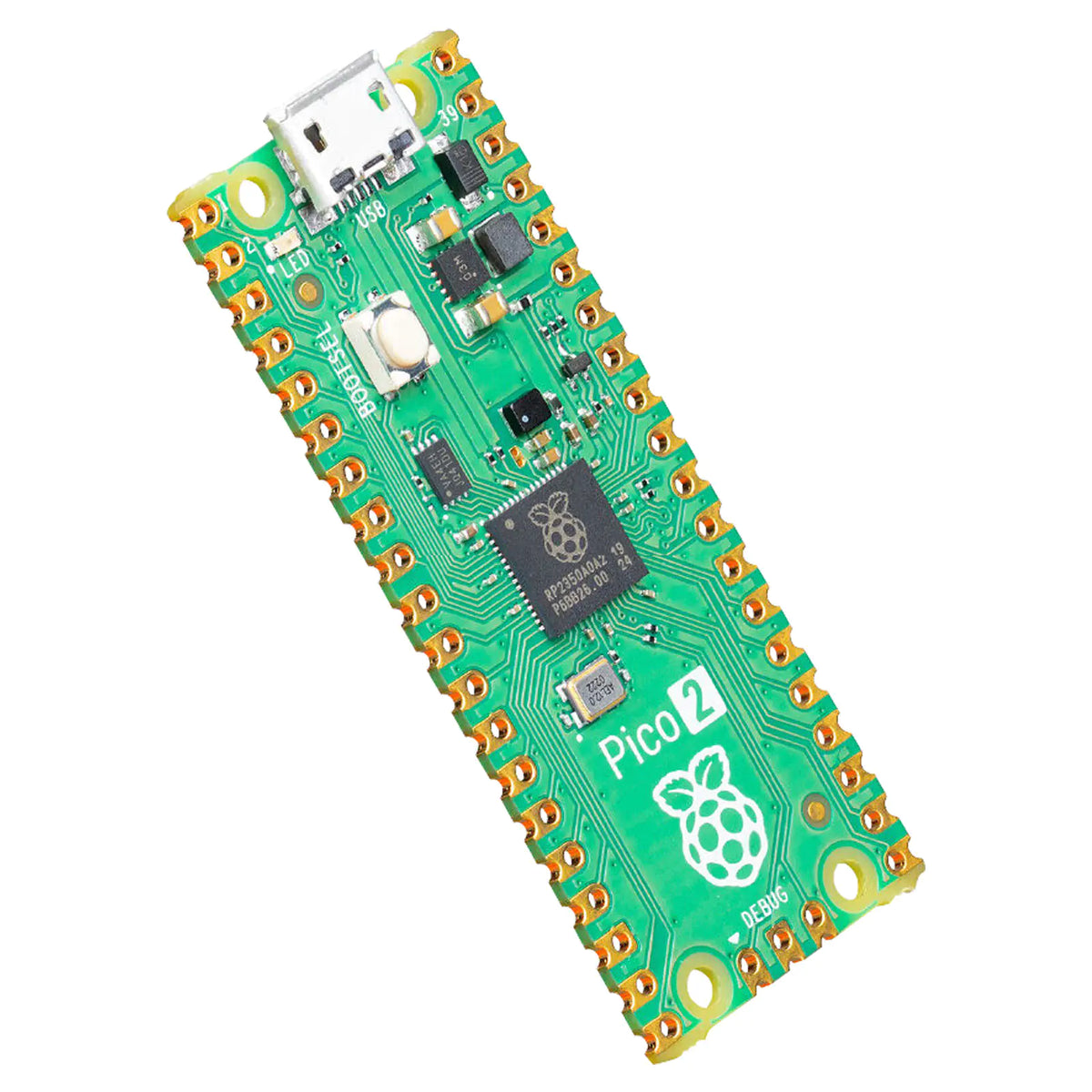

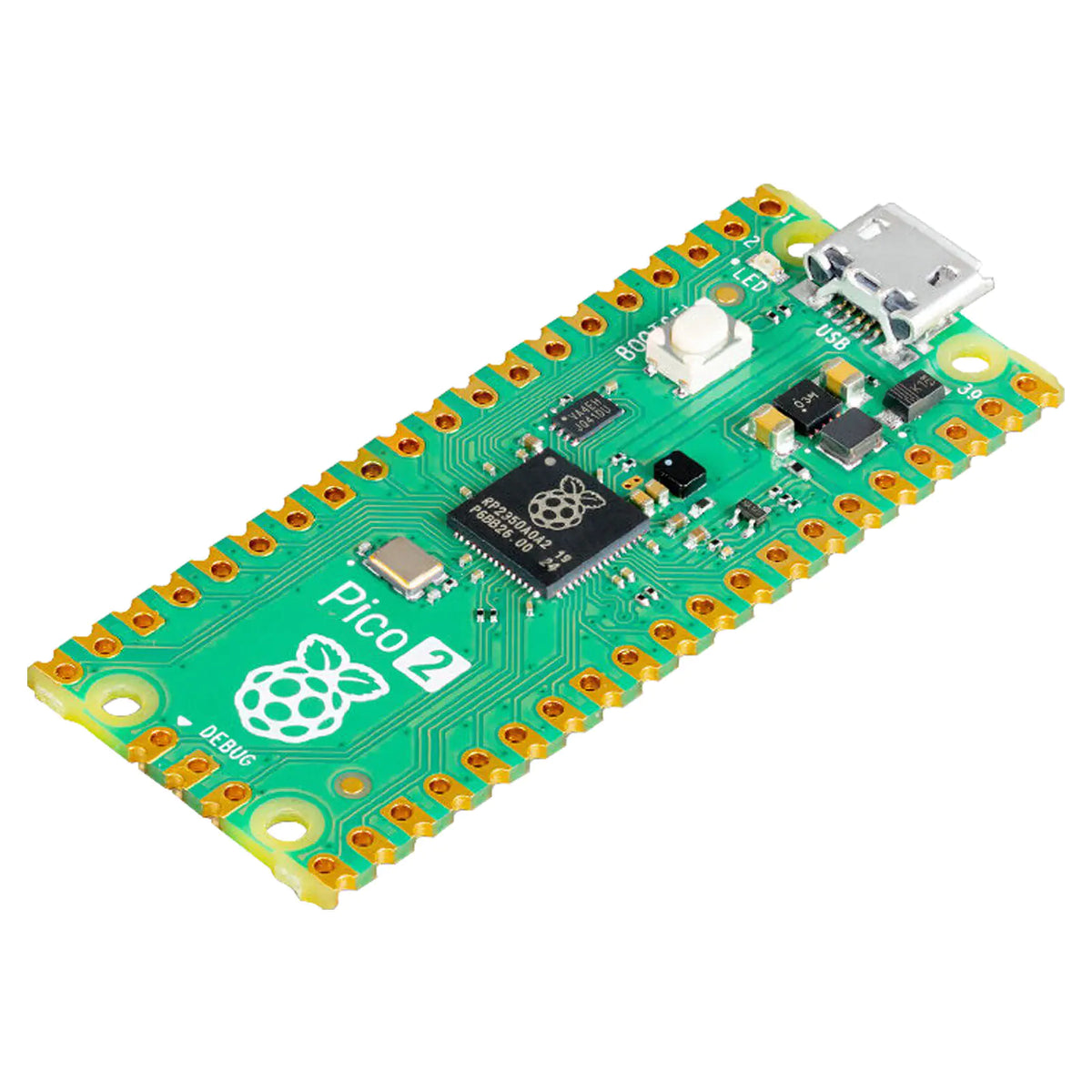

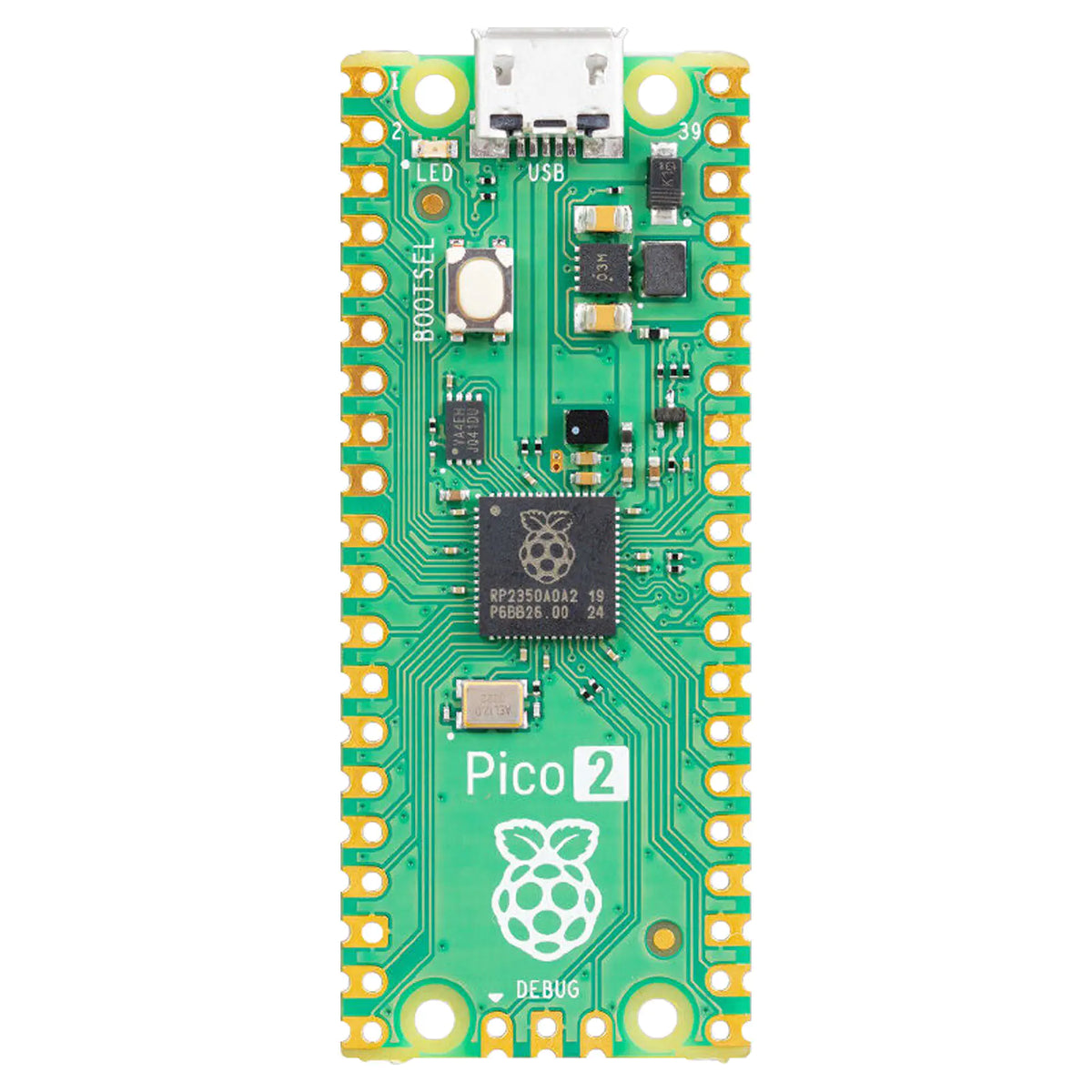

Raspberry Pi Pico 2 RP2350 Development Board

The Raspberry Pi Pico 2 is a tiny, fast, and versatile board built using RP2350, a brand new microcontroller chip designed by Raspberry Pi in the UK. From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands. The Raspberry Pi Pico 2 offers a significant performance upgrade with its increased core clock speed, double the memory, enhanced Arm cores, optional RISC-V cores, new security features, and improved interfacing capabilities. Despite these enhancements, it remains compatible with earlier models in the Raspberry Pi Pico series. Programmable in C/C++ and Python, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file. More experienced users can take advantage of Raspberry Pi Pico's rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support. The Pico features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. It features a 2MB on-board QSPI Flash. A wide range of flexible I/O options includes I2C, SPI, and — uniquely — Programmable I/O (PIO). These support endless possible applications for this small and affordable package. Whether you prefer MicroPython or C++, here are some handy links to get you started with your Raspberry Pi Pico: Raspberry Pi overview page MicroPython SDK / Guide C/C++ SDK / Guide NOTE: The PICO is not supplied with header pins. This is easily snapped in half to form 2 x 20 pin lengths for your PICO.

Features

• Ultra compact form factor
• Dual core ARM Cortex M0+ processor
• Two SPI controllers
• Two I2C controllers
• 16 PWM channels
• 26 multifunction GPIO pins
• Three analogue inputs
• On board USB controller
• In-built temperature sensor
• Castellated module allows soldering direct to carrier boards
• Drag-and-drop programming using mass storage over USB
• Low-power sleep and dormant modes
• Accurate on-chip clock
• Accelerated integer and floating-point libraries on-chip

Specifications

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core ARM Cortex M-33 processor, flexible clock running up to 150 MHz
• Dual RISC-V Hazard3 cores
• 520kB of SRAM, and 4MB of onboard Flash memory
• Castellated module allows soldering directly to carrier boards
• USB 1.1 Host and Device support
• Improved Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB
• 26 multi-function GPIO pins, including 4 that can be used for ADC
• 2 × SPI, 2×I2C, 2×UART, 12-bit ADC, 16×controllable PWM channels
• Temperature sensor
• Accelerated floating point libraries on-chip
• 12 × Programmable IO (PIO) state machines for custom peripheral support
• Form factor: 21 mm × 51 mm
