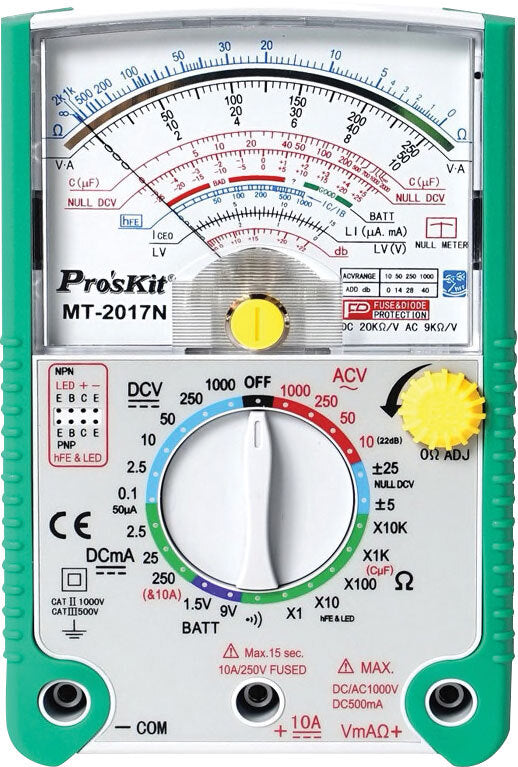

Pros Kit Analogue Multimeter With Transistor Test
Regular price
$79.90
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
Volume pricing for school accounts
Bulk buy pricing available for school accounts. Learn more.
This quality analog multimeter by Pros Kit is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. This meter has 20kΩ/Volt sensitivity with a colour scale and mirrored arc for parallax error reduction. Includes audible continuity tester, battery test range, and up to 10A DC current measurement. Complete with integral stand, fuse and diode protection and test leads.
Requires 1 x 9V battery and 2 x AAA batteries (sold separately)
Requires 1 x 9V battery and 2 x AAA batteries (sold separately)
Features
- Battery test range
- Continuity tester
- 10A DC current range
- Requires 9V battery
- Integral stand
- Fuse and diode protection
- Moving coil to measure extremely cyclic voltages
- Mirrored scale to minimise parallax error
- Resistance range zero adjustment
- Transistor hFE & LED tester
- CAT II 1000V / CAT III 500V
Specifications
- DC volts: 0.1, 0.5, 2.5, 10, 50, 250, 1000V ±3%
- AC volts:10, 50, 250, 1000V ±4%
- DC amps: 50µA, 2.5mA, 25mA, 250mA, 10A ±3%
- Resistance: 1Ω, 10Ω, 100Ω, 1KΩ, 10KΩ
- Battery test: 1.5V and 9V
- Sensitivity: 20KΩ/V DC, 9KΩ/V AC
- Protection: 500mA M205
- Dimensions:≈105W x 40D x 160H mm
- *Specifications are subject to change without notice.
