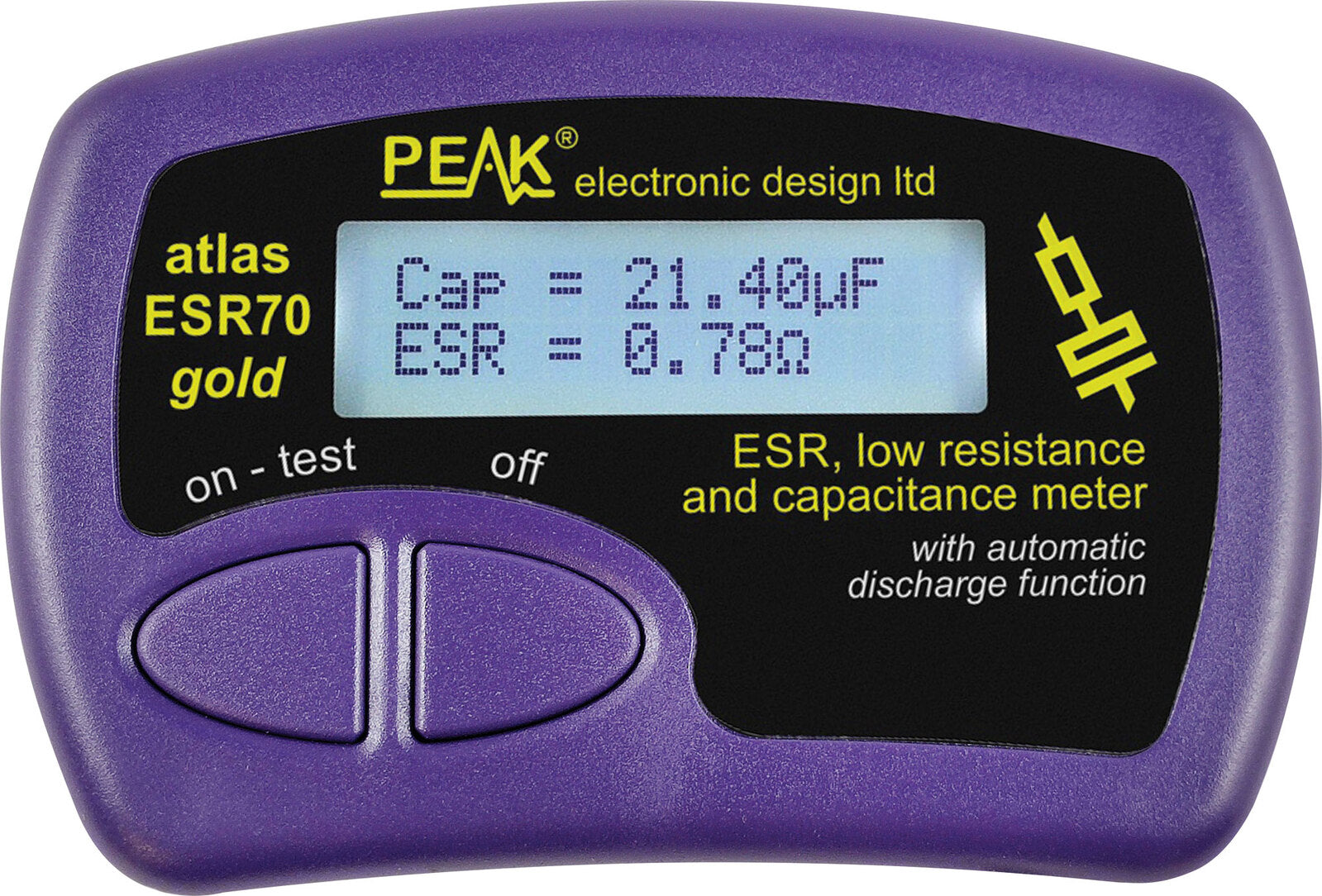

Peak ESR PLUS Capacitor Analyser

The Peak Atlas ESR Gold is an enhanced version of the previous Peak Atlas ESR Plus. It provides instant measurement of a capacitor's ESR and its capacitance value. Using the supplied gold plated probes (removable), the Peak Atlas ESR Gold can measure ESR down to a resolution of 0.01Ω, up to 40Ω. It can even measure ESR for capacitors that are in-circuit. Probes are removable, allowing 2mm compatible probes to be fitted. Audible alerts are produced for various ESR levels allowing you to perform many tests in succession without having to look at the display.

Package Contents:
ESR70 - Equivalent Series Resistance Meter.
Extra-long and extra-flexible test cables (450mm of Silicone covered cable).
2mm plugs and sockets with removable gold plated crocodile clips.
Comprehensive illustrated user guide.
AAA Alkaline cell



Capacitance to ESR Chart & Graph

Features

• Measure ESR (even in-circuit).
• Measure capacitance (from 0.3μF to 90,000μF).
• Automatically starts analysis when the ESR70 is connected.
• Audible alerts with different tones for various ESR levels.
• ESR resolution down to 0.01Ω.
• Polarity free due to bi-directional low voltage (500mV) test span.
• Low DC resistance checking measurement (even in-circuit).
• Supplied complete with 2mm male test leads and 2mm compatible gold plated crocs.
• Test leads are ultra-durable and 45cm (18") long with 2mm plugs.
• Enhanced software compensation of cable resistance.
• Enhanced compensation for leakage or parallel resistance.
• Improved LCD with better backlight.
• 10x faster capacitance measurement for large capacitors.
• Enhanced user options system.
• New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements.
• Much wider capacitance measurement range now 0.3μF to 90,000μF (was 1μF to 22,000μF).

Specifications

• ESR Range: 0.00Ω to 40.0Ω
• ESR Accuracy: ±2% (typical)
• ESR Resolution (ESR<2Ω): 0.01Ω to 0.02Ω
• ESR Resolution (ESR>2Ω): 0.1Ω to 0.2Ω
• Capacitance Range: 0.3μF to 90,000μF
• ESR Test Frequency: 50-100kHz ±4%
• ESR Test Voltage (across 40Ω): 40mV (typical)
• Operating Temperature Range: 15°C to 35°C (60°F to 95°F)
• Battery Type: AAA Alkaline (1.5V) Supplied
• Display: Backlit Alphanumeric LCD
• Auto-Off Period: 1 minute (typical)
• *Specifications are subject to change without notice.
