130mm 100V 10W Ceiling Ewis Speaker White Metal Grille
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $164.95 each |
| Buy 5-9 | $160.80 each |
| Buy 10+ | $156.70 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
30 day payment terms for Australian schools only. Learn more.

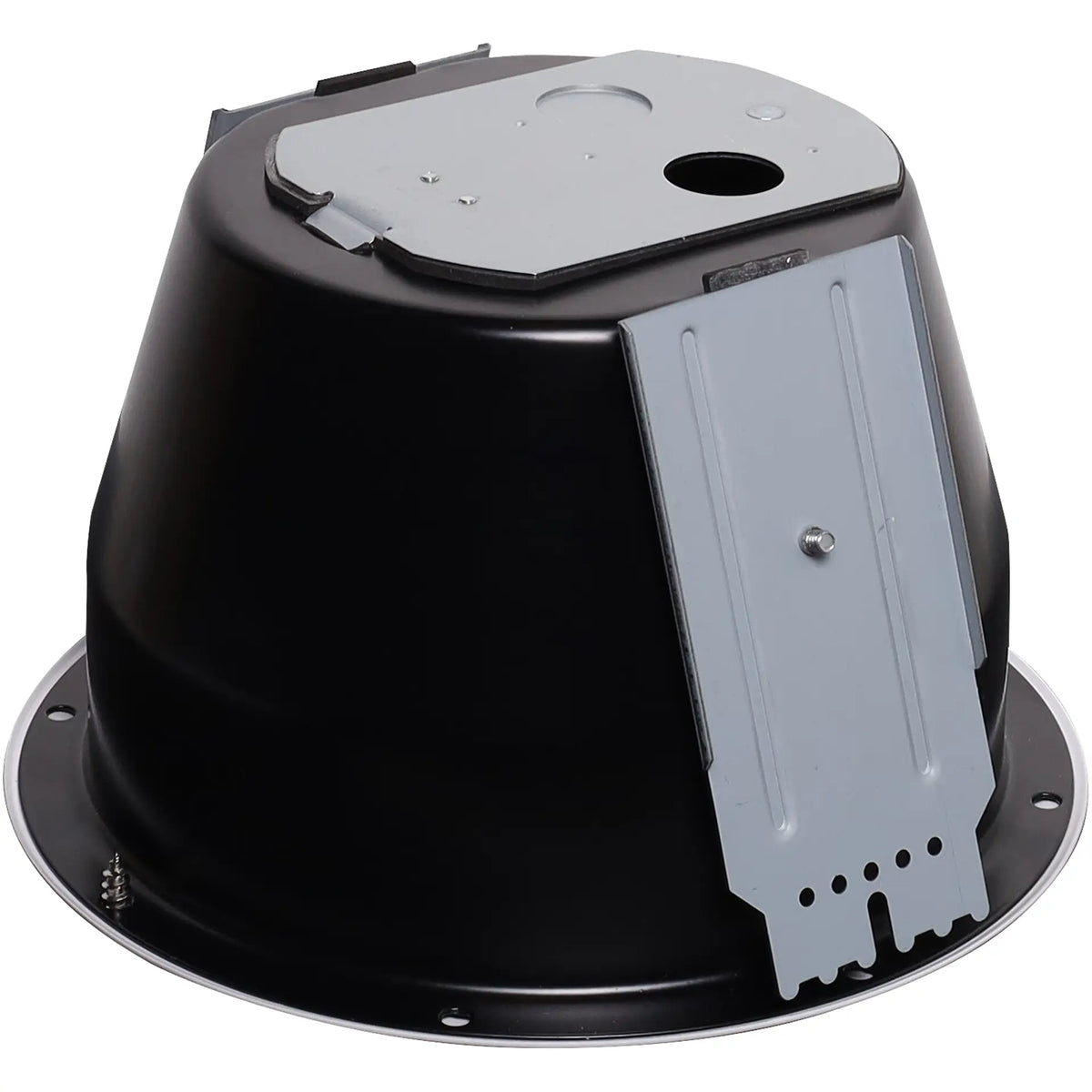

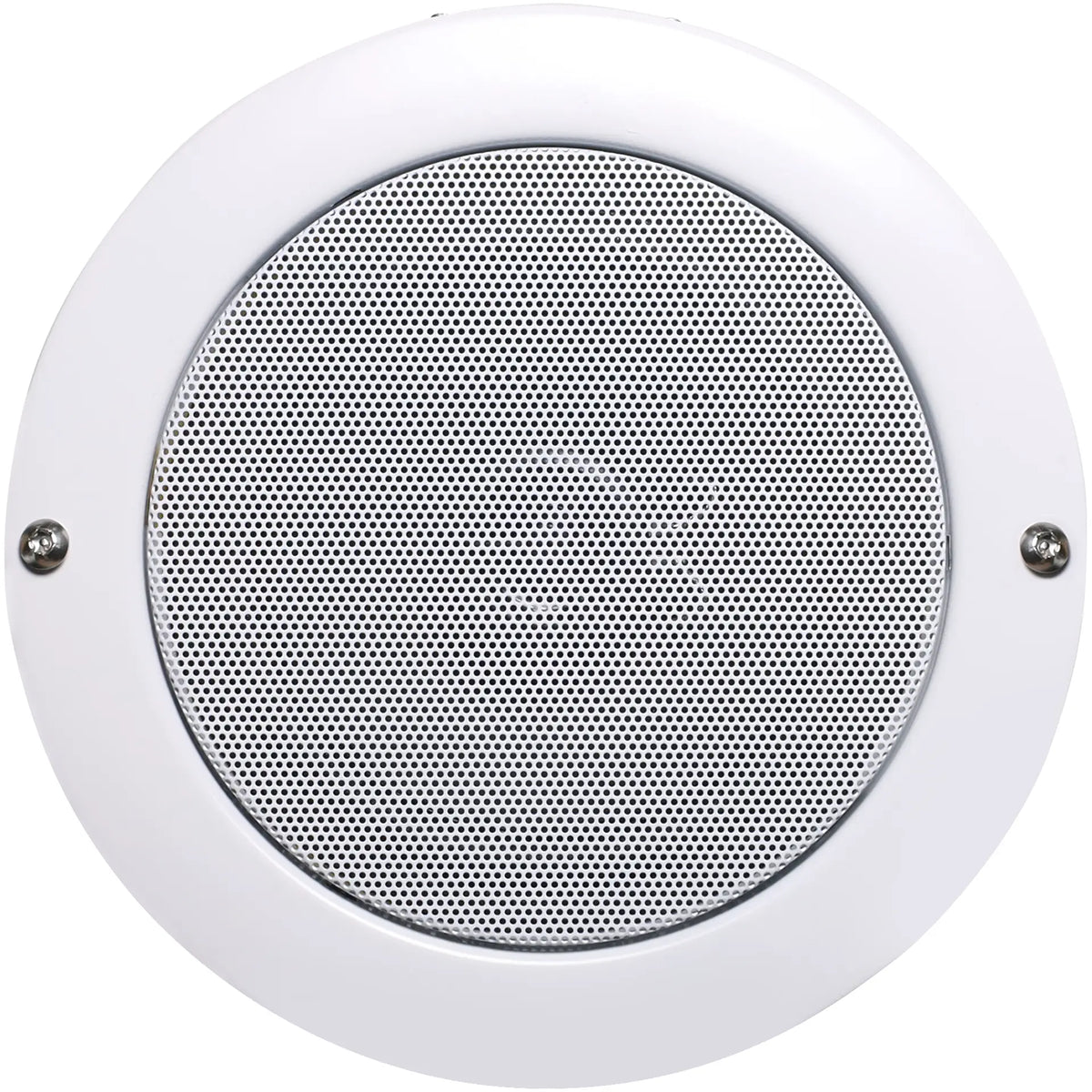

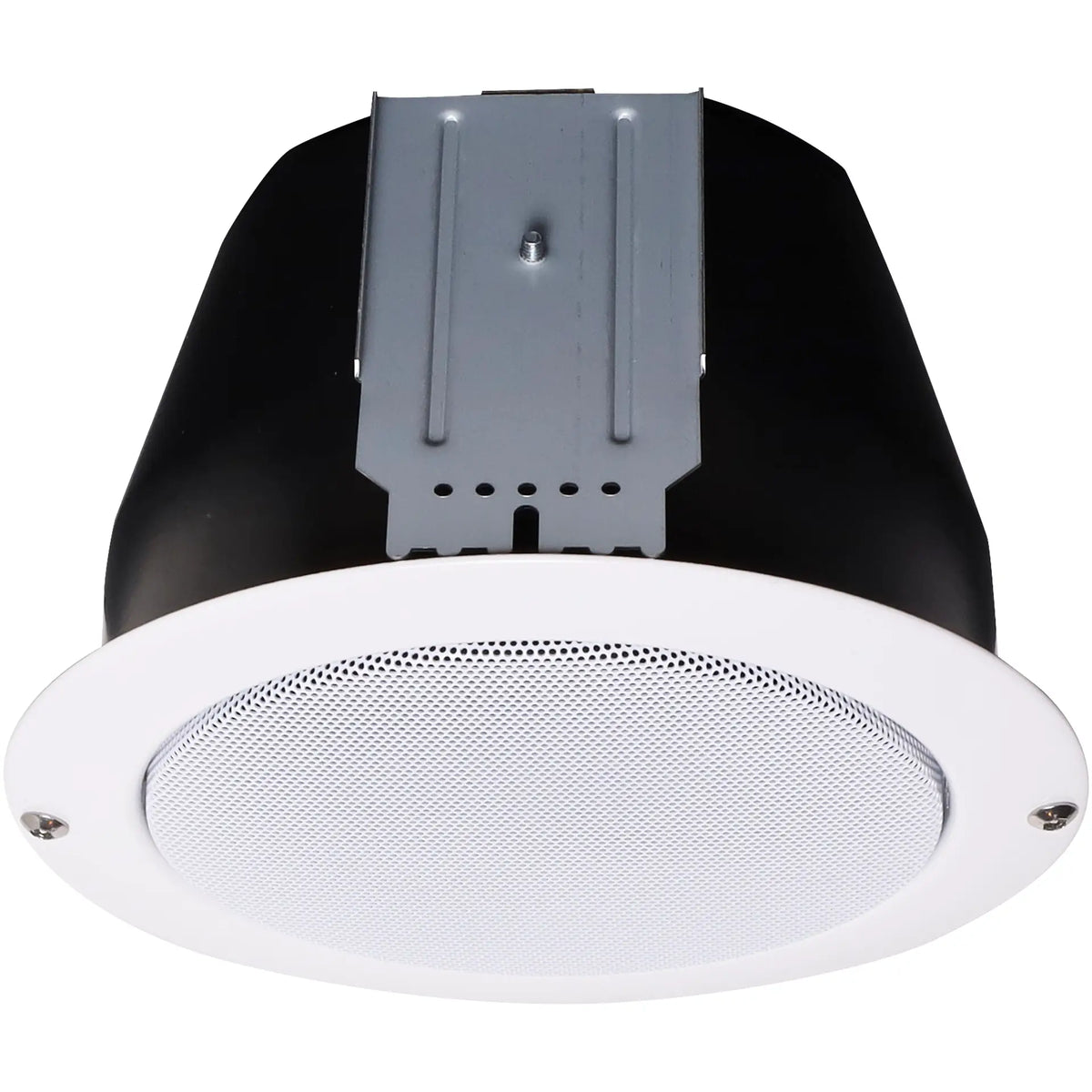

This 130mm (5") 10W ceiling speaker is engineered to EN54-24 and provides high levels of speech intelligibility for EWIS evacuation communication systems. Installation is via the spring loaded steel torsion plates on the sides of the fire rated rear speaker enclosure. Cabling can be terminated using the 4 way ceramic terminal block allowing simply loop-in, loop-out cabling. Cable glands to suit are PG11 and we recommend and - see accessories listed below.
Features
- Round metal (steel) coaxial ceiling speaker.
- EN54-24 certified for use with voice alarm and evacuation systems.
- Quick installation with torsion springs.
- Two-way speaker system comprising a bass mid-range driver and separate tweeter for enhanced performance.
- Use for speech and background music
Specifications
- Standards Compliant to EN54-24 Compliant to BS5839:8
- Electrical Rated power: 10 Watts Power taps: 10/5/2.5/1.25 Watts Impedance: 100V 1k/2k/4k/8k Ohms Driver impedance: 8 Ohms Frequency Range: (BSEN60268-5) 130Hz - 18,500Hz SPL: 1m, 1 Watt, Octave, 100 Hz-10 kHz 90dB 1m, Full power, Octave, 100 Hz-10 kHz 100dB 4m, 1 Watt, 1/3 Octave, 100 Hz-10 kHz 78dB 4m, Full power, 1/3 Octave, 100 Hz-10 kHz 85dB Dispersion at 1k/2k Hz: 175°/136° Horizontal, 175°/97° Vertical
- Environmental IP Rating: 21 Min/Max ambiment temperature: -10°C to 55°C Relative humidity: ≤95%
- Mechanical Dimensions: Ø189 x 115.7mm Net weight: 1.5kg Colour: White, RAL9016 Material: Steel Mounting: Torsion springs Cut-out: Ø164mm
- Safety Ceramic Block Thermal Fuse Capacitor for DC line monitoring
