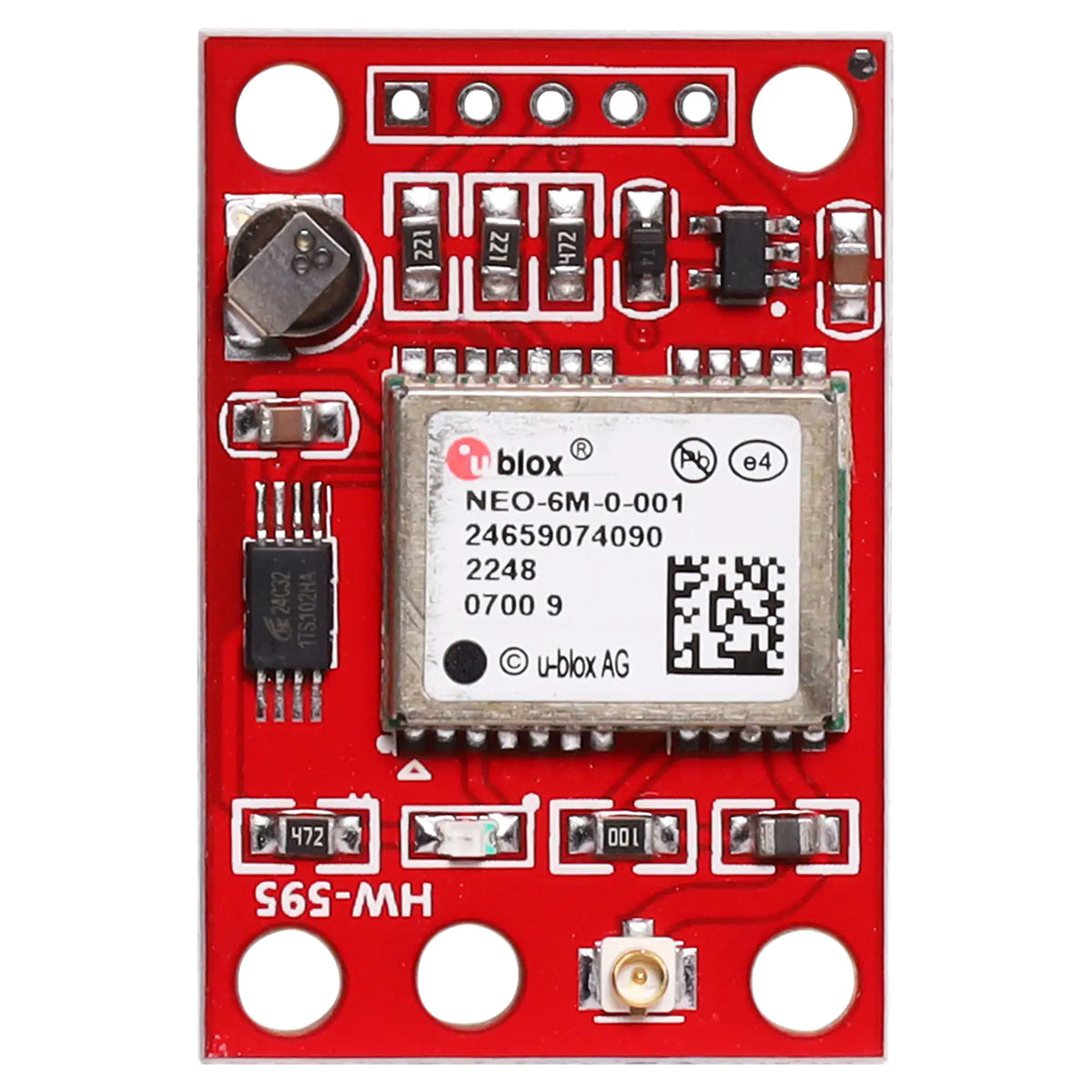

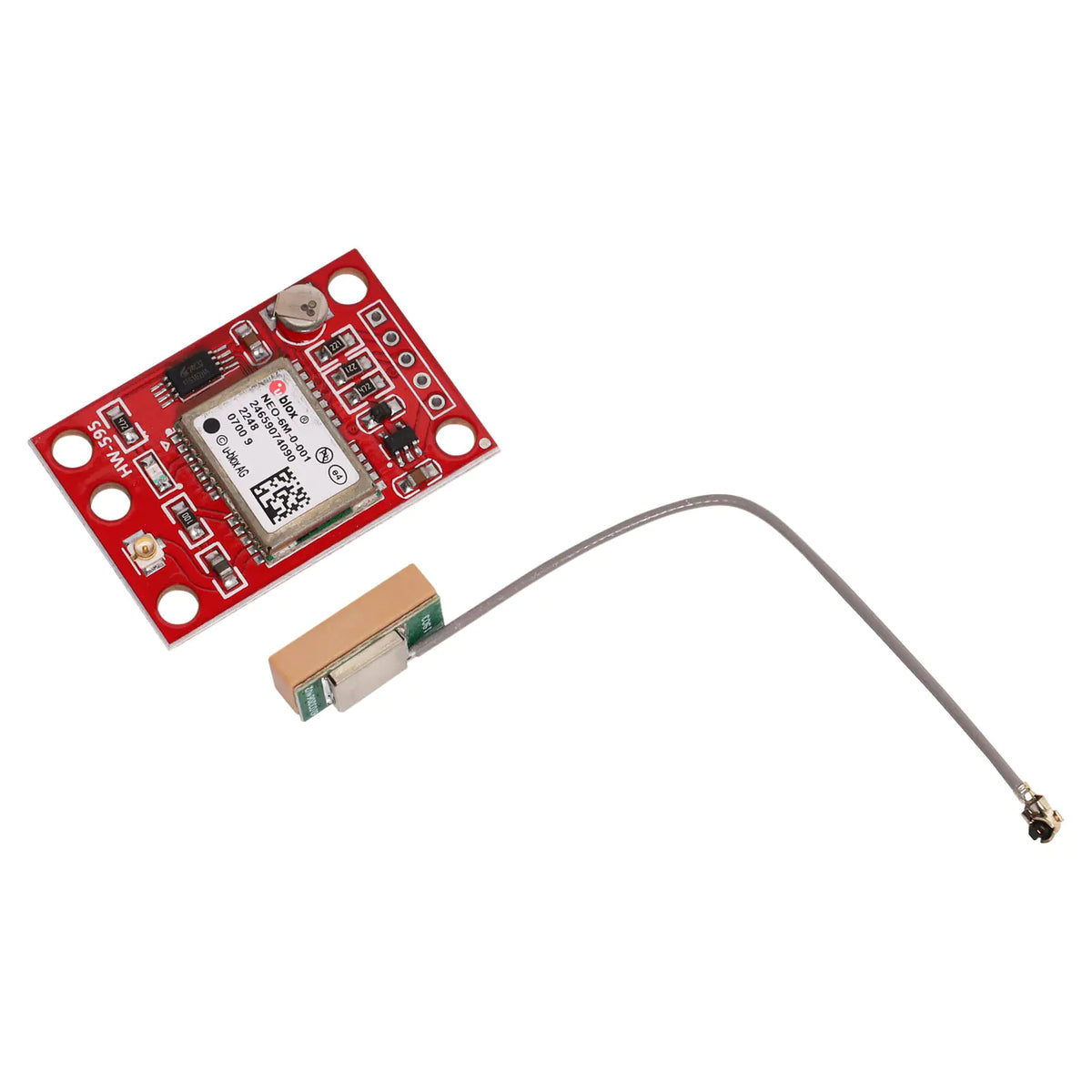

NEO-6M GPS Breakout Module with Antenna
Regular price
$17.95
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $17.95 each |
| Buy 5-9 | $17.50 each |
| Buy 10+ | $17.05 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
School order payment option available at checkout
30 day payment terms for Australian schools only. Learn more.
The NEO-6 module is a stand-alone GPS receiver featuring a high performance u-blox 6 positioning engine. This flexible and cost effective receiver offers numerous connectivity options in a compact package. The compact architecture and power and memory options makes this NEO-6 module ideal for battery operated mobile devices with very strict cost and space constraints.
Features
- GPS Breakout Module
- 2.7V-3.6V Supply
- Interfaces; UART, USB, SPI, DDC
- RT Crystal
- Antenna Supply and supervisor
- 3 Configuration Pairs
- 1 Timepulse pair
- External Interrupt/Wakeup
Specifications
- Time to first fix
- Cold Start (without aiding): 27s
- Warm Start (without aiding): 27s
- Hot Start (without aiding): 1s
- Aided Starts: <3s
- Sensitivity
- Tracking and Navigation: -161 dBm
- Reacquistion: -160 dBm
- Cold Start (without aiding): -147 dBm
- Hot Start: -156 dB
- General
- Receiver type: 50 channels, GPS L1 frequency, C/A code, SBAS: WAAS, EGNOS, MSAS
- Maximum Navigation update rate: 1Hz
- Configurable Timepulse frequency range: 0.25Hz to 10MHz
- Velocity accuracy: 0.1m/s
- Heading accuracy: 0.5 degrees
- Accuracy for Timepulse signal
- RMS: 30 ns
- 99%: <60 ns
- Granularity: 21 ns
- Compensated: 15 ns
