NEMA17 200 Step Stepper Motor & Lead
Regular price
$37.50
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $37.50 each |
| Buy 5-9 | $36.55 each |
| Buy 10+ | $35.60 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
School order payment option available at checkout
30 day payment terms for Australian schools only. Learn more.

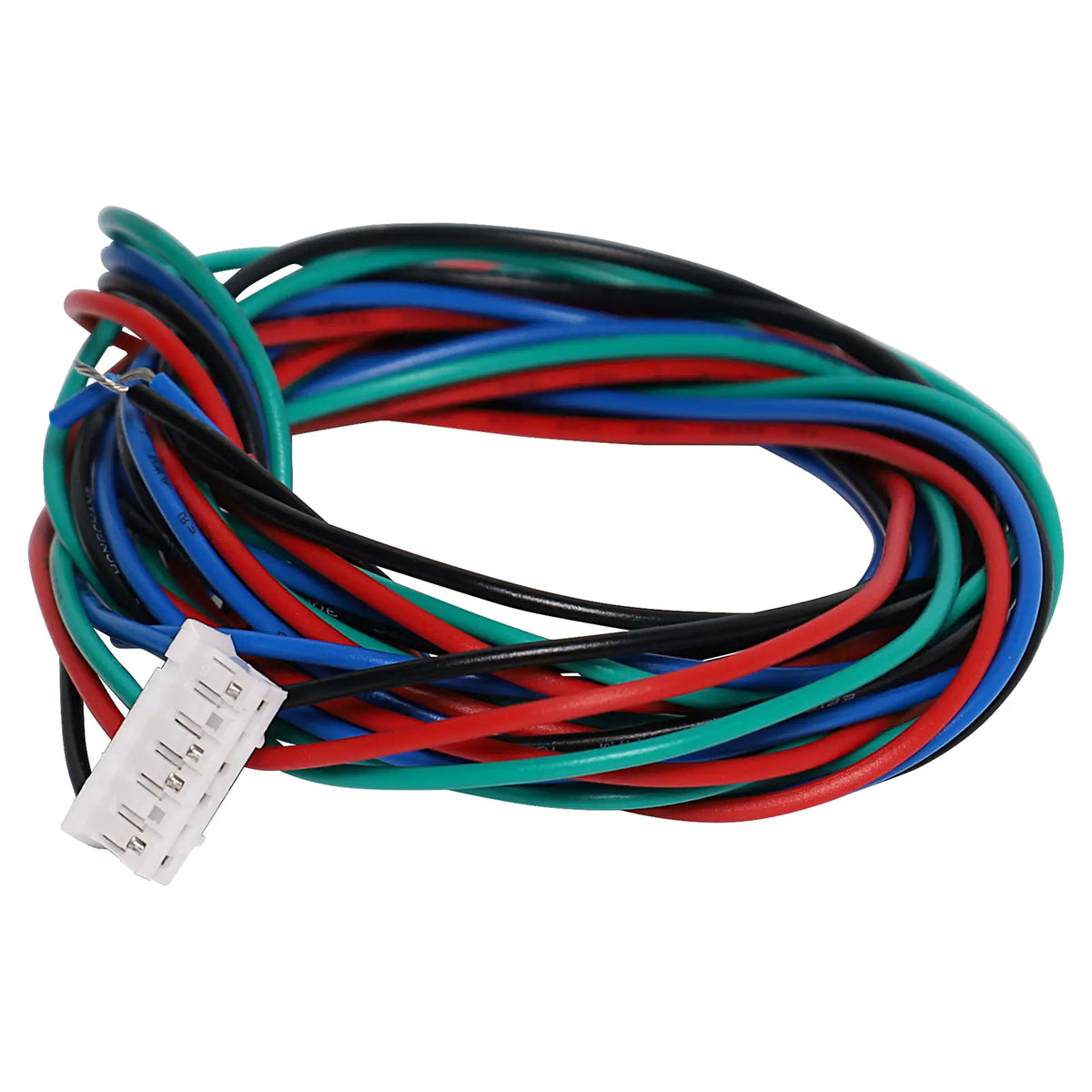

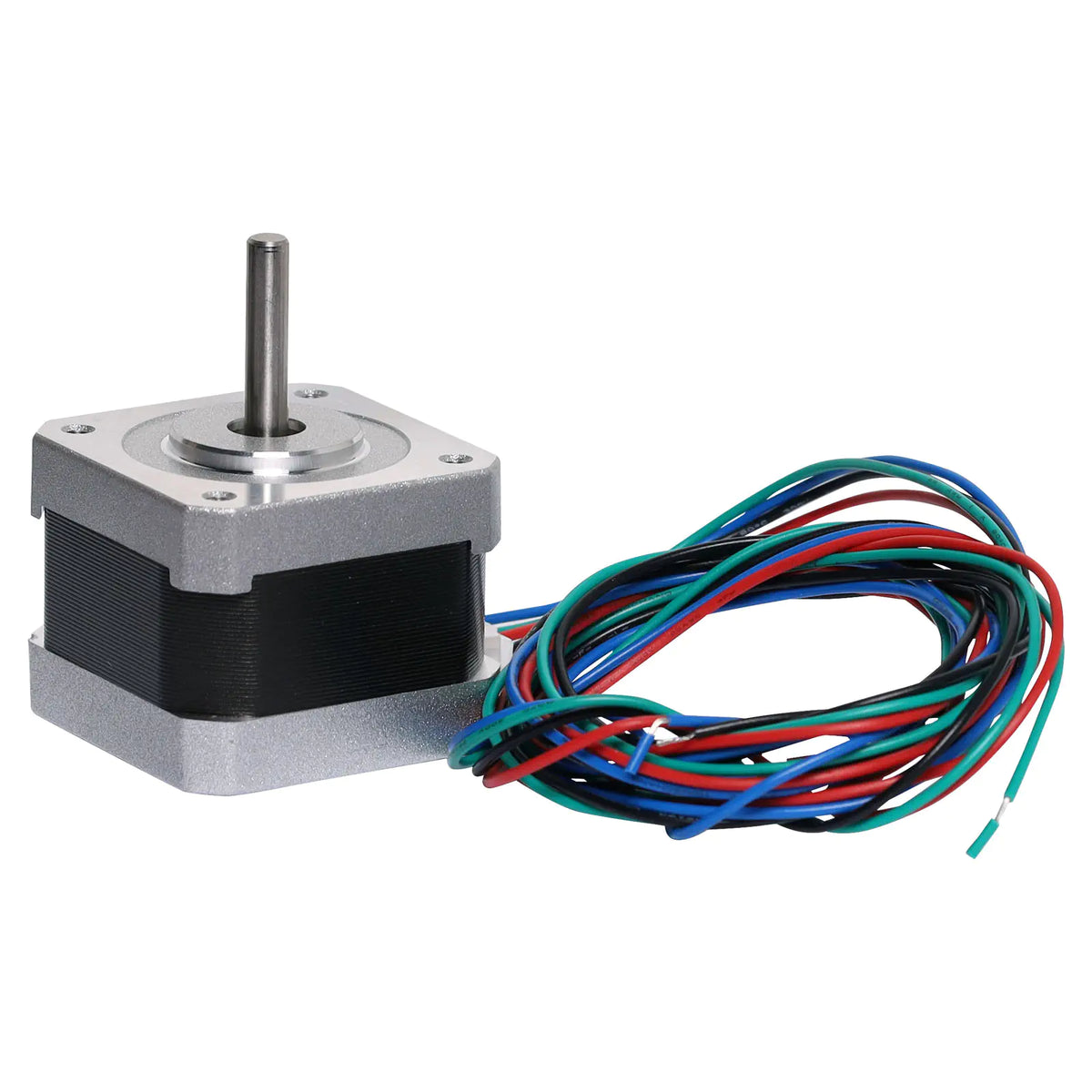

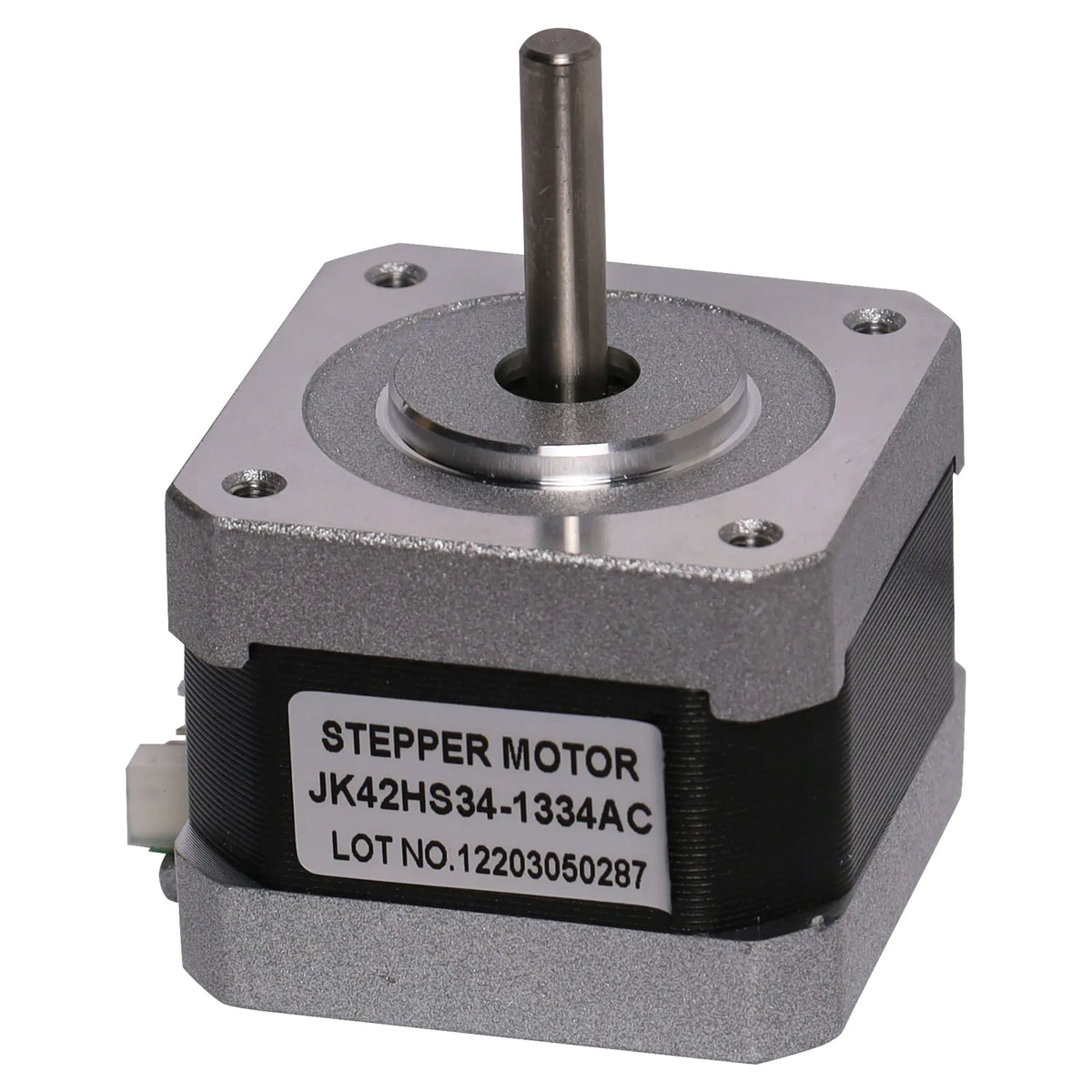

12V 200-step 1.8° 42BYG stepper motor with interface lead. 2 phase type. 0.23Nm holding torque. 5mmØ shaft. NEMA17 M3 mounting hole pattern (31mm). Size: 42x42x34 (25mm shaft). 1m lead.
Specifications
- Step Angle: 1.8Deg
- Temperature Rise: 80DegC max
- Ambient Temperature: -20DegC~+50DegC
- Insulation Resistance: 100 MOhm Min. ,500VDC
- Dielectric Strength: 500VAC for 1minute
- Shaft Radial Play: 0.02Max. (450g-load)
- Shaft Axial Play: 0.08Max. (450g-load)
- Max. radial force: 28N (20mm from the flange)
- Max. axial force: 10N
- Product description: 42 two-phase stepping motor Body length 34mm Static torque 2.2kg.cm
- 5mm shaft diameter with flat wire, length 24mm,
- Wiring method: black green A +, A-. Red blue B +, B-,
- Adapter driver JK0220 (driving voltage DC12V ~ 36V, AC12V ~ 24V, current range 0.3A ~ 2.0A)
