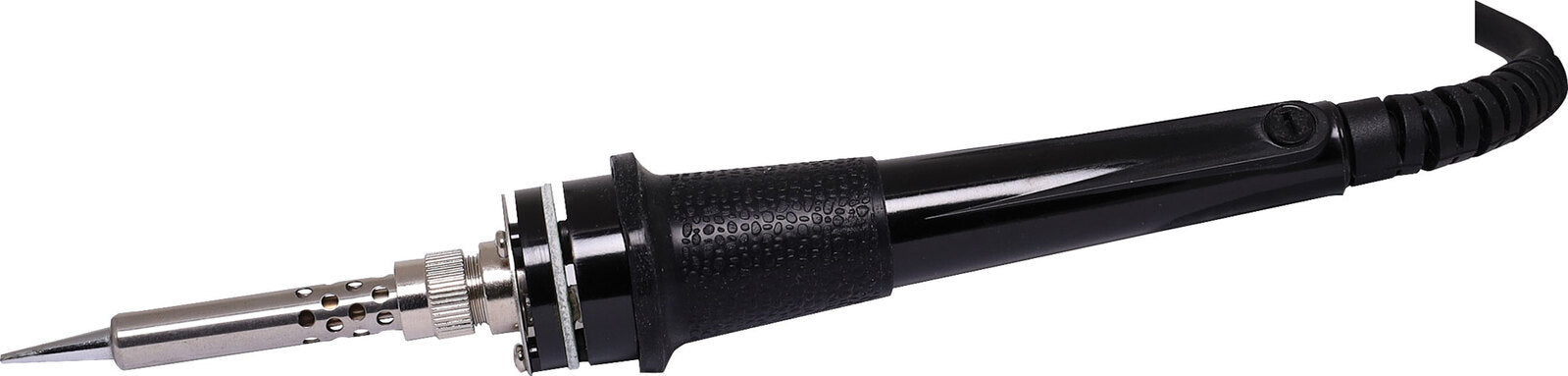

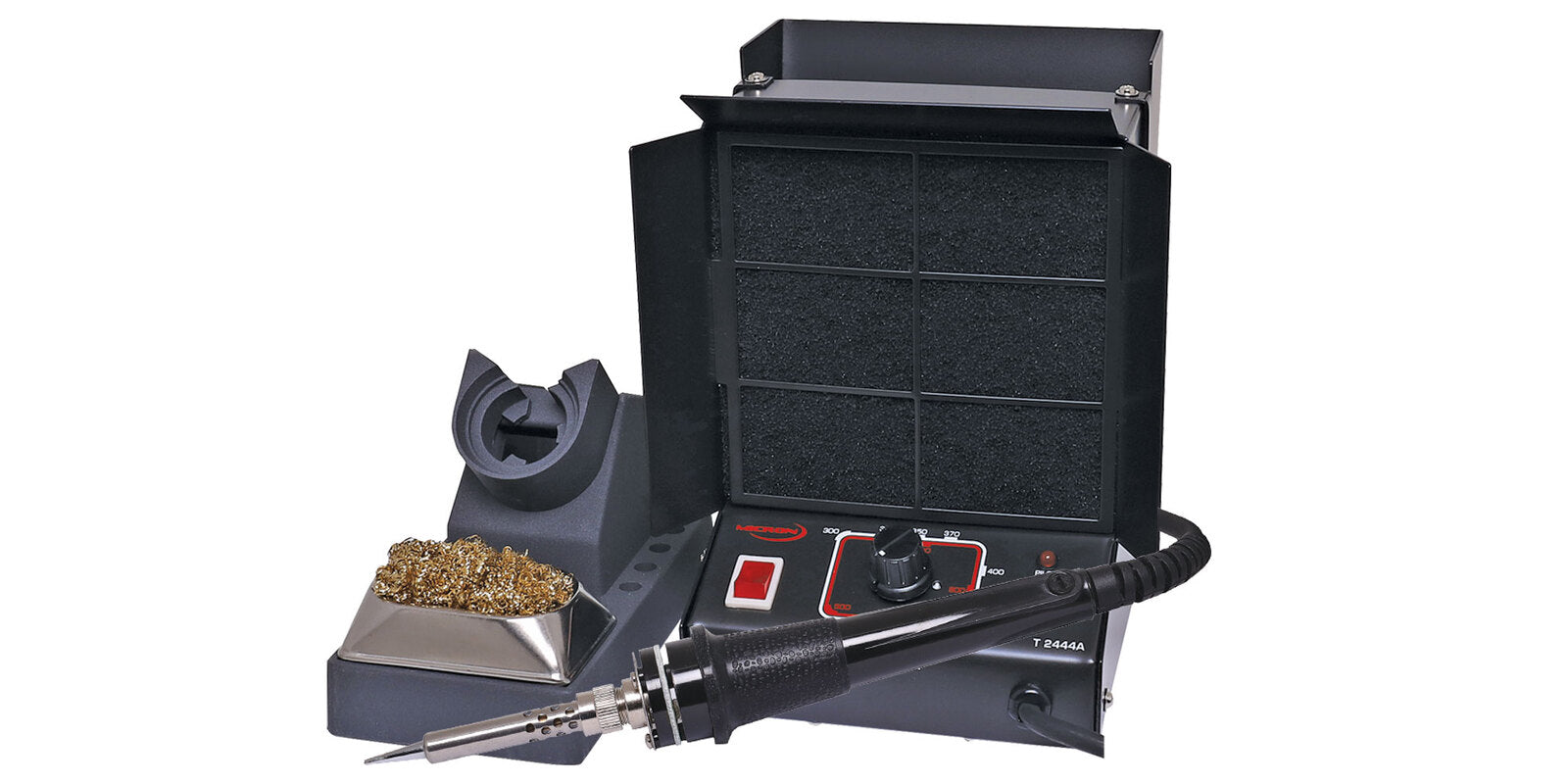

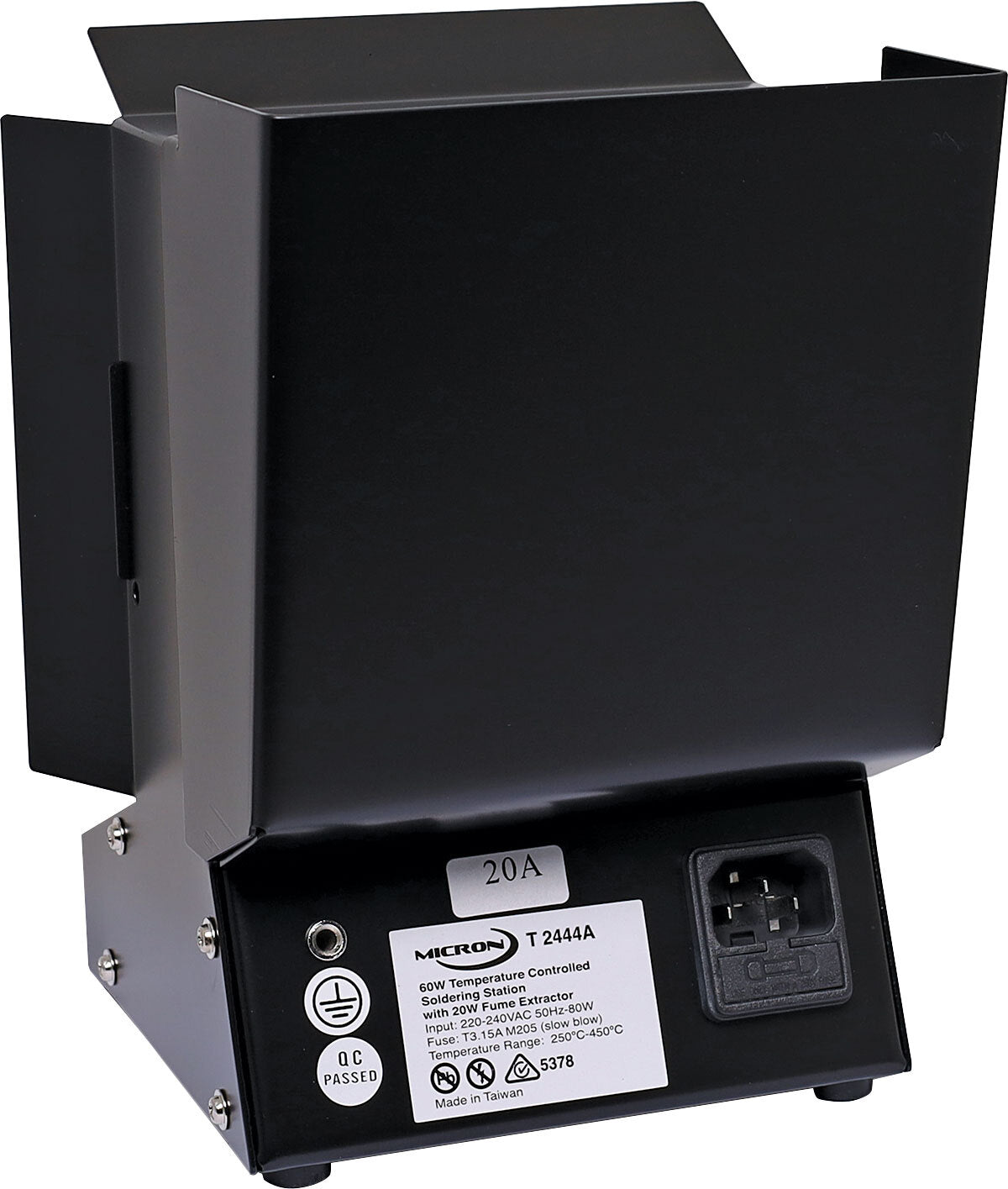

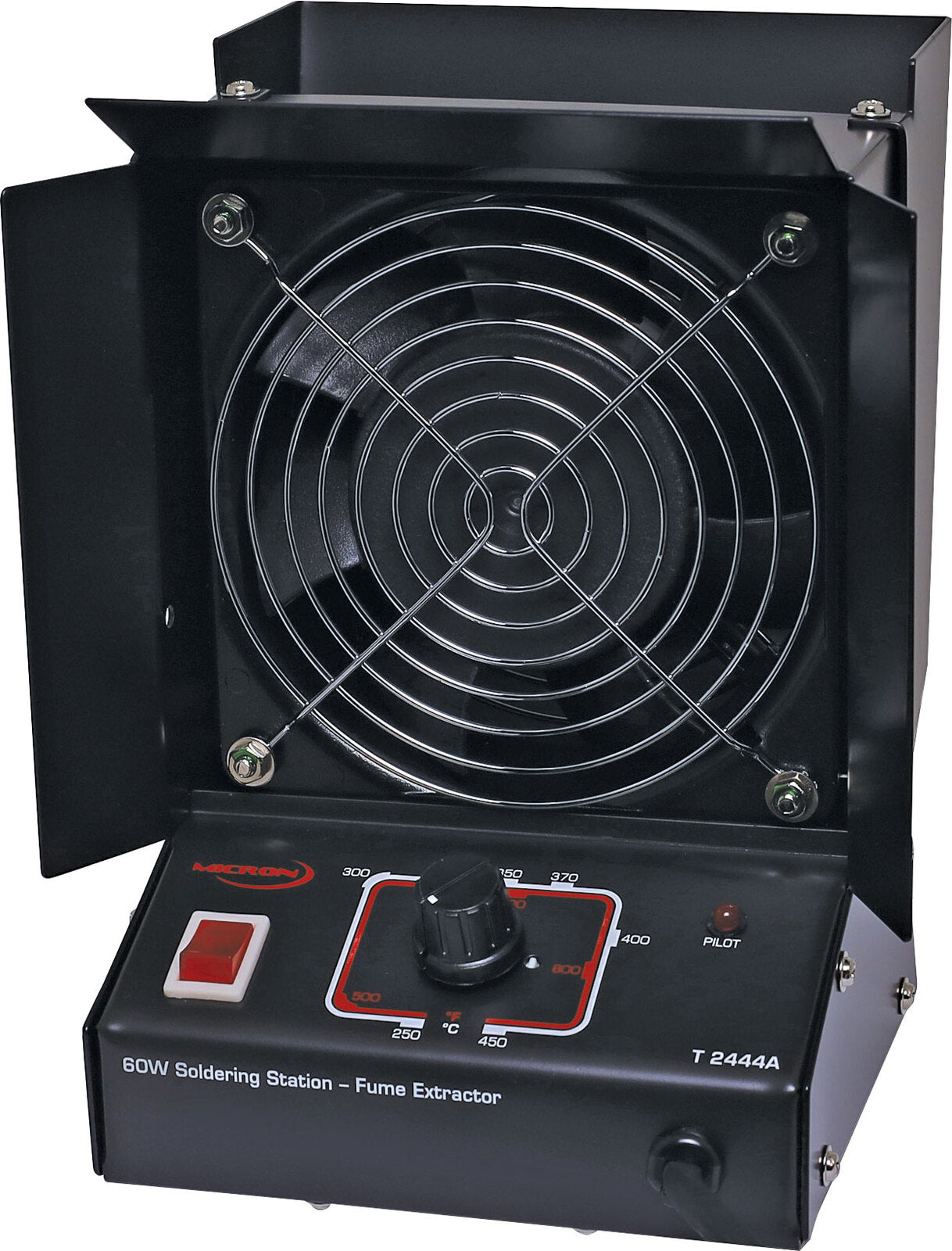

Micron 60W Soldering Iron + Fume Extractor 240V - Metal

A high performance 60W soldering iron combined with a fume extractor, designed to keep your work area free from fumes and smoke. The all metal construction will ensure this professional station will last for years and the wide temperature range of 250° to 450°C makes it suitable for a wide range of soldering tasks. It comes supplied with a 1.6mm tip (T2413) and soldering iron stand.

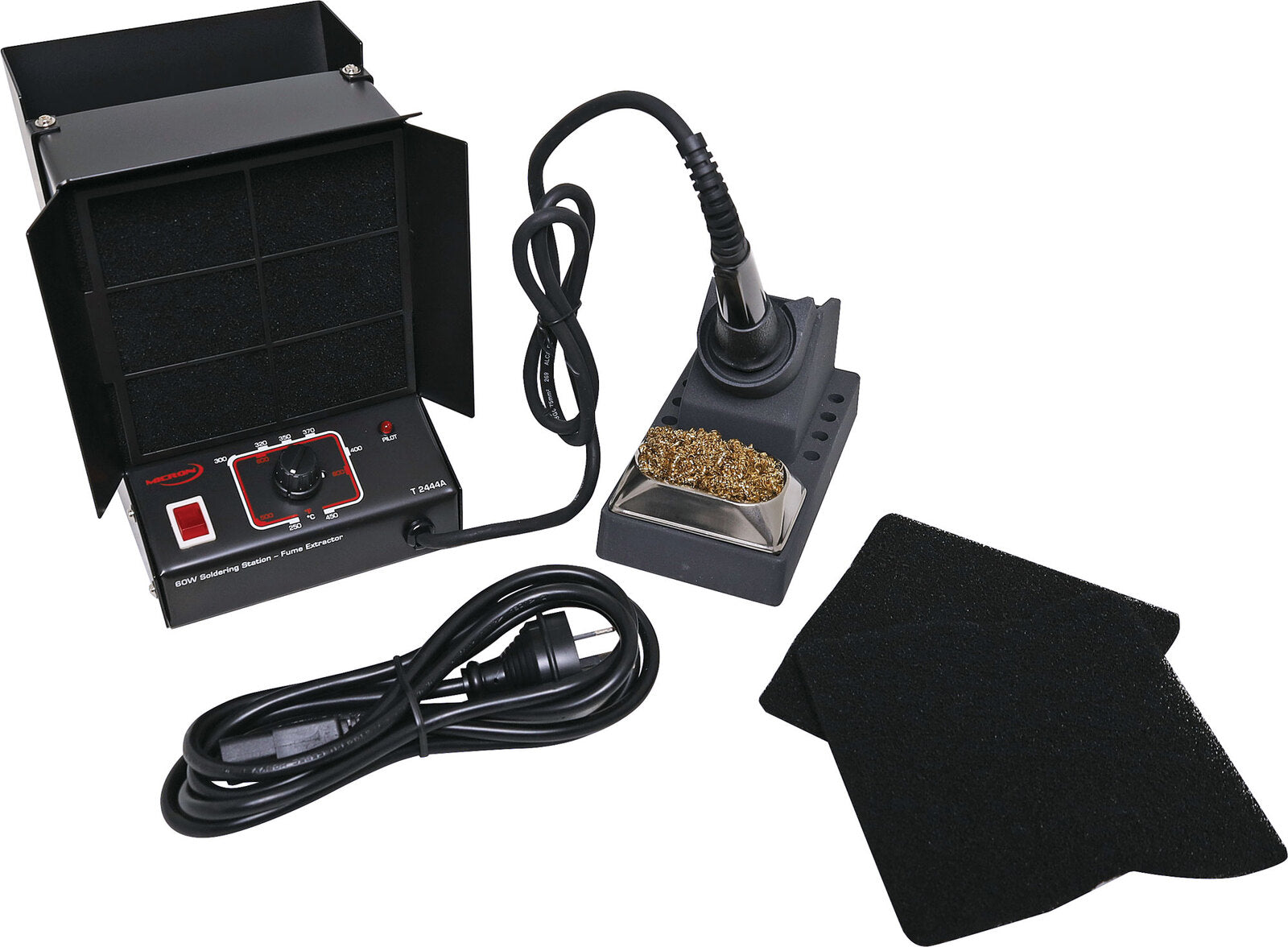

Box Includes:
1 x Fume extraction soldering station.
3 x Active carbon filters.
1 x Filter retaining clip.
1 x 1.6mm tip.

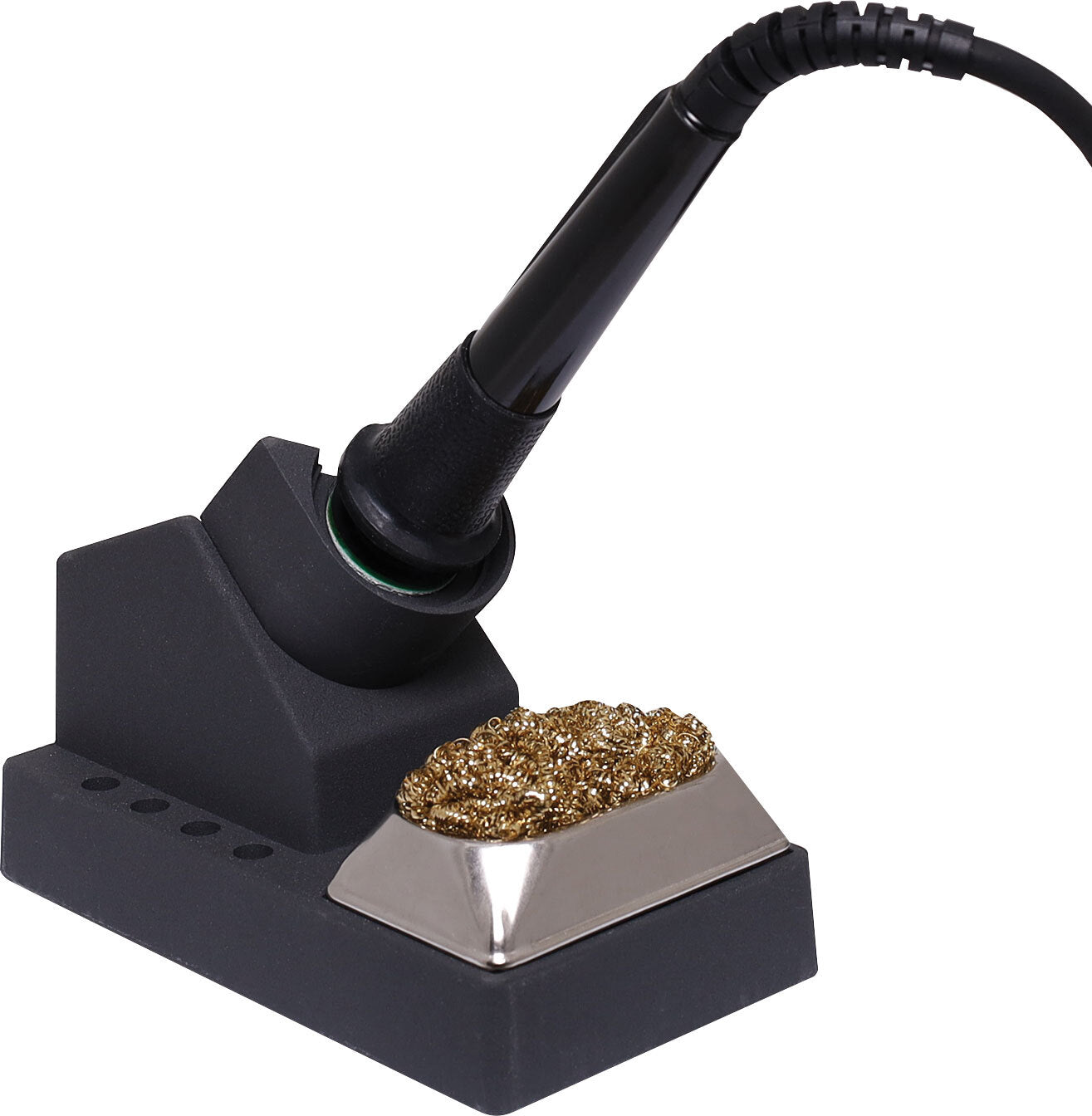

1 x Soldering iron handle stand with dry tip cleaner.
1 x User manual.

Features

• High insulation ceramic heating element for rapid heat up and instant recovery
• Burn proof iron lead
• Heater insulation of over 100MΩ
• Zero voltage circuit ensures no high voltage spikes or magnetic fields are present at the tip to damage sensitive components
• Temperature adjustable
• Powerful ball bearing fan
• Sturdy metal construction
• Improves work place comfort
• Supplied with iron stand and dry tip cleaner
• ESD safe

Specifications

• Input Power: 220-240VAC
• Solder Station Wattage: 60W
• Temperature Range: 250 - 450°C
• Tip Leakage: < 2mV
• Tip To Ground Resistance: < 0.1Ω
• Stability @ Idle: ±5°C
• Fan Wattage: 20W
• Maximum Air Volume: 95/115 CFM
• Outer Dimensions: 162W X 200H X 120D mm
• Weight: 1.5kg

*Specifications are subject to change without notice.
