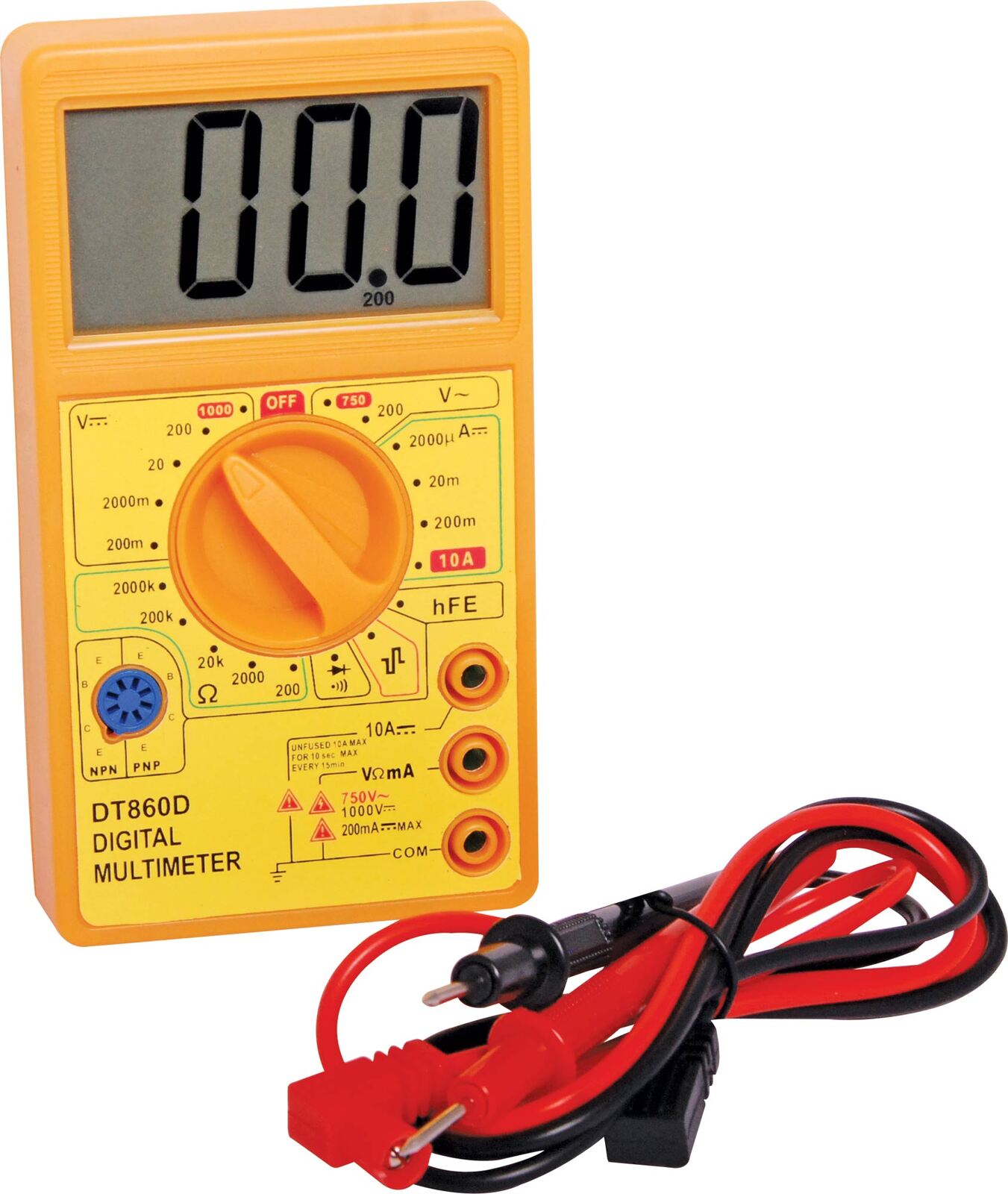

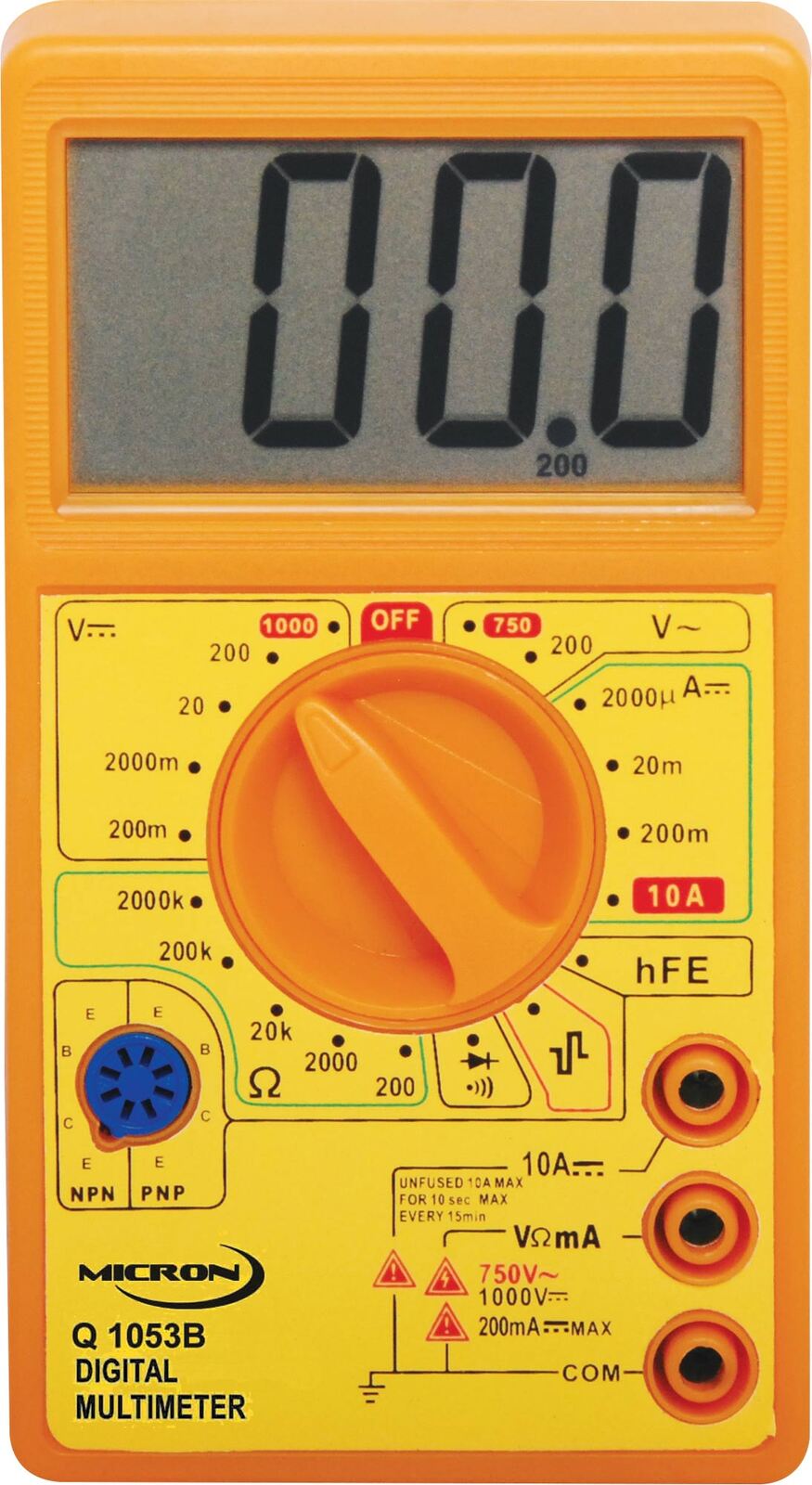

Micron 19 Range Digital Multimeter With Transistor Test
Regular price
$14.45
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
Volume pricing for school accounts
Bulk buy pricing available for school accounts. Learn more.
Featuring 19 ranges, square wave output, continuity buzzer, in-built hFE transistor and diode test function. Suitable for students or budding enthusiasts. This meter offers quality and features found in much more expensive models, but at the fraction of the price. Perfect as a spare meter for the toolbox or work van. Supplied with test leads.
Features
- Low battery indicator
- Jumbo display
- Continuity buzzer
- Square wave output
- Transistor tester
- Current measurement
- Voltage measurement
- Diode tester
- Battery included
- Cat II 500V
Specifications
- Voltage DC: 200mV, 2V, 20V, 200V, 1000V (±0.5%+4d)
- Voltage AC: 200V, 750V (±1.2%+10d)
- Current DC: 2000μA, 20mA, 200mA, 10A (±2%+2d)
- Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (±1%+8d)
- Diode test: Included
- Continuity test: Audible buzzer
- Transistor test: Measures hFE, NPN/PNP identification
- Display: 3.5 digit LCD, 1999 count
- Protection: 500mA M205 fused on all inputs,
- except 10A range
- Dimensions: ≈ 68W x 24D x 125H mm
- *Specifications are subject to change without notice.
Downloads
Instructions
