New

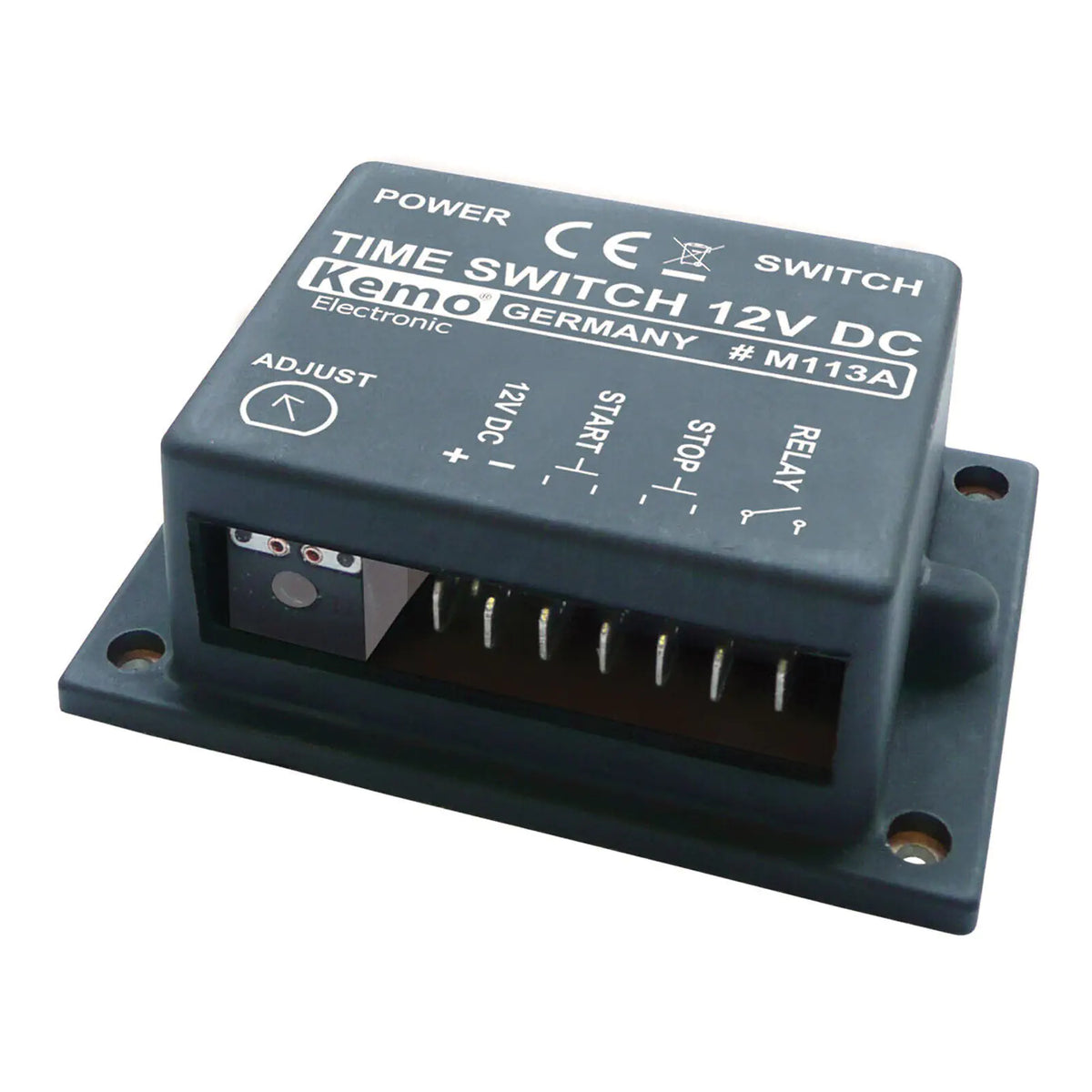

12V 3A Time Switch Module M113A
Regular price
$46.95
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $46.95 each |
| Buy 5-9 | $45.75 each |
| Buy 10+ | $44.60 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
School order payment option available at checkout
30 day payment terms for Australian schools only. Learn more.

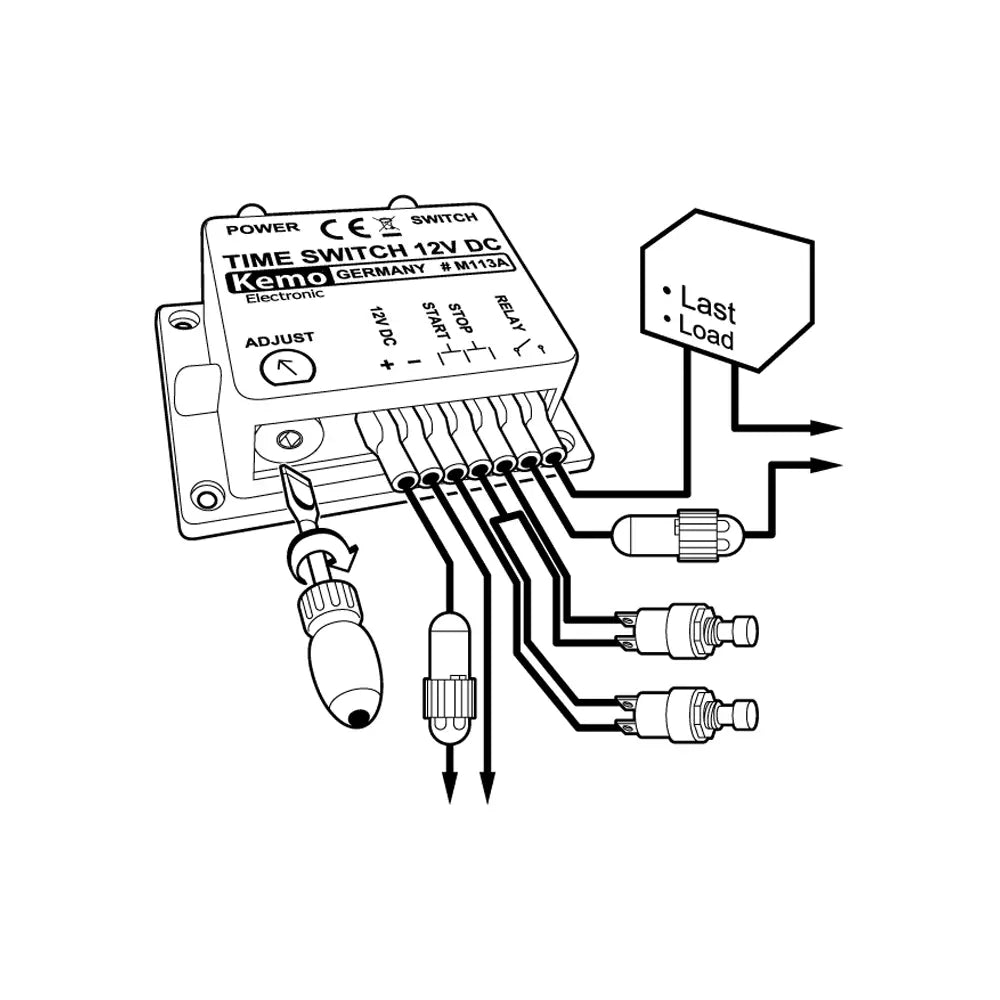

Avoid the hassle with this pre-assembled timing controller, conveniently packaged in a compact and reliable form. It's easy to connect and versatile enough to adapt to your requirements. The start and stop functions are managed by simple switching contacts, and the relay output can control devices up to 25VDC at 3A. You can effortlessly adjust timing intervals from 2 seconds to 23 minutes using a screwdriver.
Specifications
- Operating voltage: 12 - 15 V/DC
- Current consumption: approx. 20 mA / 80 mA (relay off / on)
- Adjustable time: approx. 2 sec. to 23 min., (± 30 %)
- Connection: via flat-pin plug at the module
- LED: 2 (1 x LED operating voltage, 1 x LED relay "ON")
- Relay point: 1 x ON, max. 3A, max 25V
- Dimensions: approx. 87 x 60 x 33 mm (with flanges)
