ESP32 Wi-Fi Wled Digital LED Controller
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $39.50 each |
| Buy 5-9 | $38.50 each |
| Buy 10+ | $37.50 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
30 day payment terms for Australian schools only. Learn more.

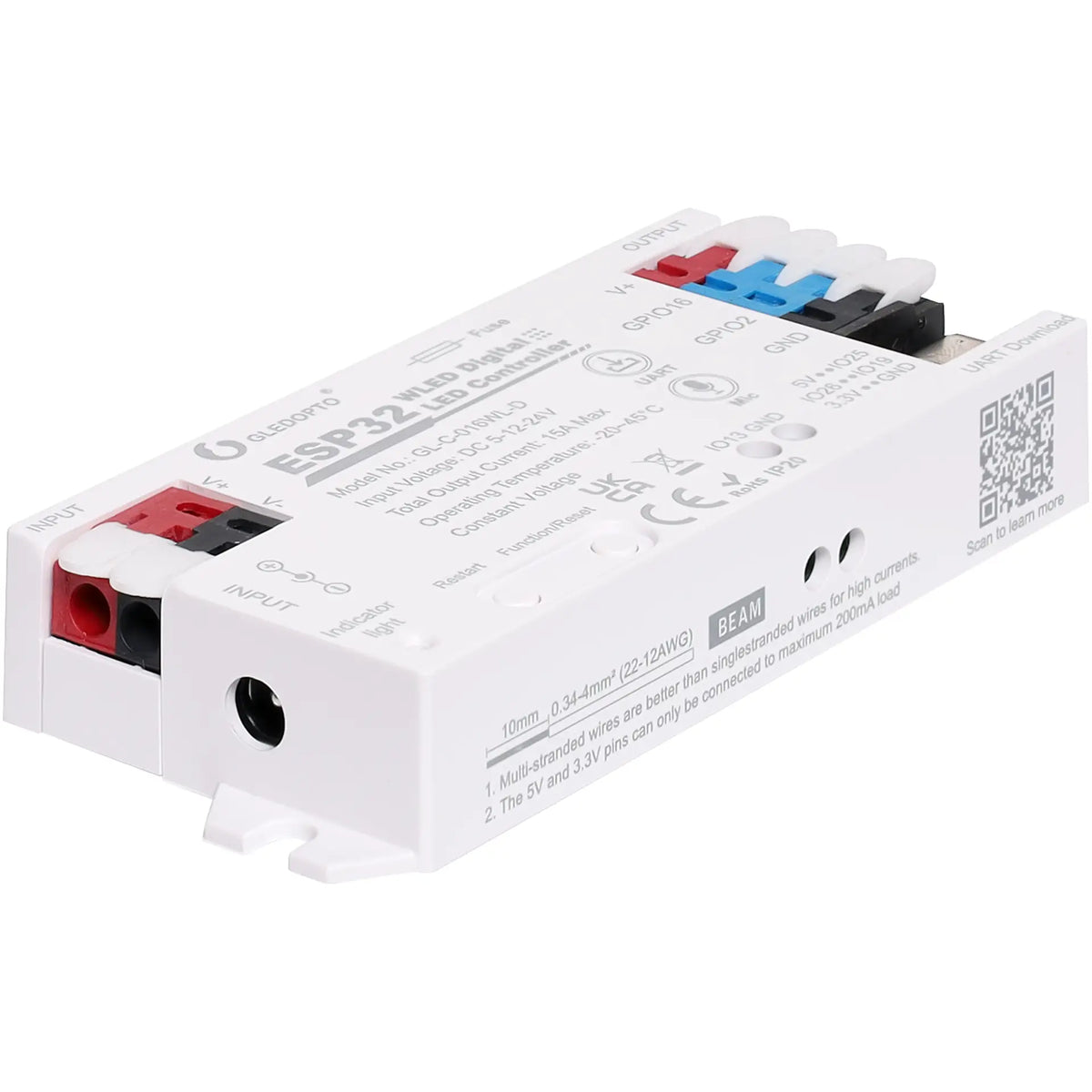

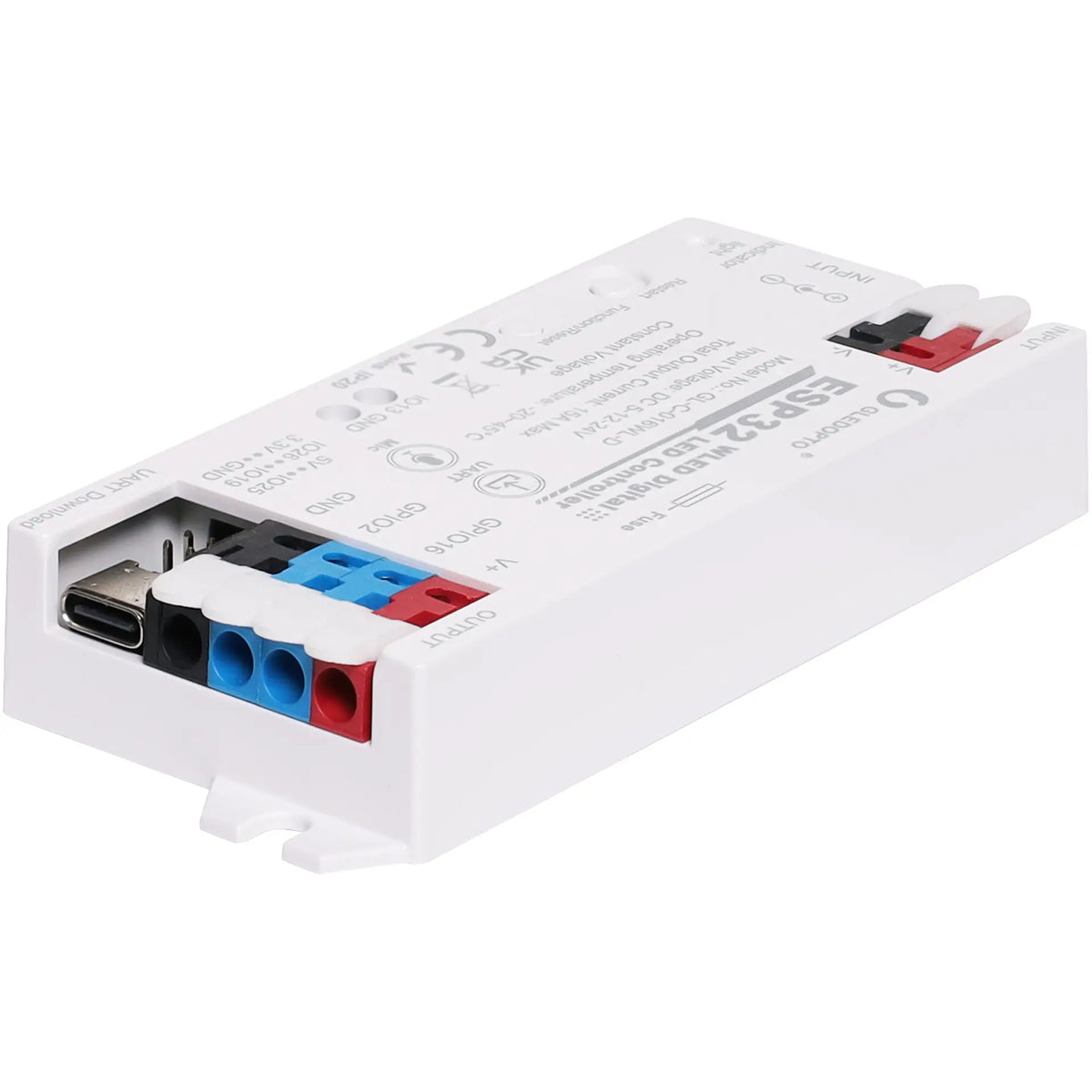

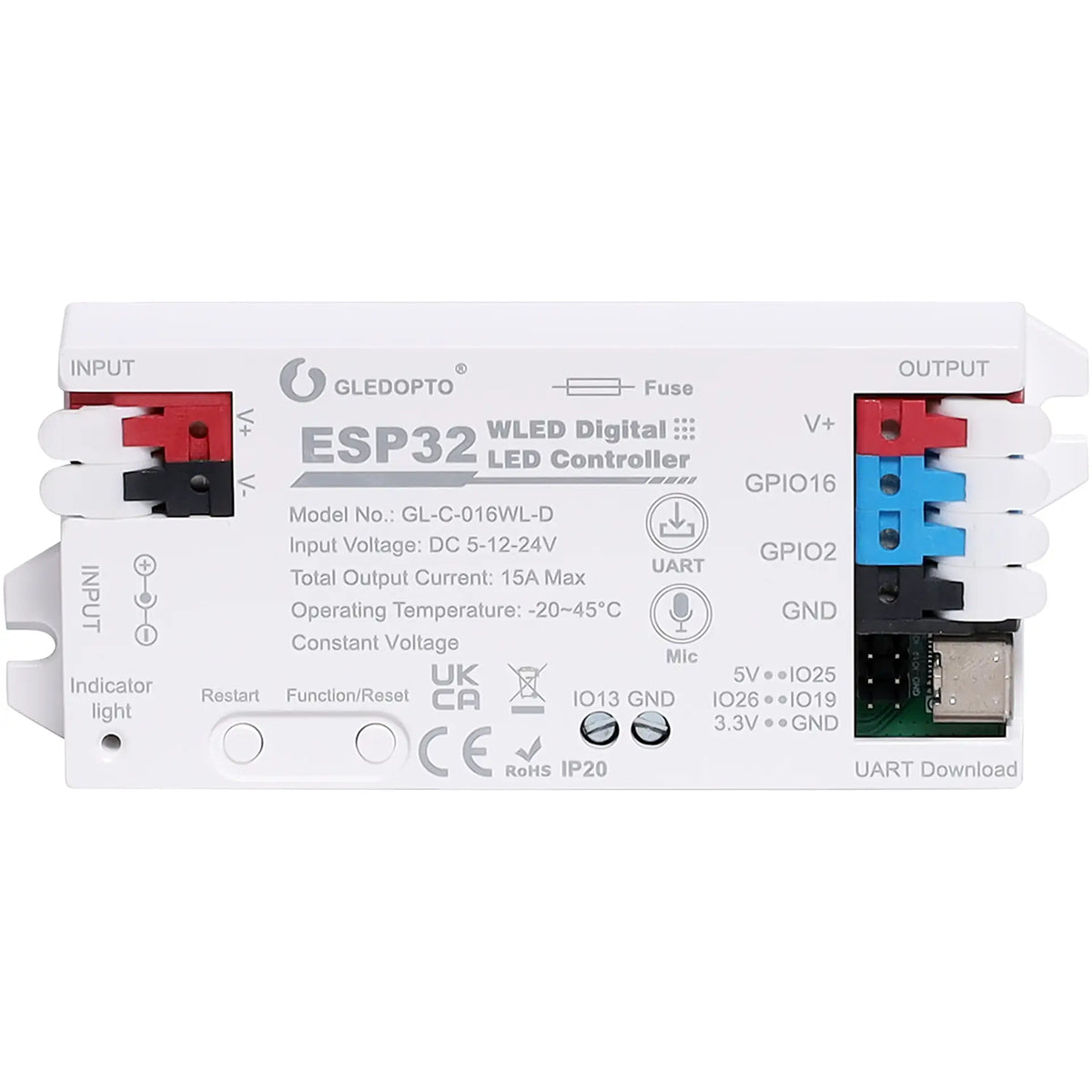

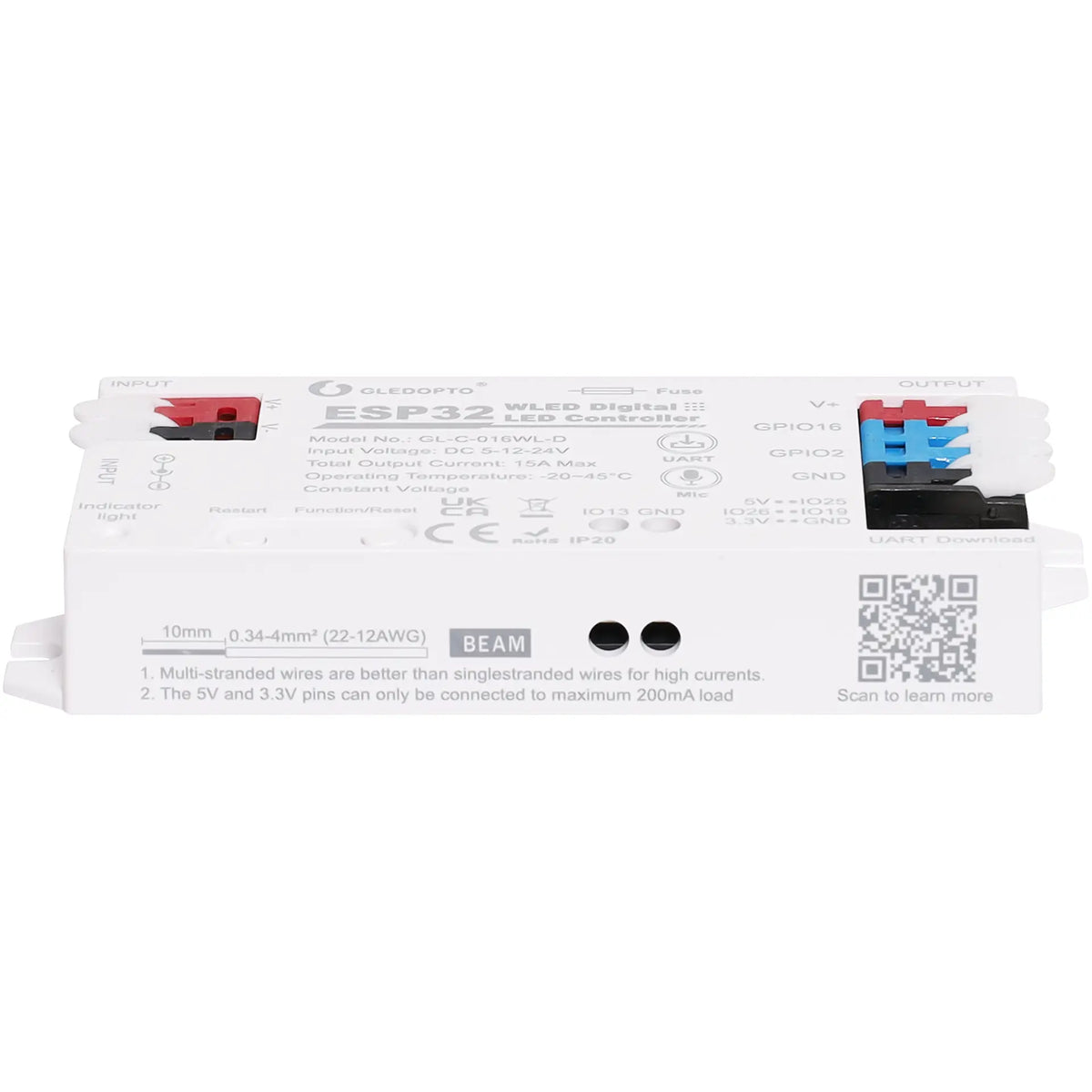

This Wi-Fi ESP32 WLED digital LED controller supports most addressable LED strips and provides the ability to customise LED lighting effects. It utilises a open source WLED firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others. LEDs can then be controlled and programmed using a PC or smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. This model also features an in-built microphone for music light triggering. The unit is fitted with USB-C UART connection for programming. Power is provided using the terminals provided or 2.1mm DC jack socket.
Features
- Supports connection for two LED strips/channels.
- 10A max current load per channel.
- Wi-Fi connection (2.4GHz).
- Push button switch input.
- DIY programmable lighting effects.
- Stable and fast data transfer with UART download over USB C.
- Microphone for music triggering.
- Can be programmed and controlled via PC or smart device (WLED app).
Specifications
- Input Voltage: DC 5-12-24V Total Output Current: 15A Max Output Current/Channel: 10A Max Protocol: WLED Connectivity: Wi-Fi Supported chips: WS2805, WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1935, UCS2903B, etc Material: Flame Retardant PC Weight: 0.57kg IP Rating: IP20 Size: 108x45x18mm
