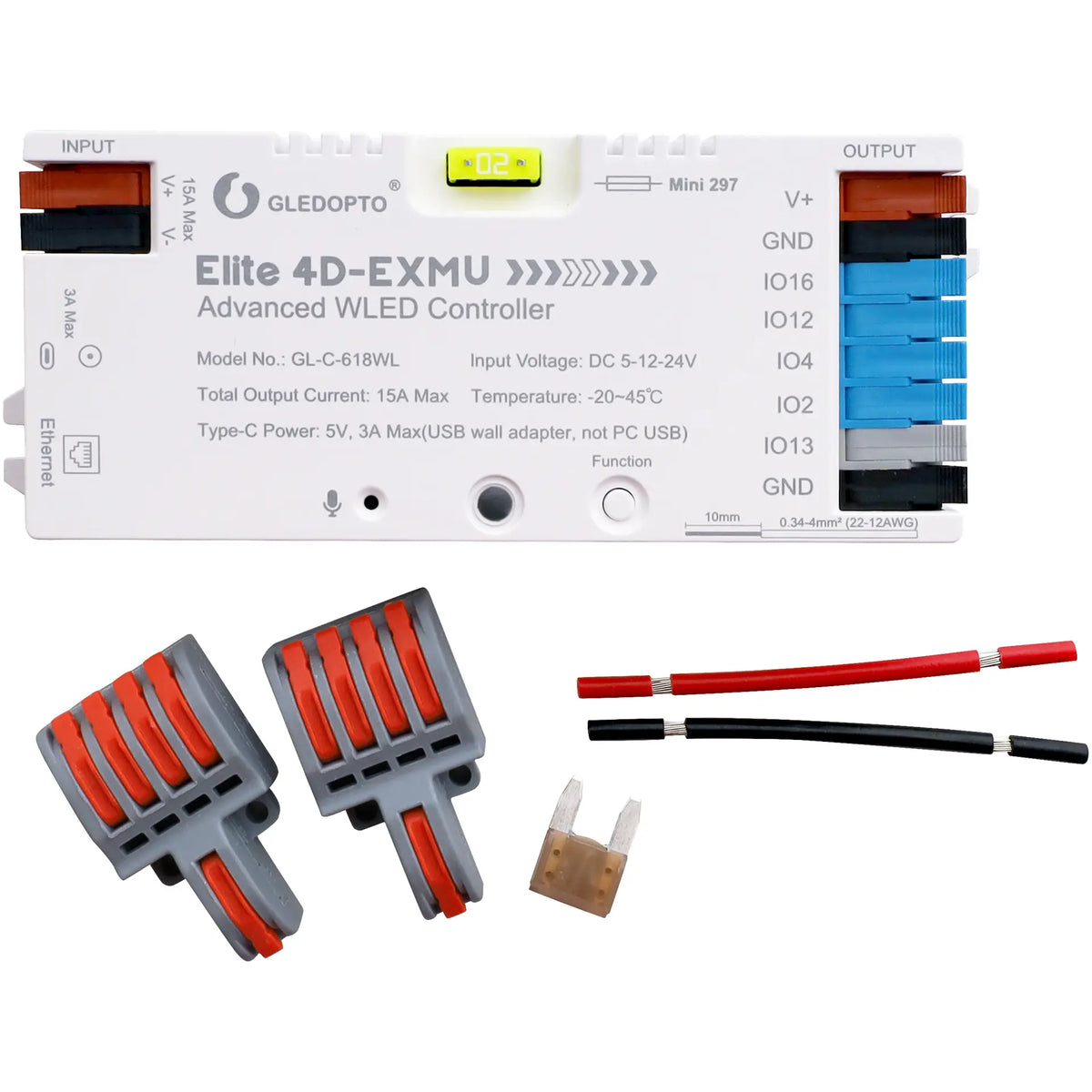

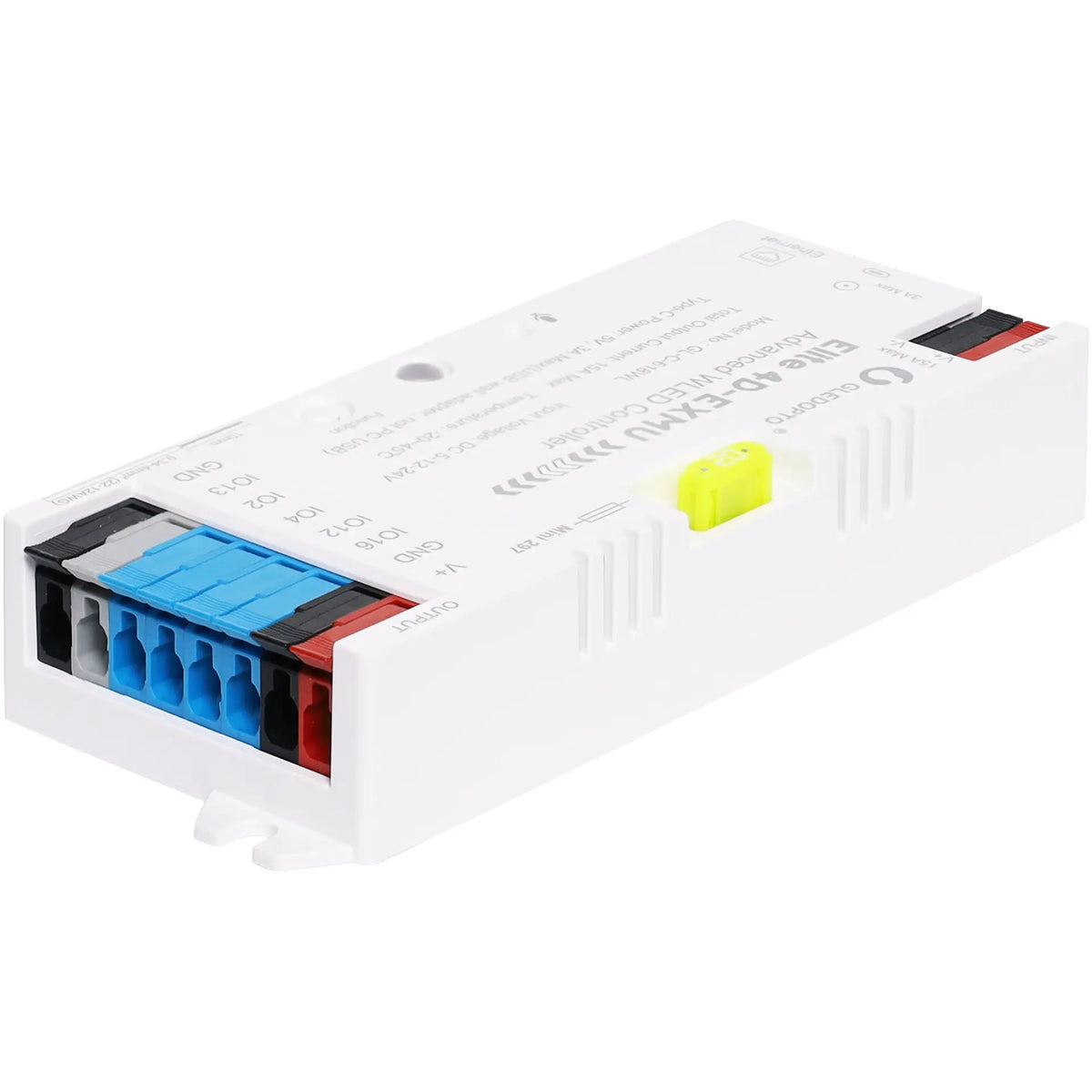

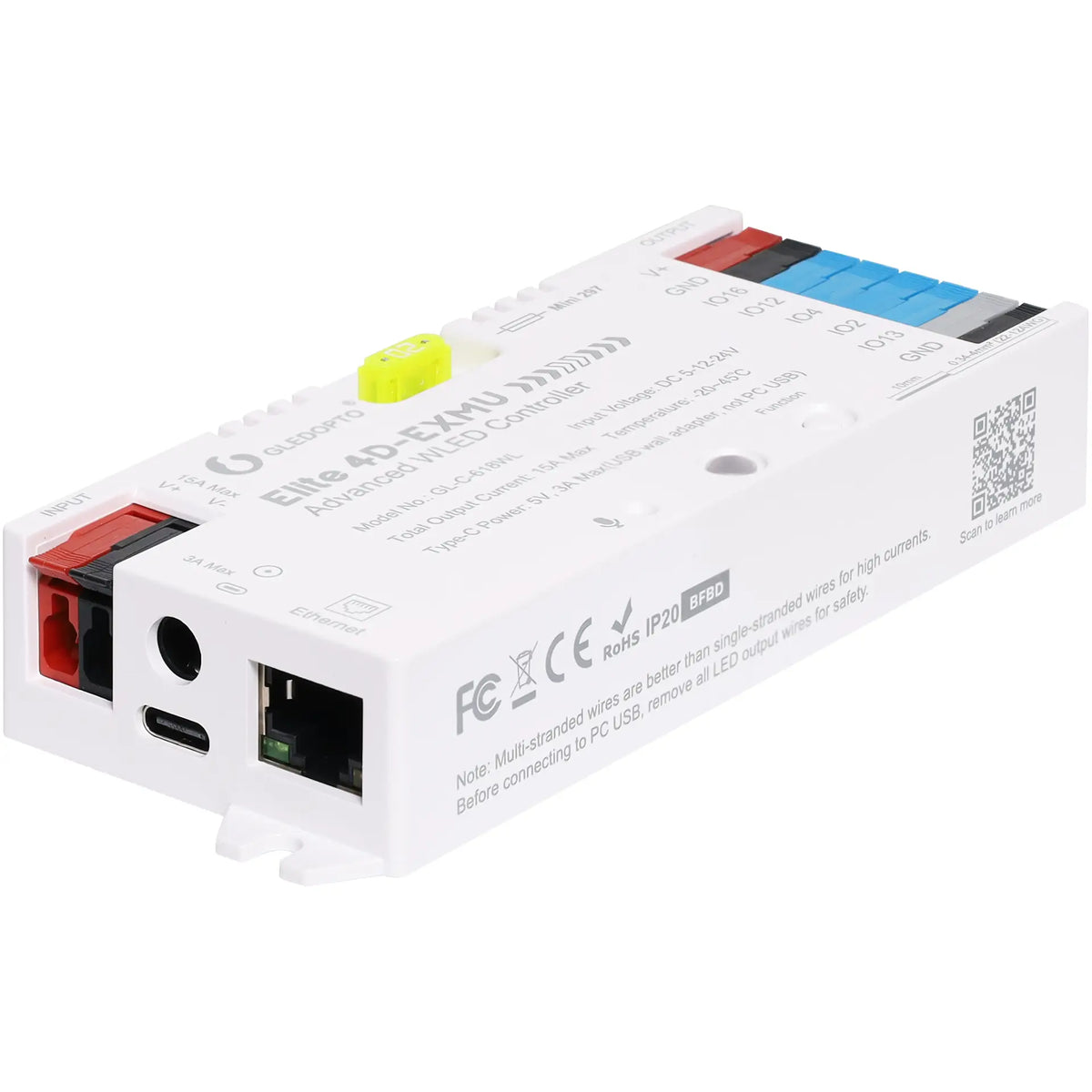

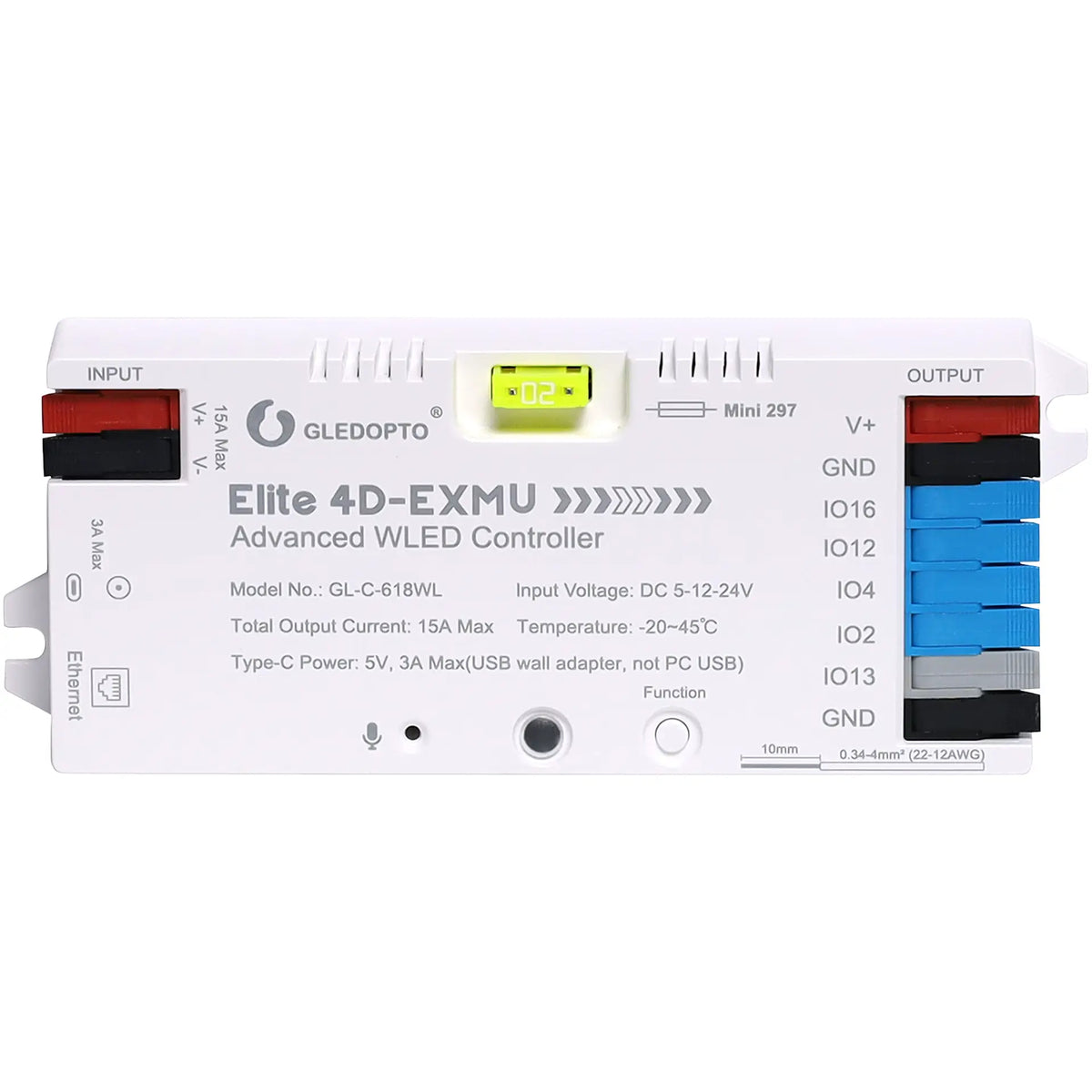

ESP32 Advanced Wi-Fi / Ethernet Wled Digital LED Controller
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $57.95 each |
| Buy 5-9 | $56.50 each |
| Buy 10+ | $55.05 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
30 day payment terms for Australian schools only. Learn more.
This Wi-Fi and ethernet based ESP32 LED controller is an advanced lighting module for addressable LED strips. It utilises open source WLED firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others. This model provides connectivity via either Wi-Fi or wired ethernet and supports up to 4 LED channels. LEDs can then be controlled and programmed using a PC or smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. An in-built microphone allows for dynamic lighting effects by triggering to the beat of the music. The unit is fitted with USB-C UART connection for programming. Power is provided using the terminals provided or 2.1mm DC jack socket.
Features
- Supports connection for four LED channels/strips.
- 10A max current load per channel.
- Wired Ethernet or Wi-Fi connection (2.4GHz).
- 20A Pluggable Fuse
- Plug and Play ethernet port
- Push button switch input.
- DIY programmable lighting effects.
- Stable and fast data transfer with UART download over USB C.
- Microphone for music triggering.
- Can be programmed and controlled via PC or smart device (WLED app).
Specifications
- Input Voltage: DC 5-12-24V Total Output Current: 15A Max Type-C Voltage: 5V Type-C Current: 3A Max Protocol: WLED Connectivity: Wi-Fi & Wired Ethernet Supported chips: WS2805, WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1935, UCS2903B etc. Material: Flame Retardant PC Weight: 0.11kg IP Rating: IP20 Size: 129x50x23mm
