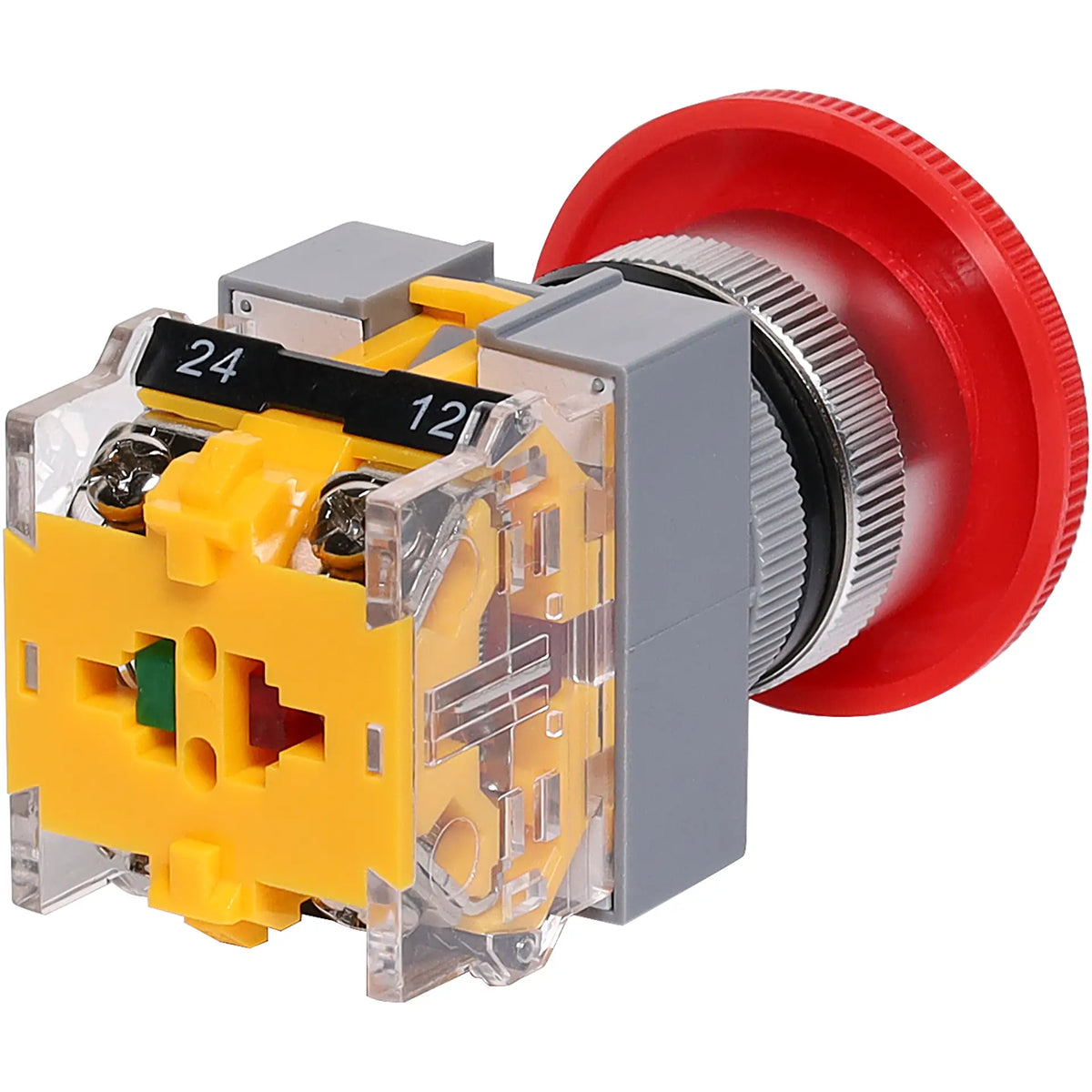

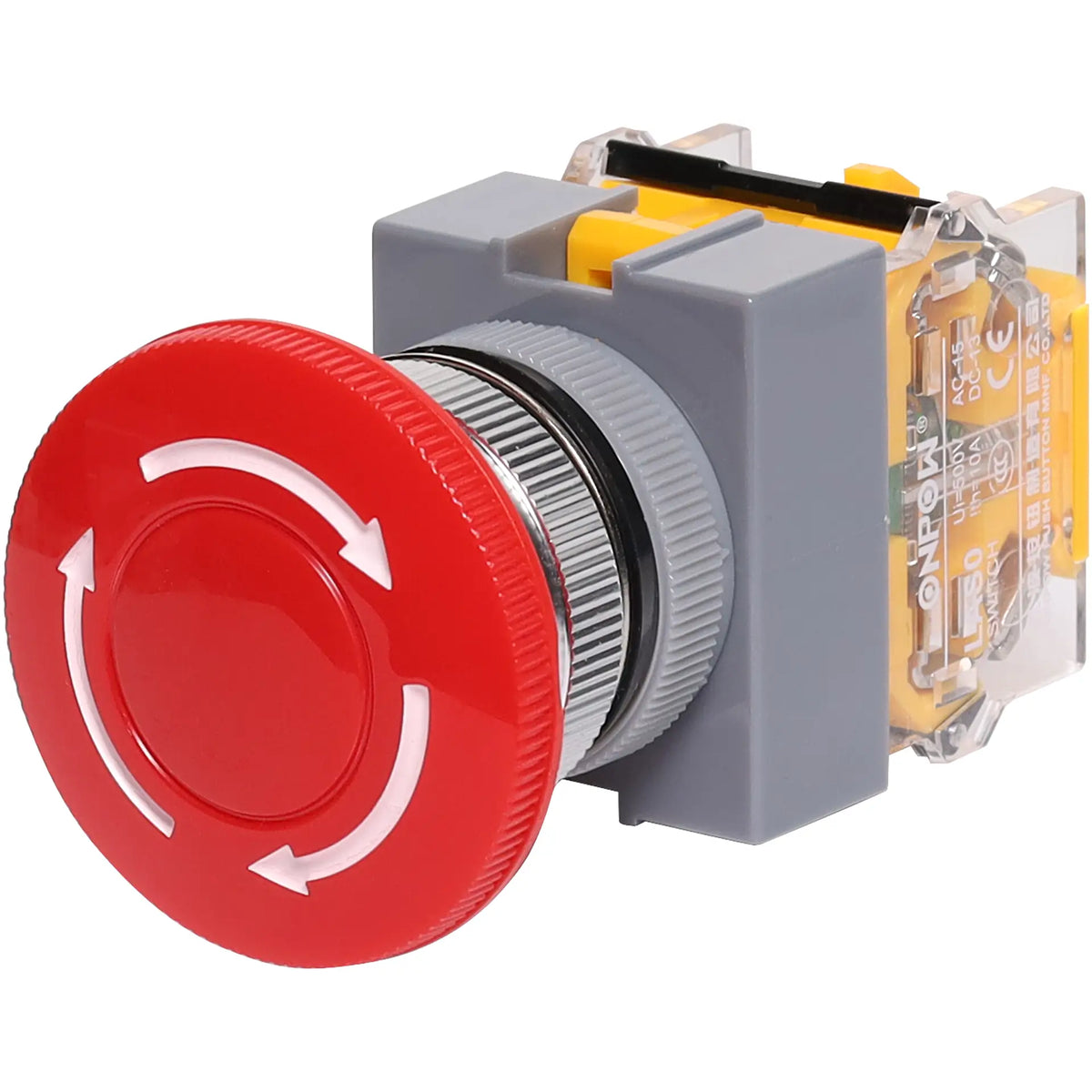

Emergency Stop Push Lock Turn Reset Switch

The 1NO1NC Emergency Stop Push Lock Turn Reset Switch provides a fast and secure way to shut down equipment in emergency situations. The "Push Lock Turn" mechanism ensures the button stays latched in the stop position until deliberately reset by a twist, preventing accidental restarts and enhancing safety. Ideal for use in machinery, automation systems, and industrial control

Features

• 1NO1NC contacts for versatile control applications.
• Push-to-lock mechanism for secure emergency shutdown.
• Bright red button for quick identification and operation.
• Durable construction designed for industrial environments.
• Panel-mount design for easy installation in control systems.
• Enhanced operator safety by preventing accidental equipment restarts.

Specifications

• Switch type: 1NO1NC
• Switch rating: 500V 10A
• Mechanical Life: ≥1000,000 cycles (momentary), ≥500,000 cycles (latching)
• Electrical Life: ≥50,000 cycles
• Contact Resistance: ≤200mΩ
• Insulation Resistance: ≥100MΩ (500V DC)
• Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min
• Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)
• Torque: ~0.6Nm applied to nut
• Operating force: ~10N (1NO 1NC)
• Operating travel: ~5mm
• Front Panel protection degree: IP40
• Terminal type: Thread connection
• Diameter of welded wire: 2 x 1.5mm² Max
• General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52
• Contact: Silver Alloy
• Button: POM
• Body: ABS
• Base: PC
