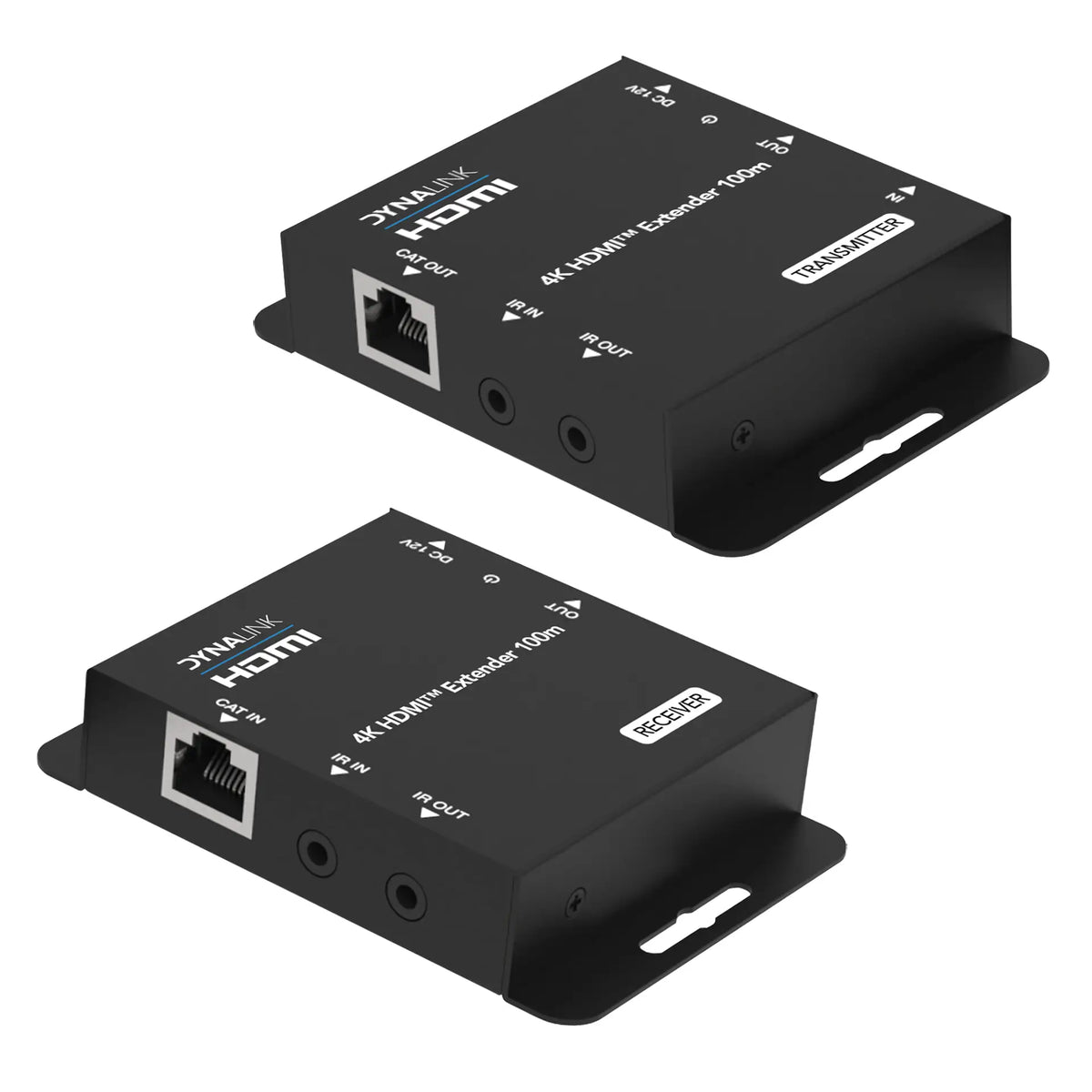

HDMI & Infra-Red Cat5e/6 Extender UTP Balun

This 4K30 HDMI Extender can extend HDMI high-definition signal up to 100m over CAT6/6a cable, achieving zero-delay, uncompressed long-distance transmission between the signal sources and display devices. Video resolution is up to 4K@30Hz, and audio formats available include LPCM/Dolby/DTS 5.1CH. PoC (Power over Cable) function and EDID copy pass-through between the signal sources and display devices are also supported.

This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other applications.

Features

• 1× 4K30 HDMI Extender (TX)
• 1× 4K30 HDMI Extender (RX)
• 1× IR Blaster Cable (1.5m)
• 1× IR Wideband Receiver Cable (1.5m)
• 1× 12V/1A Power Supply
• 1× User Manual
• Compliant with HDCP 1.4
• Video bandwidth is 10.2Gbps
• Video resolution is up to 4K@30Hz, 1080P@60Hz, 1920x1200@60Hz
• Transmission distance can be up to 100m over CAT6/6a cable
• Support bi-directional PoC function and IR pass-through
• Audio format: LPCM 2.0, Dolby 5.1, DD+7.1, DTS 5.1
• EDID copy pass-through between the signal sources and display devices

Specifications

• Technical:
• HDCP Compliance: HDCP 1.4
• HDMI Compliance: HDMI 1.4
• Video Bandwidth: 10.2Gbps
• Colour Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2
• Colour Depth: 8/10/12-bit
• Audio Formats: LPCM 2.0, Dolby 5.1, DD+7.1, DTS 5.1
• IR Level: 5Vp-p
• IR Frequency: Wideband 20K-60KHz
• Transmission Distance: 100m/328ft for 4K@30Hz via CAT6/6a cable
• Video Resolution: 480i60, 576i50, 480p60, 576p50, 720p50/60, 1080i50/60, 1080p24/25/30/50/60, 3840x2160@24/25/30, 4096x2160@24/25/30; 640x480@60, 1024x768@60, 1280x768@60, 1280x800@60, 1280x1024@60, 1360x768@60, 1440x900@60, 1680x1050@60, 1920x1200@60RB
• Connections:
• Transmitter: Input: 1× HDMI IN [Type A, 19-pin female] 1× IR IN [3.5mm audio jack] Output: 1× HDMI OUT [Type A, 19-pin female] 1× IR OUT [3.5mm audio jack] 1× CAT OUT [RJ45]
• Receiver: Input: 1× CAT IN [RJ45] 1× IR IN [3.5mm audio jack] Output: 1× HDMI OUT [Type A, 19-pin female] 1× IR OUT [3.5mm audio jack]
• Mechanical:
• Housing: Metal Enclosure
• Colour: Black
• Dimensions: 74W x 68D x 20Hmm
• Weight: Transmitter: 162g, Receiver: 159g
• Power Supply: 12V/1A DC
• Power Consumption: 3.24W
• Operation Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)
