HDMI HDBaseT Cat6 Extender System

This 4K60 HDBaseT wall plate provides the latest connectivity for HDMI signals over long distances up to 40m (4K @ 60Hz) or 70m (1080p) using standard Ca6/6a/7 UTP cabling. Perfect for boardrooms, conference venues, classrooms where long distances between source and display are common. The use of HDBaseT technology ensures optimum signal integrity without losses while providing the latest audio & video feature support (such as HDR10+, Dolby Atmos, DTSX, HD Master Audio and more). It also supports two-way IR and RS-232. Plus power over ethernet (PoE) makes installation simple. The wallplate is mated to a standard Australian electrical wallplate for simple installation. System includes 1 wallplate transmitter and 1 receiver. Includes power supply.

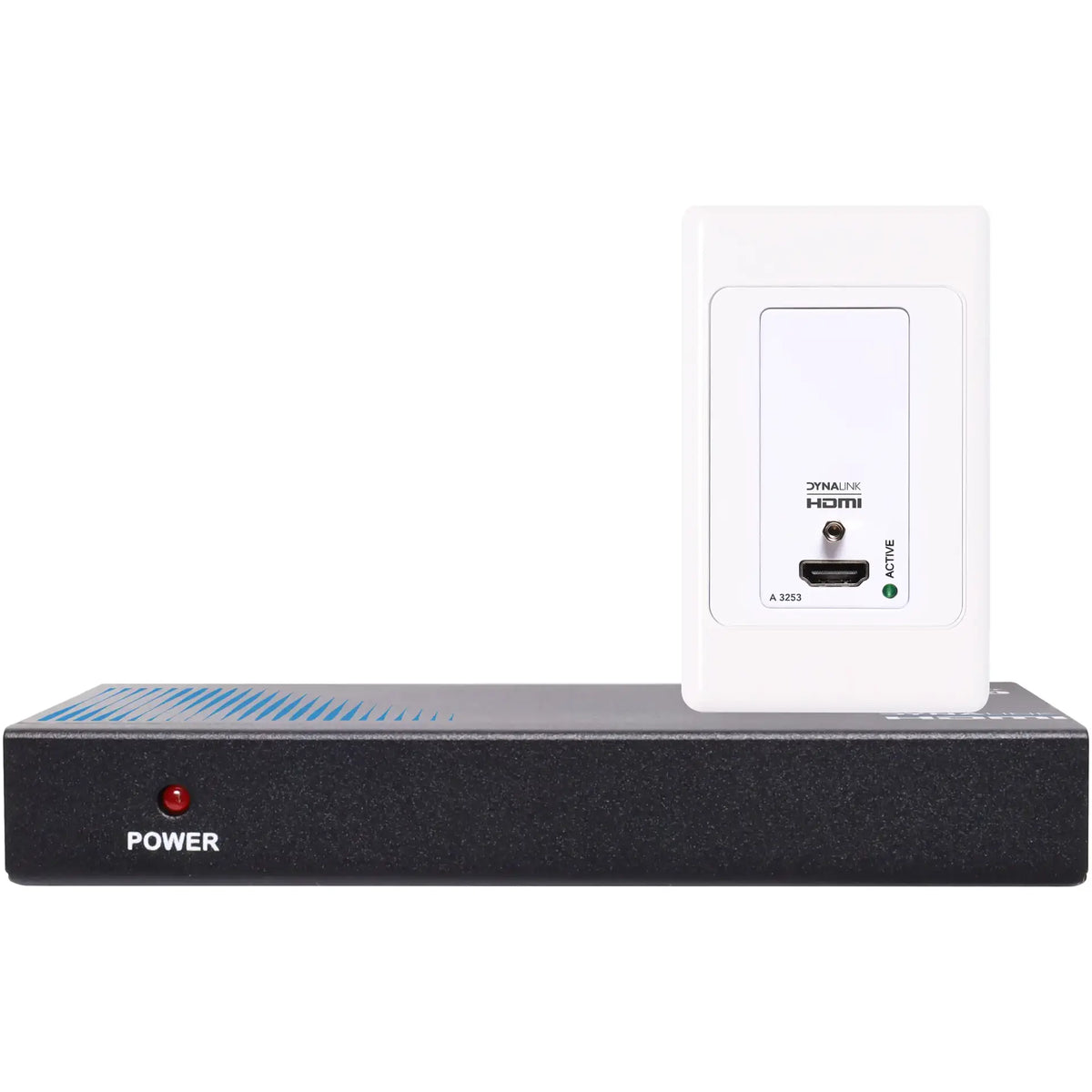

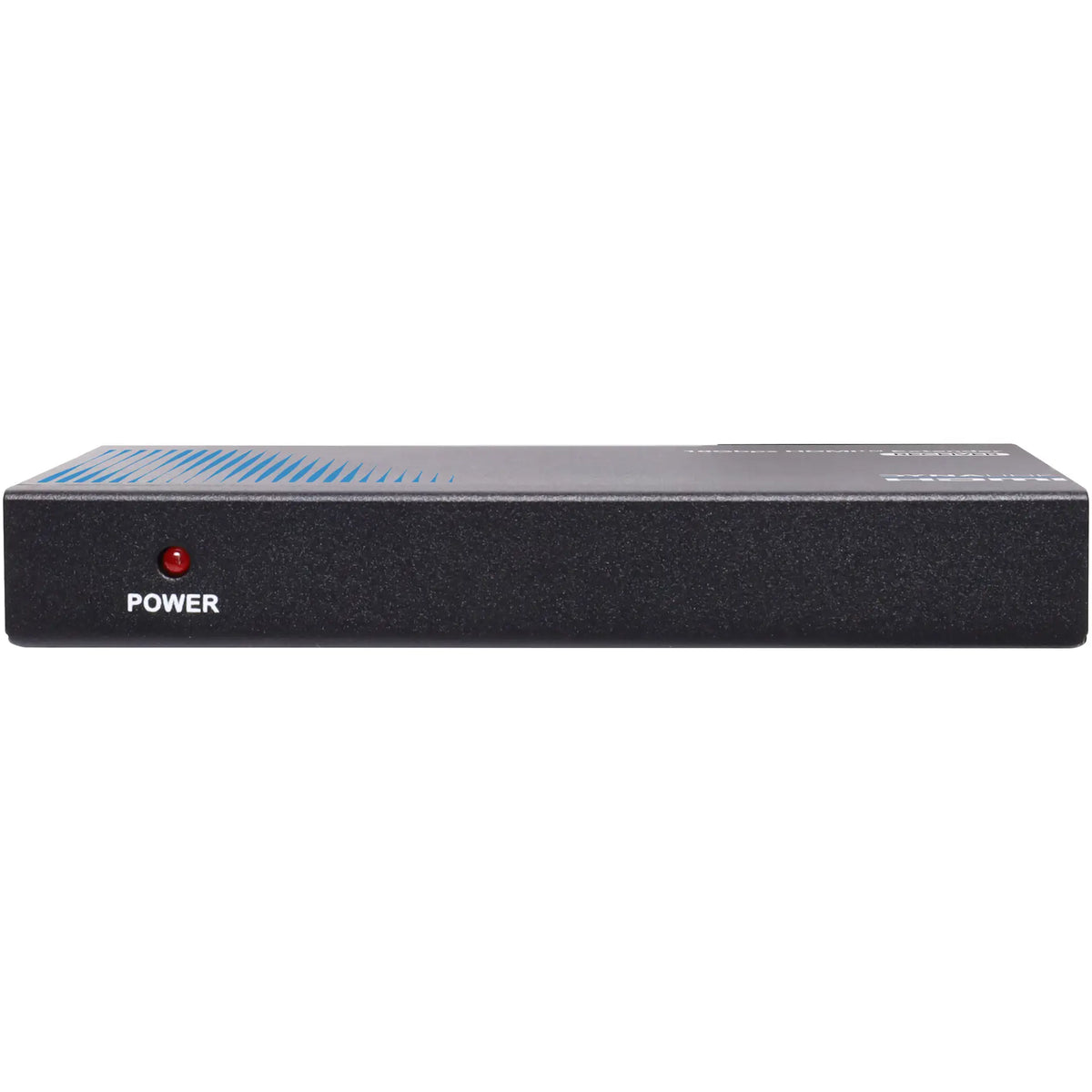

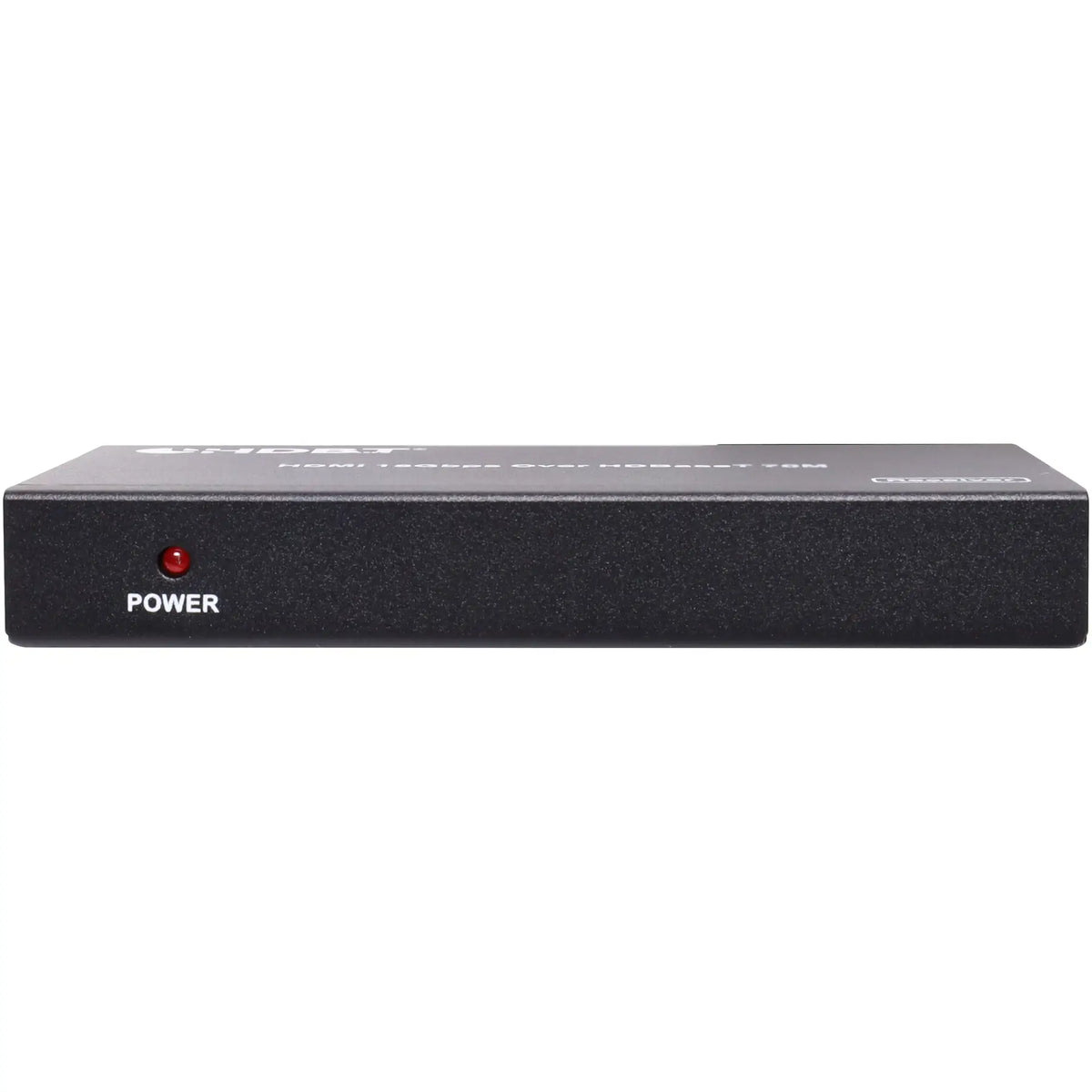

1 x Transmitter wallplate. 1 x Receiver unit. 1 x 24V DC power supply. 1 x User manual.

Features

• Compliant with HDMI 2.0b and HDCP 2.2 specifications.
• HDMI input supports a maximum video bandwidth of 18Gpbs.
• Video resolution supports up to 4K@60Hz 4:4:4.
• Through a single CAT6/6a/7 network cable, HDBaseT output can extend the video signal by 40 meters (resolution of 4K@60Hz) or 70 meters (resolution of 1080P@60Hz).
• Supported HDMI audio formats include Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; LPCM 2/5.1/7.1CH.
• Fitted to a standard Australian wallplate.
• Support POC power supply (only one-way power supply from receiver to transmitter)
• Transfer Bidirectional Infrared control signal together with the HDMI signal.
• Transfer Bidirectional RS-232 control signal together with the HDMI signal.

Specifications

• Audio Visual HDMI: HDMI 2.0b HDCP: HDCP 1.4 and HDCP 2.2 Video Bandwidth: 18Gbps Video Resolution: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2 Color Depth: 10-bit, 12-bit HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH

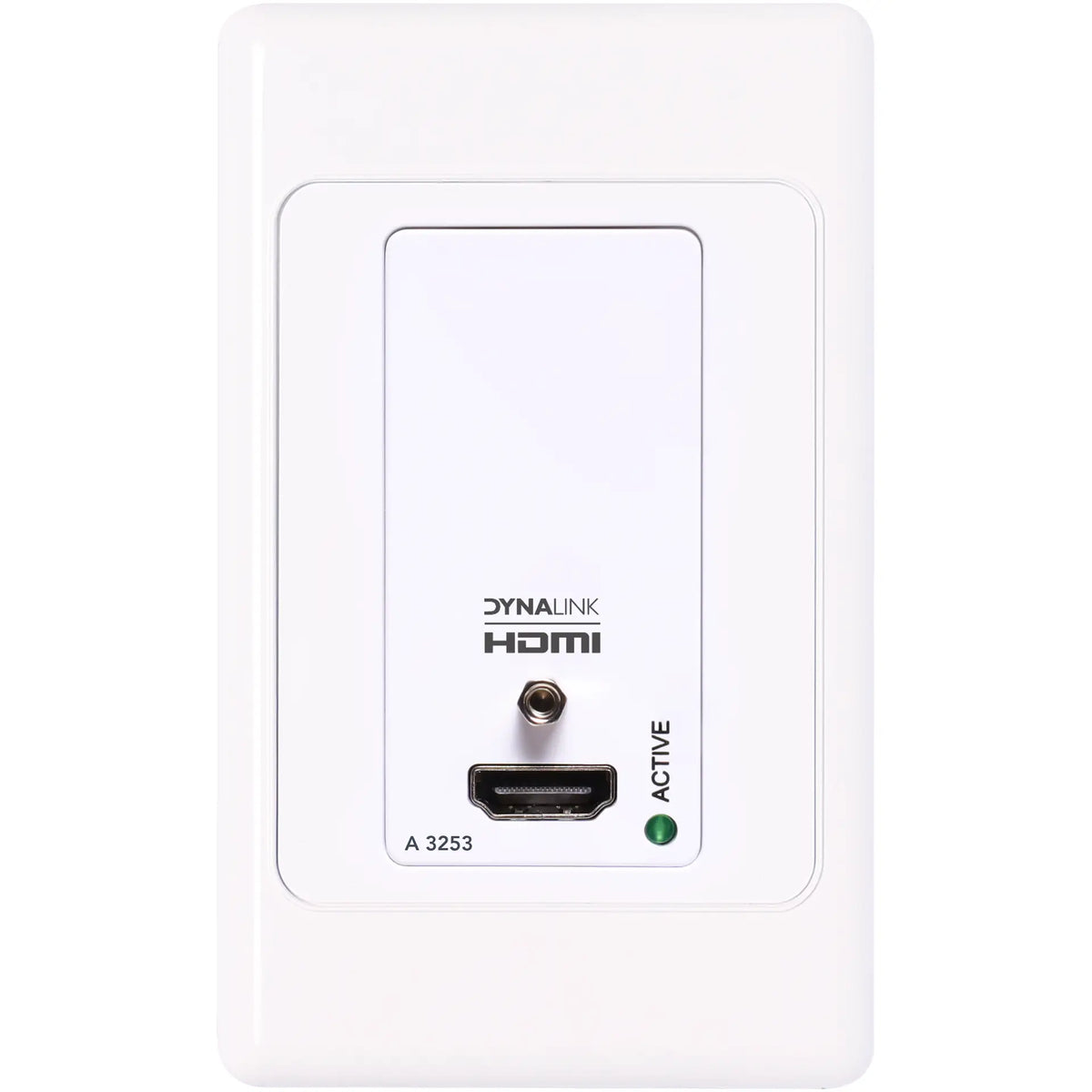

• Transmitter Connections Inputs: 1x HDMI, 1x Infra-red (terminal block), 1x RS-232 (terminal block) Outputs: 1x HDBaseT Out (RJ45), 1x Infra-red (terminal block), 1x RS-232 (terminal block)

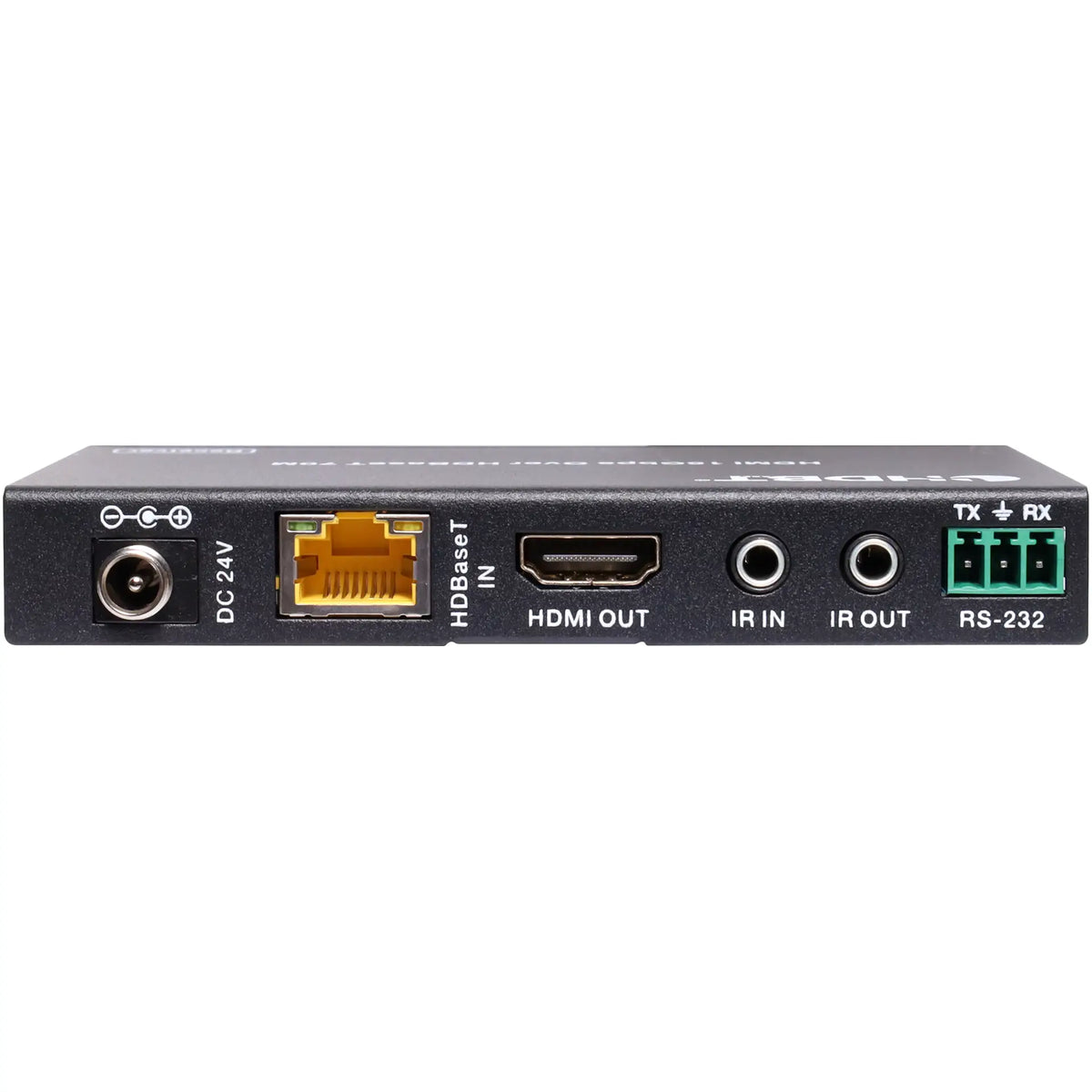

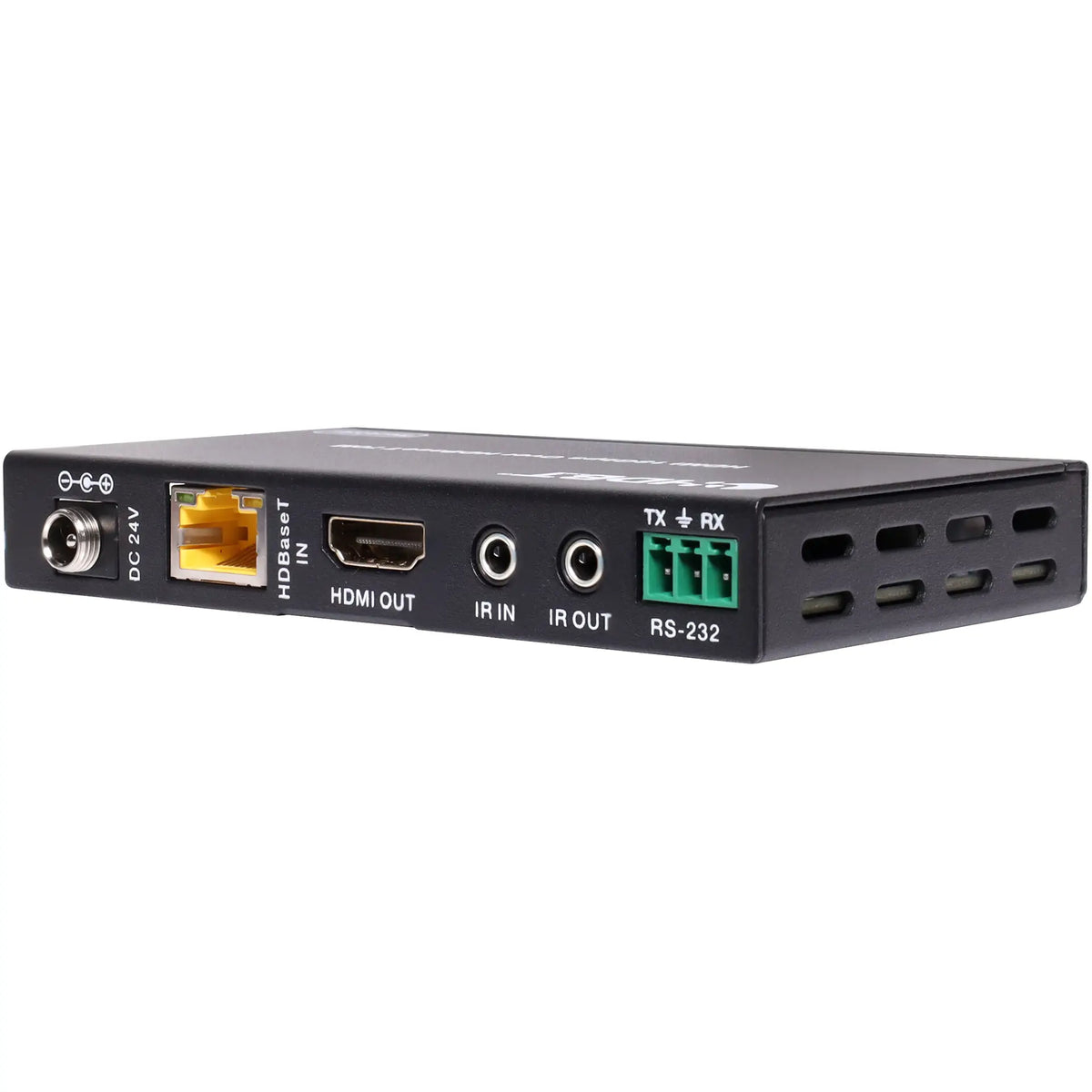

• Receiver Connections Inputs: 1x HDBaseT In (RJ45), 1 x Infra-red (3.5mm jack), 1x RS-232 (terminal block) Outputs: 1x HDMI, 1x Infra-red (3.5mm jack)
• General Housing: Plastic-Front Panel, Metal-Rear Case Wall Plate: Dimensions: 76W x 116H x 47Dmm 30mm Weight: 163g Power supply: POE power supply (only one-way power supply from receiver to transmitter) Power requirements: DC 24V/1A Power Consumption: 9W (Max) Operation Temperature: 0°C - 40°C
