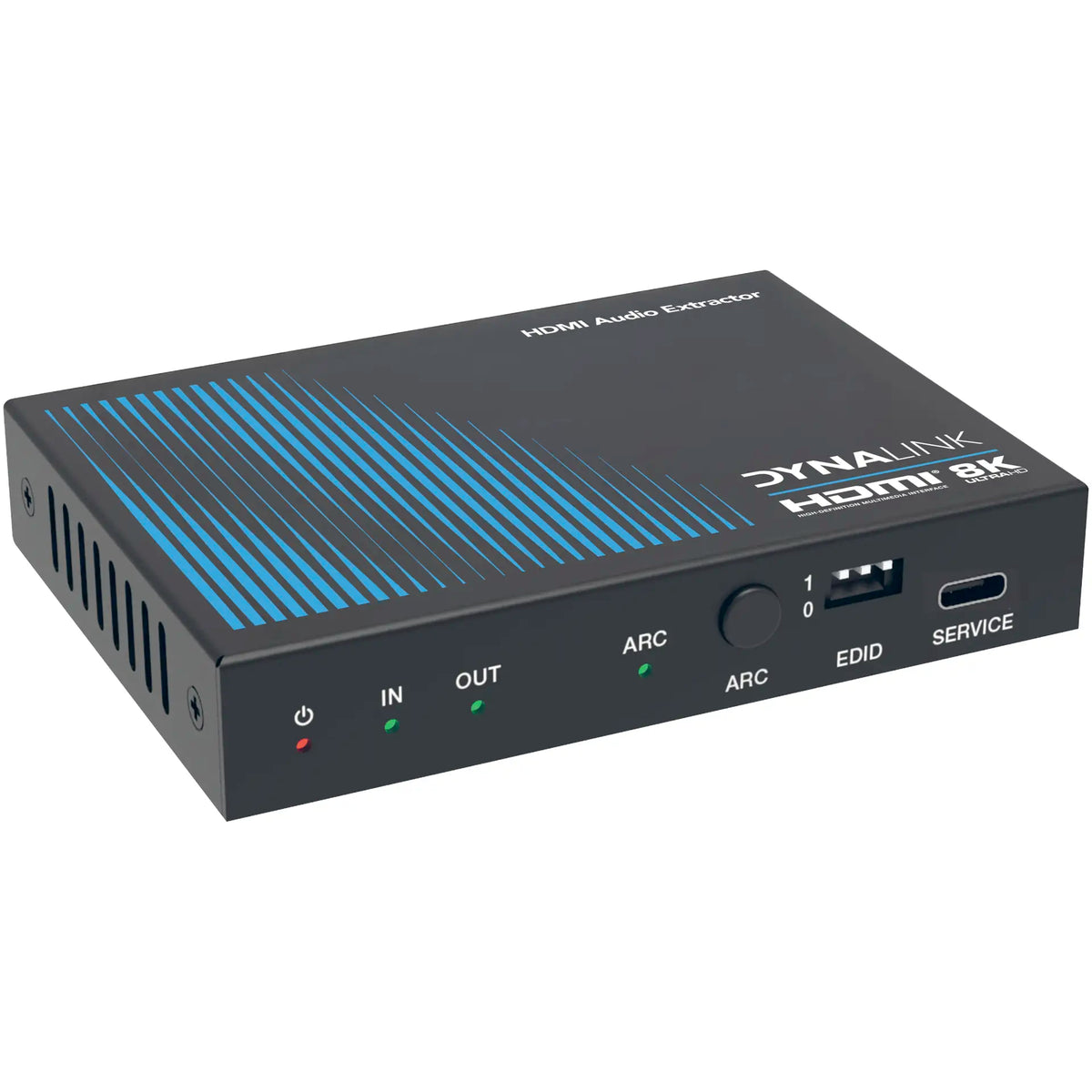

HDMI 2.1 8K Audio Extractor

This audio extractor allows users to extract audio signals from any HDMI compliant source or ARC-compatible TV to output analog stereo and digital S/PDIF audio, with a buffered HDMI video output. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It features both input and output of HDMI supporting video resolution up to 8K @ 60Hz. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI installations to send audio signals to a stereo audio or surround sound system.

Features

• HDMI 2.1 and HDCP 2.3 compliant
• Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
• Supports video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
• HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
• HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
• LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
• HDMI input audio or TV ARC audio de-embedded to S/PDIF and L/R audio output
• Supports CEC control from output devices to input sources
• Advanced EDID management
• Compact design for easy and flexible installation

Specifications

• General
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
• Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
• Colour Depth: 8/10/12-bit
• Colour Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
• Audio Formats (HDMI IN/OUT): LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Audio Formats (AUDIO BREAKOUT): OPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CH, L/R OUT: PCM 2.0CH
• HDR: HDR, HDR 10, HDR 10+, Dolby Vision, HLG
• ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
• Connections
• Input Ports: 1xHDMI Type A (19-pin female)
• Control: 1 x SERVICE [USB Type C, Update port]
• 1 x TV(ARC) OUT [HDMI Type A, 19-pin female]
• 1 x L/R [3.5mm Stereo mini-jack]
• 1 x OPTICAL [S/PDIF, female]
• Mechanical
• Housing: Metal Enclosure
• Dimensions: 95W × 68D × 18Hmm
• Weight: 178g
• Power Supply: Input: AC 100-240V 50/60Hz, Output: DC 5V/1
• Power Consumption: 4W (Max)
• Operation Temperature: 0°C to 40°C
• Storage Temperature: -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)
• Recommended HDMI Cable
• HDMI Cable Type: Ultra HDMI 2.1 cable
• HDMI Cable Length (HDMI IN / OUT): 2m~ 3m
• HDMI Cable Type: HDMI 2.0 cable,
• HDMI Cable Length (HDMI IN / OUT): 10m
• HDMI Cable Type: HDMI cable
• HDMI Cable Length (HDMI IN / OUT): 15m
