4K 1x2 HDMI Splitter 18GBps Bandwidth
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $69.95 each |
| Buy 5-9 | $68.20 each |
| Buy 10+ | $66.45 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
30 day payment terms for Australian schools only. Learn more.

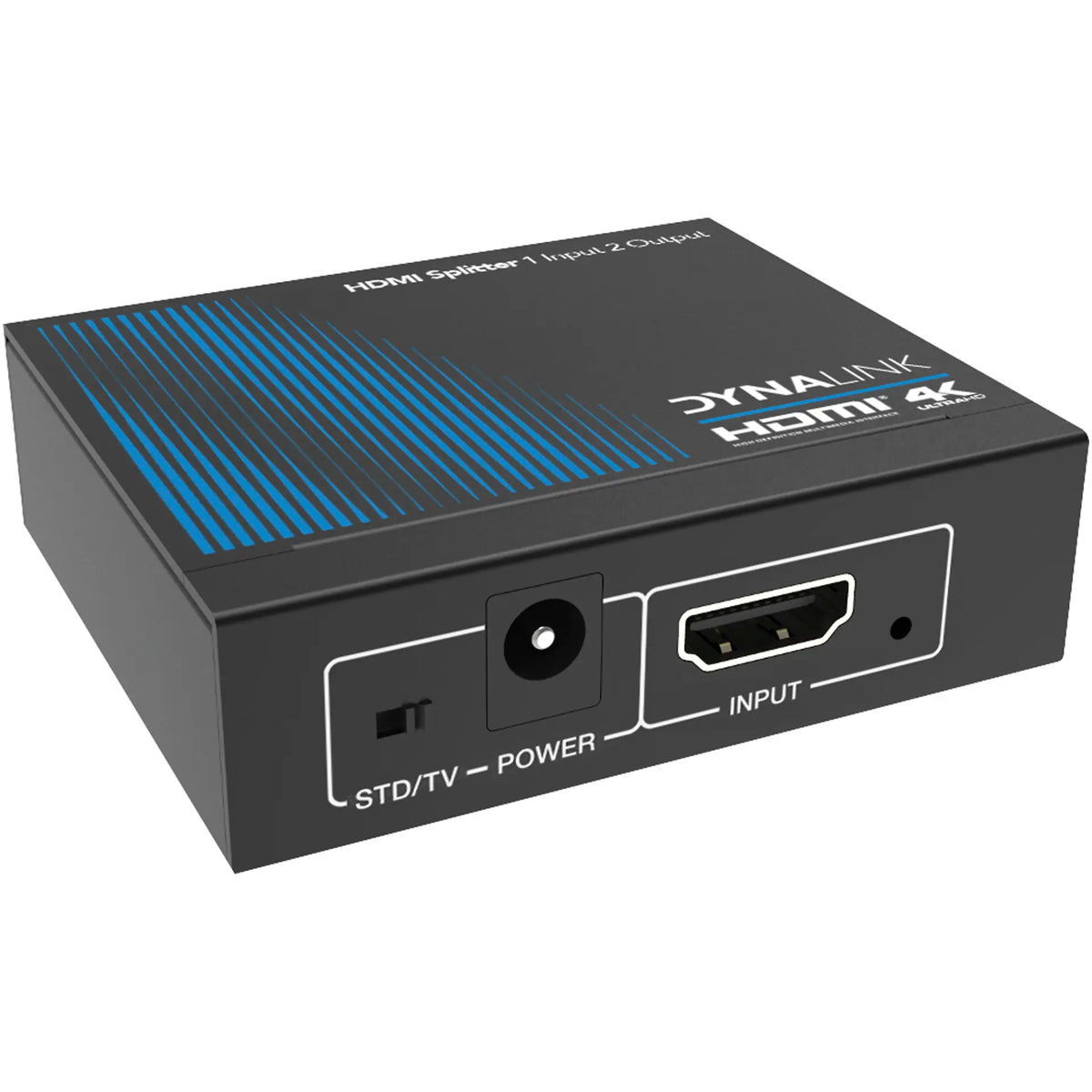

This HDMI 1x2 Splitter designed with 1x HDMI input and 2x HDMI output, can distribute 1x HD source signal to 2x display devices simultaneously and quickly. Video resolution is up to 4K2K@60Hz YCbCr 4:4:4, and digital audio format is up to LPCM 7.1CH. It supports advanced EDID management.
Each signal is designed in strict accordance with industry standards to prevent cross-talk between signals and minimize signal attenuation. This ensures the high-quality output of every HD signal after distribution, achieving perfect transmission.
The device is widely used in multimedia conference halls, television teaching, large-screen display and other applications.
Features
- HDCP 2.3/2.2/1.4 and DVI 1.0 compliant
- Video resolution is up to 4K2K@60Hz YCbCr 4:4:4
- Audio format up to 7.1CH: LPCM, Dolby TrueHD, DTS-HD Master Audio
- Support HDR and 3D audio format
- Advanced EDID management
- Compact design for easy and flexible installation
Specifications
- Technical
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.3/1.4
- DVI Compliance: DVI 1.0
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K2K@60Hz 4:4:4
- Colour Depth: 8-bit, 10-bit, 12-bit
- Colour Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio Formats: LPCM 2.0/5.1/7.1CH, DD, DD+, DTS, Dolby True HD, and DTS-HD Master
- Sample Rate: 44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/192KHz
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) &±4kV (Contact discharge)
- Connection
- Input: 1× HDMI IN [Type A, 19-pin female]
- Output: 2× HDMI OUT [Type A, 19-pin female]
- Mechanical
- Housing: Metal Enclosure
- Colour: Black
- Dimensions: 70W × 60D × 20.5Hmm
- Weight: 118g
- Power Supply: DC 5V/1A
- Power Consumption: 1.41W (Max)
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ 60°C
- Operating Humidity 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing
- Recommended HDMI Cable
- Resolution: 4K60 = 5 m Length
- Resolution: 4K30 = 10 m Length
- Resolution: 1080p = 15 m Length
- The use of "Premium High Speed HDMI" cable is highly recommended.
