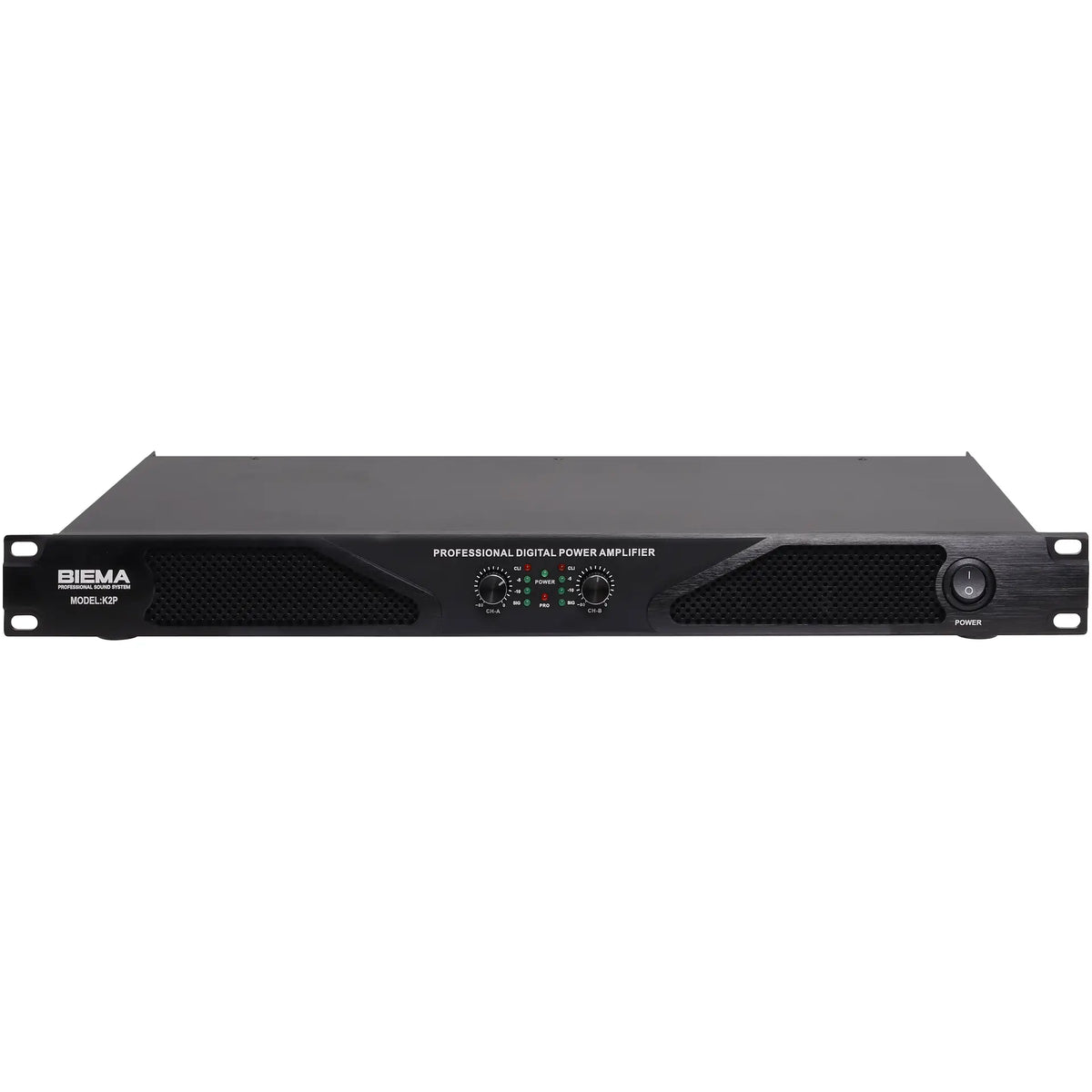

PA Amplifier Stereo/Bridgeable 2x600W

This compact, affordable series of amplifiers offer high power audio output within a single rack unit of space. The design has been tailored for maximum efficiency and low heat generation with clean, distortion free audio even at high volumes. They are dedicated stereo amplifier designs capable of running 4 or 8 Ohm speaker systems. Ideal for foreground sound reinforcement ie: pubs, clubs, cinemas and multi-function venues. The protection circuitry employed ensures the integrity of the amplifier during overload condition, output terminal short circuit and output clipping. Each channel is fitted with a dedicated level control, 3 pin XLR input, 3 pin XLR output and SpeakOn connection for speakers.

Features

• High efficiency compact design
• 1RU 19" rack mount
• Parallel or two channel stereo operation
• 3 pin XLR inputs and outputs
• Short circuit protection with indicator
• Overload protection with indicator
• Clipping prevention circuitry with indicator

Specifications

• Power: 2 x 600W 8Ω, 2 x 900W 4Ω
• Freq. response: 20Hz - 20kHz +/-0.5dB@1W@8R
• Distortion: <0.1%
• THD: 0.02 (@1KHz/8R)
• Signal to noise ratio: >100dB
• Input Impedance: 20kΩ/Balanced, 10kΩ/Un-Balanced
• Damping factor: >240
• Slew rate: 15V/uS
• Crosstalk: ≥65dB
• Input Sensitivity: 1V
• Protection: Soft start, short circuit, limiter, DC fault, AC line fuse, thermal cut

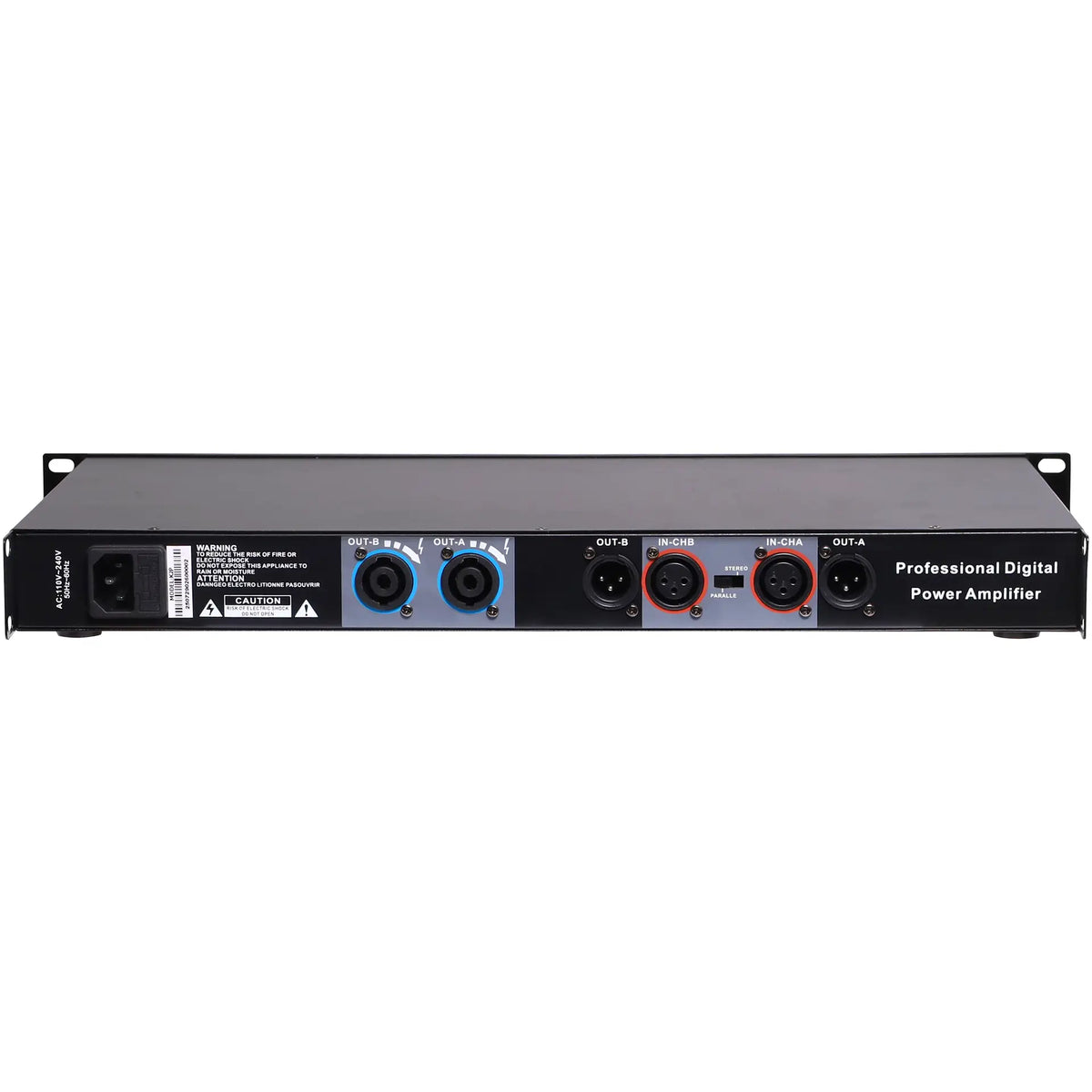

• Rear control panel: On/Off controls for each channel and switches for selecting stereo or bridge mode breaker for channel. Inputs XLR female, TRS (1/4 inch): Outputs: Speakon outputs
• Power supply: AC220V -240V/50-60Hz
• Dimensions (mm): ≈ 482W x 370D x 44H
• Weight: 7.5kg
