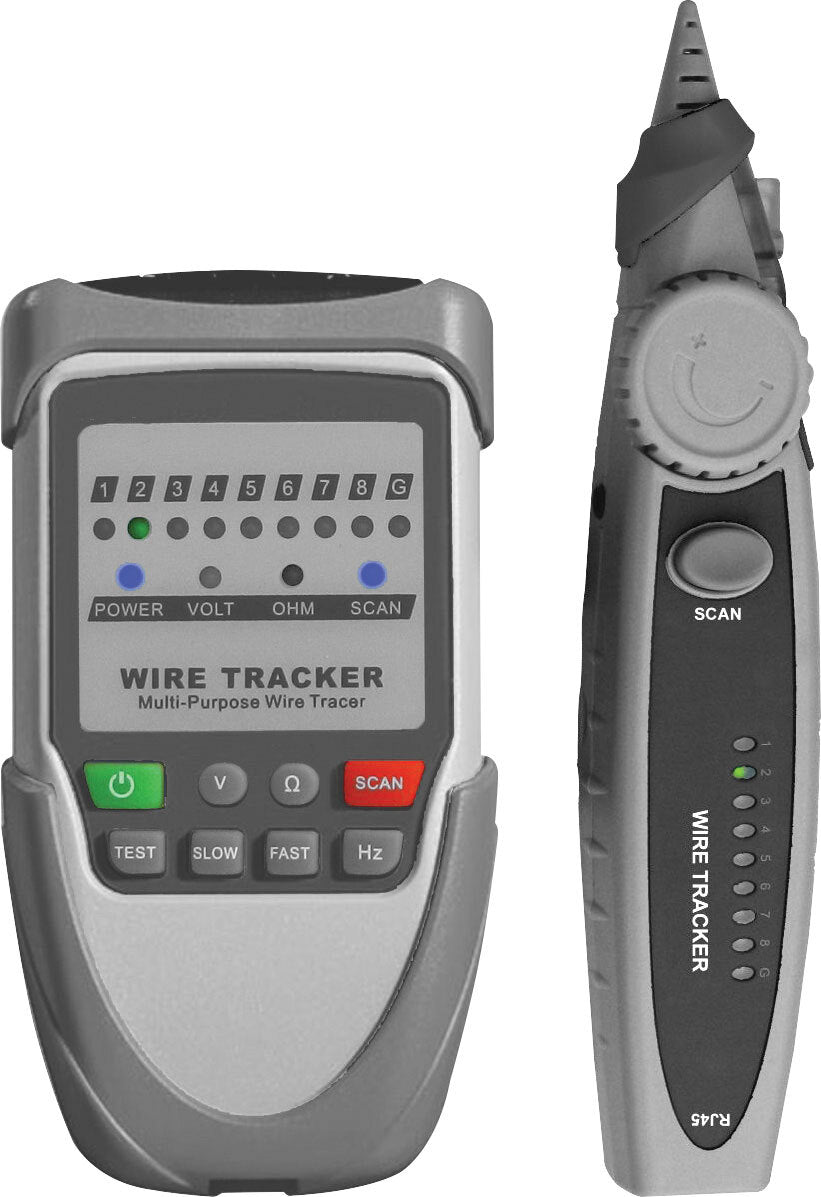

Altronics Professional Cable Tracer and Network Cable Tester

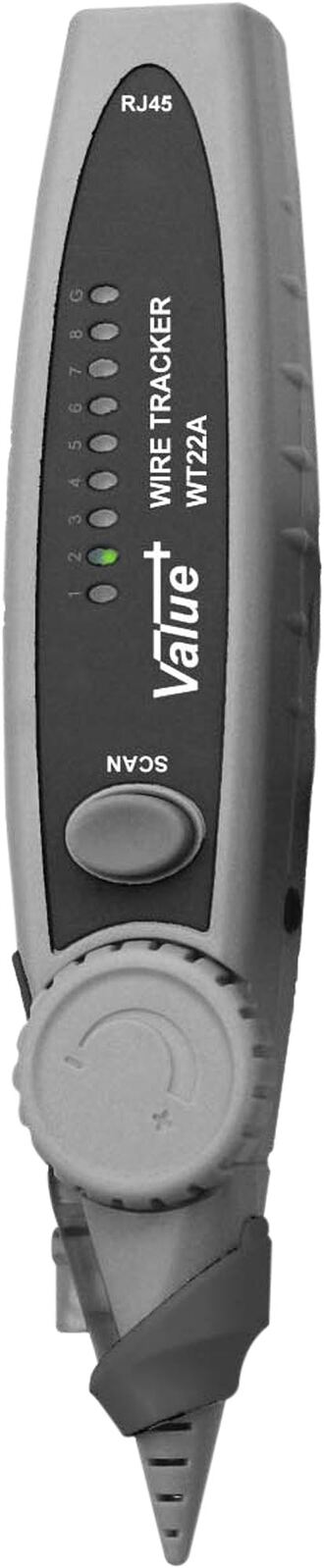

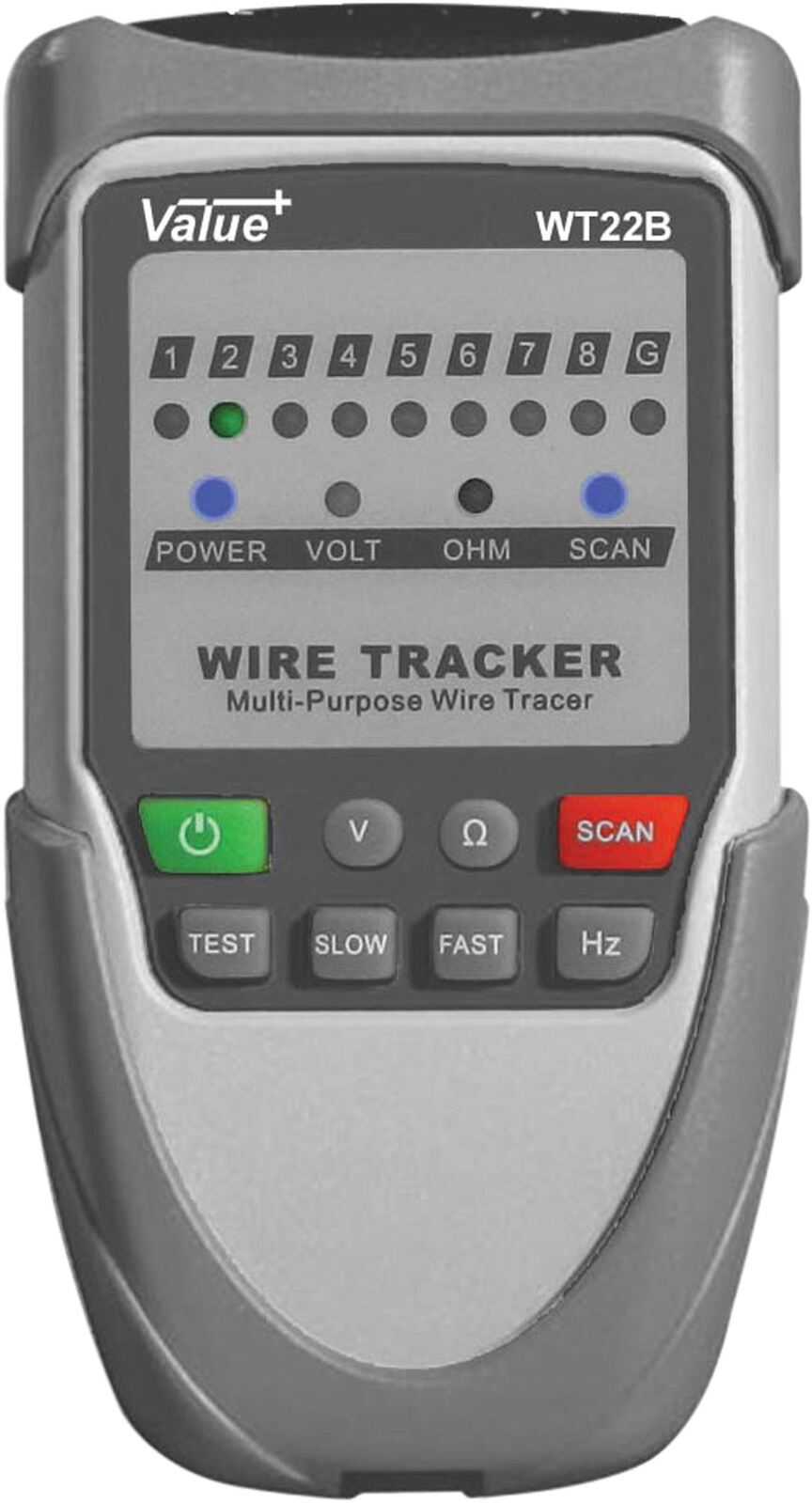

Combines the functionality of a cable tracer and network cable tester in one convenient unit. The main unit can be connected to an unidentified pair which injects an audible signal down the line. The “tracer” unit may then be used at the other end of the cable run to identify the correct conductors. In addition, patch leads & field wiring may be plugged inline between the units to provide instant verification of continuity and correct wiring sequence. Probe includes an LED light for easy cable identification when in dark areas. Suits RJ45 and RJ11 leads.

Requires 1 x 9V battery and 3 x AA batteries (sold separately)

Basic Functions
Tracking network or phone cable in bundle
Checking the correctness and quality of wire connections
Testing network and phone circuit voltage
Testing continuity of wires
Maximum cable length can be tested: 1km

Special Features
Emergency lighting in dark area
Adjustable loudness of buzzer
Headset support for working in noisy area
Change of buzzer tone for identification of buzzer sound
Low power indication

Features

• Headphone socket (earphones included)
• Adjustable buzzer volume
• Tests network and phone circuit voltage
• LED light on probe
• Single or dual tone
• Verifies short, open or crossed pairs in UTP cables
• Confirms integrity of patch leads and field wiring
• Includes RJ45 lead & croc clip test lead

Specifications

• Operating Temperature : 0°C ~ 40°C
• Storage: -10°C ~ 50°C
• Relative Humidity: < 90%
• Transmitter Battery : 3 x 1.5V AA
• Receiver Battery: 9V (6F22)
• Size Transmitter: 65 x 120 x 32mm
• Receiver: 35 x 187 x 29mm
• Weight Transmitter: 90g (including battery)
• Receiver: 70g (including battery)
• *Specifications are subject to change without notice.
