Altronics Network Cable Length Tester With PoE/PING

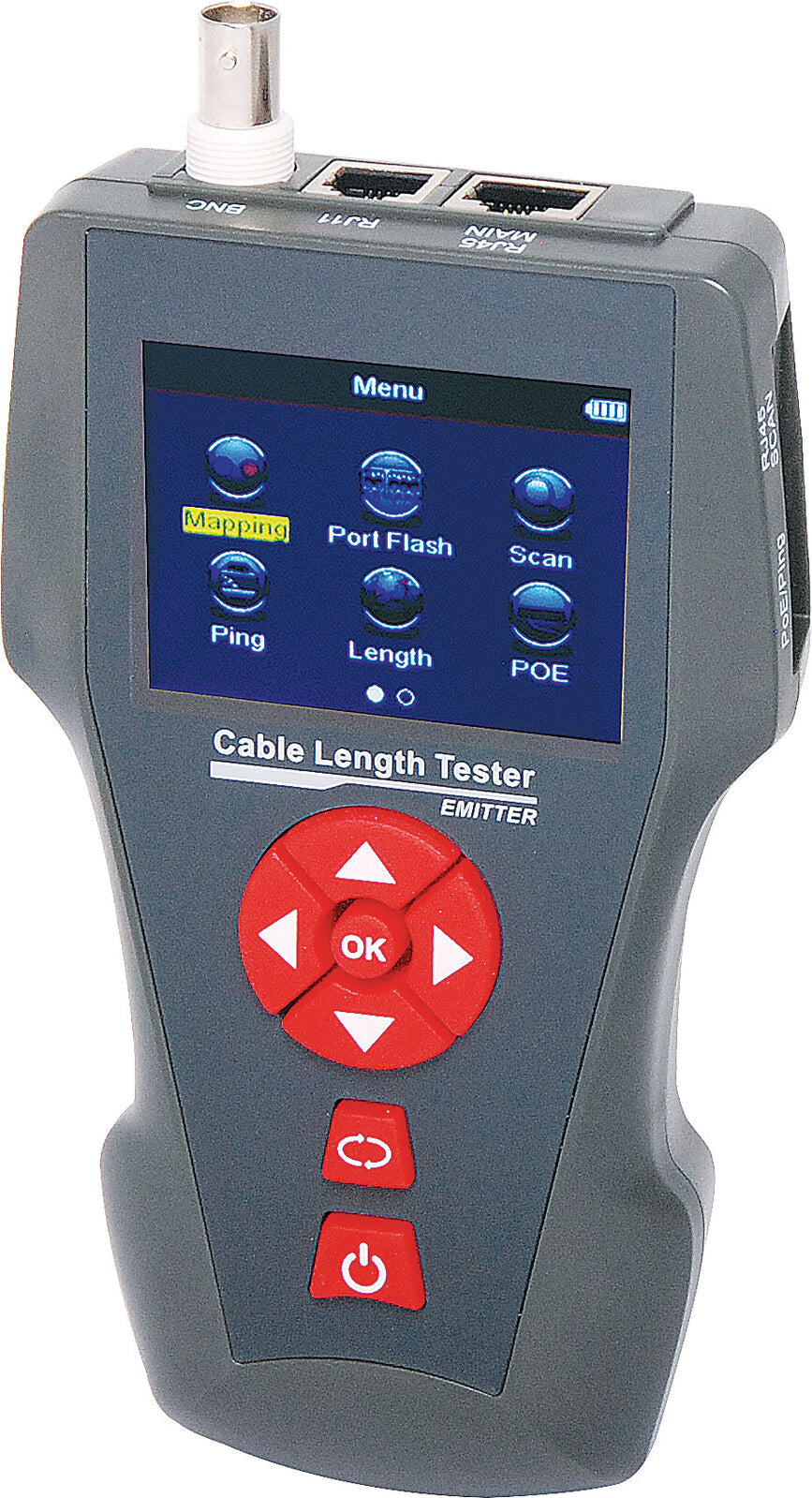

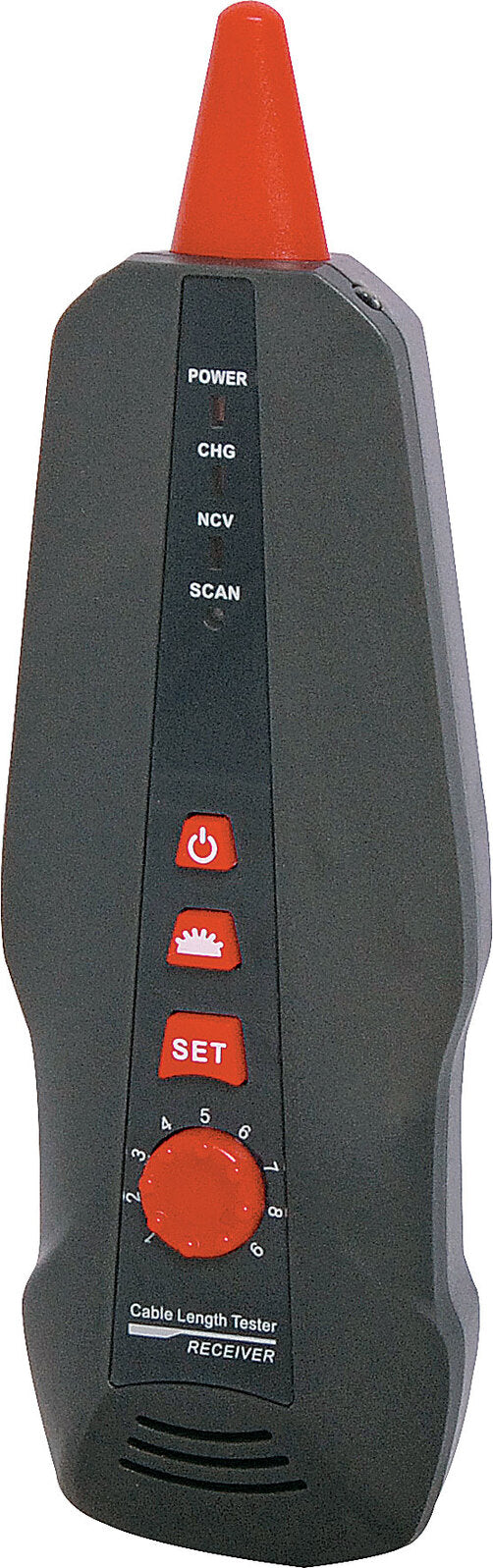

This comprehensive cable testing kit consists of three units. The main tester with 2.8” LCD screen, cable ‘sniffer’ receiving unit and 8 remote identifiers. It is capable of measuring cable length, tracing cable location, continuity testing, PoE and Ping testing. It can be used with LAN, telephone cabling. It is the perfect test accessory for any comms or CCTV installer. You simply connect one end of the cabling to the main tester and use the receiver unit to trace cable location and detect breakages. Main tester and receiving unit are fitted with internal lithium battery and is recharged via micro USB.

Features

• POE test
• PING test
• Perform crosstalk test on network cable
• Test open, short or cross connection
• Measure length of telephone, network cabling up to 2000m
• Log data and measurements to internal Micro SD card
• Locate breakages
• Voltage detector in receiver end (50-1000V)

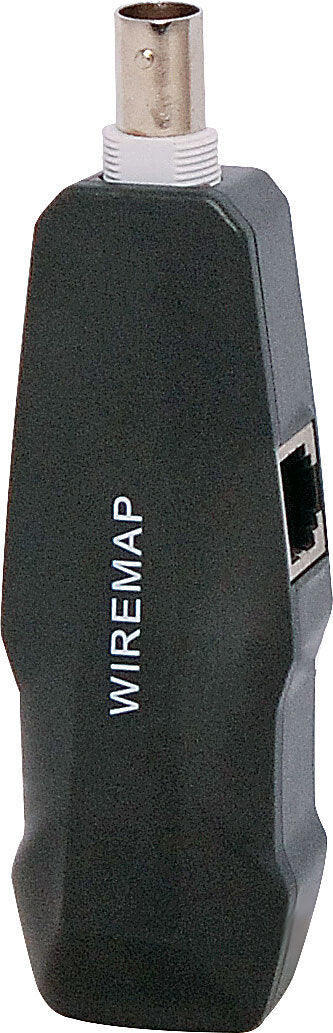

• Includes 8 remote units
• Voltage presence detection
• Includes carry case, charging lead and adaptors.

Specifications

• Indicator: LCD 320x240mm, with back light
• Cable Test Types: STP/UTP 5E,6E network, telephone, coax cable
• Max. Distance of Wire Map: 2000m
• Max. Distance for Tracing Cable: 1000m
• Max. Distance of Cable Length measurement: 2000m
• Min. Distance of Calibration: 10m
• Accuracy: 98% (after calibration)
• Compatible Connectors: RJ11, RJ45, PING/POE, BNC
• Cable Map Indication: LCD (Pin 1- Pin 8 & G)
• Battery Type: 3.7V lithium battery 1800mAh
• Work Temperature/Humidity: 10°C - 60°C/ 0°C - 70°C
• Transmitter Dimensions: 173L x 92W x 34D mm
• Receiver Dimensions: 183L x 58W x 35D mm
• Remote Dimensions: 106L x 32W x 30D mm
• *Specifications are subject to change without notice.
