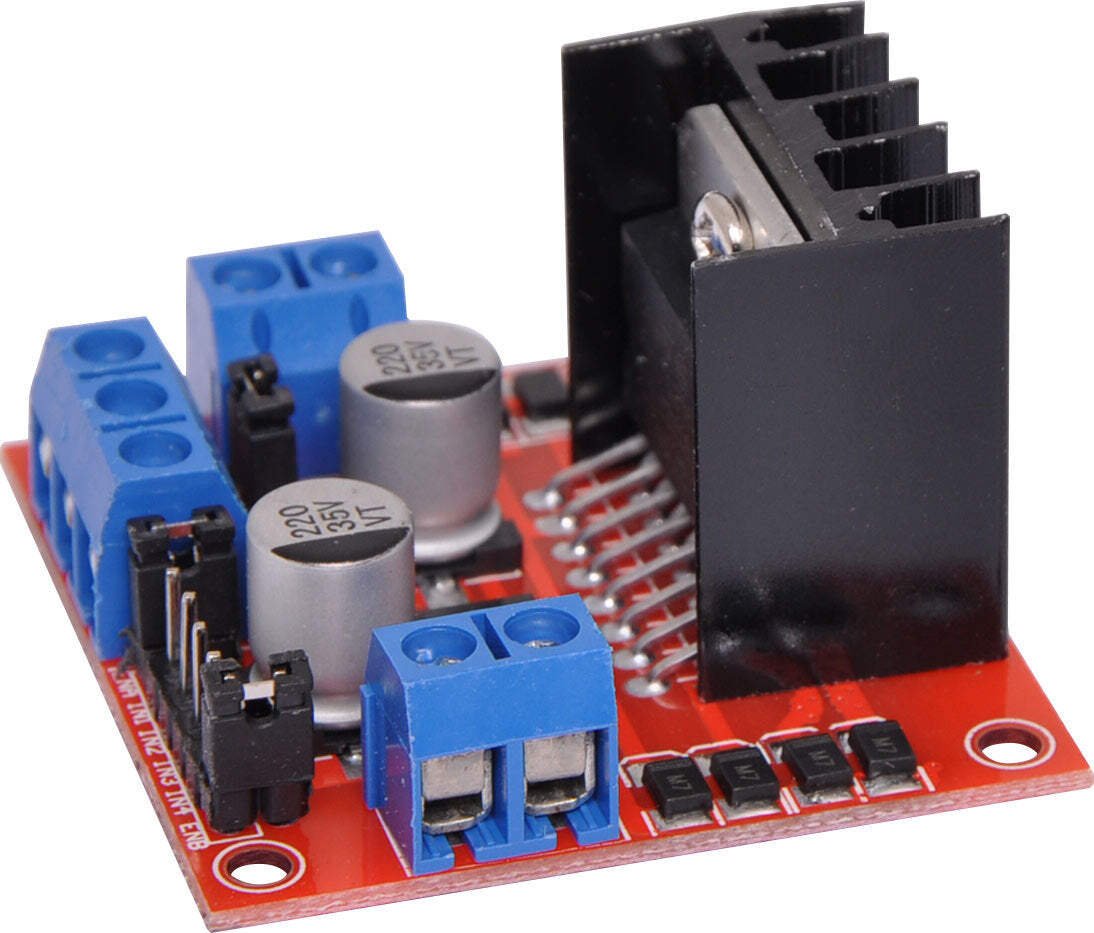

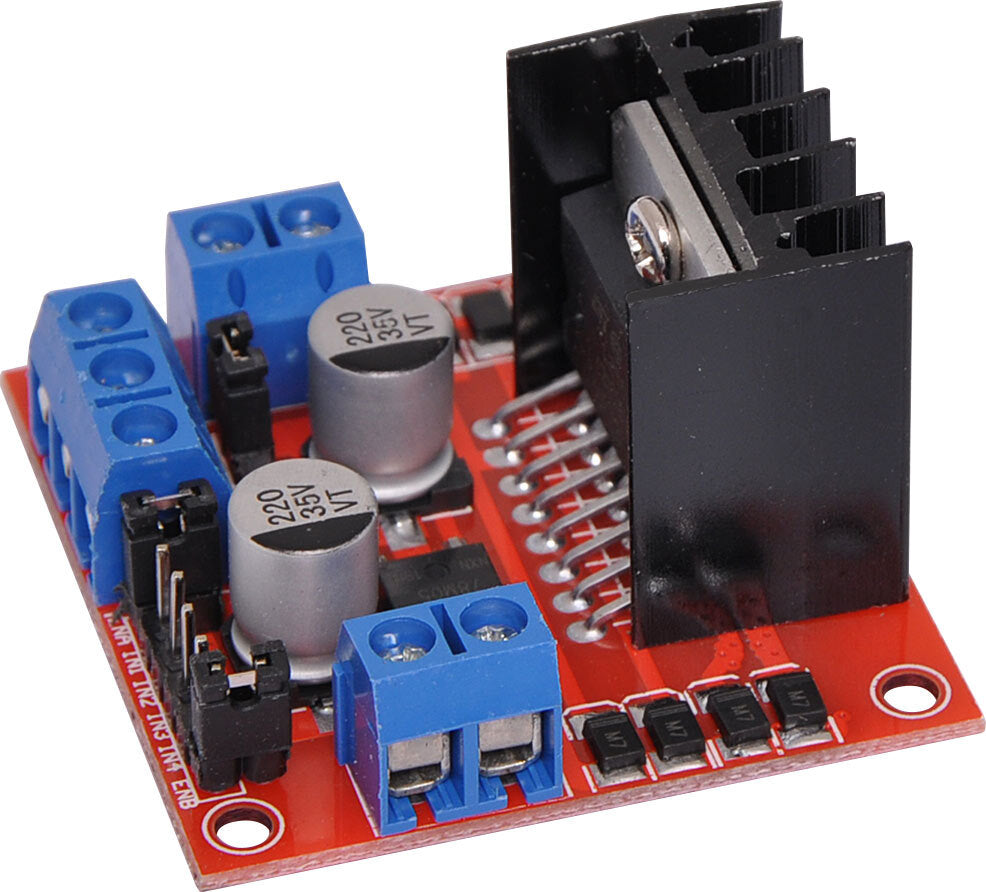

Altronics L298N Dual Motor Module for Arduino
Regular price
$16.95
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $16.95 each |
| Buy 5-9 | $16.50 each |
| Buy 10+ | $16.10 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
School order payment option available at checkout
30 day payment terms for Australian schools only. Learn more.
Uses an L298N H-Bridge designed to drive inductive loads, such as relays, solenoids, DC and stepping motors. It can also drive two independent DC motors or 1 stepper motor at 2A continuous current per channel. 5V input.
Features
- Drive 2 DC motors with speed and direction control
- Drive 1 stepper motor
- 5 – 35V motor voltage range
- 2.5A peak current per channel (2A continuous)
Specifications
- Voltage Range: 5 – 35 VDC
- Recommended Voltage Range: 7 – 12 VDC
- Voltage Range (5V): 4.5 – 5.5 VDC
- Max Current per Bridge: 2A
- Max Power of Module: 25W
- Driver Board: 54 x 44 x 28 mm
*Specifications are subject to change without notice.
