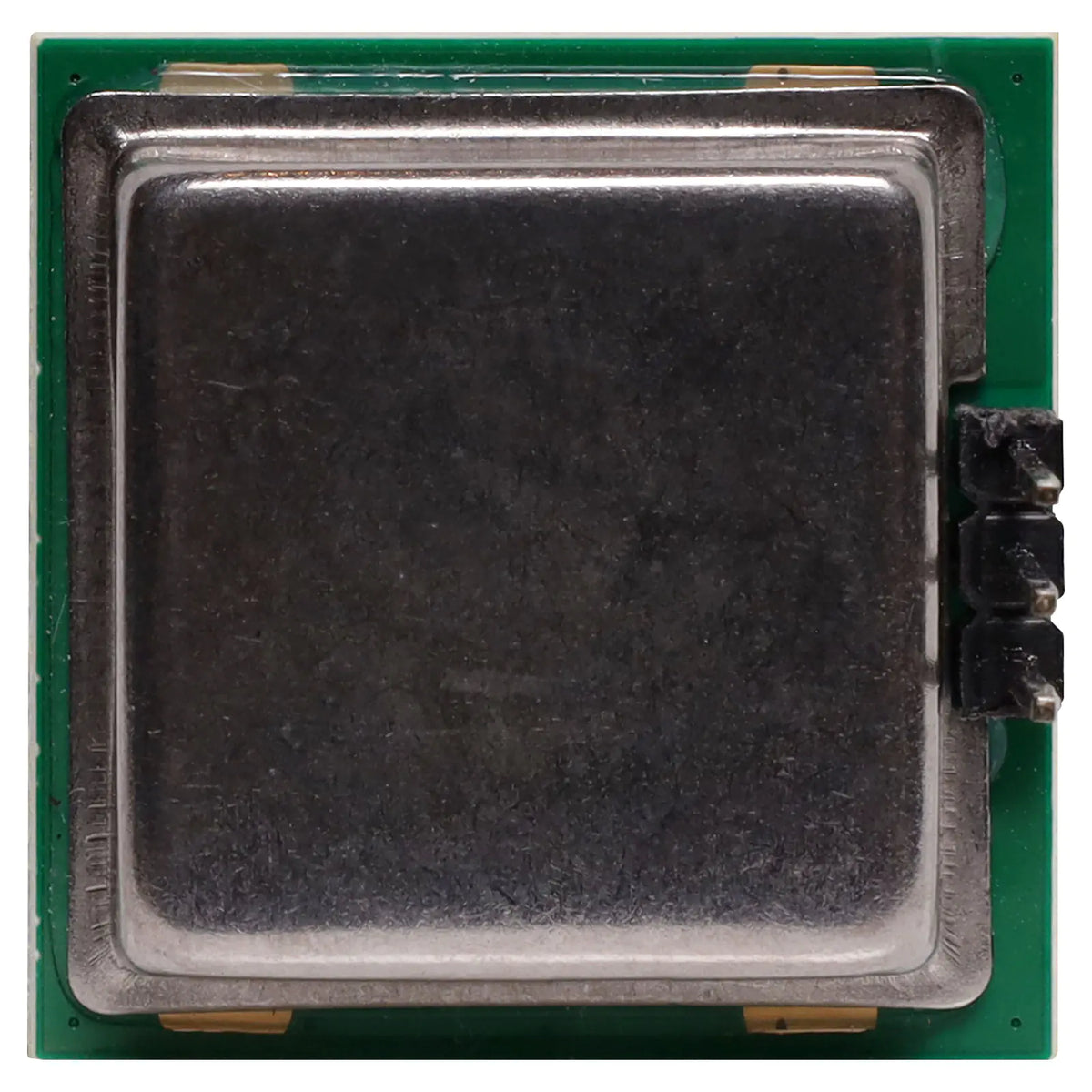

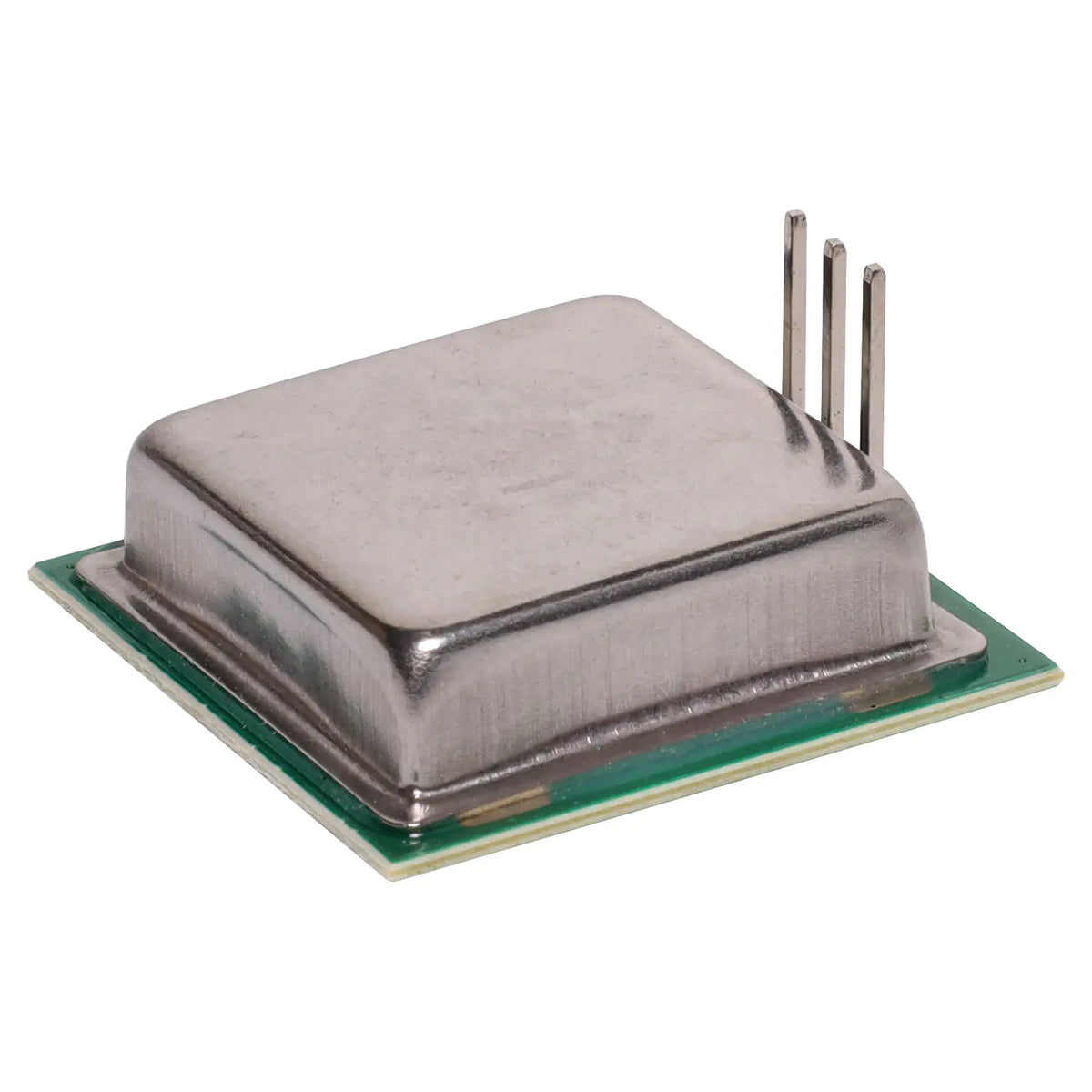

24GHz Millimeter Wave Radar CDM324 Sensor Module
Regular price
$29.95
Sale price
Regular price
Includes GST.
Shipping calculated at checkout.
Buy more and save
| Quantity | Price |
|---|---|
| Buy 1-4 | $29.95 each |
| Buy 5-9 | $28.45 each |
| Buy 10+ | $26.95 each |
Available to Order (Lead Time 5-7 Business Days)
Couldn't load pickup availability
School order payment option available at checkout
30 day payment terms for Australian schools only. Learn more.
The CDM324 is a 24GHz Millimeter Wave Radar Sensor Module designed for reliable non-contact motion detection and moving object detection. Utilizing advanced Doppler radar technology, it operates at a 24GHz transmitting frequency, offering high precision and robust performance in a variety of applications. Compact, efficient, and versatile, this module is ideal for use in commercial, industrial, and automation systems.
Features
- Non-contact detection, moving object detecting.
- This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc.
- Provide various frequency range standards: -UK,-F.
- Advanced low consumption PHEMT oscillator.

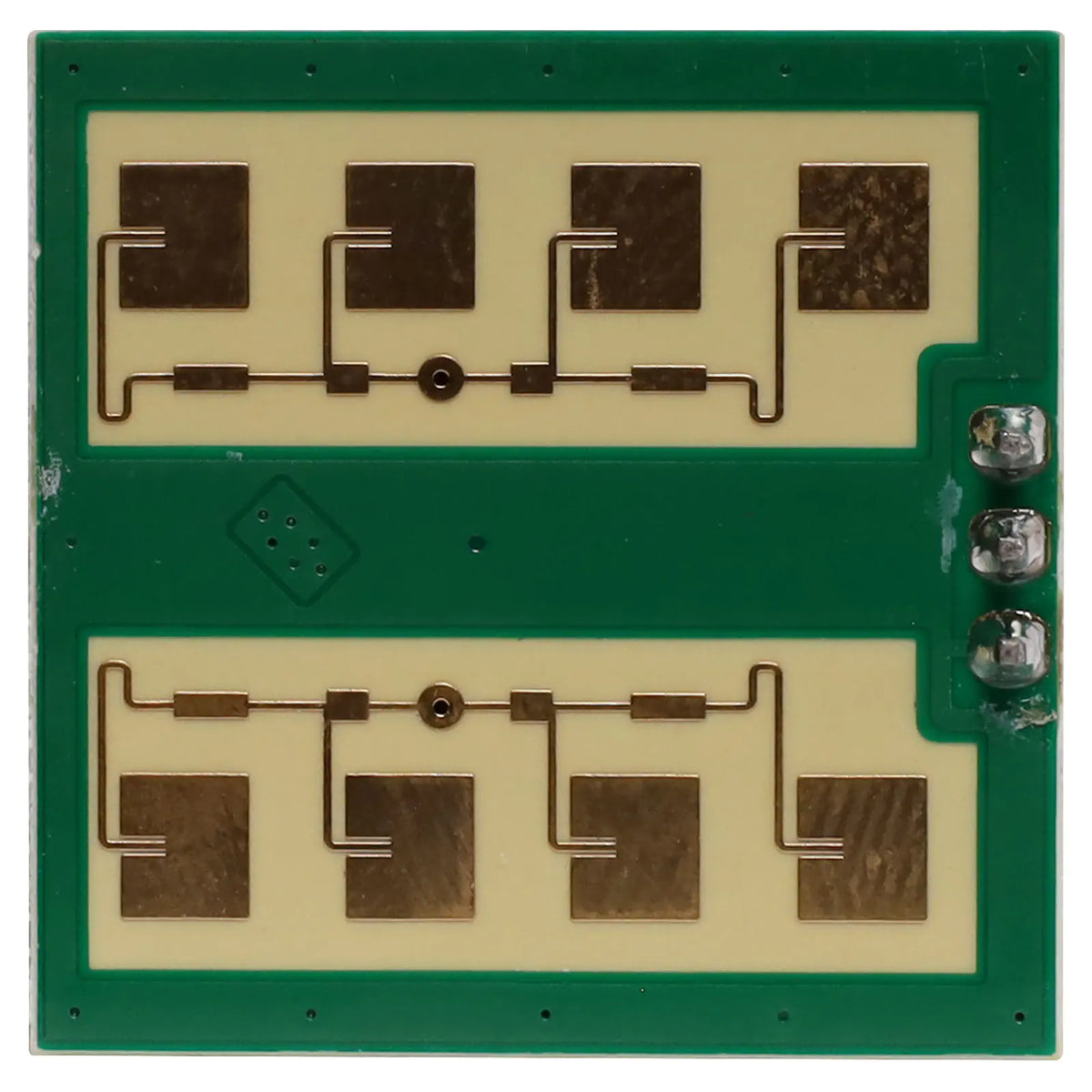

- Independent transmitting and receiving route, can get the big gain.
- High sensibility, high flexibility, low cost, operating distance is 15m.
- Single channel operation
Specifications
- Transmitting Frequency: min: 24GHz typ: 24.125GHz :24.25GHz
- Output Power: 16dbm (typ)
- Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32
- Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB
- Operating Temperature: -20 ~ 60°
- Operating Current: typ: 30MA, :40MA
- Operating Voltage: typ: 5.5V
- Pulse Width: typ: 10US
- IF Output: -300 ~ 300MV
- Size: 25 x 25 x 7mm
- Weight: 5g
