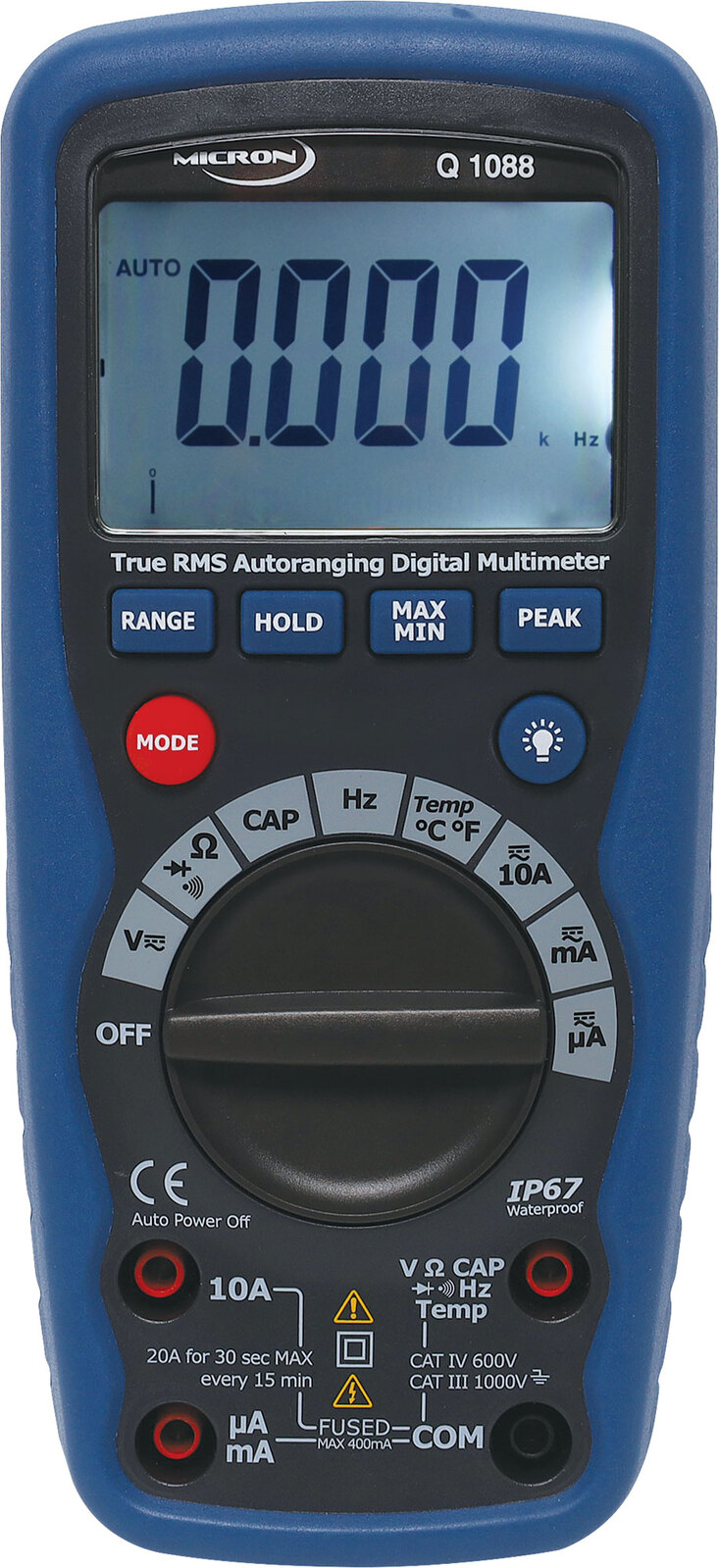

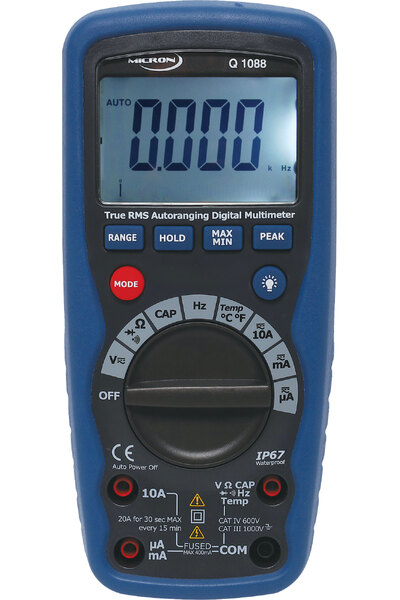

Micron IP67 Waterproof True RMS Digital Multimeter

Part of the series Digital Multimeters & Accessories.

View all products in this series

---

Designed for marine, mining, industrial and outdoor environments, the unit is splash proof and fully sealed against dust ingress. Perfect for mobile service technicians, instrument techs, engineers and others working in harsh demanding environments that require a dependable and durable multimeter. Fitted with a rubber coating for added protection. Features an easy to read, 4000 count LCD with bar graph and backlighting. Has a comprehensive set of ranges and functions including data hold, min/max display, frequency counter, temperature, capacitance and up to 10A current range. Supplied complete with thermocouple, high quality silicon rubber test leads & carry case. Dimensions: ≈ 82W x 55D x 182H

Features

• True RMS AC measurement
• IP67 splash and dust-proof
• 4000 count LCD
• Autoranging
• MAX/MIN display modes
• Frequency counter to 40MHz
• Capacitance measurement
• Fused 10A input
• Temperature mode (°C/°F)
• Continuity and diode test
• Auto power off
• Low battery indicator
• 9V battery included
• Data hold & run mode
• Display backlight
• Class 2 double insulation
• Cat IV 600V, Cat III 1000V

Specifications

• Voltage AC/DC: 400mV, 4V, 40V, 400V, 1000V (DC ±0.5%+2d), (AC ±0.8%+3d)
• Current AC/DC: 400µA, 4000µA, 40mA, 400mA, 10A (DC ±1.2%+3d), (AC ±1.5%+5d)
• Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (±0.8%+5d)
• Frequency: 4kHz, 40kHz, 400kHz, 10MHz (±1.2%+3d)
• Capacitance: 4nF, 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (±3%+5d)
• Temperature: -20°C - ≈760°C (±3%+5d)
• Diode test: Test voltage 3V max
• Continuity test: Less than 35Ω
• Protection: 250V/10A fused
• Display: 3.75 digit LCD, 4000­­ count, backlit
• Dimensions: ≈ 82W x 55D x 182H
• *Specifications are subject to change without notice.
