Altronics 28 Range Digital Multimeter

Part of the series Digital Multimeters & Accessories.

View all products in this series

---

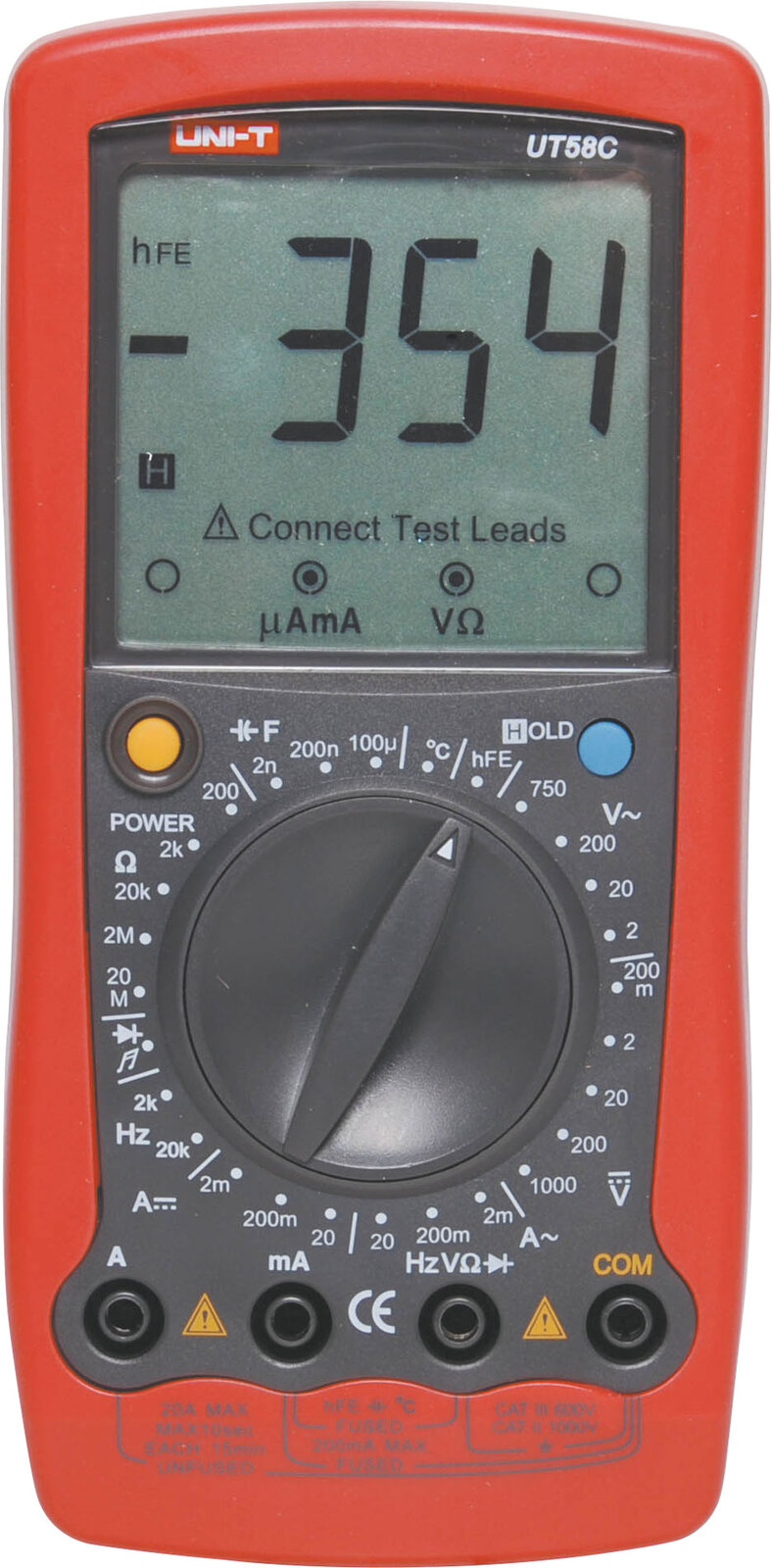

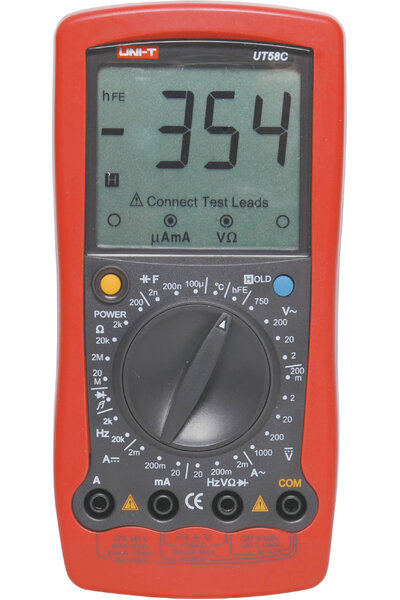

This meter features an extra large display making it very easy to read. It has a multitude of useful features including transistor tester, capacitor, frequency and temperature ranges. When a range is selected the correct test lead connections are indicated on the display. The auto power-off feature switches the unit off after 30 minutes of inaction, saving battery power. The integral rubber holster makes this instrument perfect for the trades person's toolbox. Includes high quality test leads.

Features

• On-screen test lead connection prompts
• Capacitance measurement
• Frequency counter
• Temperature measurement
• Continuity checker
• Resistance to 20M ohm
• Diode check
• Continuity buzzer
• Transistor checker
• Auto power off after 30 minutes
• Massive 20A DC current range
• Rubber holster included
• Battery included

Specifications

• DC Volts: 200mV, 2V, 20V, 200V, 1000V
• AC Volts: 2V, 20V, 200V, 1000V
• DC Amps: 2mA, 200mA, 20A
• AC Amps: 2mA, 200mA, 20A
• Capacitance: 2nF, 200nF, 100µF
• Frequency Counter: 2kHz to 20kHz
• Resistance: 200Ω, 2kΩ, 20kΩ, 2MΩ, 20MΩ
• Temperature:-40°C to 1000°C
• Continuity: Audible Tester
• Diode Tester: Included
• Transistor Test: Measures hFE
• Display: 3.5 digit LCD, 1999 count
• Protection: 500mA M205 / 630mA 2AG fused, no fuse on 20A range
• Dimensions: ˜86W x 43D x 180H mm
• *Specifications are subject to change without notice.
