littleBits - Input Bits: Threshold

$19.95


Available on orders $80 to $1000
Learn more


Available on orders $80 to $1000
Learn more



Think of the threshold as a toll booth.

Availability: Out of Stock Usually Dispatched In: 3 - 7 Business Days Product Code: LB-650-0009 ISBN: 810876020664 Publisher: littleBits Categories: STEM & STEAMCircuitry
Share

Part of the series littleBits Input Bits.

View all products in this series

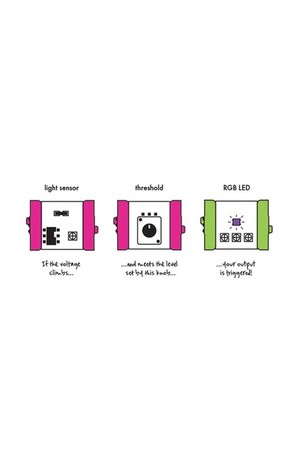

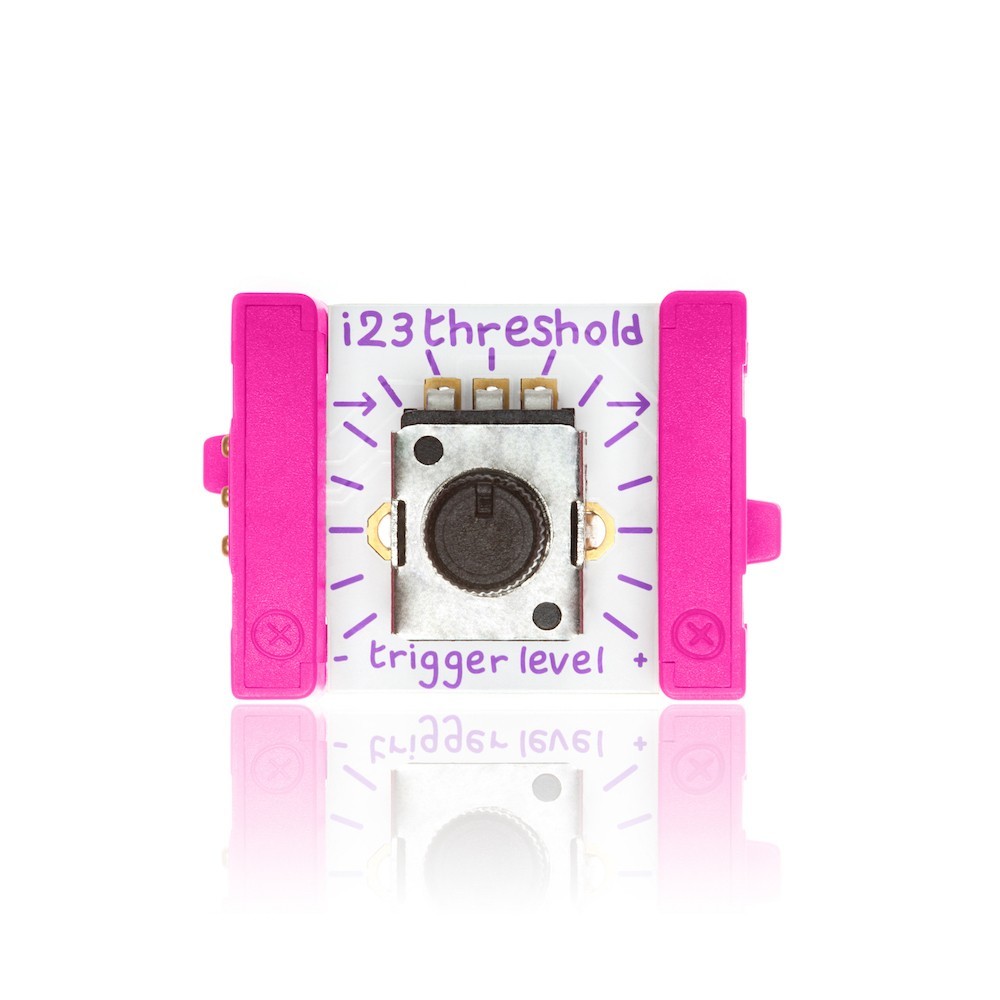

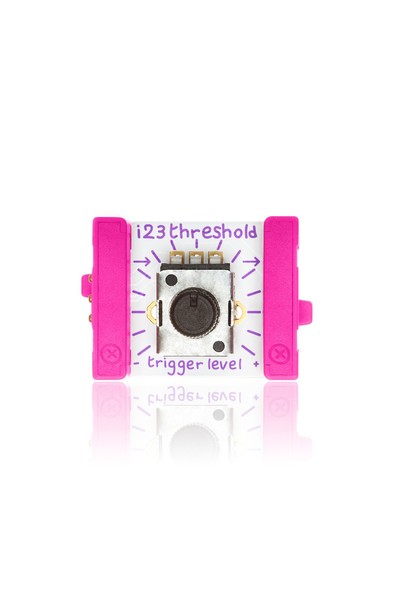

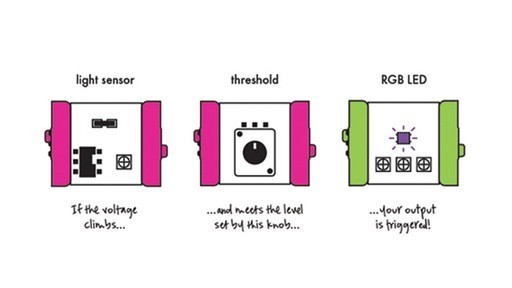

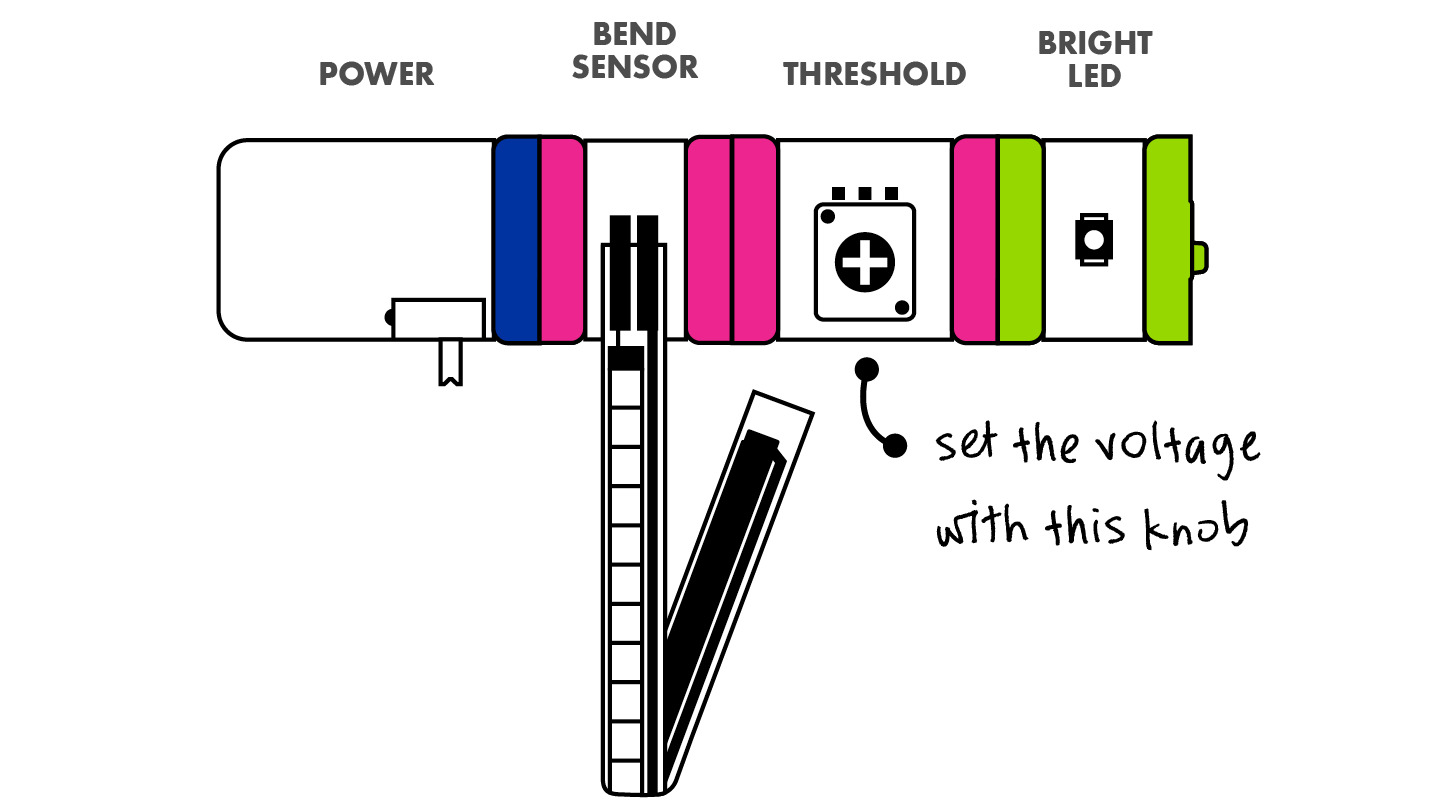

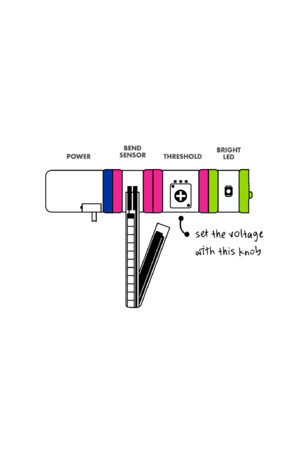

Think of the threshold as a toll booth. When the signal passing through a circuit reaches it, the threshold decides whether or not it can continue. Use it to make any sensor Bit (like a temperature sensor) into a trigger Bit!


How It Works

The threshold is a minimum parts count design, using only a single opamp to compare the input signal to an onboard reference that is set via the potentiometer control. U1 is configured as a non-inverting comparator with approximately 100mV of hysteresis provided by R1 and R3. VR1 provides the comparator's reference. C1 is a bypass capacitor for U1 that sources current to the opamp during fast switching events.

SKU LB-650-0009
ISBN 810876020664
Publisher littleBits
Product Type Maths & Science Equipment,

Be The First To Review This Product!

Help other Teacher Superstore users shop smarter by writing reviews for products you have purchased.

Write a product review
