Altronics Crimptool Ratchet Coaxial Universal Kit

Part of the series Electrical & Electronic Tools.

View all products in this series

---

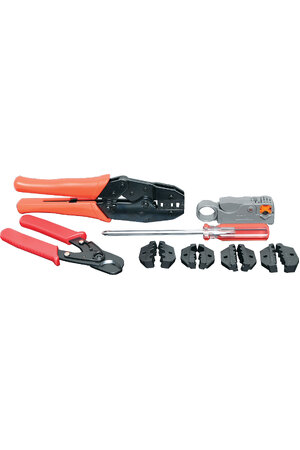

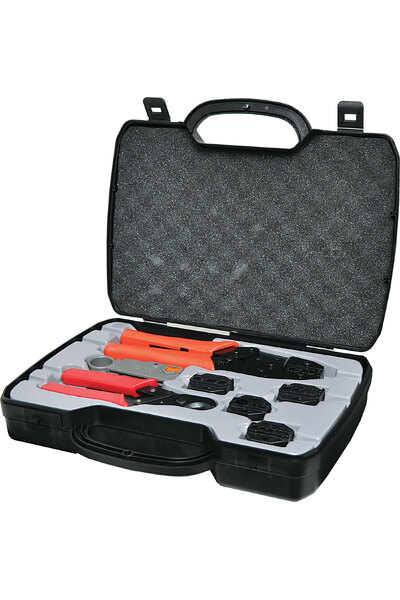

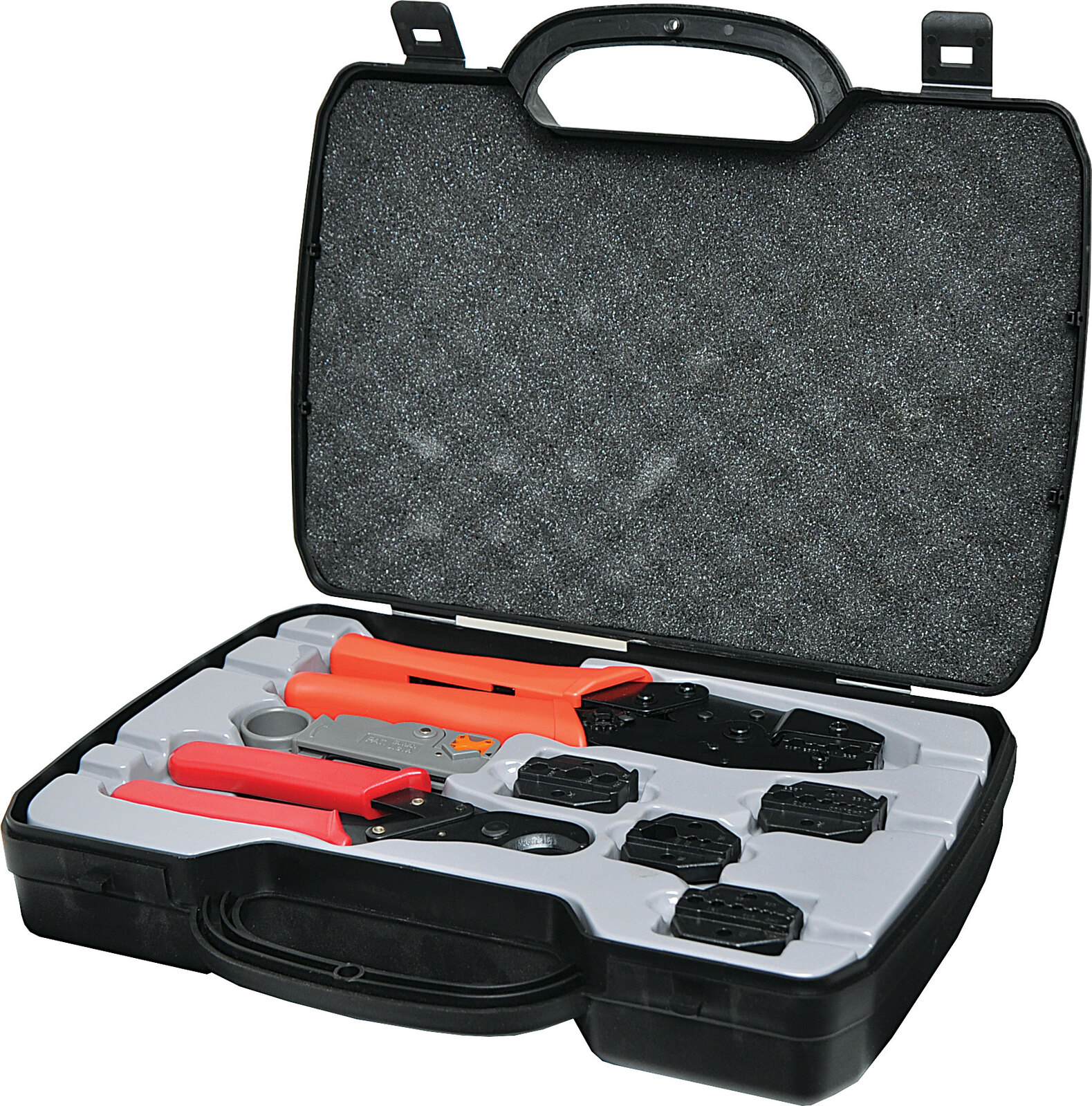

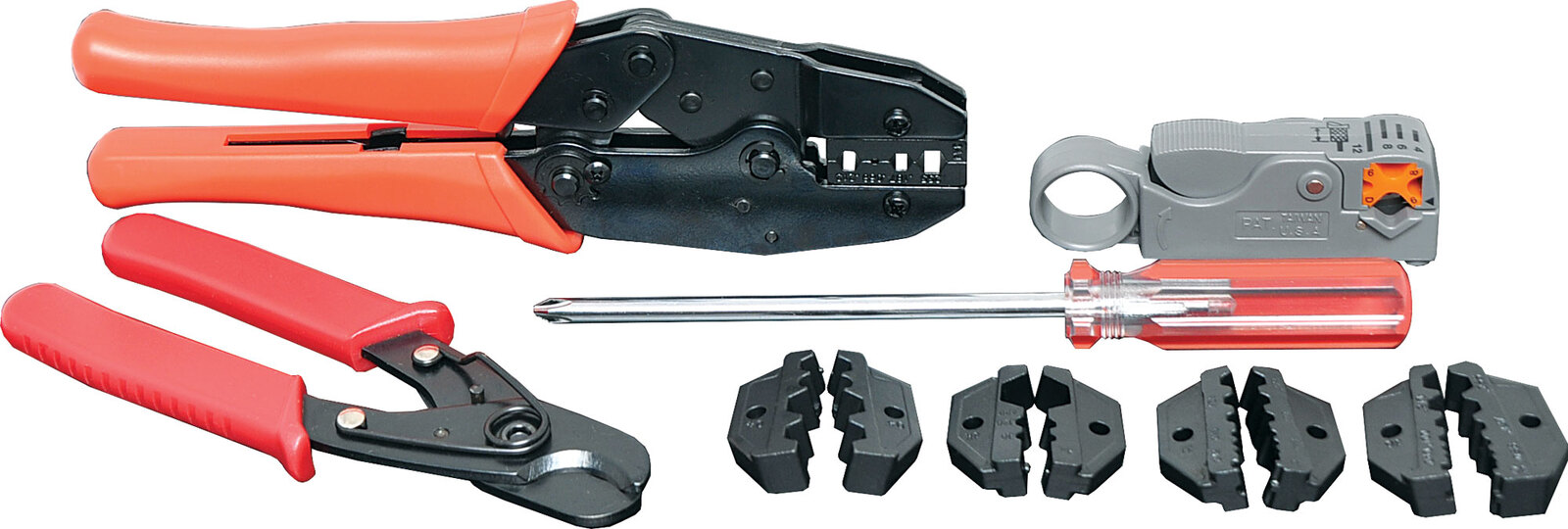

A complete kit for crimping all types of coaxial RF connectors. Kit includes an all metal ratchet crimp tool with 5 sets of interchangeable jaws to suit BNC, F, TNC, N, PL259, PAL & SMA connectors. Also included is a coaxial wire stripper, a set of cable cutters and screwdriver (for changing jaws). Supplied complete inside a tough ABS plastic case. A must have for MATV, CCTV and cable TV installers.



Crimp Suitability:
This set includes 5 interchangeable crimping jaws.

3A4 Default Jaws
Sizing: 6.48, 5.41, 4.75, 1.72mm.
Suitability: RG55, 58, 59, 62 140, 141, 142, 210, 223, 174, 303, 404, Fibre Optic, Belden 8279.

3C Jaws
Sizing: 8.10, 6.50, 5.41, 1.72
Suitabilitiy: RG6, 59, 62, 140, 210, Belden 8279, 55, 58, 141, 142, 223, 303, 400, Fibre Optic.

3G Jaws
Sizing: 6.48, 5.41, 3.48, 2.54, 1.72, 1.09
Suitability: RG59, 62 8X, 140, 210, Belden 8279, 55, 58, 141, 142, 174, 223, 303, 400, Fibre Optic.

3J Jaws
Sizing: 4.52, 3.84, 3.25, 1.98, 1.72, 1.07
Suitability: RG122, 174, 179, 180, 187, 188, 195, Fibre Optic, 178, 316, Belden 8218.

3K Jaws
Sizing: 10.9, 3.25, 2.54
Suitability: RG8, 9, 11, 87A, 149, 165, 213, 214, 216, 225, 393, 174, 179, 187, 188, 316, Belden 9913.
