Redback Touchscreen Source Switching Wallplate suits A 4432

Part of the series PA Accessories.

View all products in this series

---

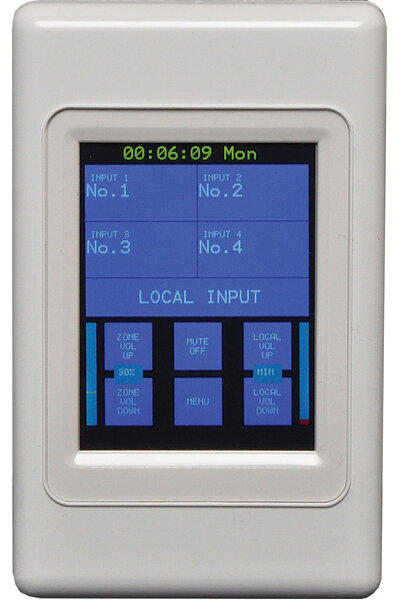

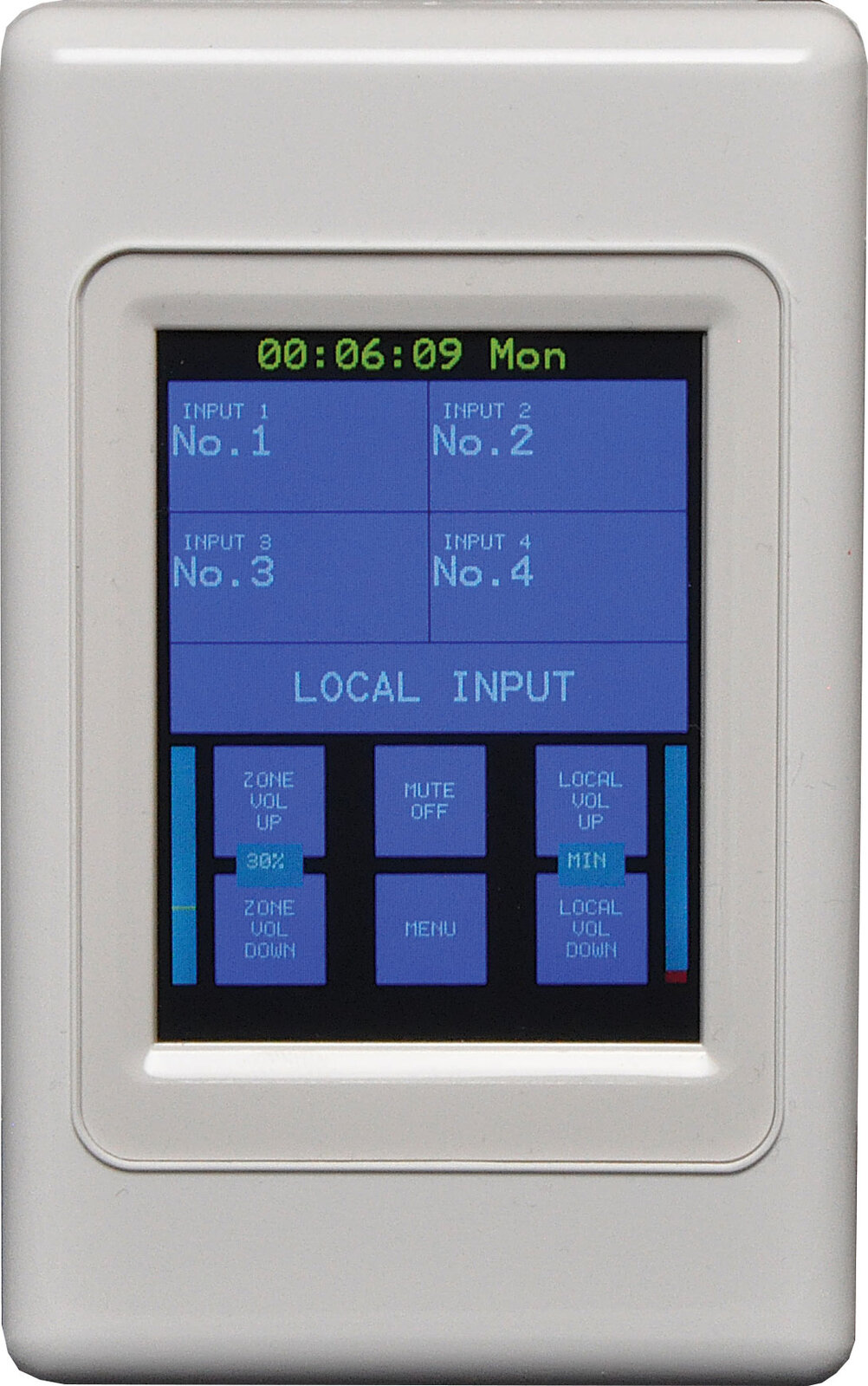

The A4433 wall plate allows remote selection of the A4432’s input audio source and volume level. In addition, when connected to the A4931 local input wall plate or A4932 local input box, it allows the use of a local signal source, such as a wired mic, radio mic or aux source such as a mobile device, which VOX mutes the selected input from the A4432. The LCD displays the input sources and zone and local input volume levels. Allows quick and easy source selection, muting, level control for programming, plus local input level control (when used with A4931/A4932).

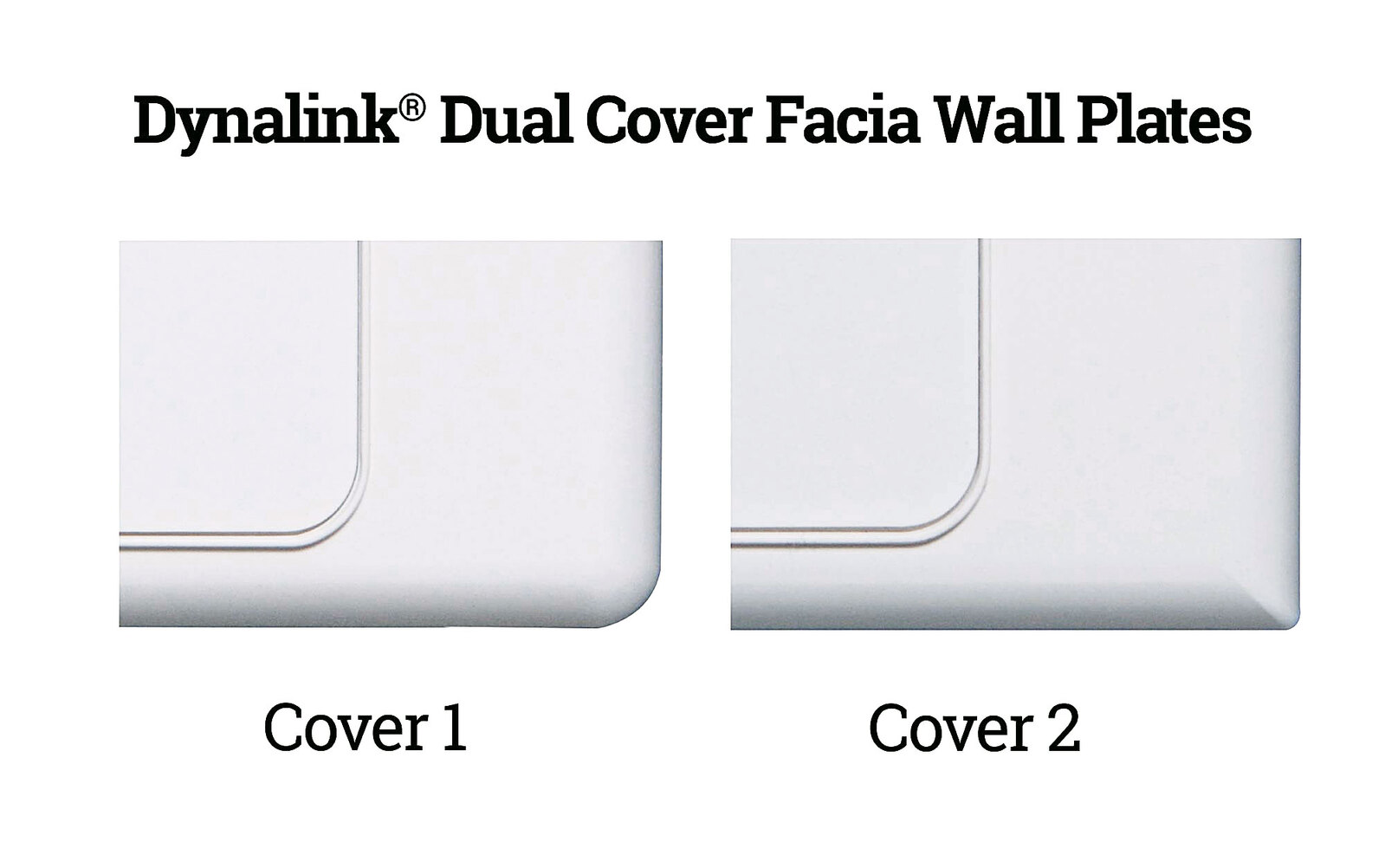

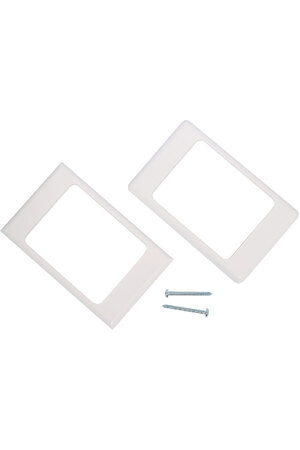

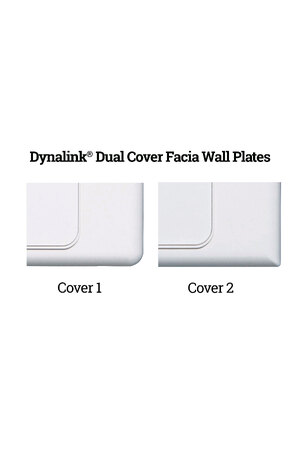

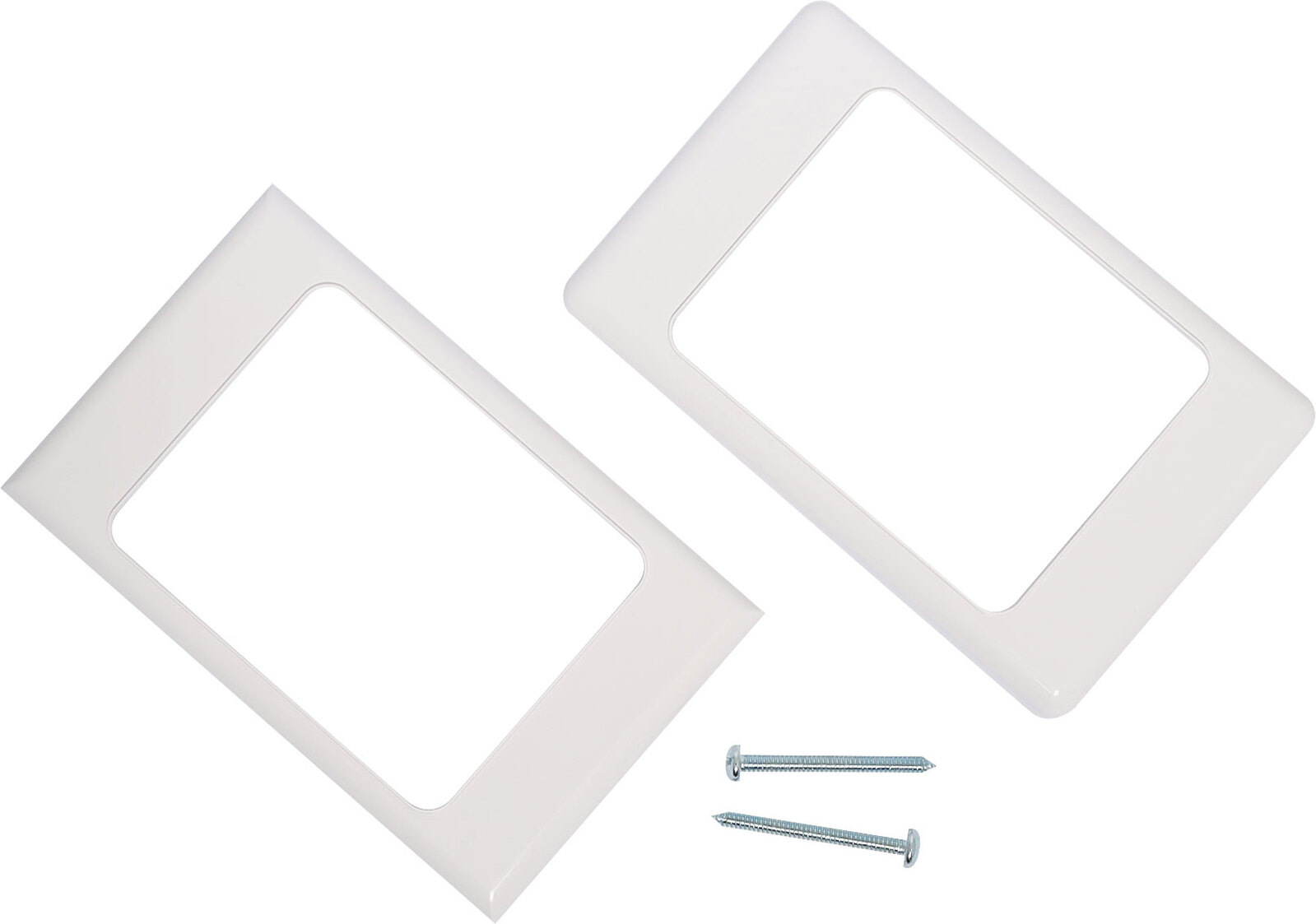

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Features

• Connects to A4432 mixer and A4931/32 local input
• Provides input selection options for four sources.
• Local volume level control.
• Selected source level control.
• Fits standard electrical wall box.
• Easy connection to A4432 via Cat5e/6 UTP data cabling.
• Powered over ethernet.
• Australian designed & assembled

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Downloads

A 4432 Brochure
