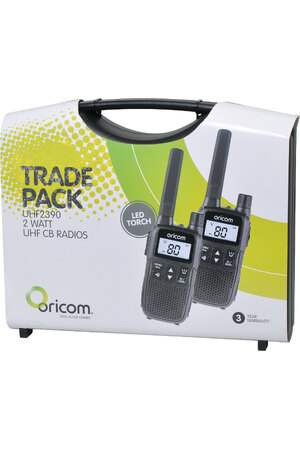

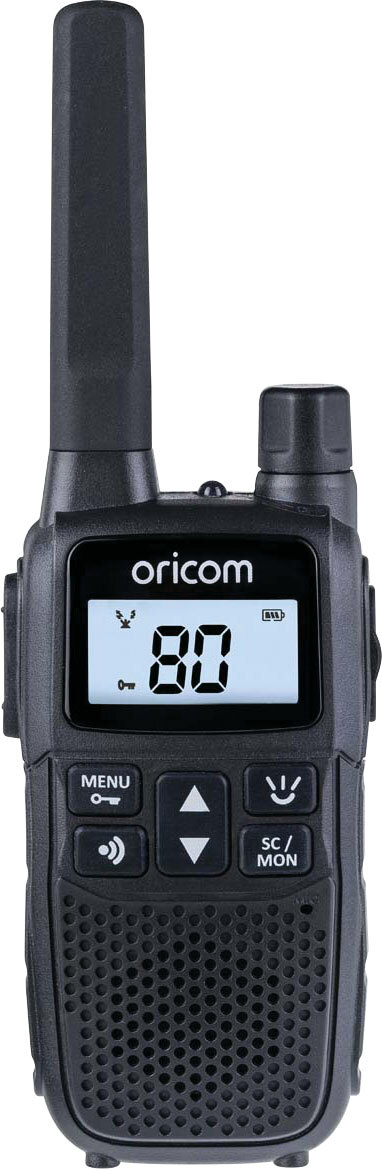

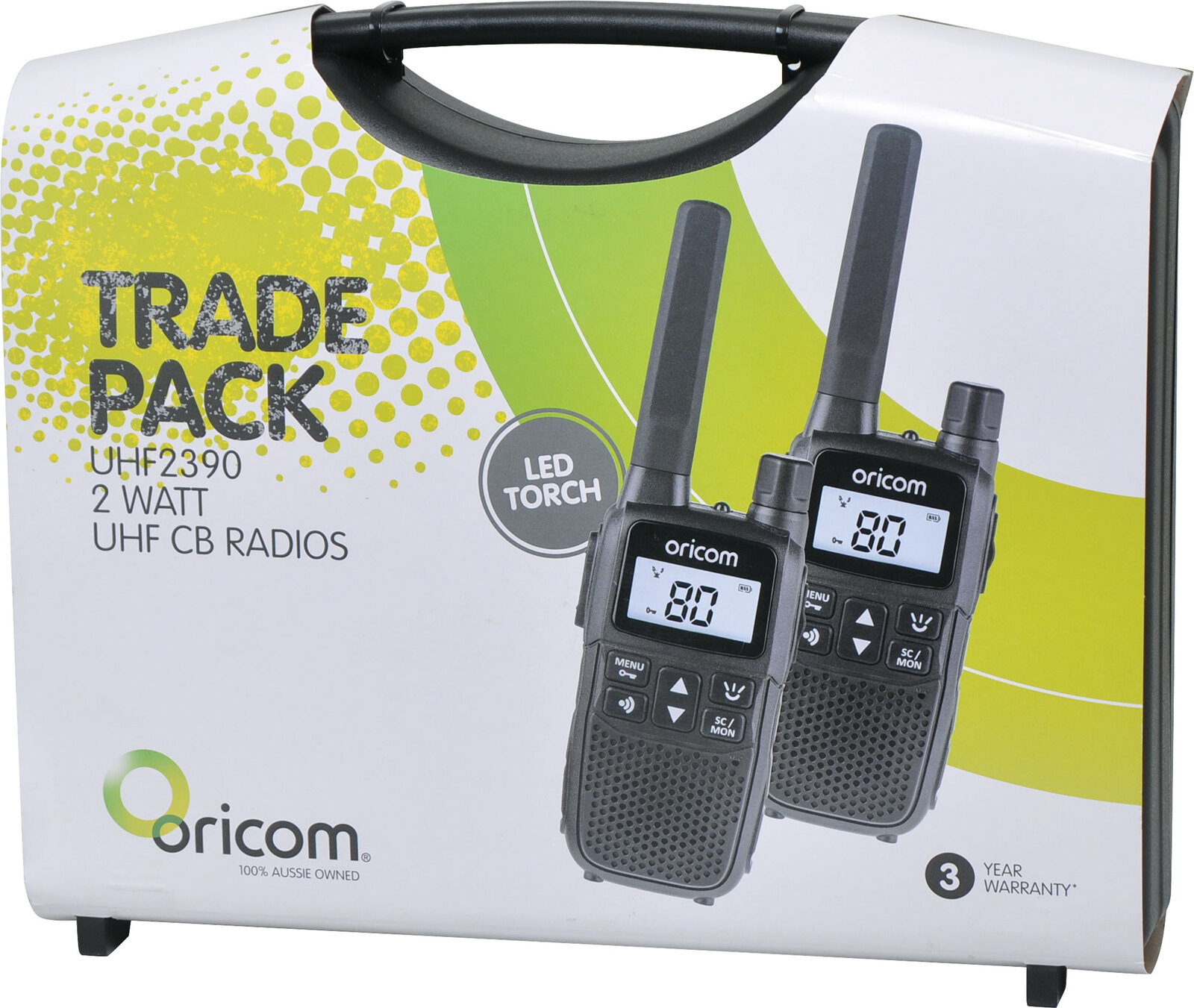

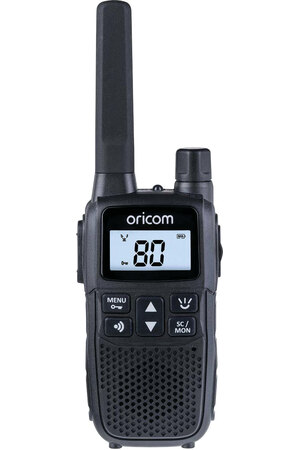

Oricom UHFTP2390 80Ch 2W UHF CB Transceiver Pair

Part of the series Walkie Talkies.

View all products in this series

---

This 2W UHF CB radio pack features two UHF2390 UHF CB radios and a kit of accessories to make sure you are connected wherever you find yourself, whether you’re off road, camping, fishing or working around the school.

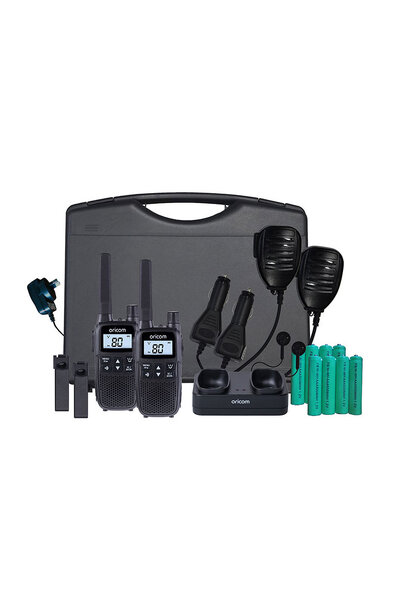

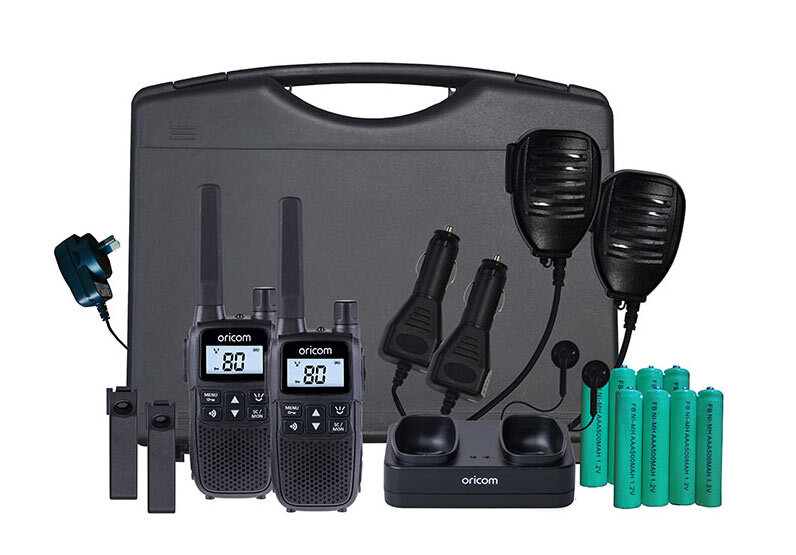

Package Includes:
2 x UHF CB radios

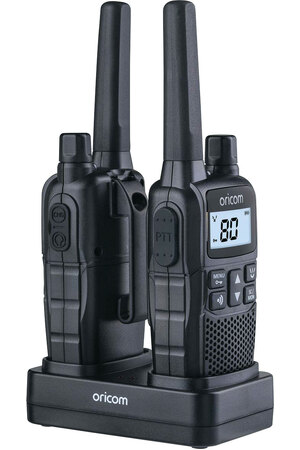

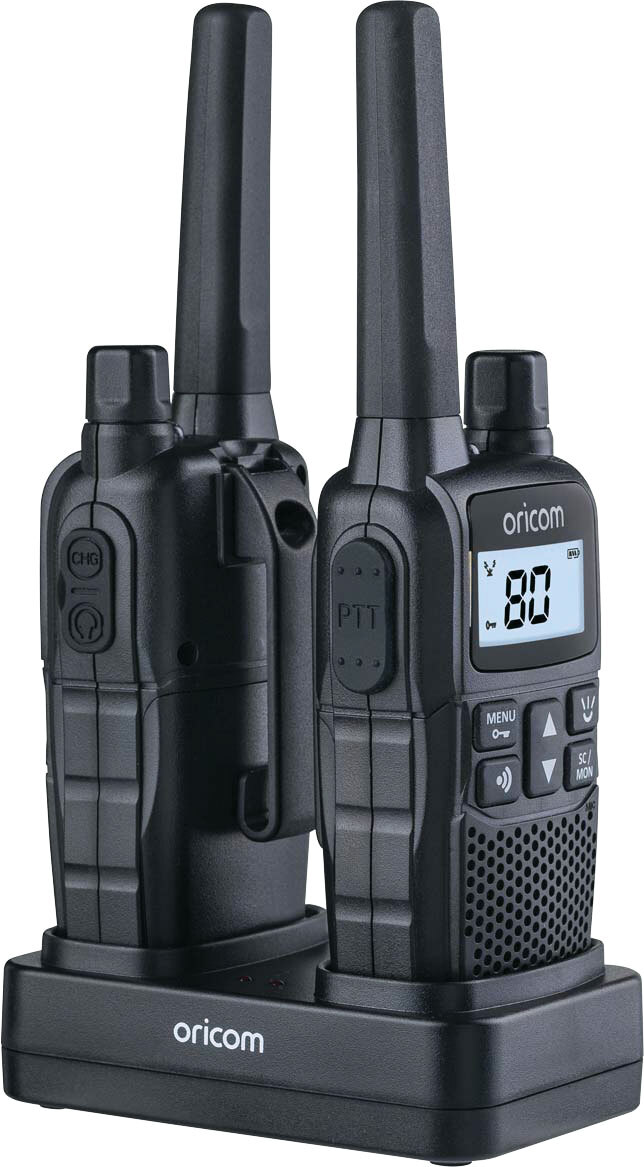

1 x Twin charging pod
1 x AC Adaptor
8 x Rechargeable batteries
2 x Belt clips
2 x Speaker mics
2 x Car chargers
2 x Ear bud mics
1 x Heavy duty case

Features

• 2 watt transmit power
• LED torch
• 80 Channels
• Duplex (range extender)
• 38 CTCSS & 83 DCS codes
• Backlit display
• Dual watch
• Roger beep
• Channel scan
• Automatic squelch control
• Keypad lock
• Hands-free (VOX) capable
• Call tone alert

Specifications

• General
• Frequency Range TX/RX: 476.425 - 477.4125 MHz
• Number of Channels: 80 UHF CB (75 Usable)
• Channel Spacing TX/RX: 12.5KHz
• Channel Spacing RX: 12.5KHz
• Operating modes: Simplex, Duplex
• Battery Capacity: 4 x AAA Ni-MH 600mAh batteries. 10 hours operating time using low power. Duty cycle; 5% transmit, 5% receive and 90% standby
• Frequency Stability: +/- 2.5ppm
• Transmitter
• RF Output Power: 2 Watts max.
• Modulation: FM
• Maximum Deviation: +/- 2.5KHz
• Tx Frequency Response: +1 to -3dB of 6dB/octave from 300Hz to 3000Hz
• Audio Signal to Noise Ratio: more than 30dB
• Receiver
• Circuit Type: Direct conversion by Single DSP chip
• Intermediate Frequencies: IF = 137KHz
• Sensitivity: Less than -118dBm at 12dB SINAD
• Intermodulation Immunity: more than 70dB
• Spurious Response Immunity: more than 60dB
• Audio Signal to Noise Ratio: More than 30dB
• Receive Frequency Response: 5.5 to -9.9 +-2.5dB from 300Hz to 2500Hz

*Specifications are subject to change without notice.

Downloads

Instructions
