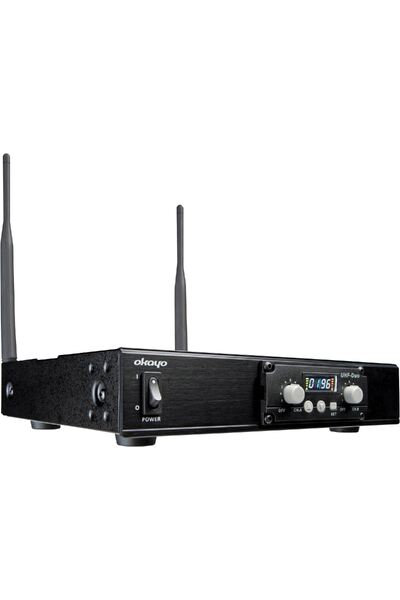

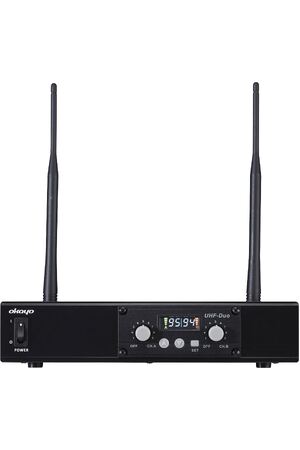

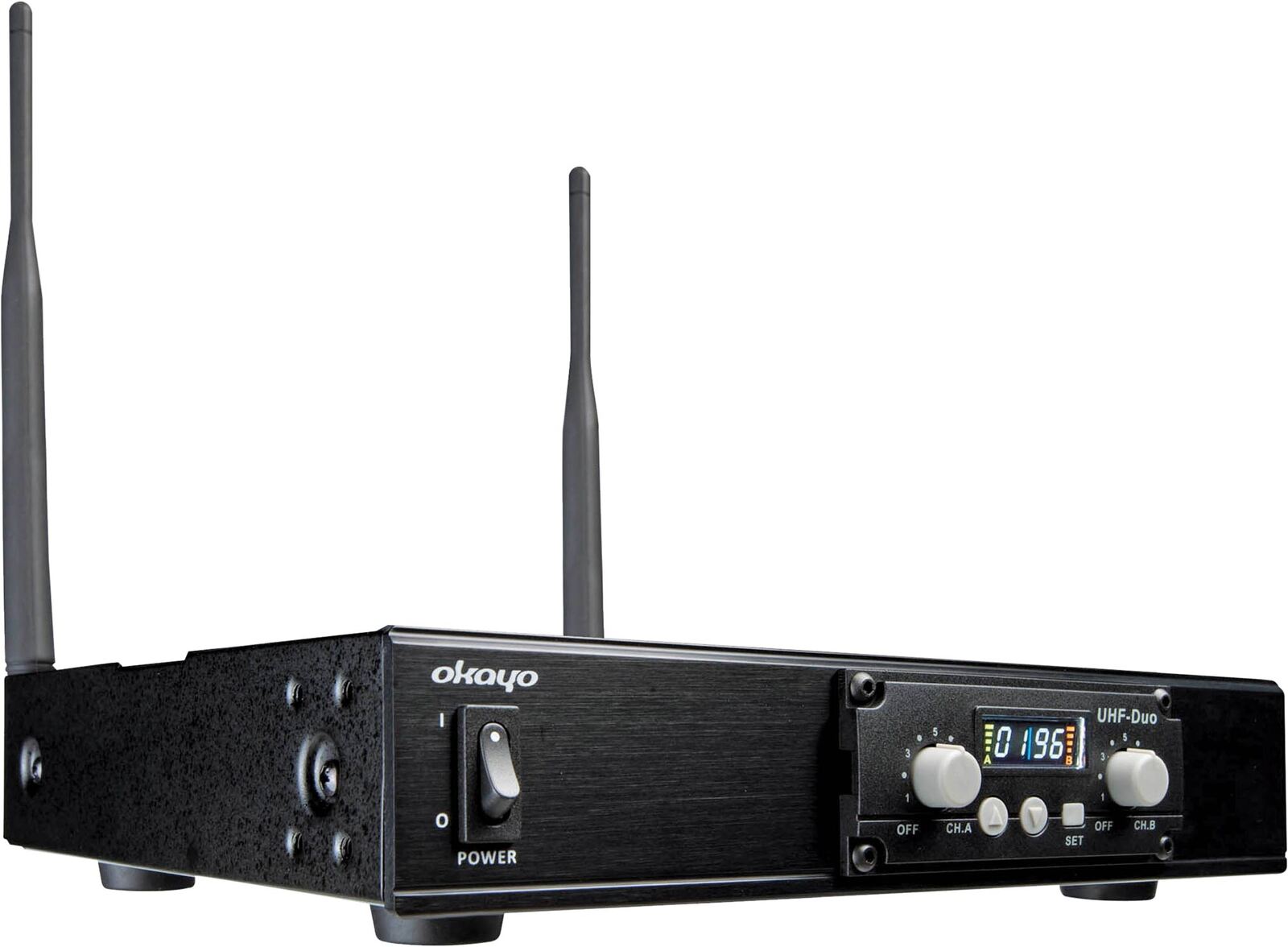

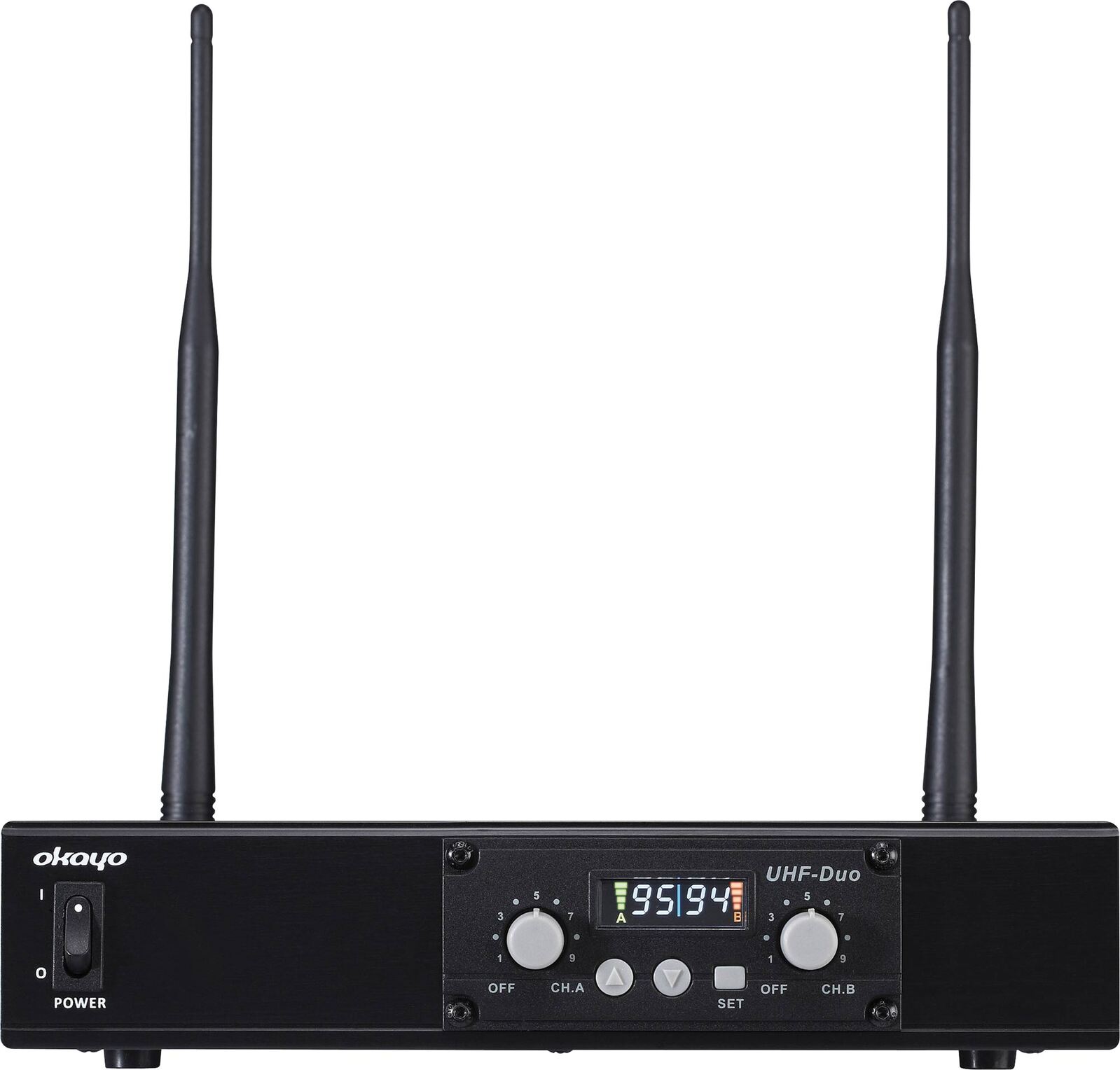

Okayo Dual Channel UHF Wireless Audio Link Receiver 520-544MHz

Part of the series Portable PA Systems.

View all products in this series

---

This updated dual channel model allows two transmitter units to be sent back to a single receiver unit which outputs to a local amplifier.

An excellent solution for extending a PA system to a nearby building where cabling is impossible or impractical to install. The desktop transmitter accepts a standard paging microphone or line level feed from the existing PA system and transmits it to the receiver unit in the remote location. This then feeds the signal into the amplifier at that location. This allows any program source fed into the primary amplifier to be relayed to the remote PA system. Ideal for both permanent or temporary installations such as PA systems at carnivals, sporting events, mine sites, construction sites, agricultural shows etc. Transmission range up to 100m line of sight in ideal conditions. Includes power supply. Size: 215W x 210D x 44Hmm.

Features

• Dual channel 96 UHF frequencies in 520 - 544MHz UHF Band
• Range up to 100m

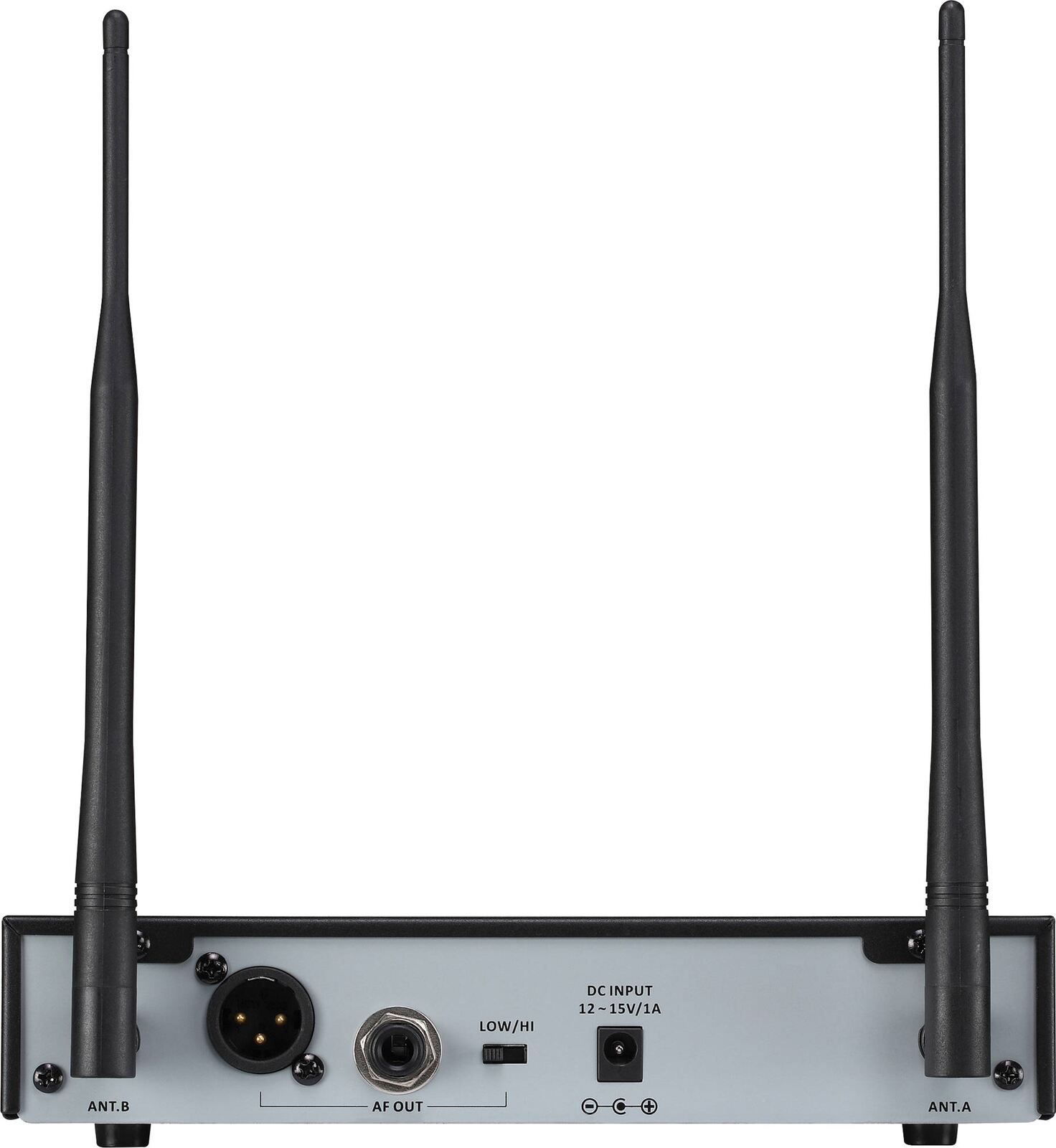

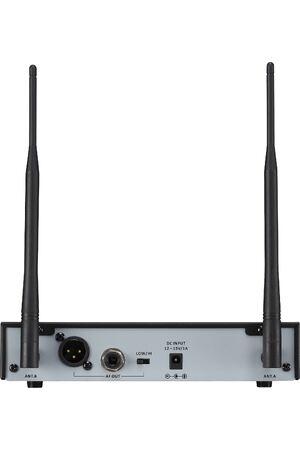

• Provides balanced mic or line level outputs
• 3 pin XLR or 6.35mm jack connection
• Hi/low impedance selector
• Compatible with Okayo beltpack and handheld transmitters sold separately

Downloads

Instructions
