Dynalink 4x1 HDMI Multiviewer Seamless UHD 4K Video Switcher

Part of the series HDMI Switchers, Splitters & Converters.

View all products in this series

---

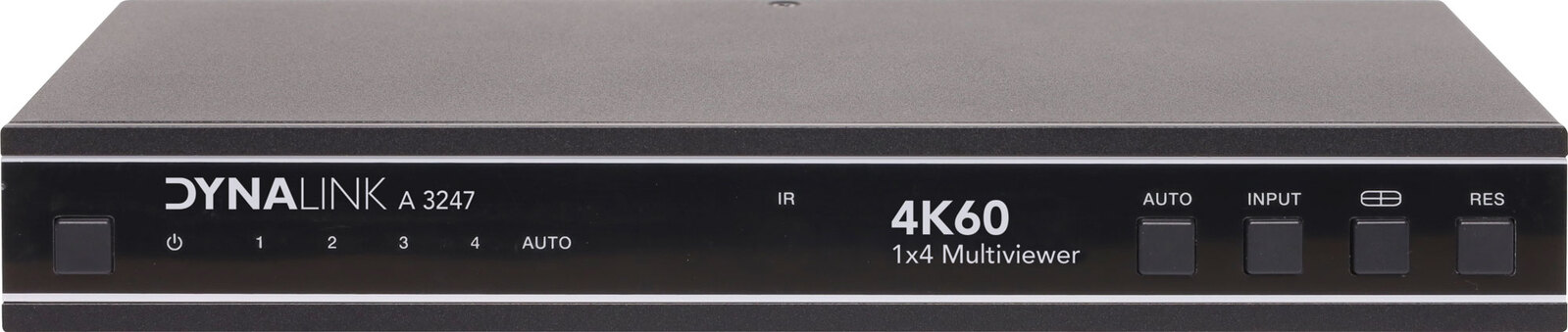

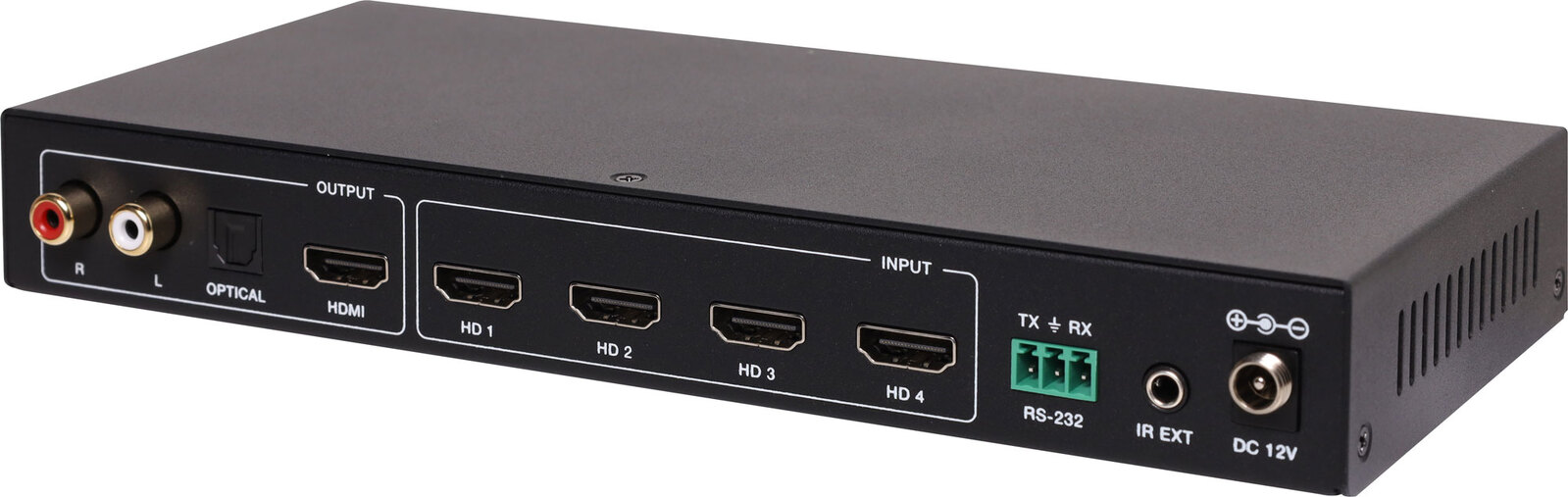

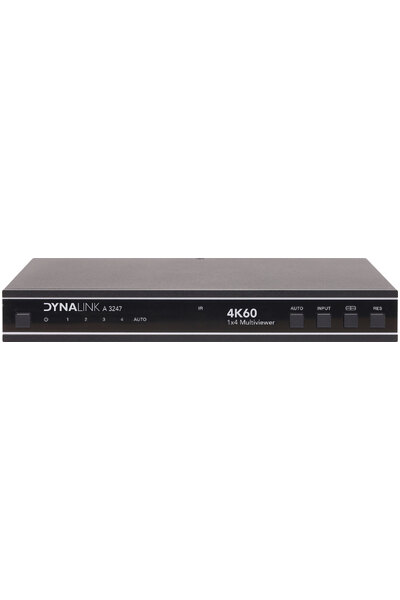

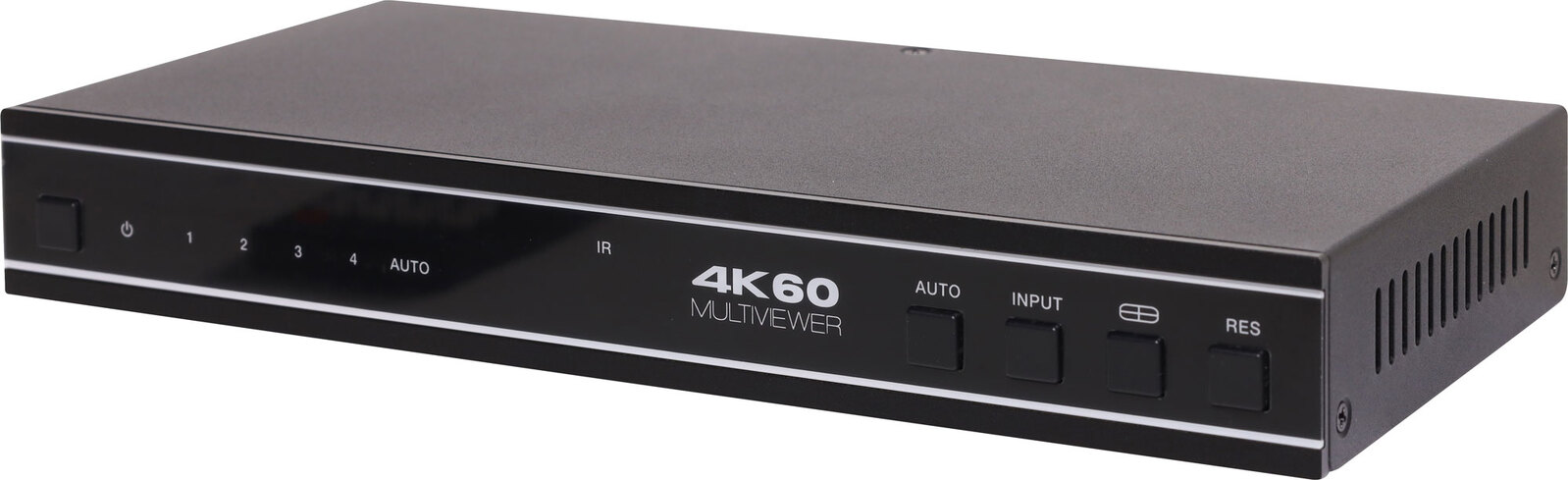

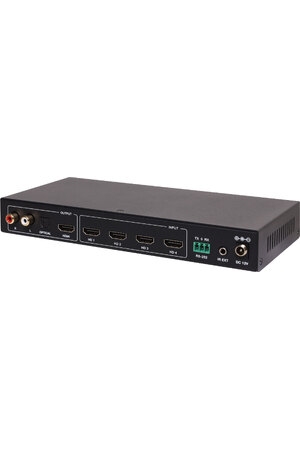

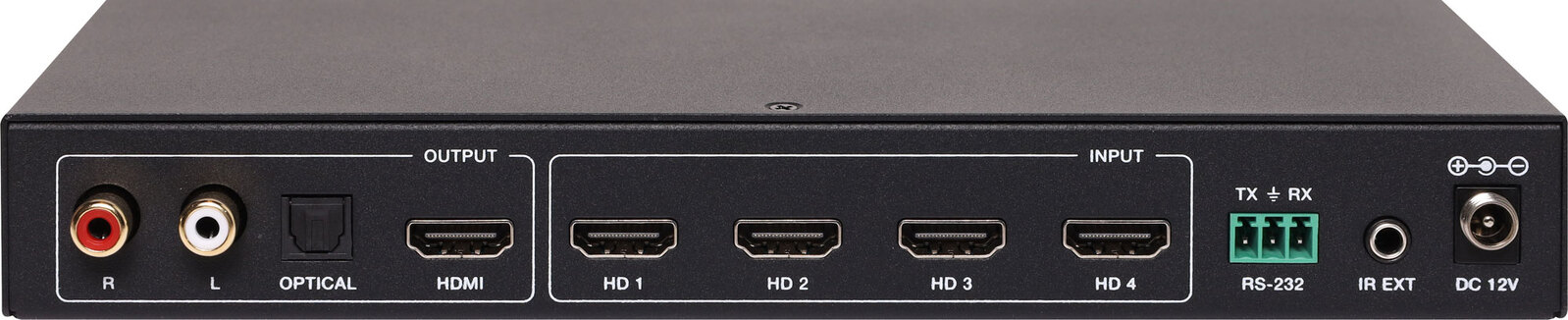

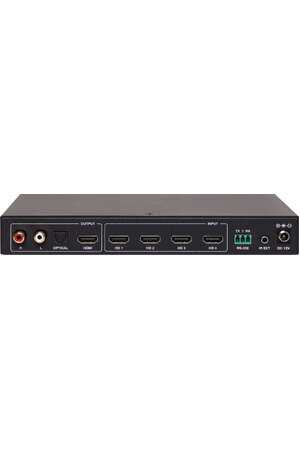

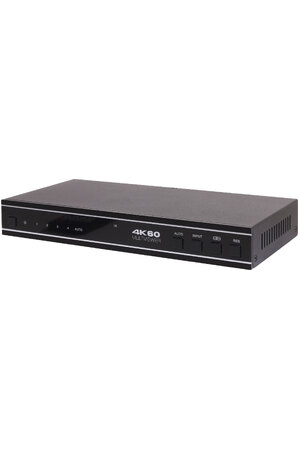

This product is designed for the purpose of connecting four 4K @ 60Hz UHD HDMI sources, and displaying each on a single display. The screen layout and input selection is managed using the front panel switches, the infra-red remote control or RS-232 commands (via third party control software). It supports a range of video input resolutions up to a maximum of 4K @60Hz UHD.  It also features an in-built extractor which splits the audio signal into S/PDIF digital and stereo RCA outputs for simple connection to existing audio systems. Suitable for use within a variety of commercial AV monitoring systems.

Package Contents:
1 x 4K60 UHD Video Switcher

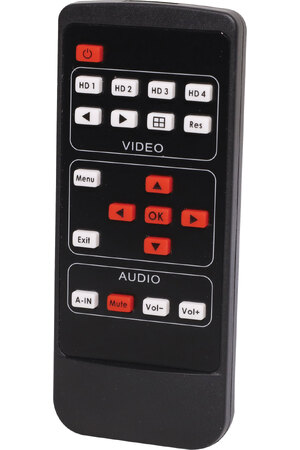

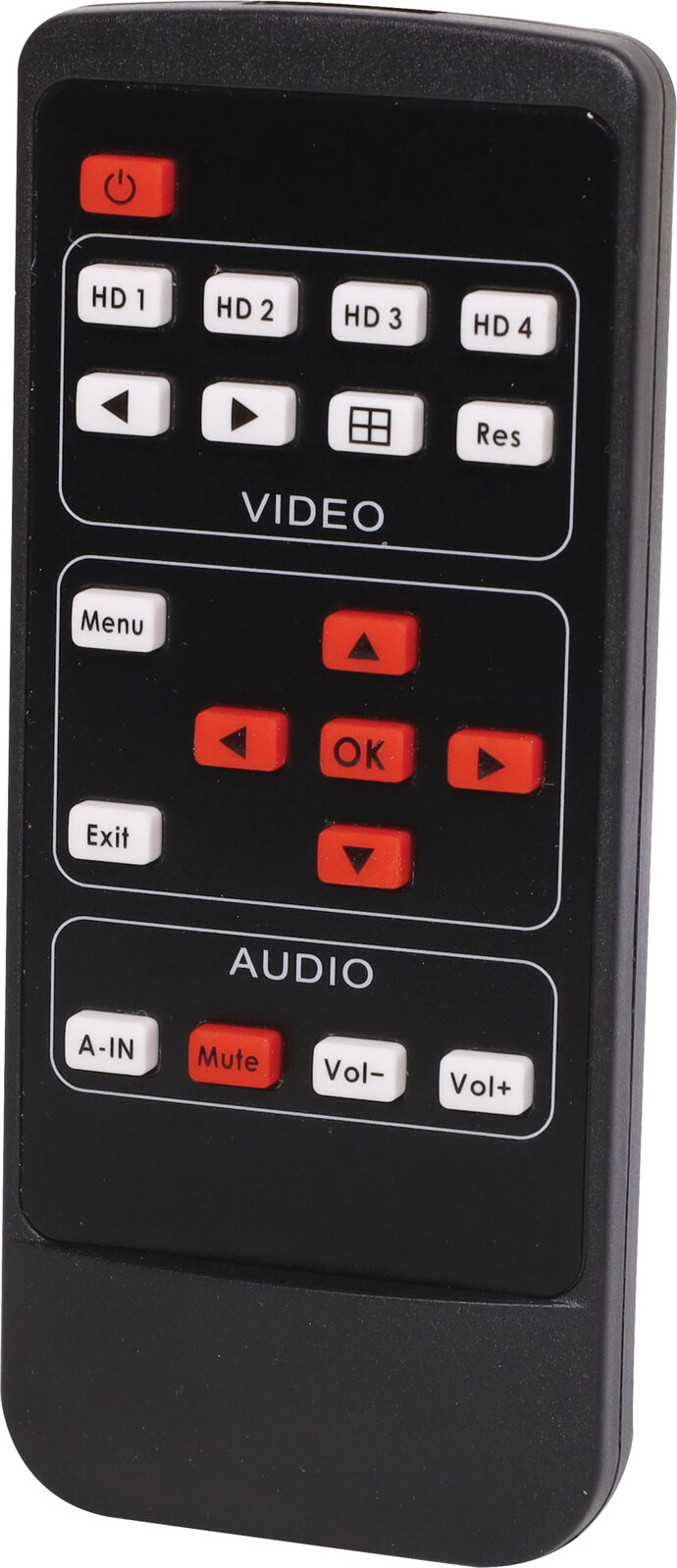

1 x IR Remote
1 x 3pin-3.81mm Phoenix Connector (male)
1 x 38KHz IR Wideband Receiver Cable (1.5m)
2 x Mounting Ears
4 x Machine Screws (M3 x 4)
1 x 12V/2.5A Locking Power Adapter
1 x User Manual

Features

• Supports four 4K @ 60Hz sources.
• Combines up to four sources onto one display.
• RS-232 controllable via third party software.
• Audio extraction via S/PDIF & stereo RCA.
• HDMI 2.0b, HDCP 2.2/1.x compliant.
• 18Gbps video bandwidth.
• Up to 8 display modes.
• Seamless display switching.
• EDID management.
• Includes IR remote.

Specifications

• HDMi Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 / 1.x
• Video Bandwidth: 18Gbps
• Video Resolution: Up to 4k @ 60Hz
• IR Level: 5Vp-p
• IR Frequency: 38KHz
• Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Colour Depth: 8bit
• ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
• Audio Formats:
• HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
• Analog Audio [3.5mm L/R]: PCM2.0;
• SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.
• Note: Does not support HBR audio.

*Specifications are subject to change without notice.
