Dynalink 4K HDMI Extender (70m) with USB KVM

Part of the series HDMI Extenders.

View all products in this series

---

This product is designed to extend HDMI signals over distances up to 70m using Cat6/6a cabling. In addition it also allows USB peripherals to control a connected computer from the receiver end. The cable bandwidth allows for zero-delay operation even with HDMI resolutions up to 4k @ 60Hz. The extender supports KVM passthrough which can remote control source device at the display end. Power is via included power supply which can be located at either end of the cable run (Power Over Cable - POC support).

Package Contents:

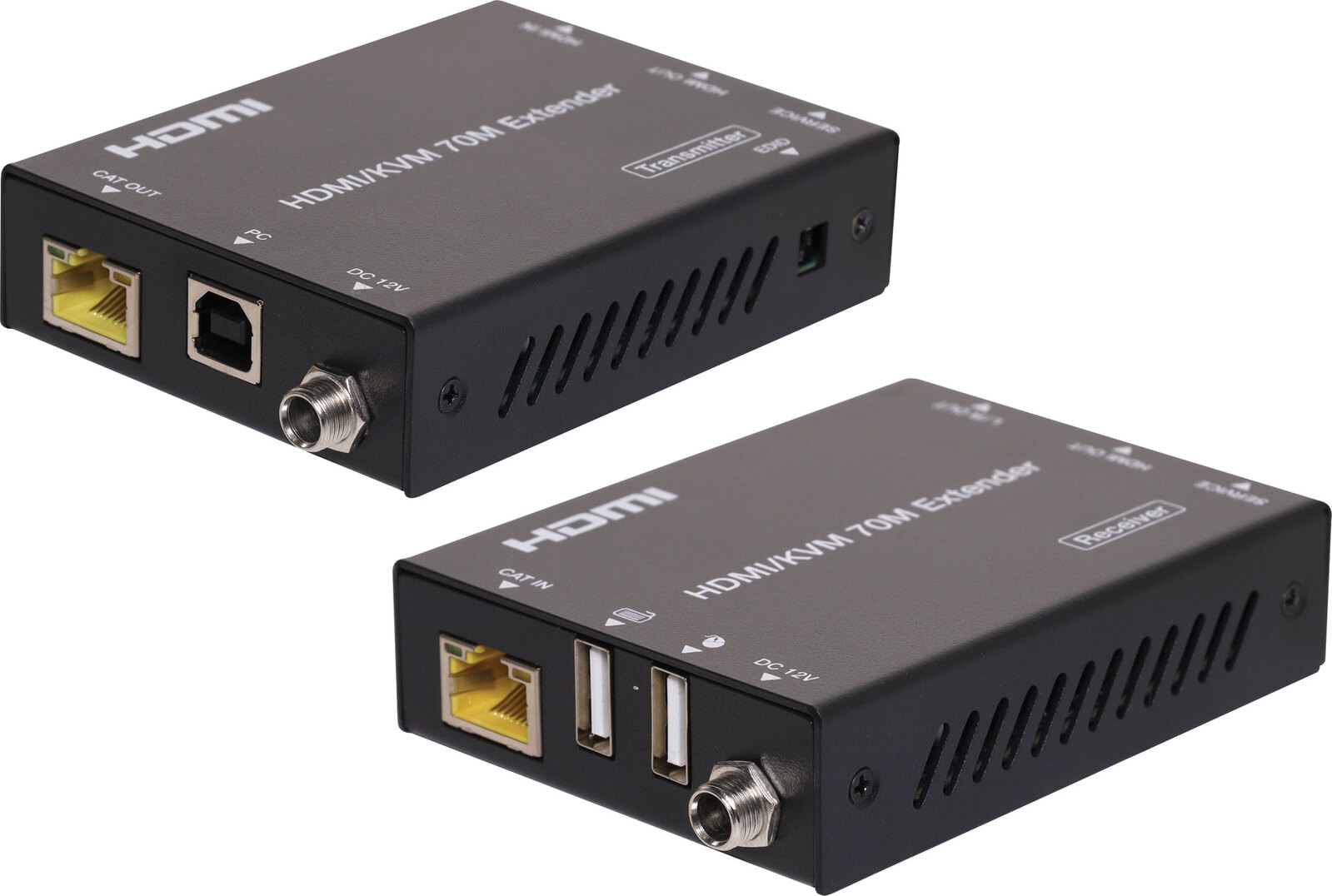

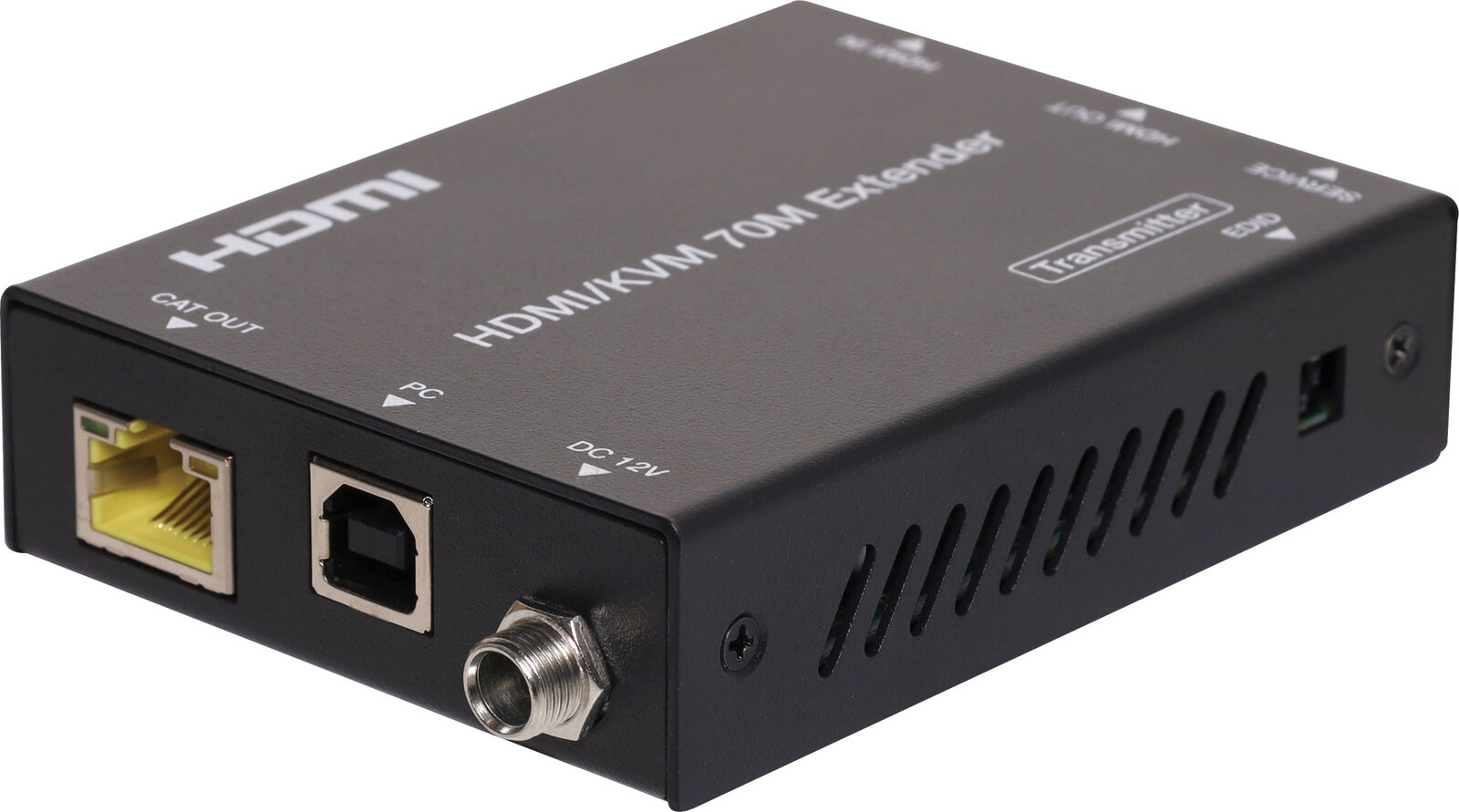

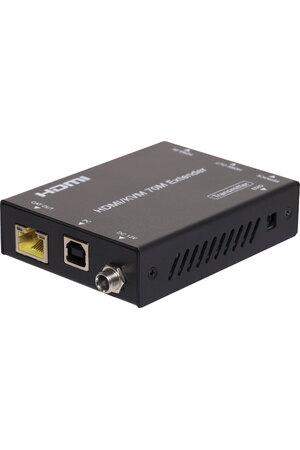

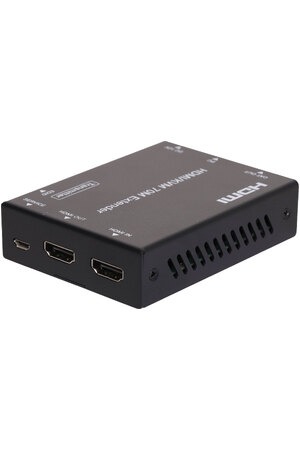

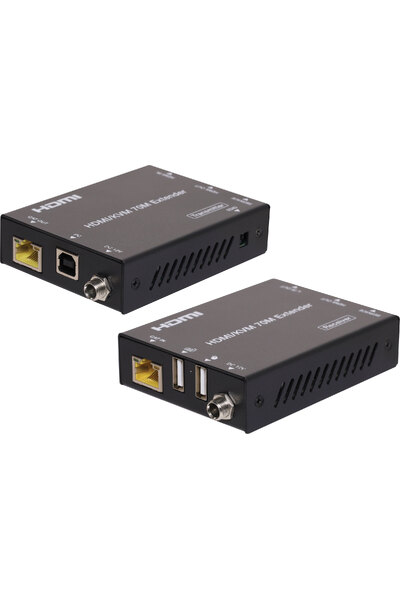

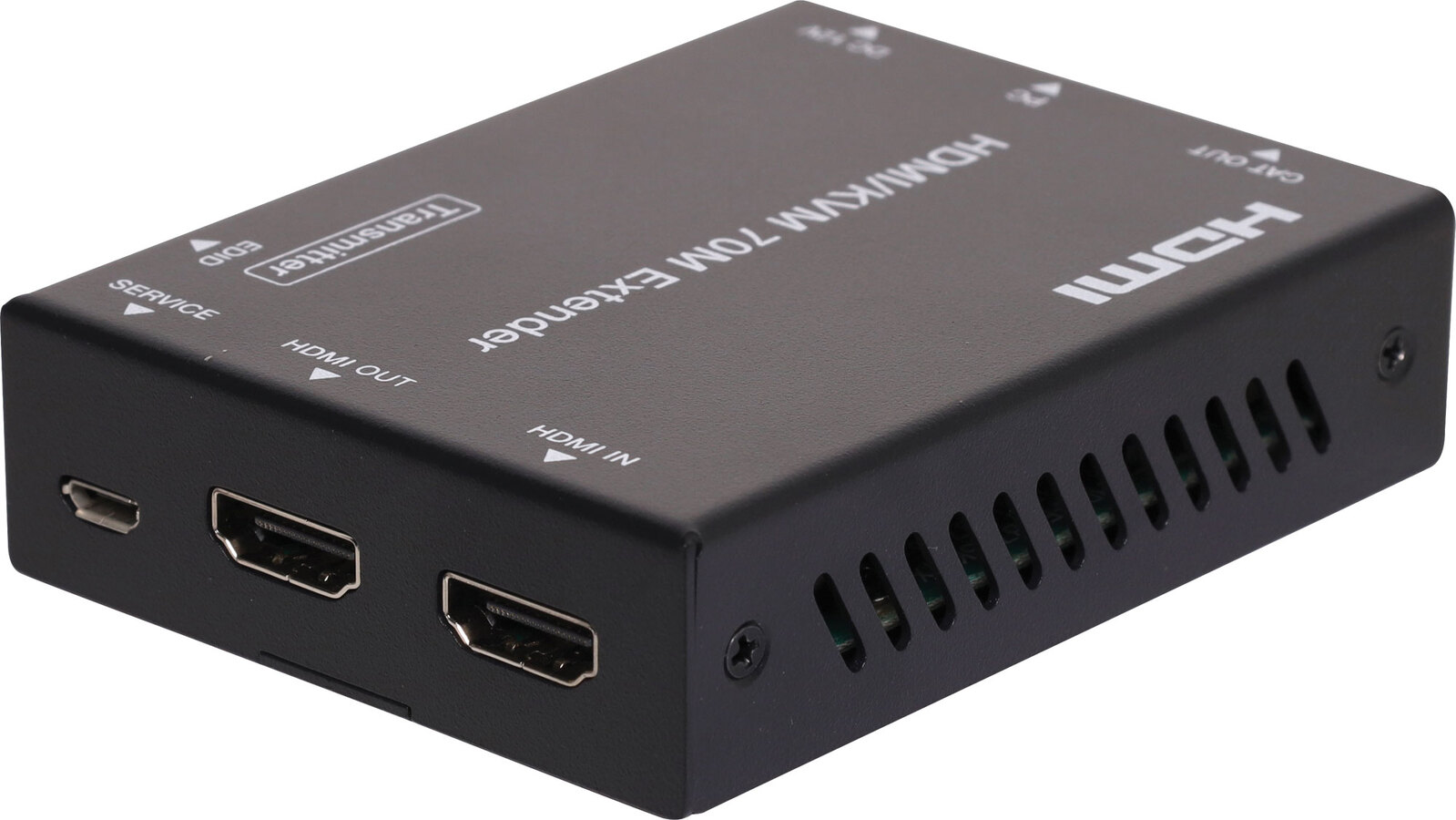

1 × 18Gbps HDMI Extender (Transmitter)

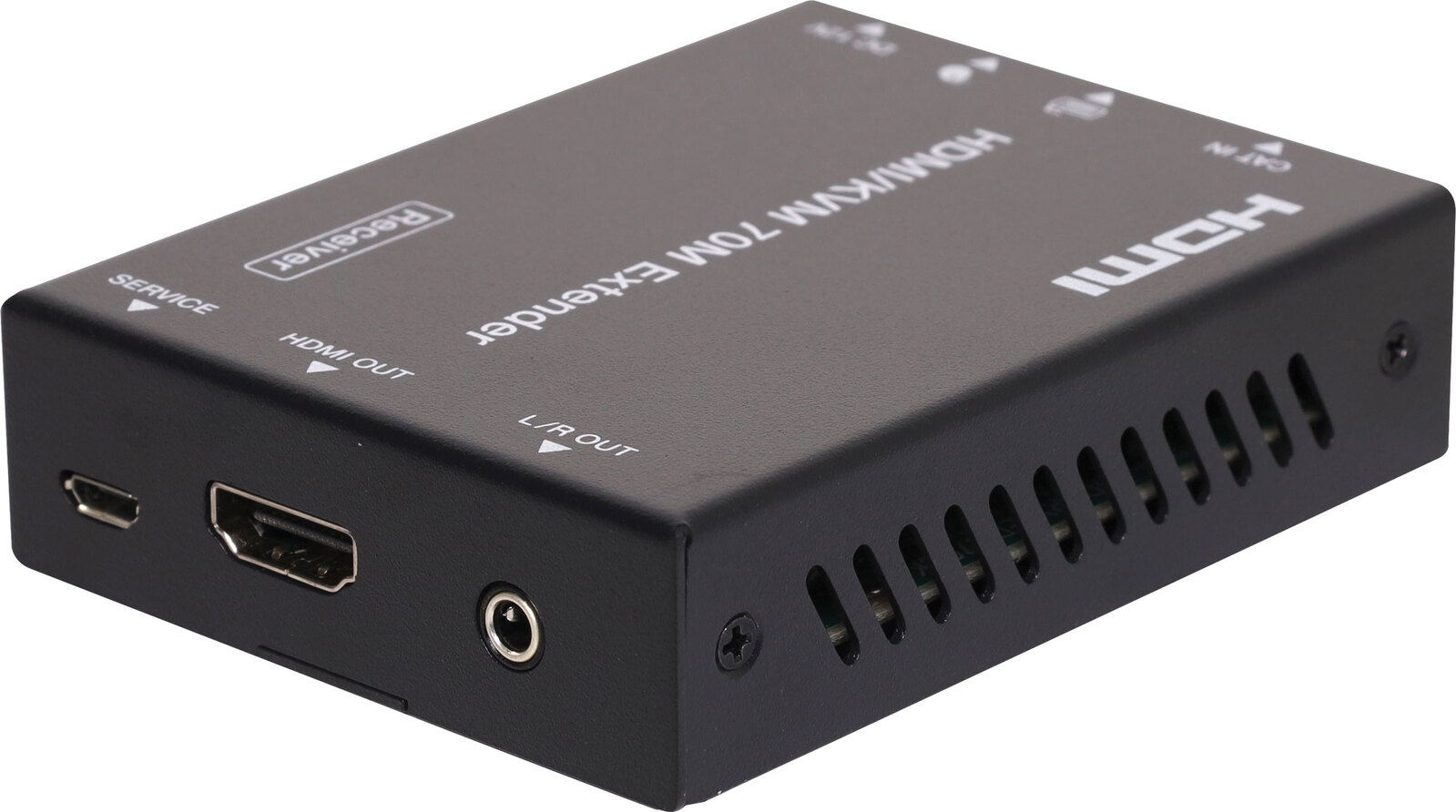

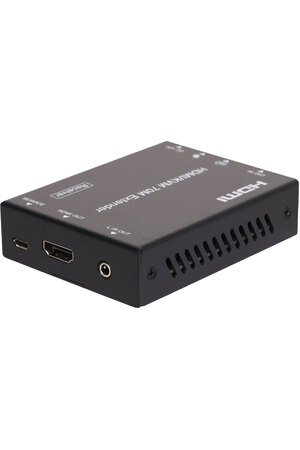

1 × 18Gbps HDMI Extender (Receiver)
1 × USB-A to USB-B Cable (1.5m)
4 × Mounting Ears
8 × Machine Screws (M3 x 4)
1 × 12V/1A Locking Power Adapter
1 × User Manual

Features

• Extend both HDMI signal plus USB peripherals.
• Transmission up to 70m over Cat6/6a UTP cabling.
• Ideal for remote operation of PC equipment.
• HDMI 2.0b, HDCP 2.2 compliant.
• 18Gbps video bandwidth.
• EDID management.
• Includes transmitter & receiver.
• Supports USB 1.1 KVM pass-through.

Specifications

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2
• Video Bandwidth: 18Gbps
• Video Resolution: Up to 4K2K@60Hz RGB/YCBCR 4:4:4
• Transmission Distance: 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6 cable)
• Colour Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Colour Depth: 8/10/12bit
• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+)

*Specifications are subject to change without notice.
