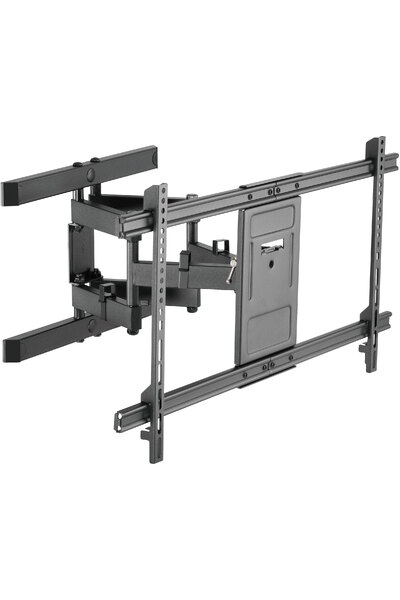

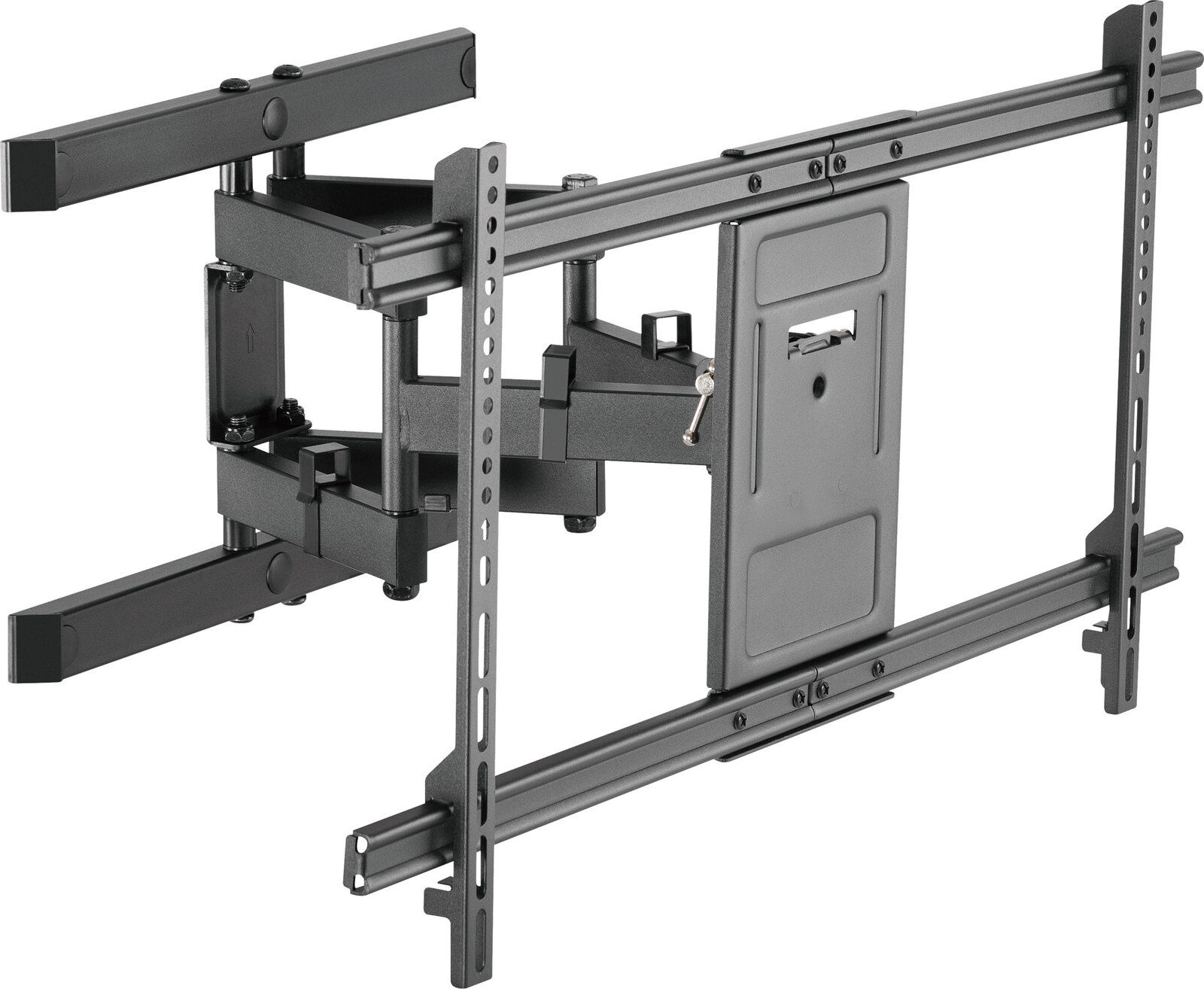

Dynalink 43"-90" Swivel Flat Screen Wall Bracket

Part of the series AV, Monitor & TV Brackets.

View all products in this series

---

This cantilever wall bracket is designed to mount flat or curved screens up to 60kg where quick screen adjustment is required. VESA compliant mounting dimensions from 300x300 to 800x400. +3° to -15° tilt adjustment is provided, plus swivel up to 60° in either horizontal direction to find an optimal viewing angle, avoiding glare and reducing eyestrain when viewing.

Features

• Low profile design - only 55mm deep!
• +3 to 15° tilt adjustment.
• 60° swivel adjustment.
• Plastic mount covers provide a neat & tidy finish.
• Cable management guides.
• Built in levelling adjustment.
• Makes easy forward or backward viewing angle adjustments for reduced glare and eye strain.
• Sturdy and durable steel construction.

Specifications

• Panel Type: Detachable
• Wall Plate Type: Fixed
• Material: Steel/Plastic/ABS
• Surface Finish: Power Coating
• Finish Colour: Black
• Fit Screen Size: 43"-90", fits curved or flat TVs.
• Mounting Hole Pattern: VESA & Universal
• Mounting Hole (max): 800x400
• VESA Compatible: 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400
• Profile Depth: 77 - 428mm
• Tilt Range: +3° to -15°
• Swivel Range: +60° to -60°
• Screen Level: +3° to -3°
• Installation: Solid brick wall, double stud (406mm)
• Weight Capacity: 60kgs
• Dimensions: 428 x 840 x 425mm

*Specifications are subject to change without notice.

Downloads

Instructions
