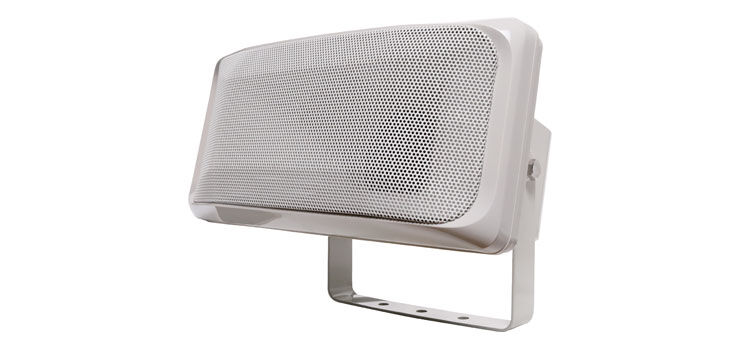

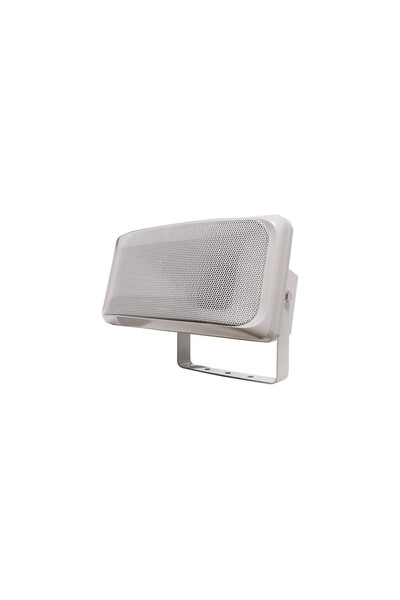

Compact 30W Weatherproof 8 Ohm/100V Line Music Horn

Part of the series PA Speakers.

View all products in this series

---

This horn speaker is designed to meet a wide range of installation needs with ease and flexibility. Built to endure harsh construction environments with its IP66 rating, it ensures reliable performance in demanding locations. Delivering exceptional voice clarity, this horn speaker provides a high level of speech intelligibility for various applications. It is eminently suited to outdoor applications where a high standard of speech and music reproduction is demanded eg: schools, gymnasiums, aquatic centres, sporting arenas, stadiums etc.


Features

• IP66 weatherproof rated for outdoor use.
• Aluminium mesh grille for rust free performance.
• Rotary switch power tap selector.
• 8 Ohm or 100V line use.
• High clarity for speech and music reproduction.
• 5 year Redback speaker performance warranty.

---

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

• Input Power: 3.8W, 7.5W, 15W, 30W and 8Ω
• Rated Impedance: 8Ω
• Sound Pressure Level: 95 ± 3dB (1M/1W)
• Frequency Response: 180Hz - 14kHz
• Speaker Unit: 5”
• Mounting Hole size: 3 x Ø11mm. Distance between holes = 51mm
• Speaker Installation Method: Bracket Installation
• Connection Mode: Two core jacketed wire
• Material: Panel: ABS, Mesh Cover: Aluminium mesh, Bracket: Powdercoated Steel
• Working Temperature: -25°C to 55°C
• StorageTemperature: -40°C to 70°C
• Relative Humidity: ≤95%
• Dimensions: 366 x 172 x 270mm
• Weight: 3kg

  *Specifications are subject to change without notice.
