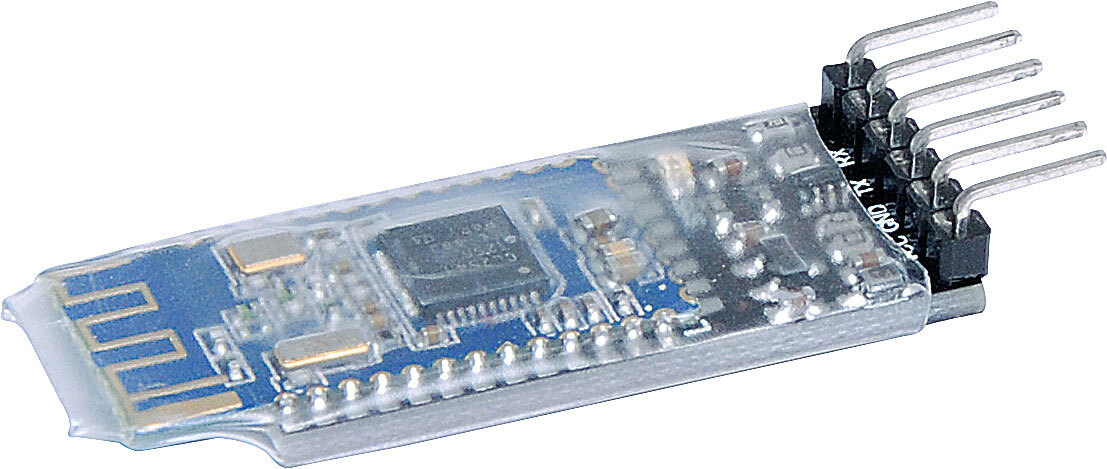

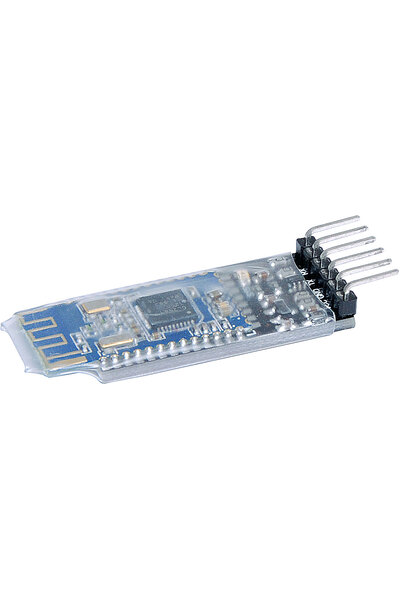

This small size Bluetooth 4.0 TTL transceiver module allows your project to communicate with other bluetooth equipped devices.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-Z6365 ISBN: 9321758174937 Brand/Publisher: Altronics Categories: Technologies, STEM & STEAM,

Part of the series Arduino Kits & Accessories.

View all products in this series

This small size Bluetooth 4.0 TTL transceiver module allows your project to communicate with other bluetooth equipped devices. Can be set as slave or master. Low standby current. 110m range. Integrated chip antenna. Size: 27L x 13W x 2H mm.

Application Fields
Cable replacement
Point of sales systems
Barcode readers and pay terminals
Telemetry and machine to machine devices
Logistics and transportation systems
Automotive inspection and measurement systems
Medical systems
Fitness and sports telemetry devices
PDA and other portable terminals
PCs and laptop OBD

Features

Based on TI CC2541 chipset
Bluetooth class 2
Industrial level SPP Bluetooth module
Integrated chip antenna
Support for on board applications

Specifications

Size: 27L x 13W x 2H mm
Operating frequency: 2.4 GHz ISM band
Modulation method: GFSK (Gaussian Frequency Shift Keying)
Acuity: 84 DBM or less BER at 0.1%
Transfer rate: Asynchronous: 6 KBPS Synchronous: KBPS
Security features: Authentication and encryption
Support services: Central and Peripheral UUID FFE0, FFE1
Power consumption: automatic sleep mode, the standby current 400 ~ 1.5 mA, transfer 8.5 mA.
Power supply: + 3.3 VDC 50 ma
Output Power Class: Class 2
Operating Voltage: 3.3V
Host Interface: UART
