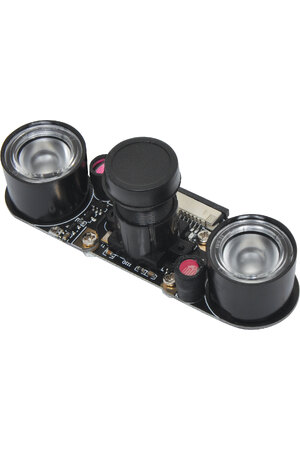

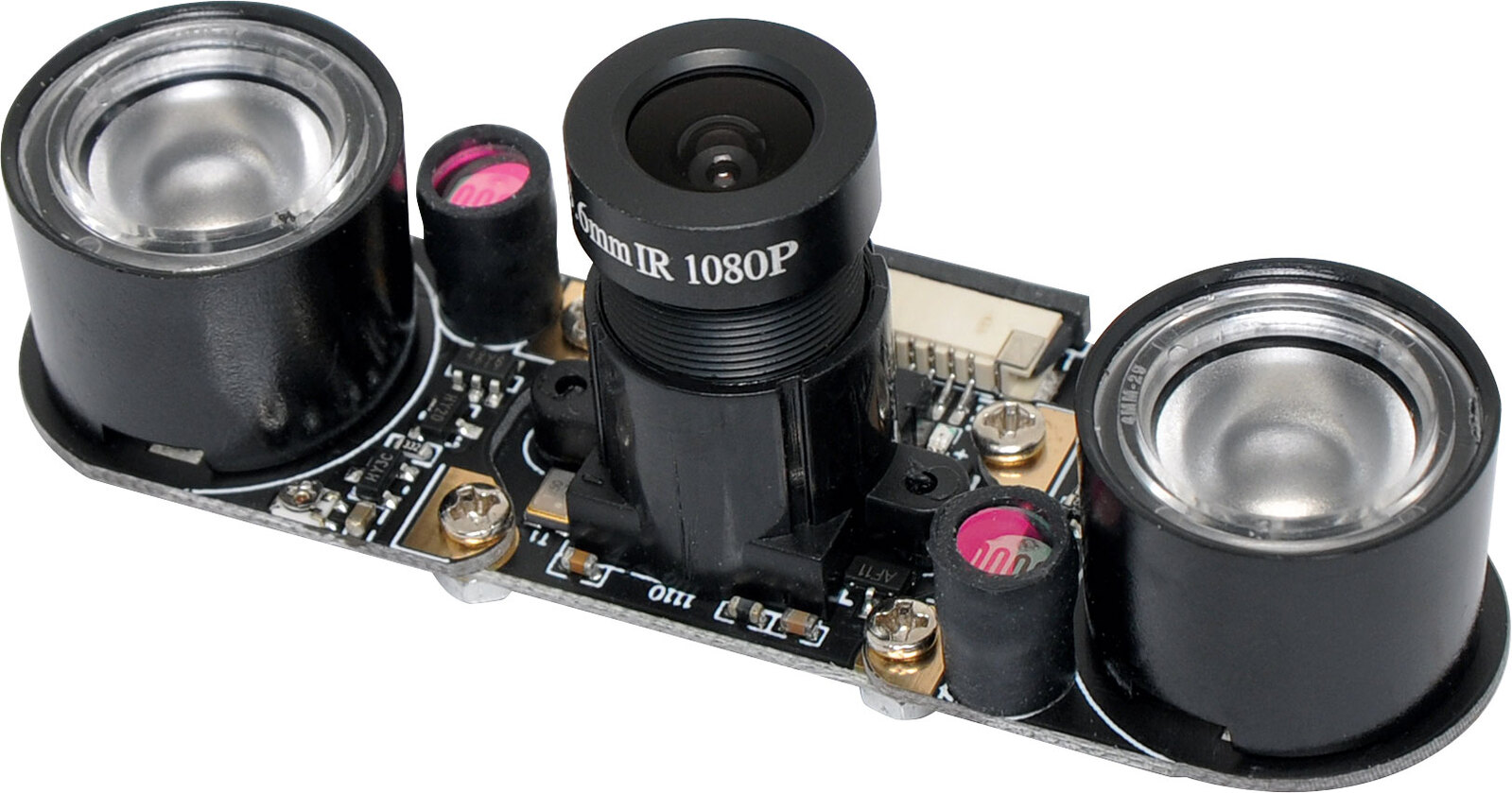

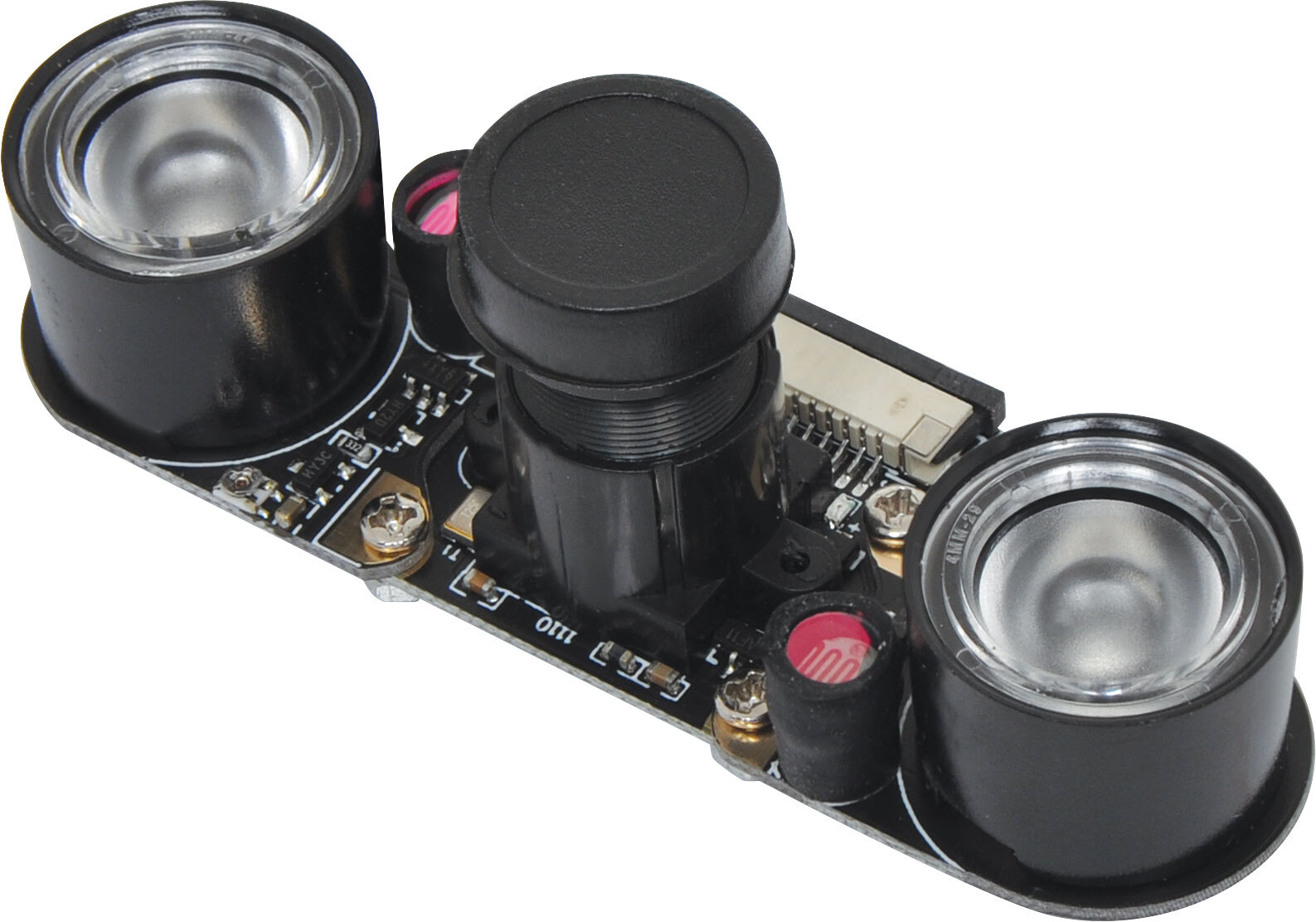

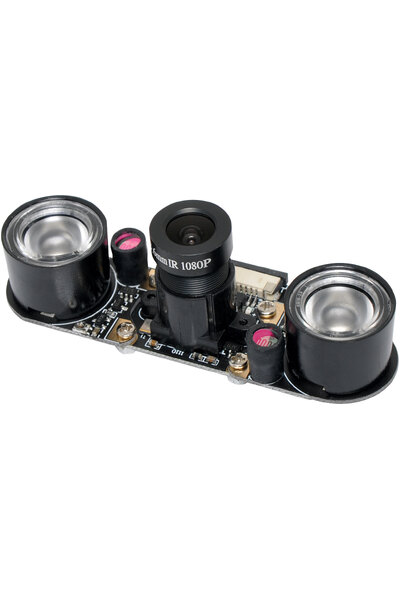

Raspberry Pi 5MP Night Vision Camera Board

Part of the series Raspberry Pi & Accessories.

View all products in this series

---

A compact 5MP Raspberry Pi camera module pre-fitted with two 1W IR LEDs for night time vision. Up to 1080p resolution. Ideal for surveillance and monitoring projects with the R-Pi. 3.6mm focal length. The module features a night vision focal adjustable camera, IR sensor light and 15cm CSI cable of camera cable. You can use the module with the following models; Raspberry Pi 4, 3 Model B+ / 3 / 2 or Raspberry Pi Zero W/1.3.

Note: No Raspberry Pi included in this package.

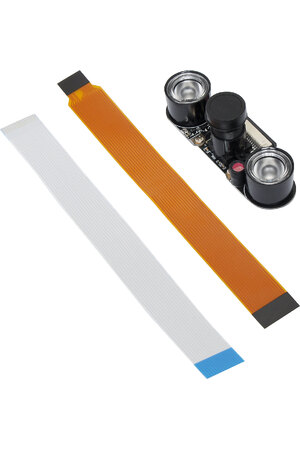

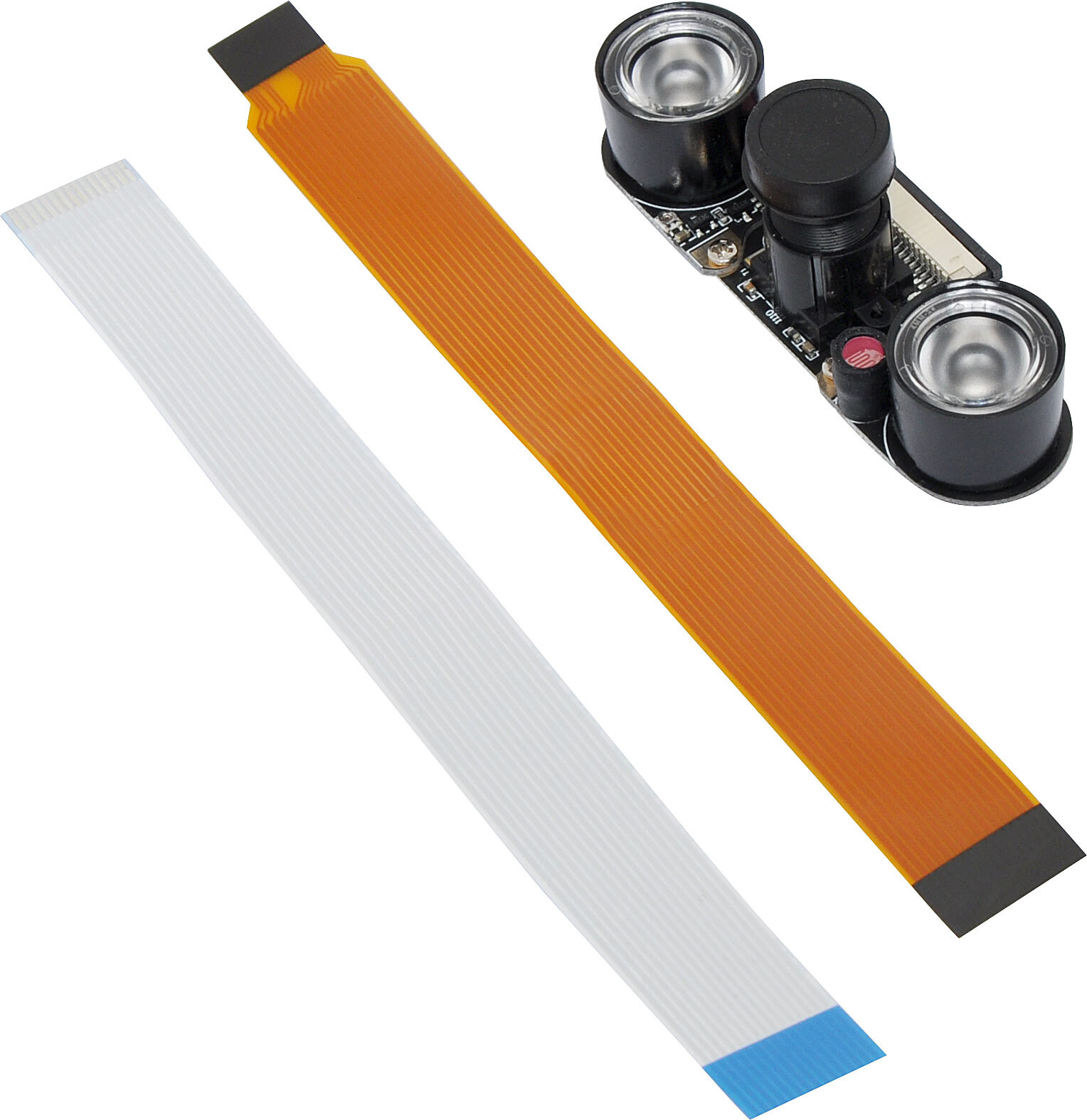

Package Contents:
1 x Camera
2 x IR lights
1 x 15 cm Raspberry Pi Camera Cable
1 x 15 cm Raspberry Pi Zero Camera Cable

Features

• Raspberry Pi Night Vision Camera.
• Compatible with all revisions of the Raspberry Pi
• 5 Megapixel OV5647 Camera
• 2 x 1W high-power 850 infrared LEDs
• Onboard photo-resistor to detect ambient light
• Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED

Specifications

• CSI camera port works with Raspberry Pi
• OV5647 sensor 5MP 2592x1944 pixels
• Lens: f2.3
• CCD size: 1 / 4 inch
• Focal Length: 3.6mm
• FOV D: 70 degree
• Sensor best resolution: 1080p
• Supports: 1080p/30fps, 720p/60fps and 480p/90fps video record
• 4 screw holes : used for attachment and connect power ( 3.3V output )
• Dimensions: 72.6mm x 24mm
• 3.3V power supply interface can be accessed sensitive infrared lamp or other device
• Transparent lights for 1W high power infrared light photoreceptor 850
• Photo-resistor: detecting ambient light intensity

*Specifications are subject to change without notice.
