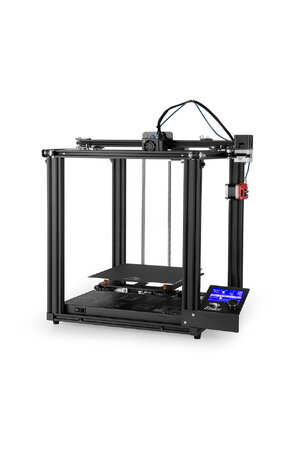

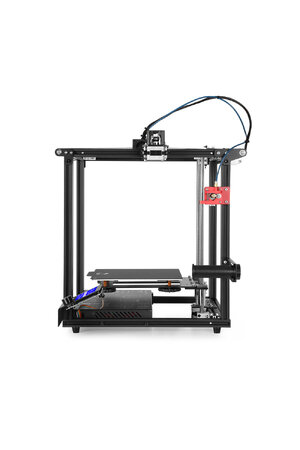

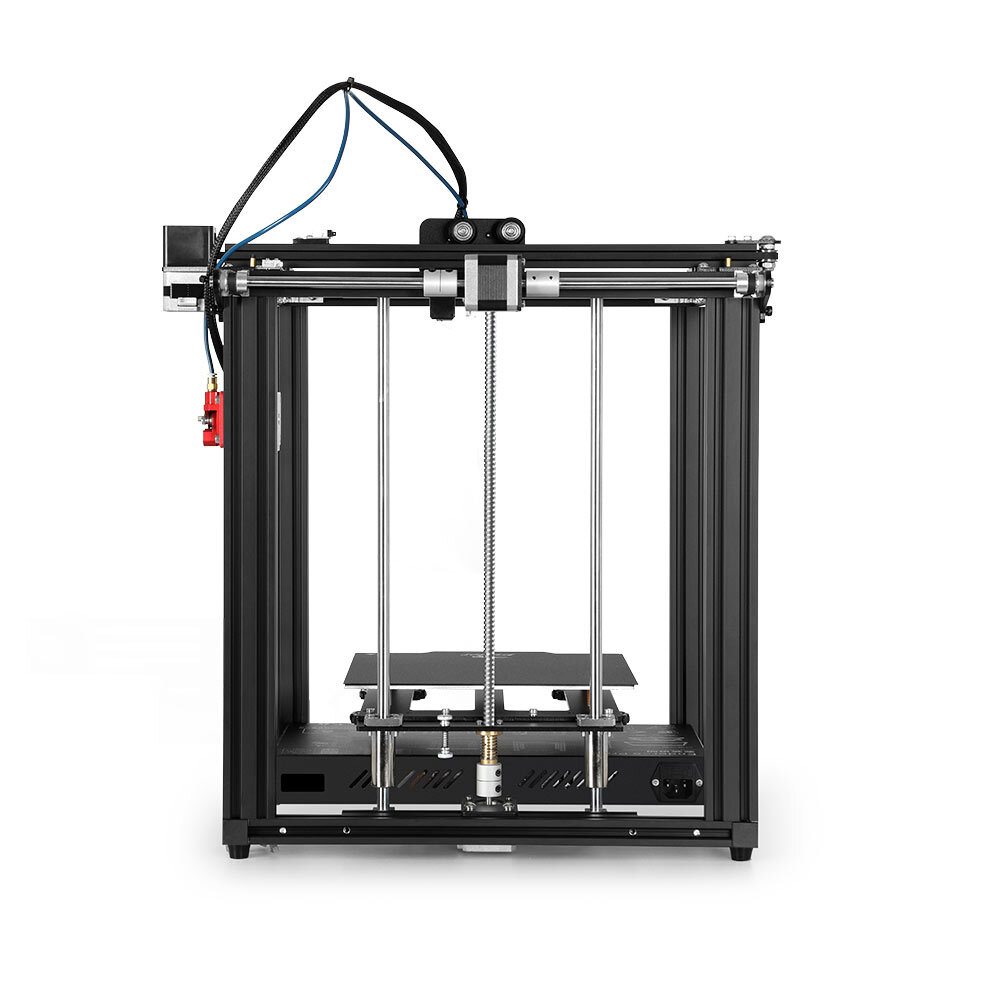

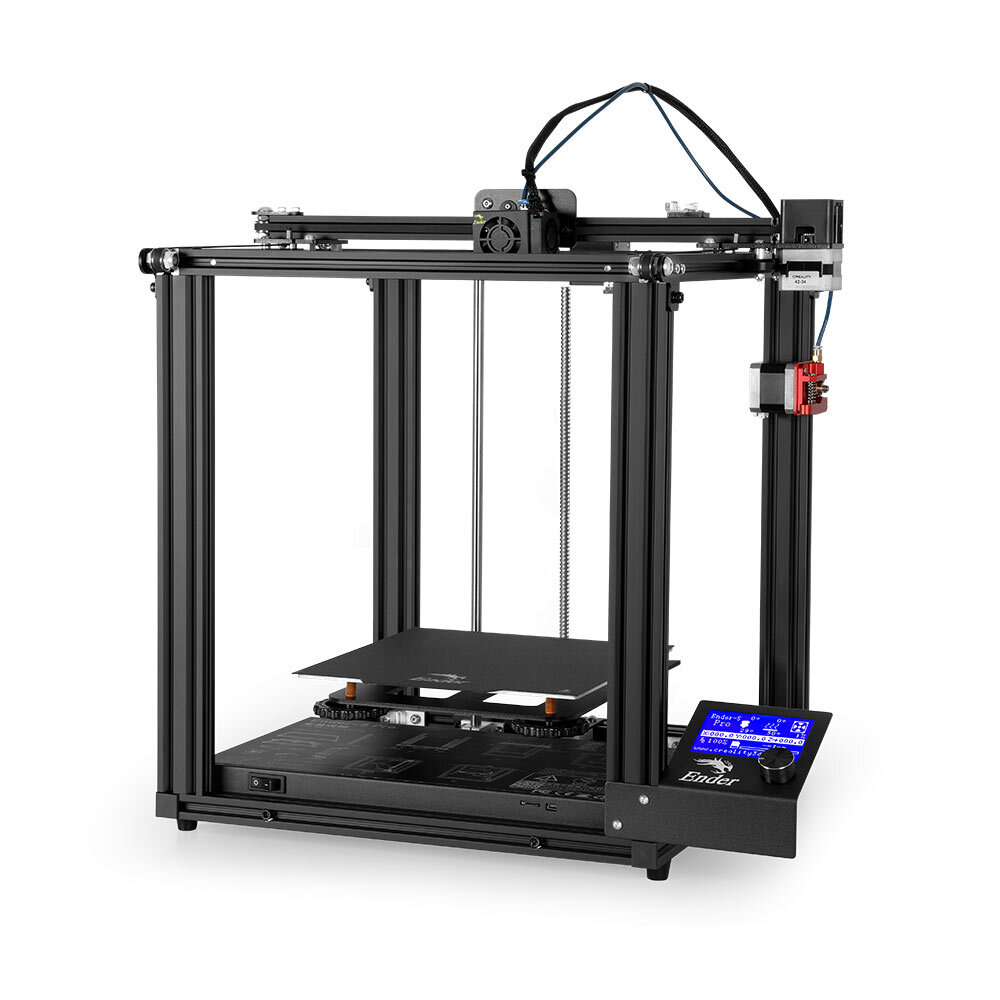

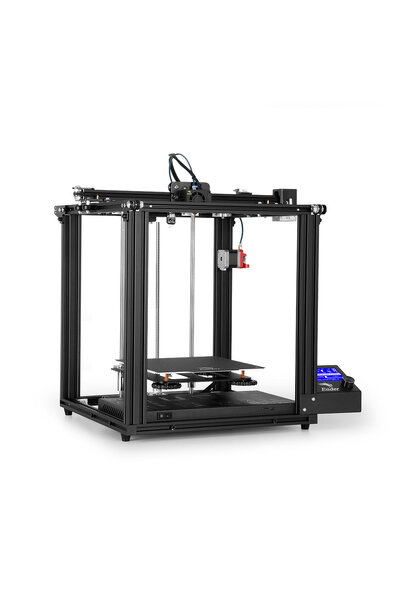

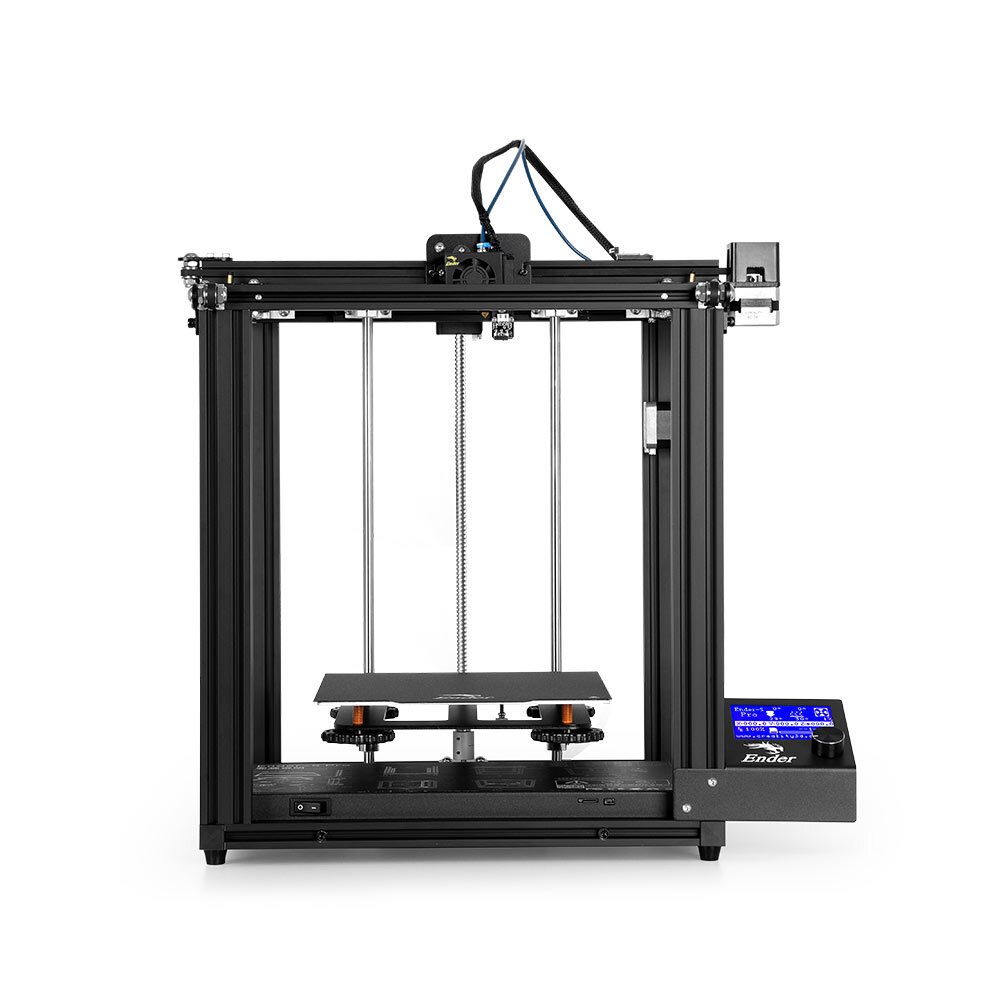

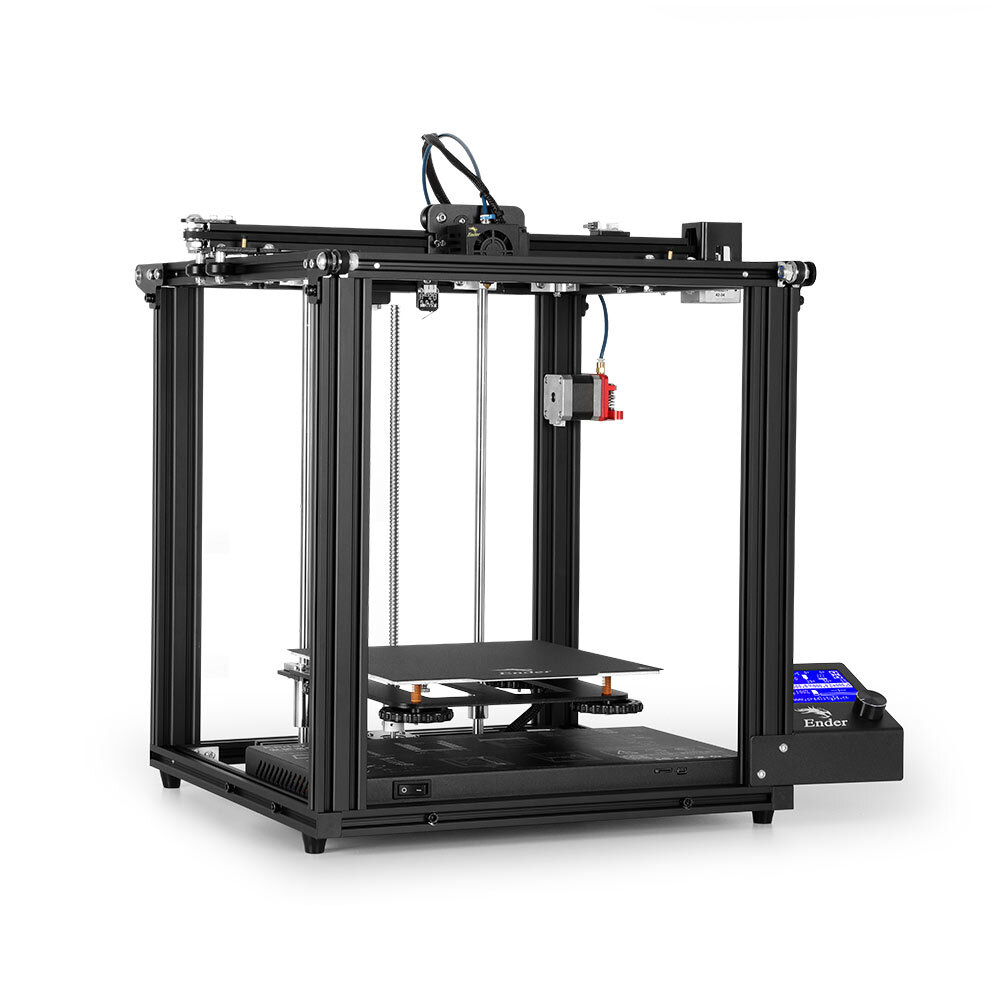

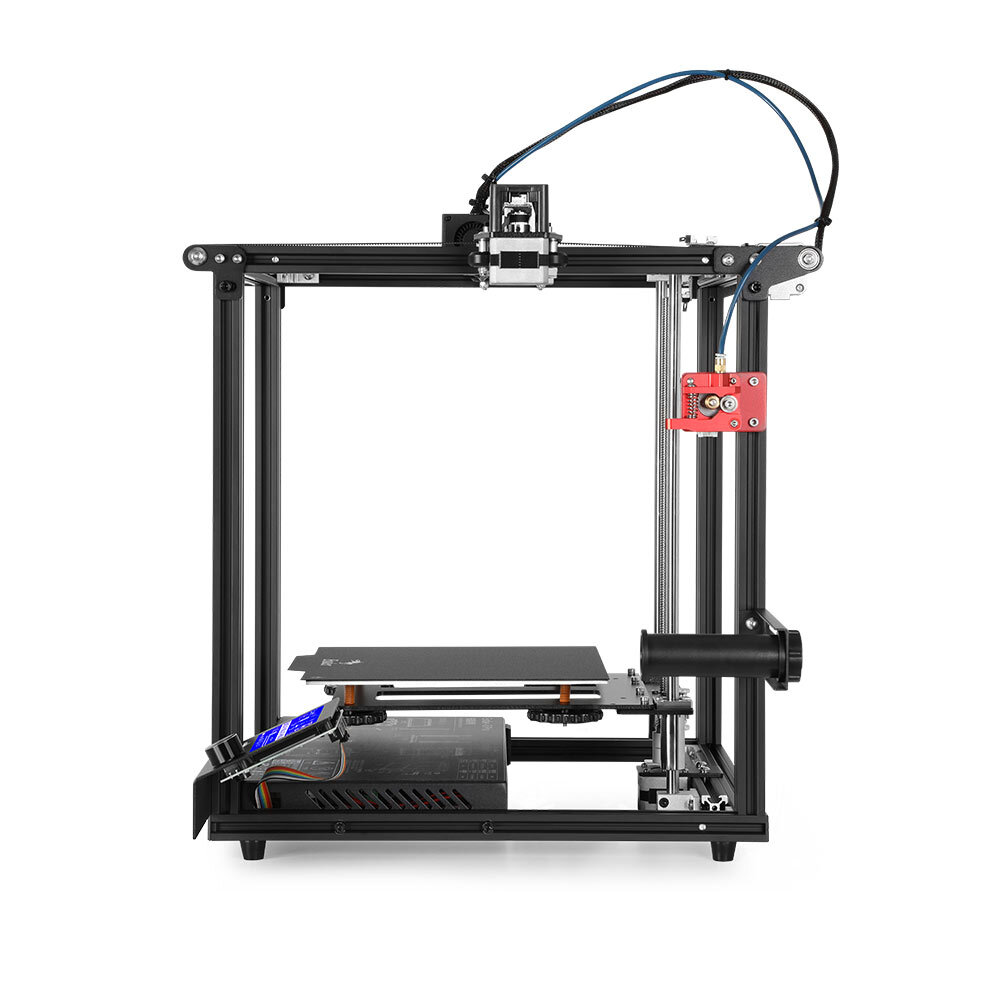

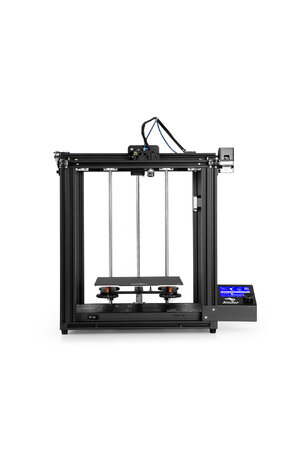

Creality Ender-5 Pro Desktop 3D Printer

Part of the series 3D Printers & Accessories.

View all products in this series

---

With the Creality Ender-5 Pro desktop 3D printer you can add 3D printing to your workbench to produce working prototypes, ‘one-offs’ & finished designs downloadable from the internet. From printing your own gaming pieces to cosplay parts and fixes for broken parts, a 3D printer adds incredible versatility to your workbench. The Ender-5 Pro has a double Y-axis control system with synchronous operation and stable output to avoid the vibration resulting from long time printing. It also features a power supply protection and resume printing functions which allows users to worry less about sudden power failure causing designs to be unfinished and unable to be restarted. The V-guide rail and pulley allow for a stable and smooth operations, low noise, wear resistance and a longer service life. The soft magnetic self adhesive platform allows users to conveniently pick up models and has an excellent adhesion. A built-in power supply for the motherboard means that cabling is neat, safe and secure. The Ender-5 Pro features a 220 x 220 x 300mm build area. Size of machine: 552 x 485 x 510mm.

Features

• Dual Y-axis motion control system drives the high-quality stable output of the two-sided timing belt, effectively avoiding the shock caused by printing.
• Built-in motherboard power supply
• Resume printing function
• Simple levelling method
• Industrial circuit board
• 220 x 220 x 300 build volume
• FDM Moulding technology

Specifications

• Molding technology: FDM
• Print Dimensions: 220*220*300mm
• Print speed: ≤180mm/s
• Normal printing speed: 40-80mm/s
• Print accuracy: ±0.1mm
• Layer thickness: 0.1-0.4mm
• Nozzle diameter: Standard 0.4mm changeable 0.2, 0.3mm
• Nozzle quantity: 1
• Nozzle temperature: ≤260℃
• Hot bed temperature: ≤110℃
• Working modes: Online print or offline print
• Power parameters: Input:110/220V 50/60HZ output: DC24V
• Machine power: 350W
• Printing materials: PLA/ABS/ TPU/WOOD/ COPPER/gradient, etc.
• Filament diameter: 1.75mm
• File formats: STL, Odj, amf
• Net Weight: 11.8kg
• Gross Weight: 14.2 kg
• Machine size: 552 x 485 x 510mm

*Specifications are subject to change without notice.
